Part number: 700241
This professional tool set, belonging to the Wieländer+Schill XSeries – Professional Riveting Technology product family, has been specifically developed for the professional and efficient removal of Self Piercing Rivets (SPR) during body repair work. The set ensures a precise fit and reliable operation, minimizing the risk of damage to surrounding materials.
The D3 + D5 tool set contains two crucial components that work together to enable the safe removal of SPR rivets. The professional-grade tools guarantee a long service life and reliable performance even under intensive workshop conditions.
Main area of application: Punching and extraction of Self-Piercing Rivets (SPR).
Set contents:
The package includes the following precisely manufactured components:

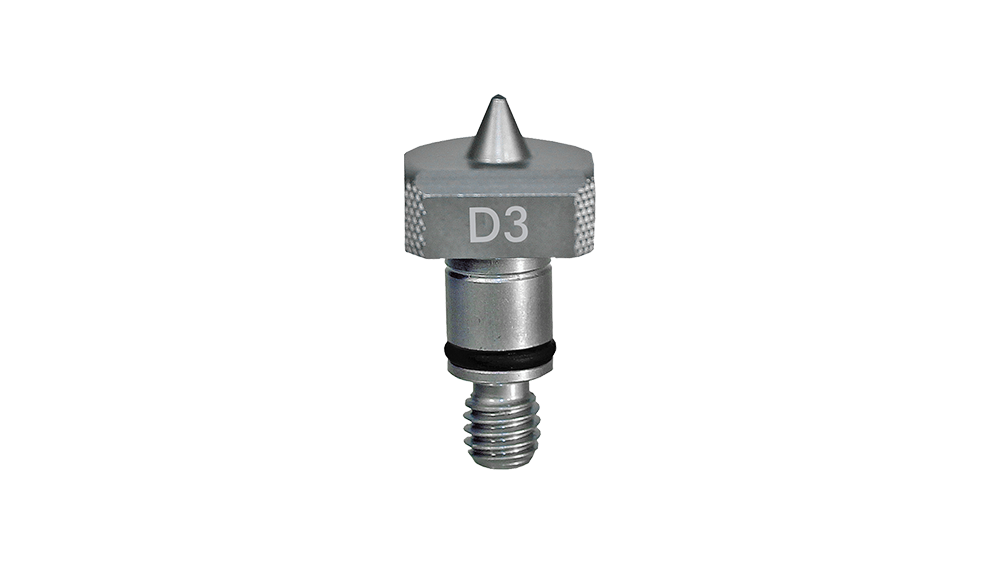

D3 Extraction Mandrel: This component is responsible for piercing the core of the SPR rivet and preparing for the extraction process.

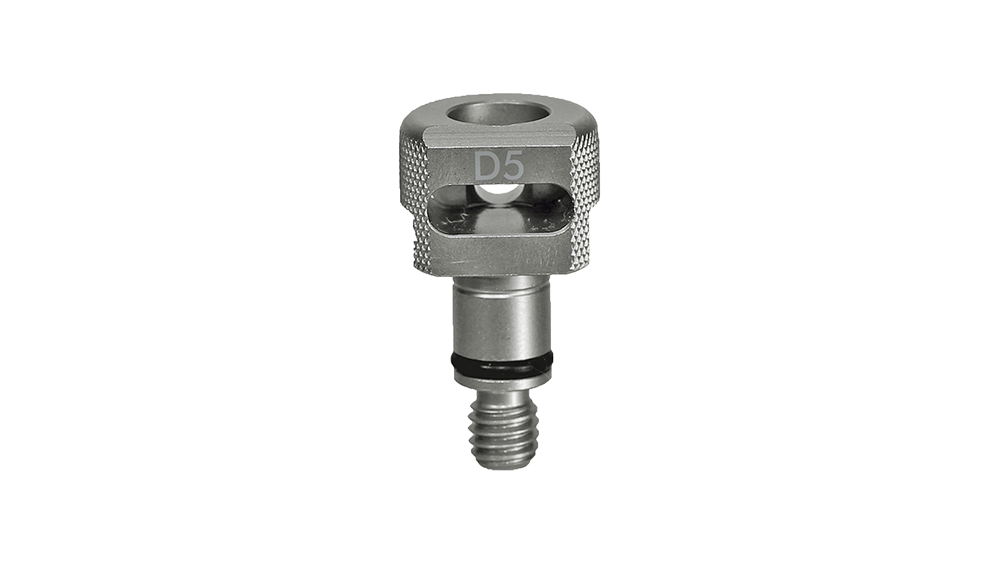

D5 Punching & Extraction Die: This tool ensures a precise fit onto the rivet head and performs the actual removal with the help of the mandrel.
The specifications of the tool set ensure compatibility and precise work execution within the specified size range.
| Component | Part number | Description | Compatible SPR Diameter | Tool Diameter |
|---|---|---|---|---|
| D3 Extraction Mandrel | 700800 | Extraction mandrel for self-piercing rivets | 3.2 mm – 5.0 mm | N/A |
| D5 Punching & Extraction Die | 700816 | Punching and extraction die | N/A | Ø 8 mm |
The tool set with article number 700241 contains the following items:
1 pc 700800 D3 | Extraction mandrel for Self Piercing Rivets: Specifically designed for versions of SPR rivets with diameters between 3.2 mm and 5.0 mm. This mandrel ensures the effective piercing of the rivet core for extraction.
1 pc 700816 D5 | Punching & extraction die: This die features an Ø 8 mm opening that precisely fits the workpiece and supports the function of the D3 mandrel during the rivet removal process.
By using the Wieländer+Schill tool set, professionals can benefit from the following advantages:
OEM Compliance: The tools are manufactured according to professional body repair standards, often meeting the recommendations of Original Equipment Manufacturers (OEMs).
Efficiency: Enables fast and clean removal, reducing repair time.
Accuracy: The tools are manufactured with tight tolerances, which minimizes damage to surrounding panels, especially on sensitive aluminum or high-strength steel structures.
Durability: Components made from high-quality steel that withstand high mechanical stress.
Wieländer+Schill is committed to the highest quality, which is supported by certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These certifications guarantee that strict quality control processes are applied during the manufacture of the tool kit.
This tool kit is part of the XSeries professional riveting technology portfolio, offering solutions for fastening and repairing the most modern body components. The use of the tools generally requires a suitable hydraulic or electric drive unit, which provides the necessary force for pushing out and removing rivets.
Note: To view prices and exact availability, please log in to your user account.
