Part number: 511302

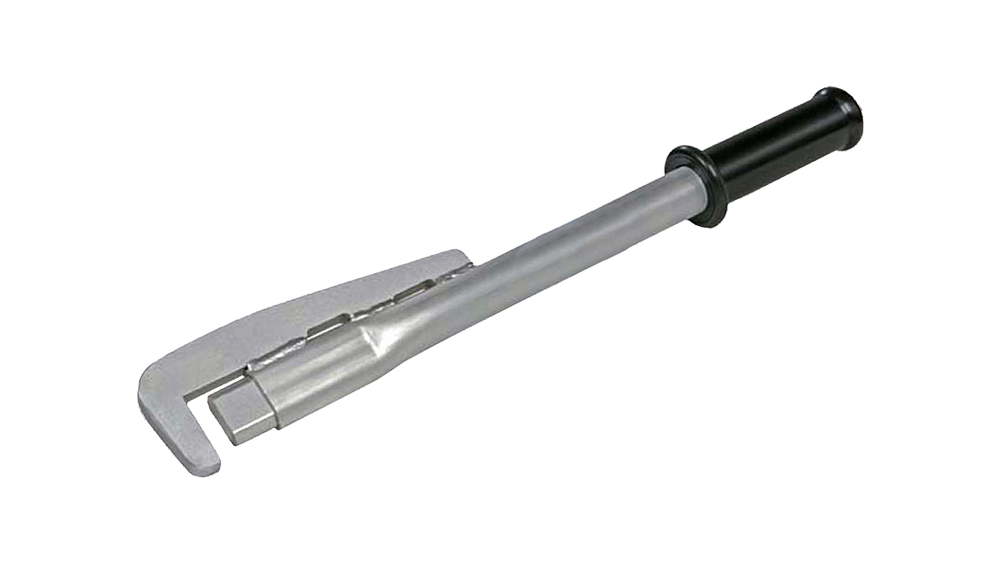

This excellent quality adjusting tool offers an ideal solution for the precise adjustment of welded hinges. The universal hinge adjustment tool offered by Wieländer+Schill is an indispensable device for body repair work, guaranteeing fast, precise, and damage-free work.

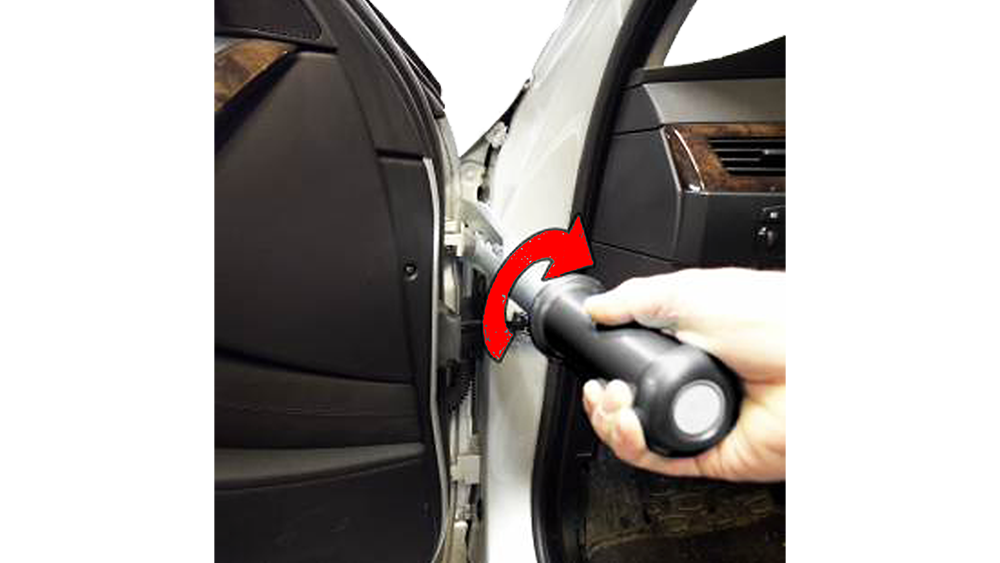

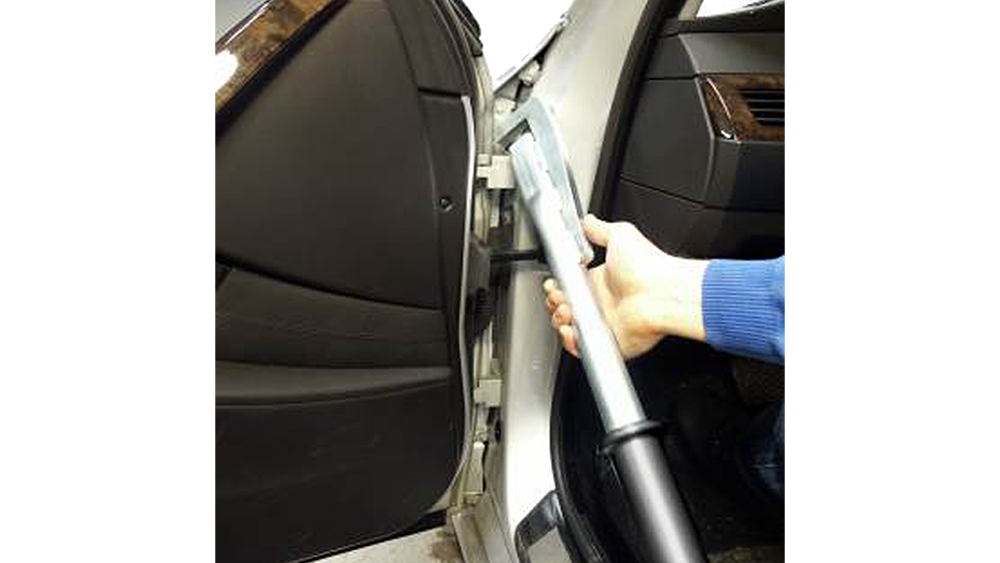

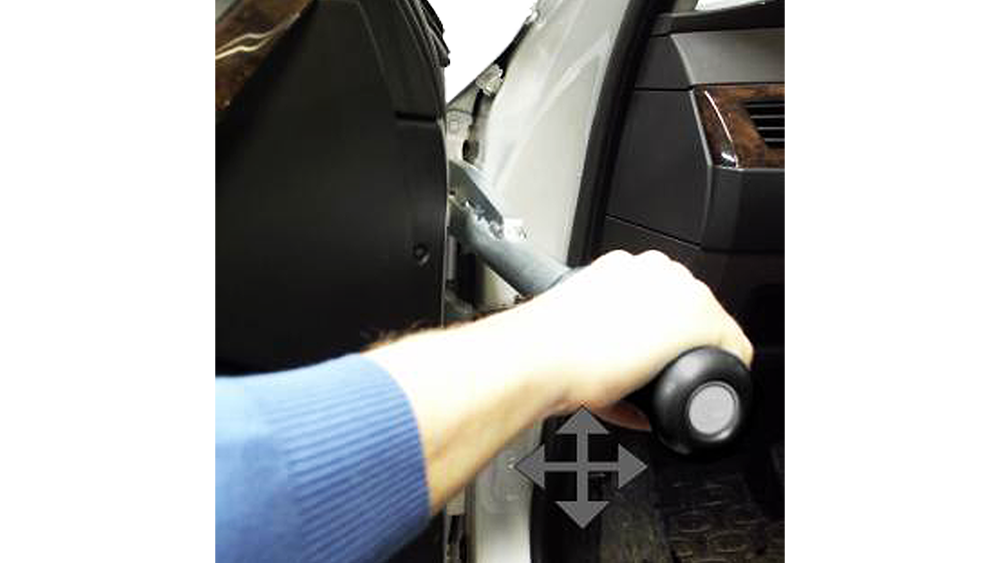

This professional quality adjusting tool allows the user to envelop the hinge with a single movement. The integrated adjustment mechanism ensures a precise and backlash-free connection between the hinge strap and the tool. This design allows for simple and fine adjustment of the hinge in any direction, whether it is a height, lateral, or depth correction.
The use of the tool minimizes the risk of damage to the body, which often occurs during traditional, less precise interventions. The stable construction and quality material usage guarantee a long service life and reliable performance even in the most intensive workshop environments.
Main Features:
Precise Adjustment: The integrated mechanism allows for backlash-free, millimeter-precise correction.
Universal Applicability: Thanks to the wide clamping range, it can be used for the welded hinges of numerous vehicle models.
Easy Operation: Ergonomic design and fixing with a simple hand movement.
Durability: Robust construction that withstands workshop demands.
The following table details the specifications of the Universal Hinge Adjustment Tool (511302):
| Property | Value | Note |
|---|---|---|
| Part number | 511302 | Product Identifier |
| Clamping range | 0 – 42 mm | Maximum clampable hinge thickness |
| Length | 580 mm | Total length of the tool |
| Material composition | Plastic, Steel (Kunststoff, Steel) | Combination of robust and durable materials |
| Weight | 4,500 kg | Weight of the tool |
| Package contents | 1 piece (1 stück) | Contents of the package |
This tool is primarily designed for professional body repair workshops where the highest level of precision is required during repair processes. Ideal for:
Door and Tailgate Adjustment: Precise adjustment for optimizing the fit between body elements and the frame.
Welded Hinge Correction: Specifically designed for fine-tuning welded hinges, where correcting deviations from factory settings is necessary.
Fine-tuning after Body Element Replacement: Fitting new or repaired hinges to achieve perfect gap spacing.
The 580 mm length provides sufficient working distance for the user, while the 4.5 kg weight ensures stability during adjustment. The clamping range between 0 and 42 mm makes its usability extremely wide in the modern vehicle fleet.
This tool is part of the Wieländer+Schill „Service and Workshop” category, found under the „Clamping and Auxiliary Tools” subcategory, emphasizing the manufacturer's commitment to professional body specialist tools.
