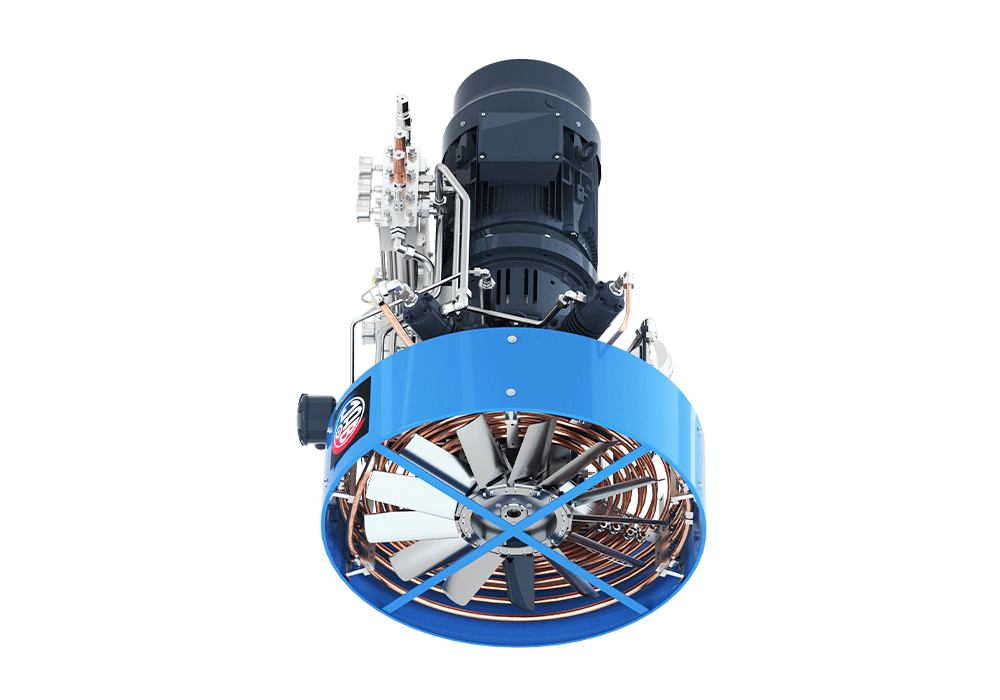

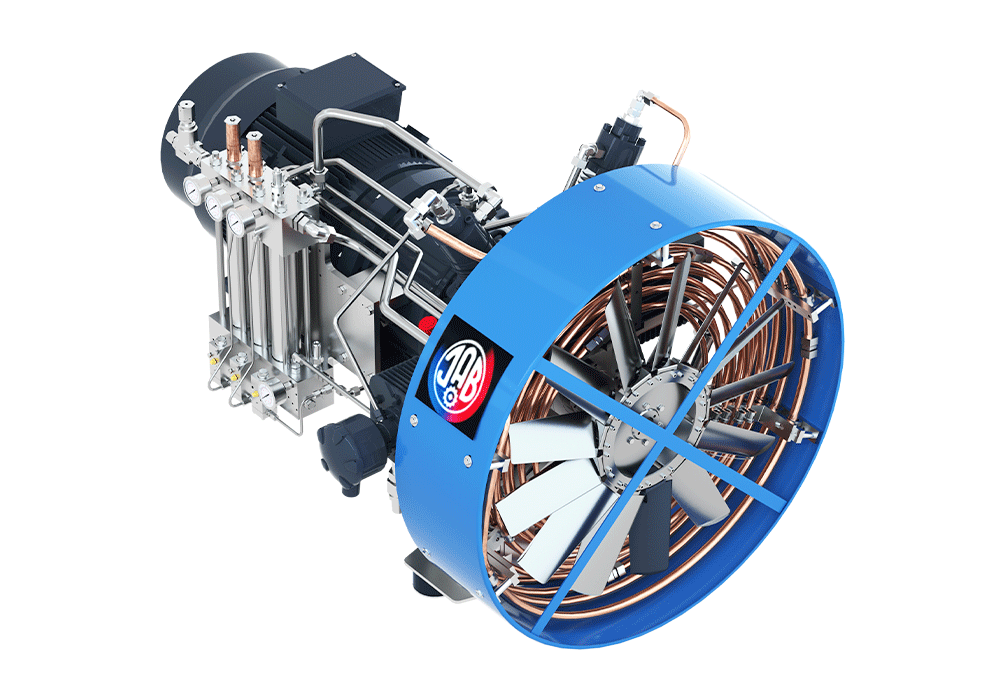

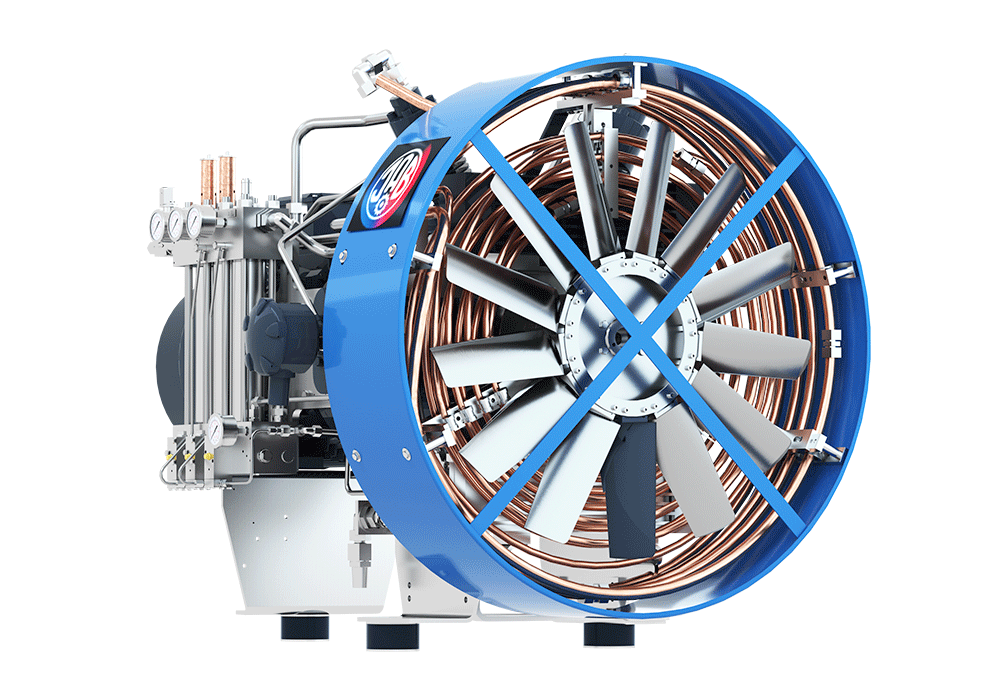

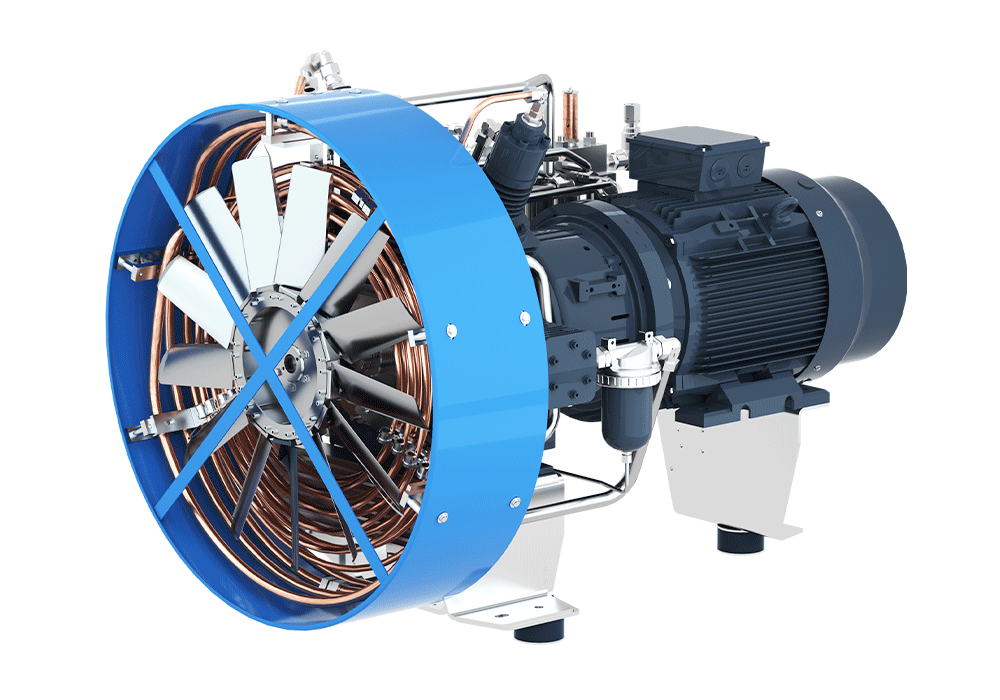

The J.A. Becker & Söhne SVB 1100/350 model is a top-class, four-stage air compressor designed for high-performance, reliable compressed air supply, especially for applications requiring very high pressure. This equipment is ideally suited for industrial environments where the continuous and stable provision of 350 bar pressure air is essential.
The SVB 1100/350 compressor is not an „off-the-shelf product”; it embodies the engineering precision and pursuit of durability characteristic of J.A. Becker & Söhne. The outstanding performance and long service life of the unit are guaranteed by the following features:
High-efficiency cooling: The compressor's advanced cooling system minimizes heat generation during the compression process. This not only increases system efficiency but also significantly contributes to extending the lifespan of internal components, thereby reducing operating costs.
Fully automatic condensate drain: The built-in, fully automatic condensate drain system ensures that the system always remains dry. This is critically important for the reliability of high-pressure systems, as it prevents corrosion caused by water separation and damage to valves.
Long maintenance intervals: The robust construction and use of excellent quality materials enable extremely long maintenance cycles. This maximizes uptime and reduces the frequency of breakdowns, which is also economically very advantageous.
Outstanding quality in every respect: Every component of the unit has been designed to meet the highest quality standards, ensuring reliable operation even under the most demanding conditions.
The performance and parameters of the SVB 1100/350 compressor are detailed in the following table:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow rate (Suction side) | 1.100 | l/min | Corresponds to 64.8 m³/h |
| Maximum Operating Pressure | 350 | bar | For extremely high-pressure applications |
| Compression Stages / Cylinder | 4 / 4 | – | Four-stage compression arrangement |
| Electric motor performance | 30 | kW | Powerful Drive |
| Rotational speed | 1.500 | rpm | Optimized operating speed |
The four-stage design ensures efficient pressure increase to reach 350 bar:
First stage: Low-pressure compression.
Second stage: Medium-pressure compression.
Third stage: High-pressure compression.
Fourth stage: The final, high-pressure compression to reach 350 bar.
This multi-stage process reduces the load and heat generation of individual stages, contributing to system stability and service life.
The SVB 1100/350 compressor is the ideal choice for areas requiring a large volume of extremely high-pressure compressed air, such as:
Gas cylinder filling: Specifically for the fast and reliable filling of high-pressure gas containers (e.g., breathing air tanks, gas cylinders).
Industrial processes: Manufacturing processes that require extremely high-pressure air for operation.
Test benches: Performing high-pressure leak tests and pressure trials.
Further detailed information regarding the product, including the complete technical data sheet and product brochure, is also available for download. These documents provide deeper insight into the compressor's design philosophy and installation requirements.
J.A. Becker & Söhne is committed to ensuring its customers receive the most suitable solution. An expert team is available for consultation to help you select and integrate the equipment optimally for your specific needs.
