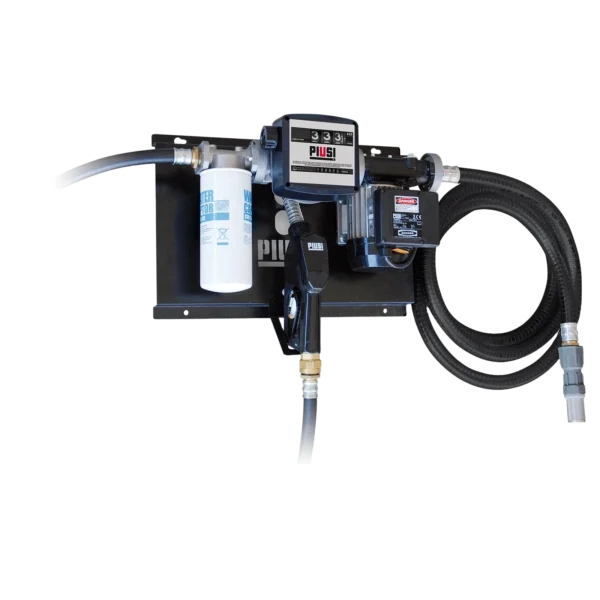

The ST METERED AND FILTERED DIESEL DISPENSING STATION An extremely flexible and modular solution, specifically designed to meet non-commercial (e.g., agricultural, construction, industrial) fuel transfer needs. This system allows the user to design their own customized dispensing unit using components that best fit the operating conditions.
This modular diesel transfer station is an ideal choice for complementing mobile or in-ground storage tanks where reliable and precise fuel dispensing is required.
The ST METERED AND FILTERED system focuses on user-friendly design and reliable performance:
Ready to Use: The system is optimized for fast installation and immediate commissioning.
Versatile: Capable of adapting to almost any existing tank structure, whether for mobile or fixed installation.
Easy to Install: Specifically designed for simple installation, minimizing downtime.
Compact Design: A space-saving solution that can be efficiently integrated into existing infrastructure.
Filtration Guaranteed: Includes filtration as standard equipment, ensuring fuel quality.
Available with Different Pumps: Pump performance can be flexibly selected according to usage requirements.
The basis of the ST dispensing station is a robust, modular structure that includes the following essential elements:
Bottom Valve Filter Unit: Equipped with a valve and filter located at the bottom of the system, which ensures fuel cleanliness even in the basic configuration.
Dispensing Hose: By default, it comes with a 4-meter dispensing hose, but a 6-meter length is also optionally available for more convenient handling.
Nozzle Holder: Equipped with a practical nozzle holder for safe storage.
The system's customizability is further enhanced by optionally orderable components:
Metal Box: A durable metal enclosure is available upon request, which protects the internal components of the dispensing station from harsh weather conditions and other mechanical damages.

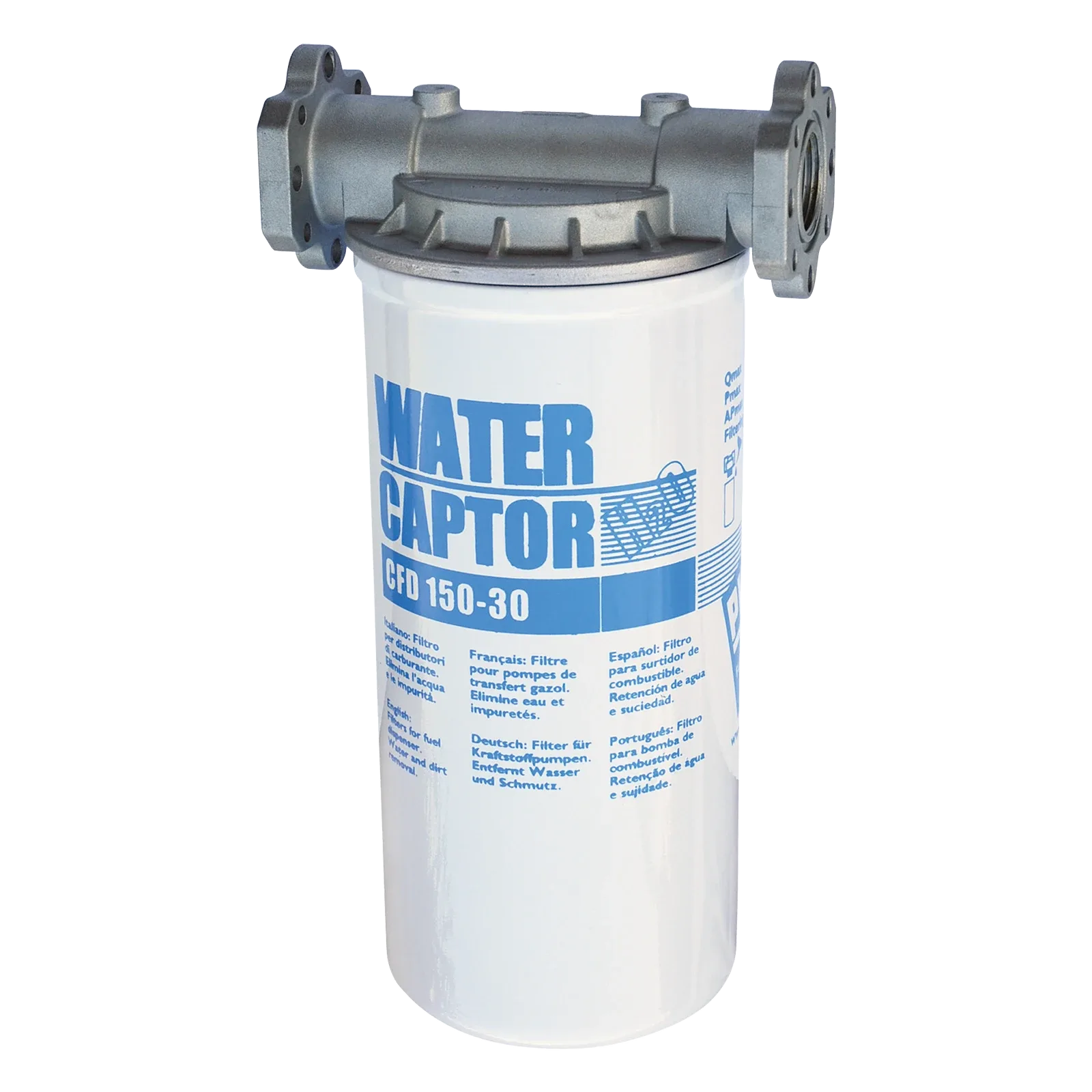

PIUSI WATER CAPTOR Water Separator Filter: The PIUSI WATER CAPTOR water separator filter can be optionally integrated, which guarantees the quality of the dispensed fluid by preventing contaminants (especially water) from entering the system.

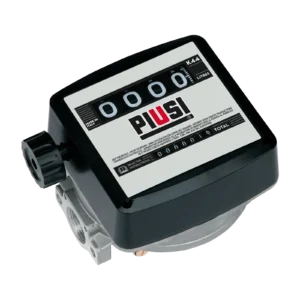

Mechanical Flow Meter: A mechanical flow meter is part of the standard equipment, which allows for simple visual tracking of fuel consumption during dispensing.
The ST MEASURED AND FILTERED station can be further expanded with accessories tailored to user requirements:

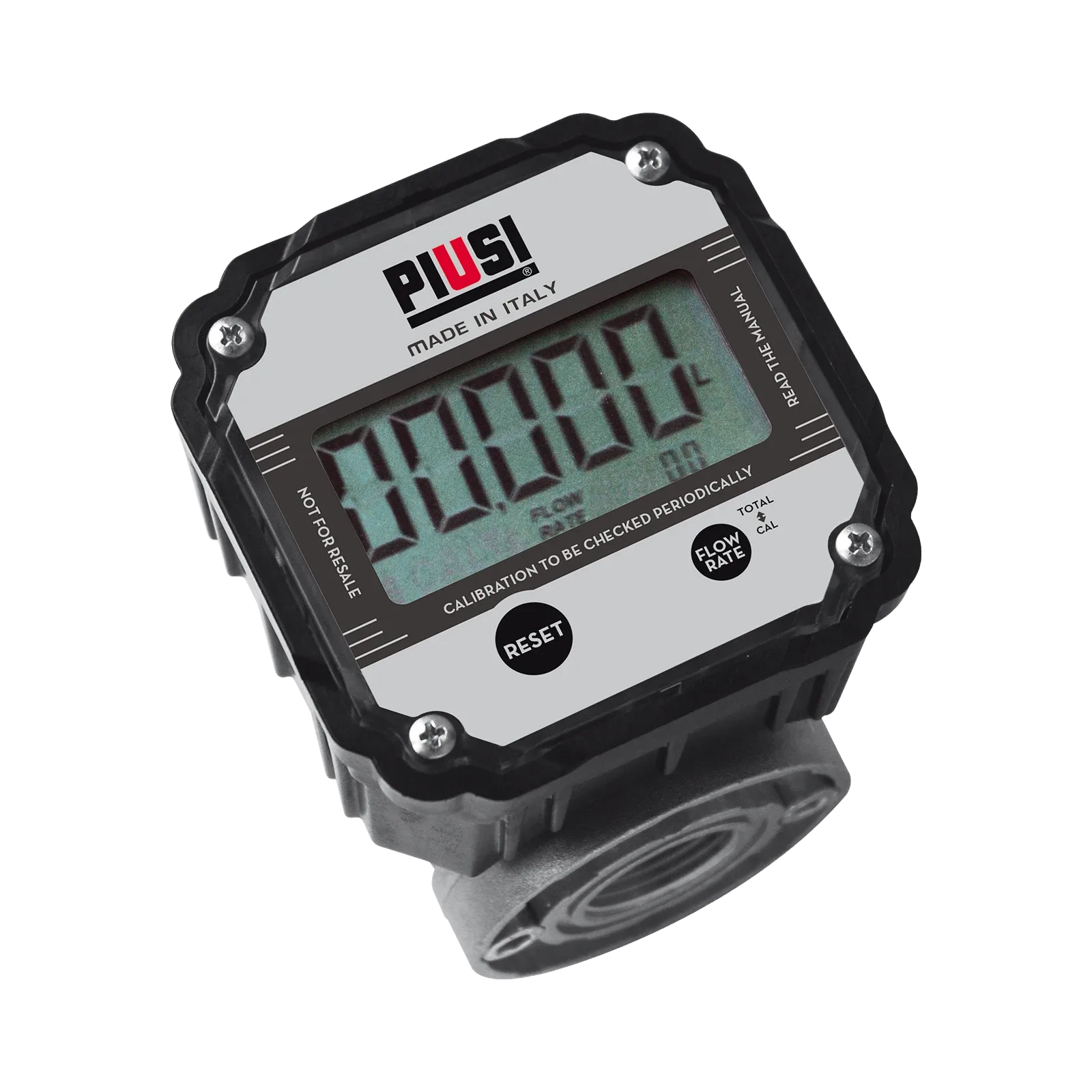

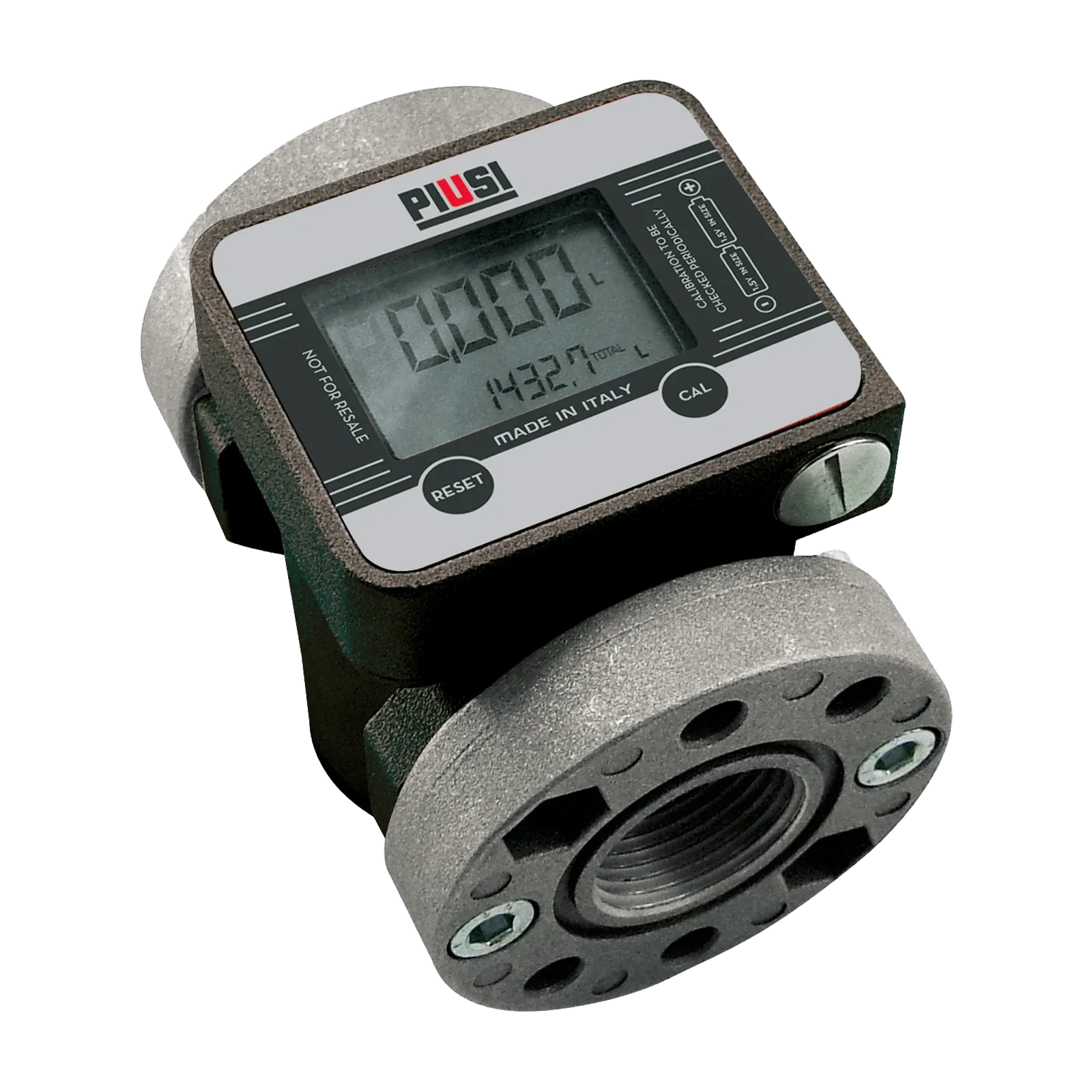

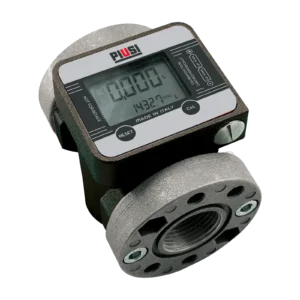

Electronic Flow Meter: Can be integrated for more precise measurement with the K600 electronic flow meter.
Automatic Nozzle: An automatic nozzle can also be connected for more convenient and safer dispensing.
Pump Options: The performance can be selected according to the needs:
AC Pump: With a flow rate of 56-72 liters/minute.
AC E120 Pump: Higher performance option.
This versatile fuel transfer station offers an ideal solution in numerous sectors where reliable, non-commercial diesel consumption takes place:
Agriculture: Fuel supply for tractors, combine harvesters, and other agricultural machinery.
Mining & Construction: Refueling of high-power construction machinery and heavy equipment on the job site.
Industrial Sector: General fuel supply for vehicles and machinery on company premises.
The ST MEASURED AND FILTERED system ensures quiet operation, its noise level is less than 75 dB, which results in a safe working environment.
The table below summarizes the main technical characteristics and product codes available in different configurations:
| Product code | Description | Pump Type (Implied) | Hose Length | Filter/Water Separator |
|---|---|---|---|---|
| F00265F0A | ST PANTHER 72 k33/F/6MT/PA60/ASP 4MT | Panther 72 (approx. 72 l/min) | 6 m + 4 m Suction | Filter (F) |
| F00265F40 | ST PANTHER 72 k33/F/6MT/PA60 | Panther 72 (approx. 72 l/min) | 6 m | Filter (F) |
| F00265R70 | ST P72 K24 A80 6mt TUBO C/CLEAR CAPTOR | Panther 72 (approx. 72 l/min) | 6 m | CLEAR CAPTOR (Water Separator) |
| F00265S20 | ST PANTH 72 K24 F A60 6mt | Panther 72 (approx. 72 l/min) | 6 m | Filter (F) |
| F00265S80 | ST PANTHER 72 K600 B/F/6MT/PA60 | Panther 72 (approx. 72 l/min) | 6 m | Filter (F) + K600 Meter |
| F00386F0A | ST PANTHER 56 K33/F/6MT/PA60/ASP 4MT | Panther 56 (approx. 56 l/min) | 6 m + 4 m Suction | Filter (F) |
| F00386F60 | ST PANTHER 56 K33/F/6MT/PA60 | Panther 56 (approx. 56 l/min) | 6 m | Filter (F) |
| F00386R70 | ST PANTH56 K33 CC/6MT/PA60 | Panther 56 (approx. 56 l/min) | 6 m | CLEAR CAPTOR (Water Separator) |
| F00395F0A | ST E120 K33/F/6MT/PA120/ASP 4 MT | E120 (approx. 120 l/min) | 6 m + 4 m Suction | Filter (F) |
| F00395F60 | ST E120 K33/F/6MT/PA120 | E120 (approx. 120 l/min) | 6 m | Filter (F) |
Note: „k33”, „k24”, „K600” refer to the type of built-in flow meter (mechanical or electronic). „PA60” or „PA120” refers to the pump performance (approx. 60 or 120 l/min). „F” denotes a filter, and „CC” denotes the Water Captor filter.
The ST METERED AND FILTERED DIESEL DISPENSING STATION combines PIUSI engineering precision with customization according to user requirements, ensuring efficient and clean transfer of diesel and HVO/XTL fuels in the most diverse industrial environments.
