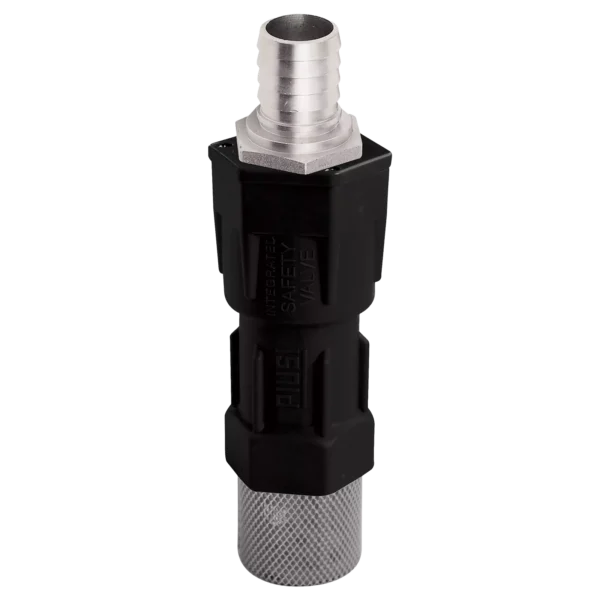

The PIUSI Vantage Foot Valve offers a revolutionary solution in the field of fluid transfer for protecting machine suction hoses and increasing their efficiency. This robust, high-performance component is specifically designed for operation in harsh environments, ensuring clean fuel supply and system reliability.
The Vantage concept redefines the functions of foot valves, combining excellent filtration capability with durability and ease of handling. It is the ideal choice for agricultural, logistics, mining, construction, industrial, marine, and garage applications where the safe and efficient suction of diesel, HVO/XTL, and oils is essential.
The PIUSI Vantage foot valve is tailored to user needs and features several outstanding characteristics:
High-Performance Filtration System: The built-in mesh filter effectively removes diesel fuel residues and contaminants from the suction hose, thus protecting pumps and sensitive machine components from damage.
Robust, Impact-Resistant Design: The valve body is made of extremely strong, impact-resistant plastic. This design minimizes the risk of mechanical damage, which is particularly important in harsh working environments (e.g., construction sites or mines).
Low Pressure Drop: The valve is hydrodynamically optimized, which guarantees that the suction system delivers the fluid to the pump with minimal resistance, thereby increasing the overall efficiency of the system.
Quick Closing/Opening: The structure allows for quick and secure latching/unlatching, facilitating maintenance and fast installation.
Safety Indicators: The valve provides clear visual indications of the open and closed states, which increases safety and reduces environmental risks (e.g., accidental leakage).
HEAVY DUTY Design: Specifically designed for heavy-duty use, ensuring long life and reliability.
The PIUSI Vantage foot valve can be used versatilely in the following sectors:
Agriculture: Fuel supply for tractors, combine harvesters, and other agricultural machinery.
Logistics & Transport: Fuel suction systems for heavy-duty vehicles and fleets.
Mining & Construction: Reliable fuel supply for heavy machinery, excavators, and other construction equipment.
Industrial Applications: Fluid handling for production lines and large-scale equipment.
Marine Sector (Naval): Protection of fuel suction hoses for ships and watercraft.
Garage Equipment: Professional fuel dispensing and suction systems.
PIUSI offers a wide range of options for different connection sizes and material requirements. The product family includes options both with and without a filter, as well as different body materials (plastic and brass).
| Product Code | Description | Connection | Filter | Material |
|---|---|---|---|---|
| F00609000 | FOOT VALVE WITH STRAINER | 1″ BSP | Yes | Plastic |
| F00612000 | FOOT VALVE WITH STRAINER | ¾” BSP | Yes | Plastic |
| F07746000 | FOOT VALVE WITH STRAINER | 1″ BSP | Yes | BRASS |
| F07978000 | FOOT VALVE WITHOUT STRAINER | 1″ BSP | No | Plastic |
| F08153000 | FOOT VALVE WITHOUT STRAINER | ¾” BSP | No | Plastic |
| F09170000 | HIGH PRESSURE VALVE | 1″ BSP | No | Plastic/Metal |
| F1239900C | HF FOOT VALVE | ¾” BSP | No | Plastic |
| F1239904C | HF FOOT VALVE + SEALING CONNECTOR | 3/8” BSP x d.20,2 | No | Plastic |
| F15749000 | FOOT VALVE WITH SAFETY VALVE (12 pcs/package) | 1″ BSP | Yes | Plastic |
| F21476000 | FOOT VALVE WITH STRAINER | 1 ½” BSP | Yes | Plastic |
Optional Spare Parts:
The system's maintainability is ensured by stainless steel (INOX) filter inserts (e.g., F07979000, for 1″ G size), whose replacement can significantly extend the life of the valve.
The foot valve located at the end of the suction pipe plays a fundamental role in maintaining the integrity of the fluid system. The filter in the Vantage model captures not only coarse contaminants but also finer particles that could, over time, damage the pump seals, bearings, or the injection system.
A clean fuel ensuring is critical for modern, high-precision engines. The presence of the filter reduces pump cavitation and improves suction performance, as the fluid flow remains more uniform.
During the design of the PIUSI Vantage foot valve, special attention was paid to safety:
Sealing Integrity: The precise opening/closing mechanism guarantees that the fluid in the suction hose does not flow back when the pump stops, thus preventing unwanted leaks and air ingress.
Material Selection: The impact-resistant plastic (or brass) materials ensure excellent chemical resistance to diesel, HVO, and oils, ensuring long-term reliability.
The PIUSI Vantage foot valve is the cornerstone of reliable fluid transfer, minimizing downtime and maximizing machine operating time.
