| Weight | 2,52 kg |
|---|---|
| Dimensions | 33 × 6 × 23 cm |
The Wieländer+Schill RivBox 3 | Rivet Set GM a professional, comprehensive set specifically tailored for the body repair needs of General Motors (GM) vehicles. This kit offers a wide selection of the most frequently used flow form and self-piercing flow form rivets, ensuring precise and durable joints on modern body panels.
This set is the ideal choice for any professional performing repairs that meet GM specifications with factory-quality results. The carefully selected components and the included special tool guarantee efficient and reliable work performance.
The RivBox 3 combines quality material usage and functional design:
GM Compatibility: Assembled according to rivet types and dimensions specified by General Motors, making the selection of the correct component easier.
Comprehensive Selection: Includes both standard flow form and self-piercing flow form rivets in various lengths.
Durable Materials: The rivets are made of steel, ensuring high tensile strength and corrosion resistance for long-term reliability.
Special Tool Included: The set includes one WS Special Center Drill 2F- with a self-centering function, facilitating the precise preparation for self-piercing rivets from both the rivet head side and the rivet tail side.

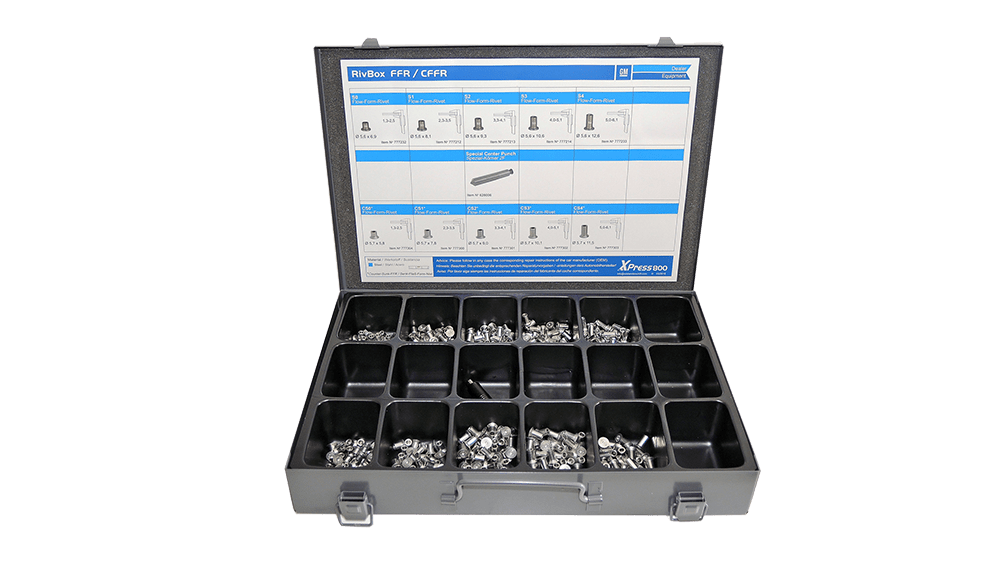

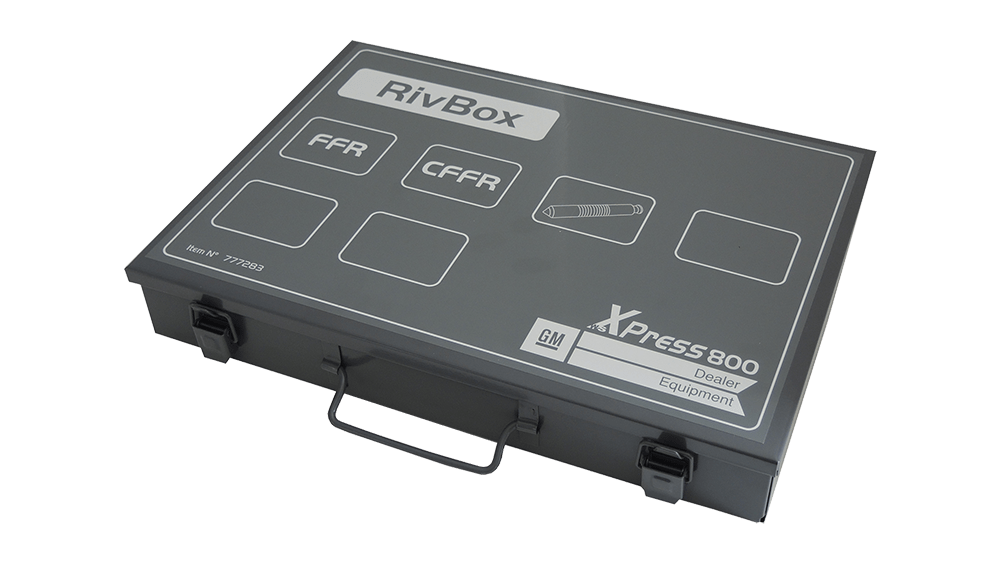

Convenient Storage: The rivets are supplied in a robust, easily portable, and organized box (RivBox), which facilitates handling in the workshop or on site.

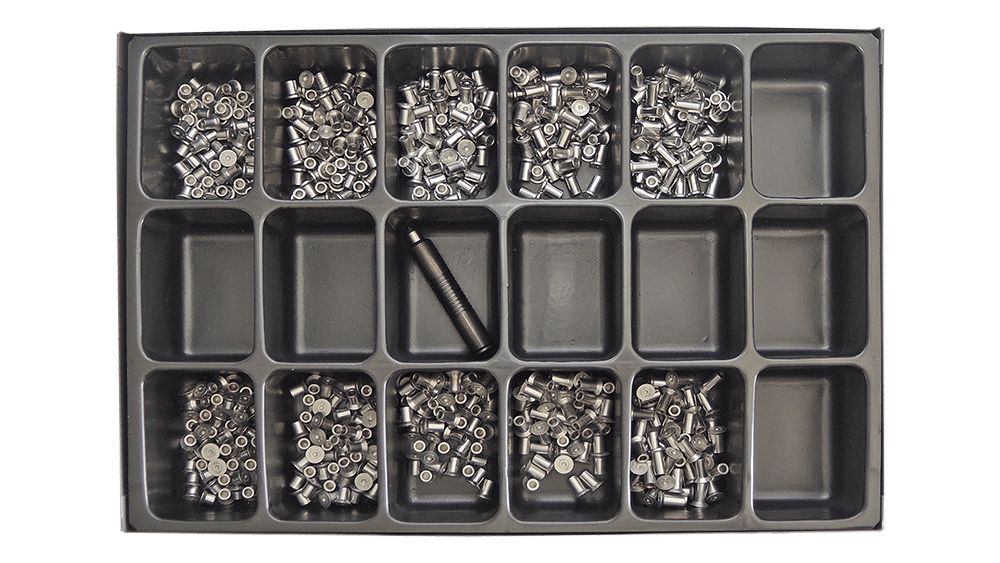

The RivBox 3 offers a complete solution for riveting GM body elements. The package includes the following:
| Item | Part number | Description | Quantity |
|---|---|---|---|
| WS Special Center Punch 2F | 628006 | For Self Piercing Rivets | 1 stück |
These rivets are excellently suited for creating high-strength, durable joints.
| Típus | Part number | Material | Diameter × Length (mm) | Packaging Unit (PU) |
|---|---|---|---|---|
| S0 | 777232 | Steel | Ø 5.6 × 6.9 | 10 pcs |
| S1 | 777212 | Steel | Ø 5.6 × 8.1 | 10 pcs |
| S2 | 777213 | Steel | Ø 5.6 × 9.3 | 10 pcs |
| S3 | 777214 | Steel | Ø 5.6 × 10.6 | 10 pcs |
| S4 | 777233 | Steel | Ø 5.6 × 12.6 | 10 pcs |
These rivets are ideal for surfaces where the rivet head must sit flush with the workpiece surface (for aesthetic or aerodynamic reasons).
| Típus | Part number | Diameter × Length (mm) | Packaging Unit (PU) |
|---|---|---|---|
| CS0 | 777304 | Ø 5.7 × 5.8 | 10 pcs |
| CS1 | 777300 | Ø 5.7 × 7.8 | 10 pcs |
| CS2 | 777301 | Ø 5.7 × 9.0 | 10 pcs |
| CS3 | 777302 | Ø 5.7 × 10.1 | 10 pcs |
| CS4 | 777303 | Ø 5.7 × 11.5 | 10 pcs |
| Property | Value |
|---|---|
| Product Name | RivBox 3 |
| Part number | 777283 |
| Content | 1 set (total 100 pcs rivets + 1 tool) |
| Material | Steel (for the rivets) |
| Dimensions (Length × Width × Height) | 330 x 60 x 230 mm |
| Weight | 2.520 kg |
The set includes WS Special Center Drill 2F (Item No.: 628006) essential for precise rivet insertion. This tool performs two main functions:
Indication from the Rivet Head Side: Aids in precise positioning on the outer surface of the joint.
Indication from the Rivet Back Side: Enables hole preparation at the rivet insertion point, especially for self-piercing rivets.
To cover a broader spectrum of professional requirements, Wieländer+Schill offers further RivBox sets:
RivBox 1 | Universal Rivet Set (Part No.: 777281): Comprehensive selection of structural rivets, blind rivets, flow-form rivets, and rivet nuts.
RivBox 2 | FFR Rivet Set (Part No.: 777282): Exclusively contains a wide selection of flow-form rivets, available in aluminum and steel, in various diameters (Ø 5.6 mm and Ø 7.4 mm).
RivBox 3 provides an optimal, fast, and reliable solution for GM-specific repairs, minimizing the chances of error during body repair processes.
