This professional, high-load capacity suction cup lifter (Saugheber) is ideally suited for handling and installing curved automotive side panels. Equipped with 150 mm diameter rubber suction cups, this articulating lifter provides extremely strong vacuum, guaranteeing safe handling during the most demanding bodywork and glass repair jobs.
The suction cup lifter manufactured by Wielander + Schill is the perfect combination of efficiency and ergonomics, tailor-made for modern automotive requirements.
Strong Vacuum Effect: The large 150 mm diameter rubber suction cups create an extremely strong and reliable vacuum, which is essential for moving large-surface, curved glass elements.
Movable Suction Heads with Longitudinal Slots: The articulating suction heads feature longitudinal (langlöcher) fixing slots. This solution makes the device ideal for strongly curved surfaces, as it allows the optimal positioning of the suction heads adjusted to the curvature of the surface.
For Gas-Free Surfaces: The lifter can be used for all materials and objects that have a non-porous surface, including glass and metal.
The large rubber suction cups represent the proven quality of Wielander + Schill:
Shape Stability: They maintain their original shape, even under intensive vacuum.
Optimal Adaptability: They fit the surface perfectly, maximizing adhesion.
Durability: They ensure a long service life and reliable performance.
During the design process, great emphasis was placed on manageability and user comfort:
Comfortable Handle: The large handle surface offers excellent carrying comfort and fits perfectly in the hand.
Ergonomic Tilting Levers: The wide-surface, ergonomically designed tilting levers ensure optimal power transmission during vacuum activation and release.
Easy Release: The special pull-off tab (Löselasche) on the suction cup facilitates the quick and safe detachment of the suction cup from the surface after the work is completed.
The flexibility of the suction cup lifter allows it to perform several additional functions:
The table below summarizes the critical technical parameters of the product:
| Property | Value |
|---|---|
| Part number | 848022 |
| Suction Cup Diameter (Ø) | 150 mm |
| Construction | Swiveling (Gelenksaugheber) |
| Length x Width x Height | 420 x 150 x 130 mm |
| Material composition | Metal, Plastic, Rubber (kunststoff) |
| Weight | 0.350 kg |
| Field of application | Transport and installation of curved edge protectors |
To maintain the reliability of the tool, spare parts and accessories are available:

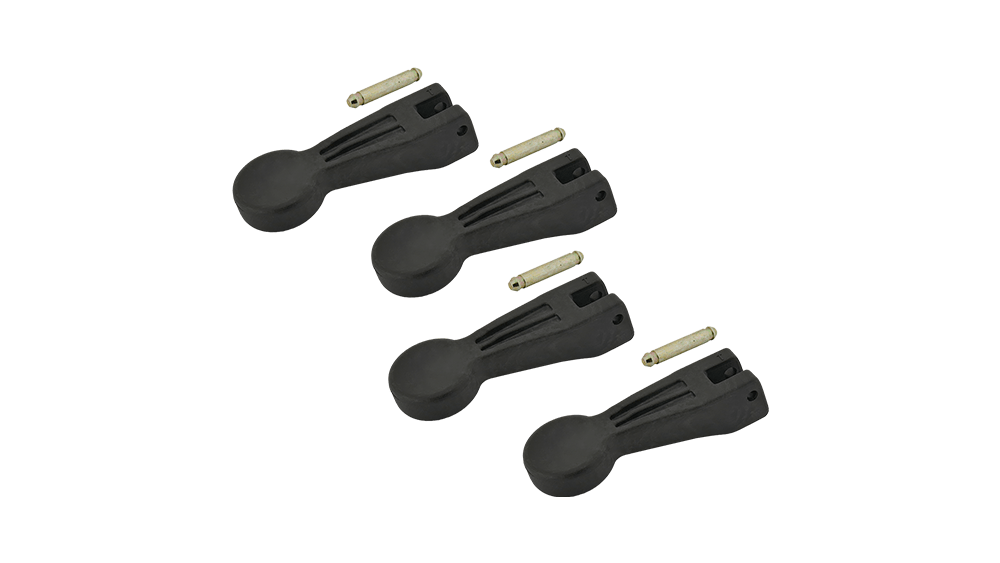

Tilting Lever Repair Kit | 4-piece set (Part No: 848083): Used for repairing the tilting lever parts of the suction cups on the Roll Out edge protector removal system.

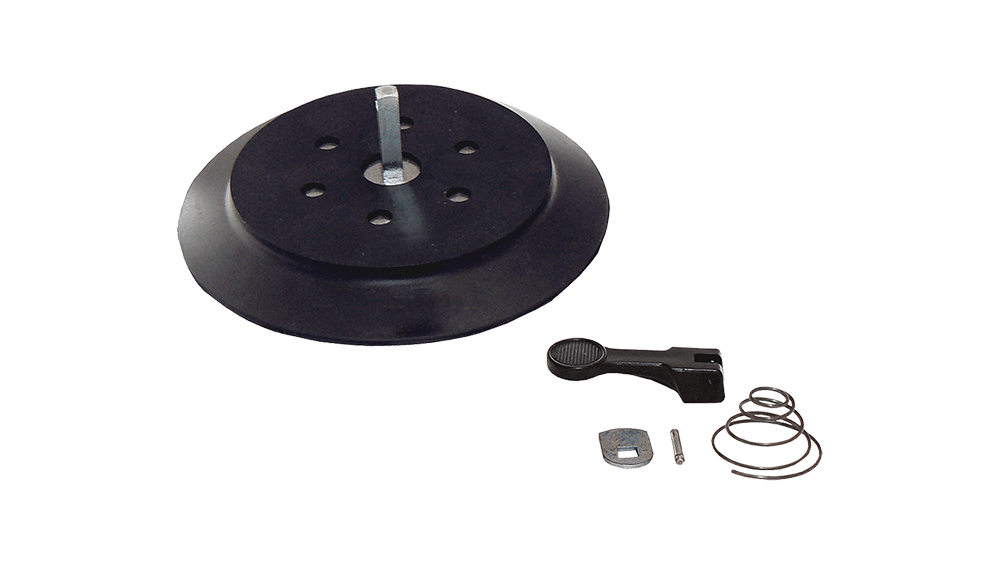

Replacement Suction Cup with Tilting Lever | Ø 150 mm (Part No: 848049): Contents: 1 pc replacement suction cup (Ø 150 mm), 1 pc spring, 1 pc retaining pin, 1 pc washer, 1 pc tilting lever. Ideal for replacing worn or damaged rubber elements.
The following alternatives are also available to suit different needs:
Suction Cup Lifter | Ø 120 mm | 2-piece set (Part No: 848021): Similar functions, but with smaller 120 mm rubber cups, ideal for smaller or less curved glass panes.

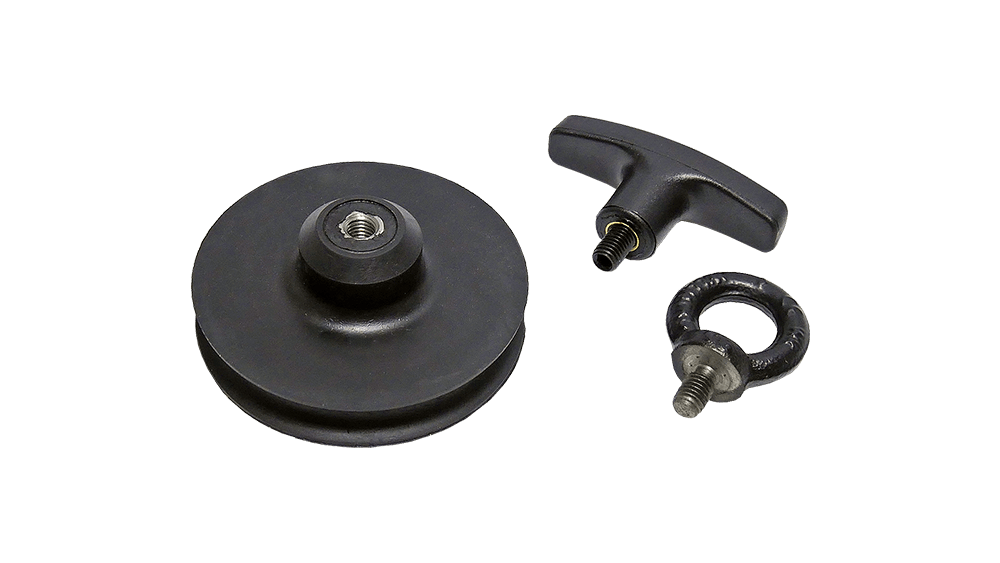

Suction Cup Lifter with T-Handle and Lifting Eye (Part No: 881350): This robust rubber cup lifter offers two ways to secure loads: with a lifting eye for quick attachment, or with a T-handle for lifting and transporting glass or plastic surfaces. Its maximum load capacity in the vertical lifting direction is 15 kg.

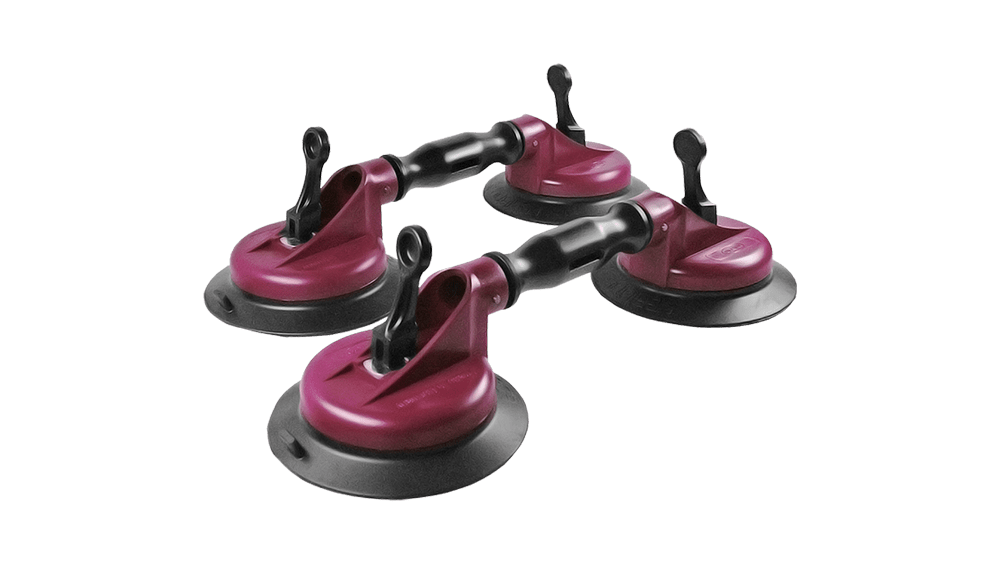

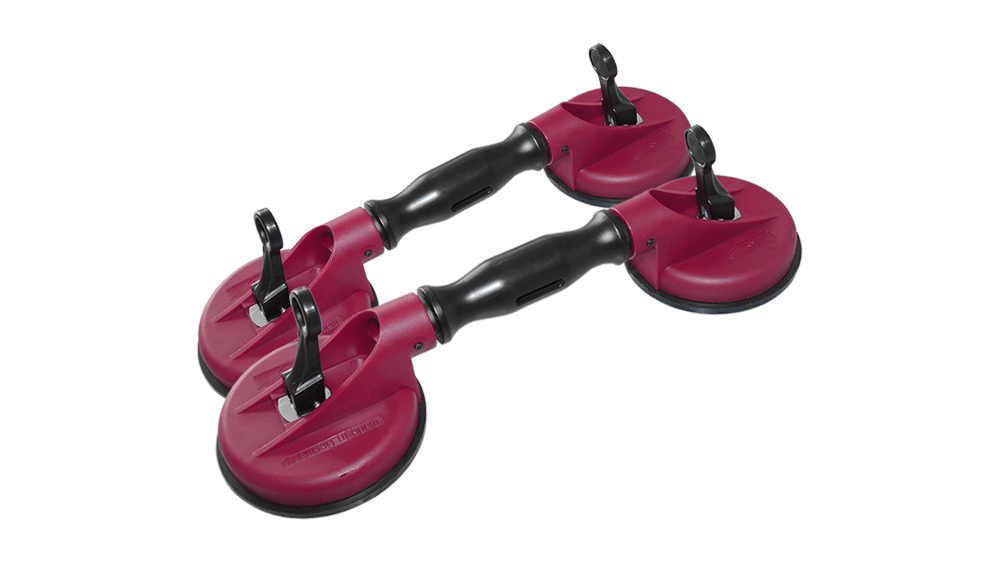

Suction Cup Lifter | Ø 150 mm | 2-piece set (Part No: 848023): The paired version of model 848022, enabling the symmetrical lifting of larger or heavier glass panes.

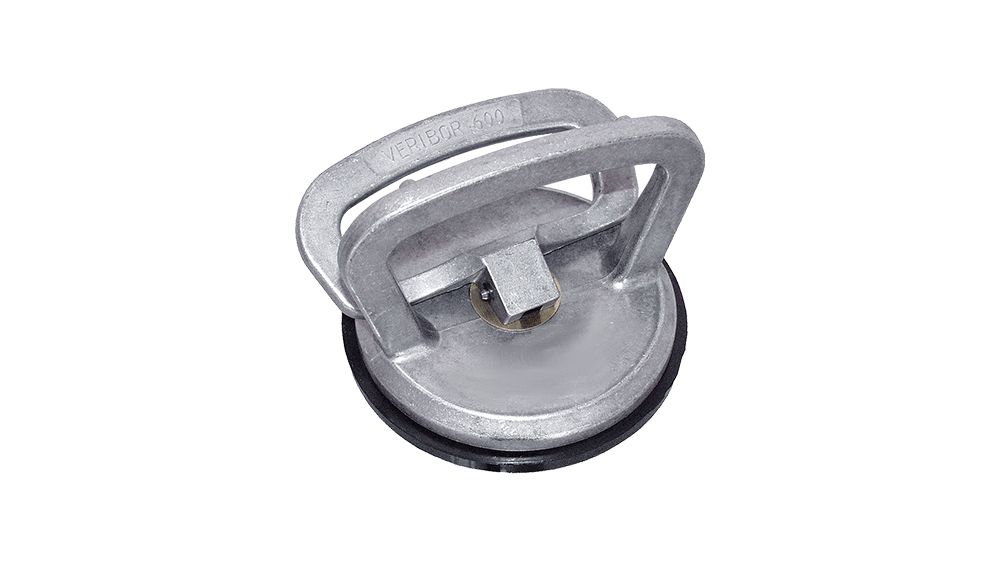

Suction lifter | Aluminum die casting (Part No.: 841021): Recommended for smooth, airtight surfaces (e.g., glass, metal). Easily attached by pressing down the handle lever, and easily released by opening the handle.
Suction lifter | Ø 120 mm (Part No.: 848020): Single, 120 mm version.
This 150 mm suction lifter offers outstanding performance in precision glass handling, either as an accessory to the Wielander + Schill edge protection removal systems (e.g., Roll Out 2000) or as a standalone tool.
