RFX® Wireless Handheld Indicator for Aircraft Weighing

RFX Wireless Handheld Indicator: Intercomp's modern solution for aircraft scales, ensuring precise measurement in the workshop.

Description

Additional information

RFX Wireless Handheld Indicator – Precision Measurement in Aviation Technology

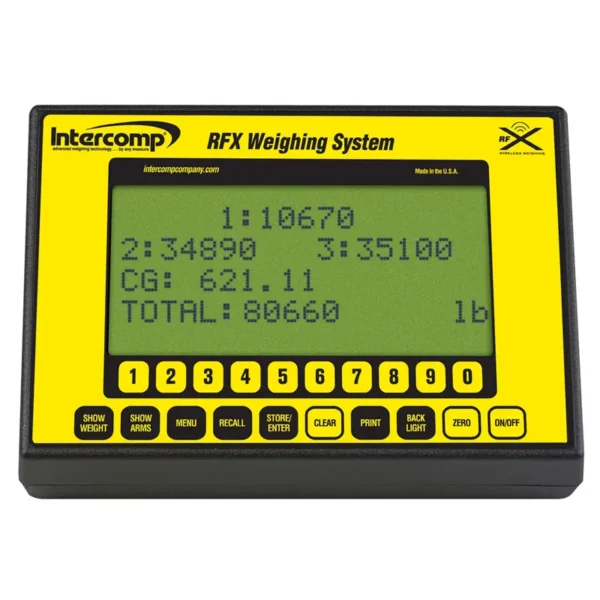

The Intercomp RFX Wireless Handheld Indicator is the most modern solution for aircraft weighing systems, providing unparalleled flexibility and accuracy during gross weight and balance calculations. This portable, intuitive device harnesses the power of wireless technology to ensure seamless communication with compatible load cells, making it an ideal choice for airport operations, maintenance hangars, and weight and balance checks.

The goal of the RFX indicator is to simplify the weighing process, eliminating cable restrictions and increasing operator safety and efficiency at the measurement point.

Key Features and Advantages

The RFX handheld indicator features several functions that distinguish it from competitors, especially in aviation technology applications:

Wireless Connection: Utilizes robust, reliable radio frequency technology for communication with load cells, eliminating trip hazards and setup time associated with cables.
Intuitive User Interface: The user-friendly design enables fast and easy data entry and display, minimizing operator errors.
Compatibility: Fully integrable with the Intercomp RFX® Wireless AC100™ Aircraft Weighing CPU and other compatible RFX systems.
Portability: Due to its compact size and light weight, it is easily transportable between measurement locations.
High Accuracy: Built upon Intercomp's industry-recognized weighing technology, it ensures the reliability of critical weight data.

Technical Specifications

The RFX Wireless Handheld Indicator is designed for processing precise measurement data. The table below details the key technical parameters:

Parameter	Spezification	Note
Communication	Wireless RF	Reliable data transmission to the load cells
Compatible Systems	RFX® Wireless AC100™ Aircraft Scale CPU	Full integration for gross weight and balance calculation
Display Type	Touch Screen	Also relevant in synergy with the TAC30™ CPU
Power supply	Battery-powered (details in the manual)	Ensuring long operating time for fieldwork
Application Area	Aircraft Weight & Balance	Primarily an aerospace accessory
Data Processing	Receiving and displaying weight data	Real-time weight values
Construction	Handheld, Ergonomic	Durable housing for use in the airport environment

Detailed Application Areas

The RFX Wireless Handheld Indicator primarily functions as an accessory for Intercomp's aerospace weighing systems, but it can also be useful in other industries where wireless data acquisition is required:

Aerospace Weight and Balance Measurement

This indicator is an essential tool for determining the weight and balance of aircraft. It allows pilots and ground personnel to directly read axle or wheel weights from the weighing platforms or Jack Weigh Kits without cables.

For Platform Scales: Ideal for use with AC15™, AC40™, AC60™, and AC30-60™ platform scales.
For Jack Weigh Kits: Seamless data acquisition with AC100™ or EZ RFX® kits, ensuring precise jacking point weights.
Capacity Handling: Supports applications ranging from low-capacity to high-capacity aircraft weighing.

System Support & Calibration

The indicator can be used not only for daily measurements but also for supporting systems:

Calibration Systems: Can be used for communication with CSM™ Manual or CSA™ Automatic Test Stands during weighing system certification.
Software Integration: Although it operates stand-alone, data transmission to ACWeigh™ or iACWeigh™ software for complete documentation is crucial.

Other Potential Applications (Expanded Compatibility)

Although the RFX indicator is primarily designed for aircraft scales, Intercomp's RFX technology can be applied in other areas where wireless data transfer is advantageous:

Vehicle Weighing: Potentially usable with LS788-WIM™ or LS630-WIM™ portable WIM systems, provided the specific configuration supports the RFX handheld display.
Race Car Weighing: Interoperability with Billet Scale Systems, where fast and accurate axle weight adjustments are critical.

Advantages of Wireless Technology in Practice

Compared to traditional wired systems, the RFX handheld indicator offers significant operational advantages:

Enhanced Safety: The lack of a physical connection between the weighing platforms and the indicator eliminates the risk of cable trips, which is especially important in crowded hangars or outdoor weighing operations.
Faster Setup: Weighing system setup time is drastically reduced as no time is spent laying out, securing cables, and checking for potential damage.
Work Area Flexibility: The operator can move freely around the weighing cell, entering data and checking weight distribution from an optimal position, which is essential for complex weight and balance calculations.

The RFX Wireless Handheld Indicator reflects Intercomp's commitment to precision measurement, combining reliability with the convenience of modern wireless technology. This device represents the future of aerospace weight management.
