The LS788-WIM™ portable Weigh-In-Motion (WIM) weighing system is an extremely flexible and reliable solution for weighing vehicle axle and axle group weights, as well as gross vehicle weight, while in motion. This system is an ideal choice for roadside enforcement, traffic counting, toll collection, and other applications where fast, accurate, and temporary weighing capability is required.
Thanks to its portability and quick setup, the LS788-WIM™ allows authorities and operators to react flexibly to changing demands without being dependent on permanent weighing stations.
Exceptional Portability and Quick Setup: The system has a compact design, is easy to transport, and can be quickly deployed on any firm, level surface. This minimizes road closure times and increases the efficiency of inspection operations.
High-Accuracy Weighing in Motion: The LS788-WIM™ utilizes advanced sensor technology that ensures highly accurate determination of axle and axle group weights, even when vehicles are passing over the weighing surface at relatively high speeds. This is critical for identifying overweight vehicles and protecting road infrastructure.

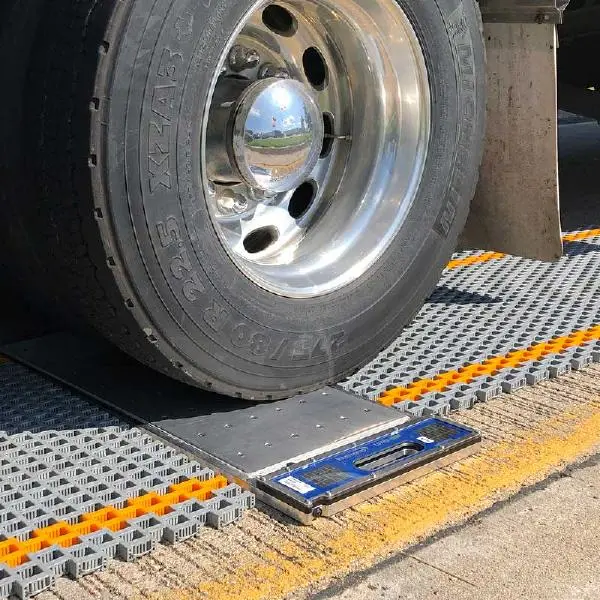

Robust Construction: The weighing scales (pads) are made from durable materials to withstand the continuous load of heavy goods vehicles and varying environmental conditions. The system resists extreme weather conditions, ensuring reliable operation in the field.
Integrated Data Management: The associated displays and software allow for immediate capture, storage, and analysis of measured data. This supports the creation of detailed traffic statistics and the generation of inspection logs.
Versatile Application: Ideal Applications:
The specifications for the LS788-WIM™ system are as follows (exact figures may vary depending on configuration):
| Parameter | Spezification | Note |
|---|---|---|
| Measurement Mode | Weigh-In-Motion (WIM) | Optimized for low-speed applications. |
| Portability | Fully portable system | Quick setup and dismantling. |
| Axle Load Capacity | Within a specified range (e.g.: 15,000 kg / 33,000 lb per axle) | May vary depending on the configuration. |
| Total Vehicle Capacity | Within a specified range (e.g.: 80,000 kg / 180,000 lb) | Depends on the number and arrangement of axles. |
| Accuracy (WIM) | Generally ± 3% – ± 5% depending on speed | Separate weighbridges are required for static weighing. |
| Operating Speed Range | Low-speed WIM (typically 5-15 km/h) | Speed recommended for achieving maximum accuracy. |
| Display Unit | Digital display (several options available) | With data logging and printing capability. |
| Communication | Serial or wireless connection to the display | For data transfer and control. |
| Tápellátás | Battery or mains power supply | For field flexibility. |

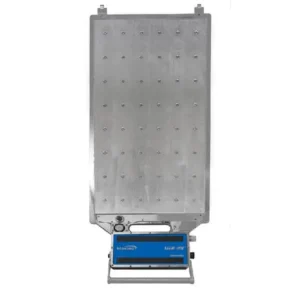

| Weigh Pad Material | High-strength aluminum or composite | Excellent durability and low profile. |
| Profile Height | Low Profile Design | To minimize vehicle deceleration. |
| Environmental Protection | Weatherproof design | IP rating for environmental protection. |
The LS788-WIM™ system generally consists of the following main components:
The LS788-WIM™ is a key device for roadside safety and infrastructure protection. Authorities can quickly deploy the system on busy roadways to identify vehicles exceeding permitted axle load or gross weight limits. The WIM capability allows for traffic screening, where only suspect vehicles need to be stopped for precise, static weighing, thus reducing inspection time.
The system is ideally suited for long-term or temporary traffic surveys. The collected data (axle configuration, weight distribution) is essential for designing road pavements, estimating lifespan, and determining maintenance priorities. Portability allows for frequent changes in sampling locations to ensure representative data.
In logistics centers, ports, or rail terminals, the LS788-WIM™ can assist in quickly weighing incoming and outgoing vehicles, ensuring cargo accuracy and compliance with internal regulations without significantly slowing down the normal flow.
The LS788-WIM™ is not just a measuring device; it is a complete solution for the challenges of dynamic weight measurement:
The LS788-WIM™ combines reliability, accuracy, and portability, offering a market-leading solution for meeting in-motion weighing requirements.
