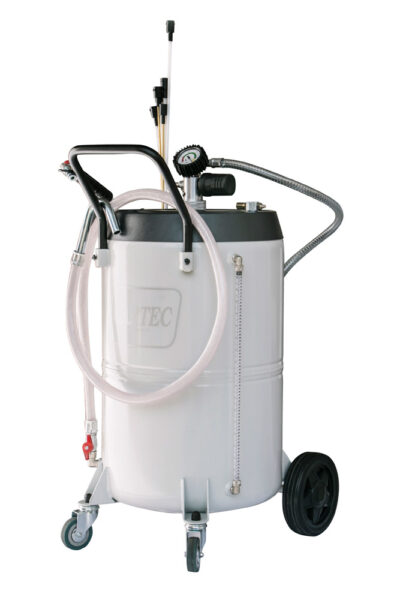

The Gartec ER1202 waste oil suction unit, identified by article number, pneumatically operated and equipped with a 90-liter wheeled tank, offers an ideal solution for workshops and industrial environments where used oil needs to be collected quickly and safely. This robust and reliable device represents the pinnacle of Gartec fluid handling technology, ensuring efficient operation and compliance with environmental regulations.
The ER1202 model is specifically designed for the waste oil safe and rapid recovery. Pneumatic operation guarantees reliability, low noise level, and maximum ease of handling in workshops.
Main Features:
Venturi Unit: The device is equipped with a Venturi-based suction system, which, operated by compressed air, creates the necessary vacuum for efficient fluid suction.
Integrated Reservoir: The 90-liter tank provides sufficient capacity for longer work sessions without the need for frequent emptying.
Easy Mobility: Thanks to the wheeled design, the unit can be easily maneuvered to different points in the workshop, ensuring flexibility during work processes.
Level Indicator: The built-in level indicator allows for continuous and precise monitoring of the tank's fill level, preventing overflow.
Practical Storage Compartment: The storage compartment on the device provides an ideal place for storing the probe kit and other necessary accessories.
This suction unit is excellently suited for use in the most demanding industrial and service environments where fluid handling requires precision and safety.
The precise specifications of the ER1202 model ensure long-term, trouble-free operation.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Part number | ER1202 | – | Gartec Identifier |
| Operating Pressure (Air) | 8 | bar | Maximum recommended pressure |
| Operating Pressure (Air) | 116 | kPa | Equivalent Pressure |
| Tank Capacity | 90 | Liter | For waste oil storage |
| Noise Level | 76 | dB | Noise level during operation |
| Air Inlet Connection | 1/4 „F | Inch (Female) | Standard connection |
| Width (A) | 470 | mm | Device dimensions |
| Depth (B) | 630 | mm | Device dimensions |
| Height (C) | 950 | mm | Device dimensions |
| Weight | 21 | kg | Net Weight |
| Packaging Dimensions | 550x560x980 | mm | Shipping Dimensions |
| Operating Medium | Compressed air | – | Pneumatic drive |
The ER1202 suction unit is primarily optimized for the collection of the following fluids:
Although the device is primarily designed for waste oil, Gartec's wide product range also offers solutions for handling other fluids (e.g., new oil, grease, AdBlue, antifreeze, etc.), for which accessory kits or other types of suction units are available.
To ensure maximum efficiency and meet specific requirements, Gartec offers a number of accessories for the ER1202:
Overflow Level Indicator: A critically important accessory that provides an immediate alert when the tank reaches its maximum fill level, thus preventing pollution and accidents.
Spent Oil Transfer Kit with Pneumatic Diaphragm Pump: Enables the pumping of collected oil from the 90-liter tank into larger storage systems, for example, the 1500-liter single-walled polyethylene tanks offered by Gartec, or the 500-liter double-walled spent oil storage tanks.
High Capacity Storage Solutions:
1500-liter single-walled high-density polyethylene tank, complete with an auxiliary galvanized steel containment tray.
500-liter double-walled tank for spent oil storage, compliant with enhanced safety regulations.
These accessories allow for the creation of a complete fluid management system that meets industrial standards in the workshop.
The ER1202 suction unit is an ideal choice for:
Vehicle Service Centers: Quick and clean changing and collection of engine oil for passenger cars and commercial vehicles.
Industrial Maintenance Workshops: Handling of used lubricants originating from machines, hydraulic systems, and other industrial equipment.
Vehicle Repair Sites: Safe collection of large quantities of spent oil for subsequent transport or recycling.
The Gartec ER1202 is not just a suction unit, but a reliable tool that optimizes waste management processes, increases workplace safety, and contributes to environmental protection. The operating pressure of 8 bar and the robust construction guarantee a long service life and continuous performance.
