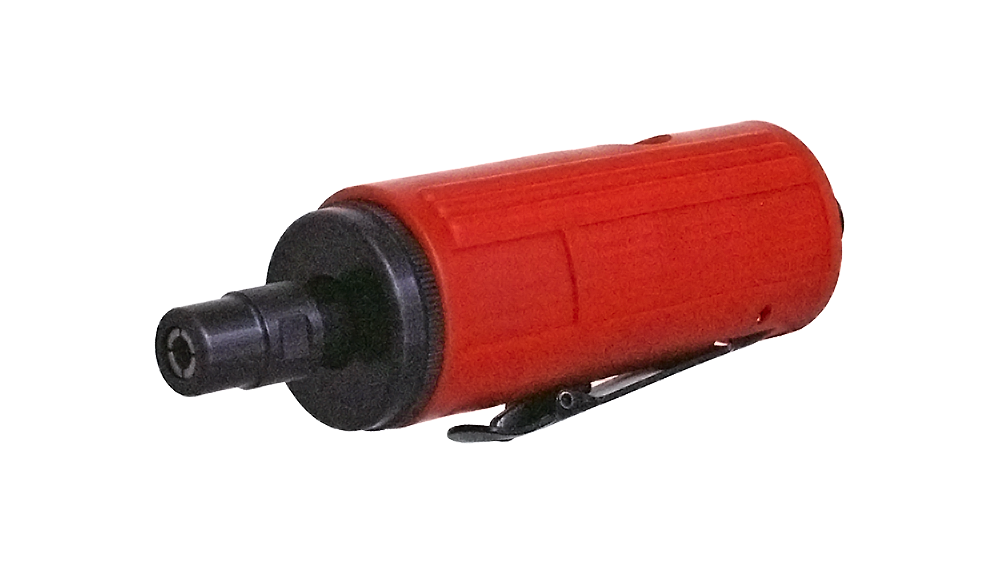

The Wielander + Schill PK3132 pneumatic shaft grinder is a high-quality, red hand tool specifically designed for the precise and efficient execution of bodywork repair and fine industrial tasks. This compact and lightweight device is the ideal choice for grinding, deburring, and fine machining operations where high speed and precise control are essential.
The PK3132 shaft grinder belongs to the Tool separation category, and offers the advantages of pneumatic technology for reliable and durable operation.
This pneumatic grinder is excellently suited for machining various materials such as aluminum, steel, and plastics. Its light weight (only 0.800 kg) minimizes user fatigue during longer work processes, while the robust construction guarantees a long service life in the workshop environment.
Ergonomic Design: The red, lightweight aluminum and plastic housing ensures a comfortable and secure grip.
High Performance: Thanks to its pneumatic drive, it provides stable performance at the specified operating pressure.
Precise Tool Clamping: The 6 mm collet (Spannzange) ensures the stable clamping of various grinding and milling bits.
Compliance Standards: It has CE and RoHS certification, guaranteeing the product's compliance with European safety and environmental regulations.
The table below details the critical technical parameters of the PK3132 pneumatic shaft grinder:
| Property | Value | Unit of Measure/Description |
|---|---|---|
| Part number | 631002 | |
| Product Name | Shaft Grinder PK3132 | Pneumatic |
| Color | Red | |
| Operating pressure | 6 – 8 | bar |
| Air consumption | 170 | m³/min |
| Clamping Size (Collet) | 6 | mm |
| Materials | Alu, Aluminum, Plastic, Steel, Plastic (kunststoff) | |
| Weight | 0,800 | kg |
| Mark of conformity | CE/RoHS | |
| Air quality | ISO 8573-1 | |
| Package Contents | 1 stück |
To ensure the optimal performance and long service life of the shaft grinder, Wielander + Schill offers a number of accessories and maintenance products.
To increase the lifespan of pneumatic tools, ensuring proper air quality and lubrication is essential.

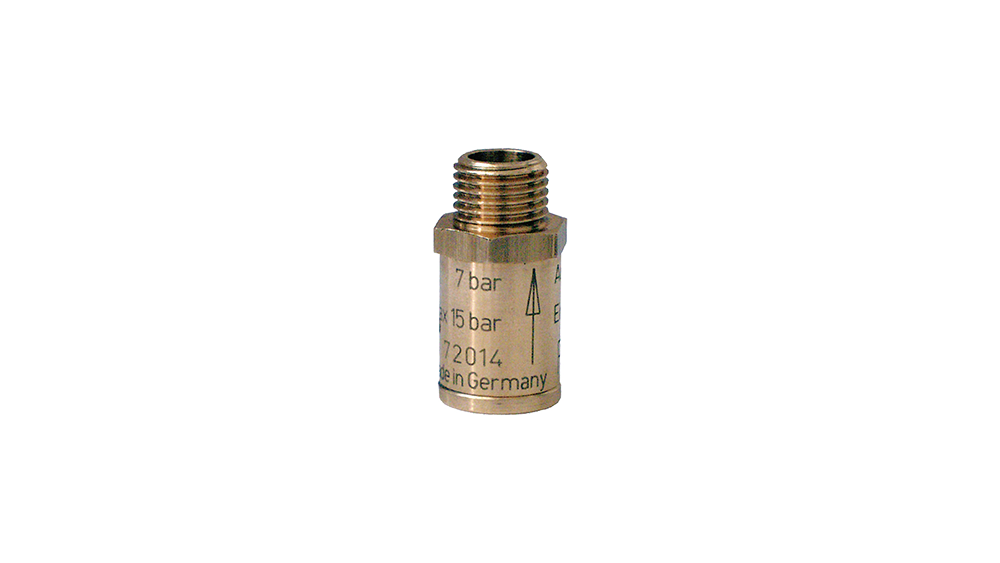

Pressure Reducing Valve (Part Number: 194000): Recommended for every bodywork grinder. Prevents premature wear and damage to the tools due to excessive operating pressure, thus offering a cost-effective solution for extending tool life.
Compressed Air Mini Oiler (Part Number: 637103): Features a 1/4″ connection. Reduces wear on pneumatic tools and improves handling. Equipped with a sight glass to avoid over-lubrication.
Pneumatic special oil (Part Number: 698001, 1000 ml): High-performance oil, specifically designed for air-mist lubricators and maintenance units (according to DIN 51524-2). Viscosity grade VG 32 (32 mm²/s at 40 °C). Features excellent aging stability, corrosion protection, and wear protection. Exhibits outstanding viscosity-temperature behavior, even at low temperatures.

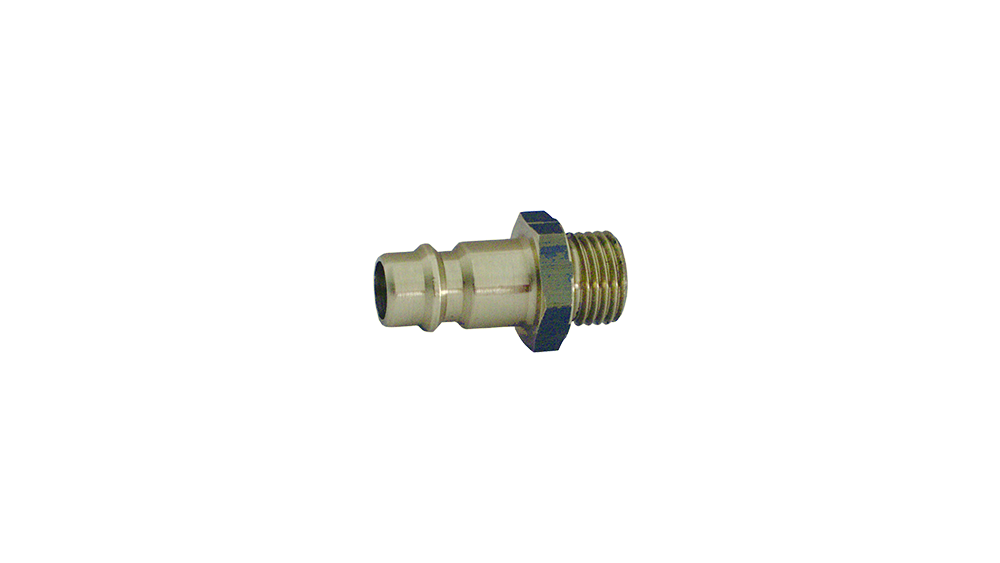

Air connector (Part Number: 697003): Type 26, with DN 8, G 1/4″ connection.
Numerous grinding and milling tools can be used for the PK3132 spindle grinder, adapted to various tasks:
Solid Carbide Mill (Part Number: 637001): With a small cone-shaped head, ideal for reworking welding seams.
Solid Carbide Mill (Part Number: 637002): Round shape, Ø 12 mm.
CSD Grinding Disc Set (Part Number: 612010): Excellent for removing paint and contamination from sheet metal surfaces, leaving a perfectly clean surface before coating, painting, or soldering. The set includes: 2 pcs CSD grinding discs (617080) and 1 pc CSD grinding disc holder (618011).
Cutting Discs with Mandrel Set (Part Number: 637025, 21 pieces):
1 pc Mandrel for cutting discs with 6 mm bore (637020).
10 pcs Cutting disc Ø 30 × 1.0 × 6 mm.
10 pcs Cutting disc Ø 50 × 1.0 × 6 mm.
Mandrel for Cutting Discs (Part Number: 637020): Suitable for cutting discs with a 6 mm shank diameter, thickness between 0 and 4 mm, and a 6 mm deep bore.
Various types of brushes are available for surface preparation and cleaning:

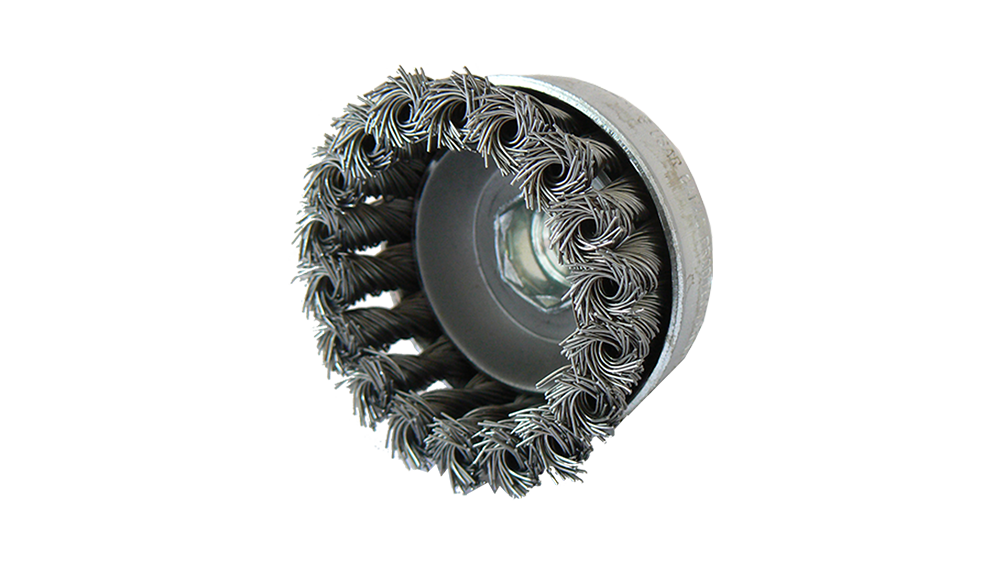

Knot Cup Brush (Part Number: 541203): Ø 100 mm, with 0.5 mm wire diameter.

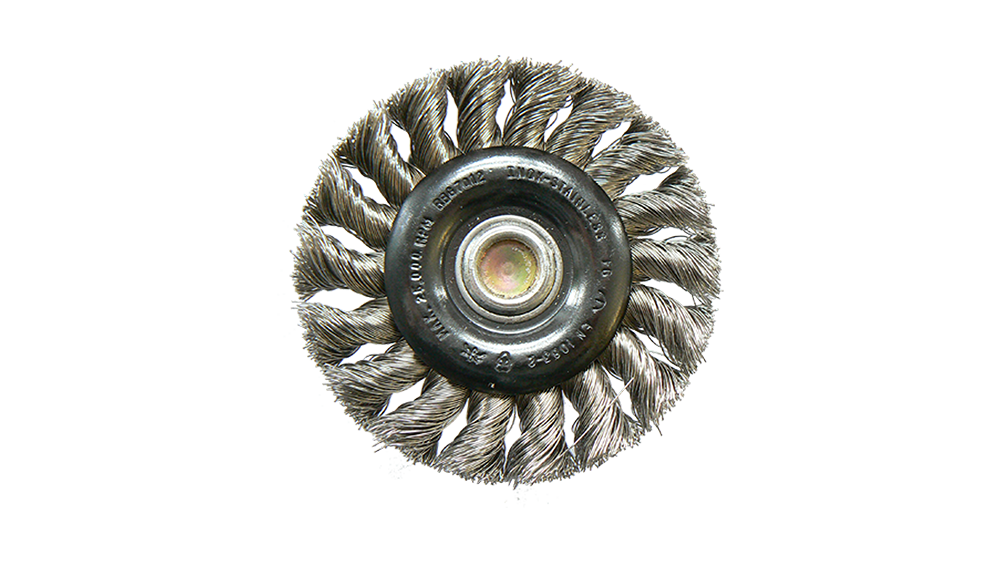

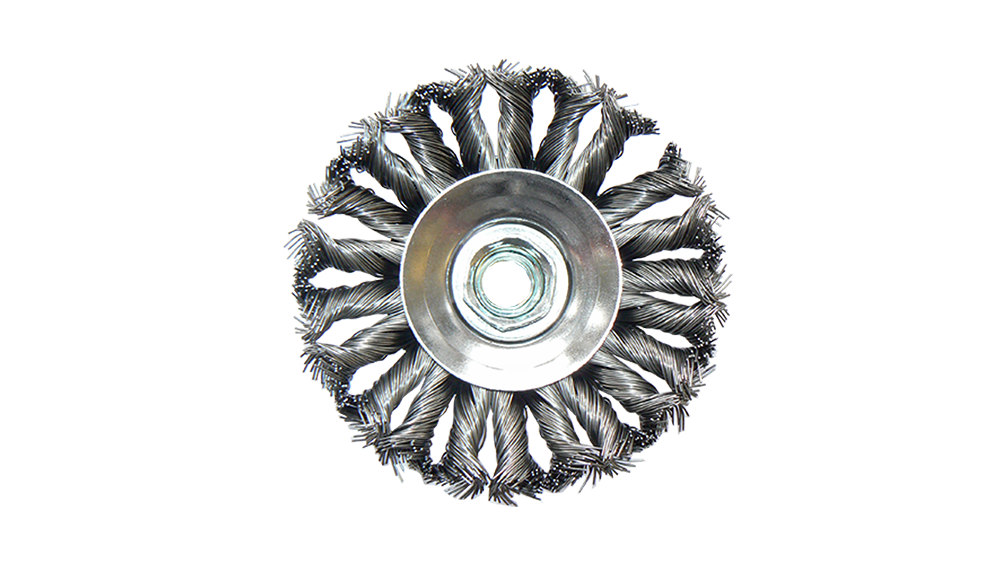

Knot Wheel Brush (Part Number: 541204): Ø 75 mm, with 0.5 mm wire diameter (Packaging: 12 pcs/pack).
Knot Dome Brush (Part Number: 541210): Ø 65 × 22 mm, M14 × 2 thread, with 0.5 mm wire diameter.

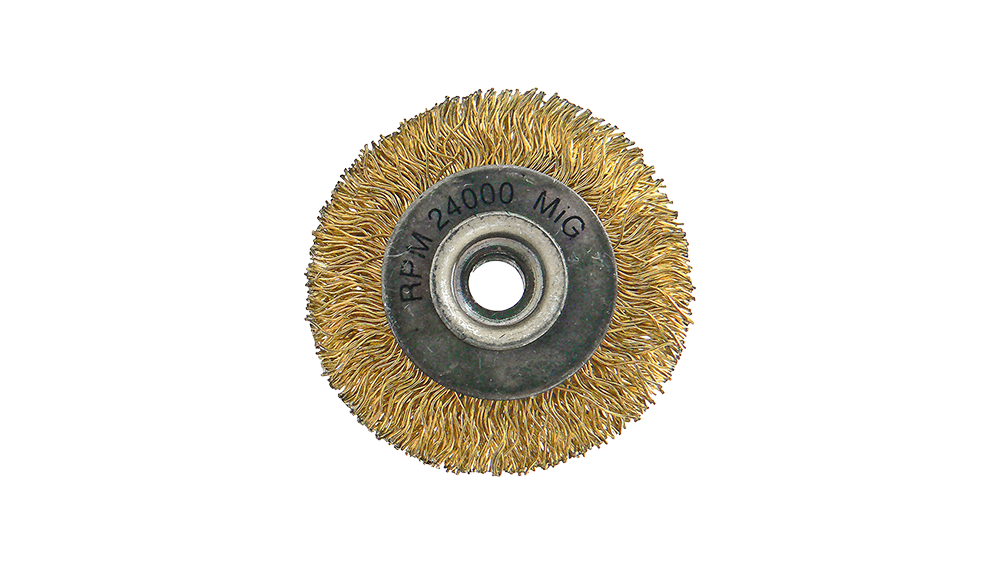

Circular brush, Brass Plated (Part Number: 541214): 36 × 6.5 mm, M6 thread, with 0.3 mm wire diameter.
The PK3132 pneumatic shaft grinder is part of the Wielander + Schill professional tool range, guaranteeing reliability and excellent work quality in the most demanding automotive and semi-industrial applications.
