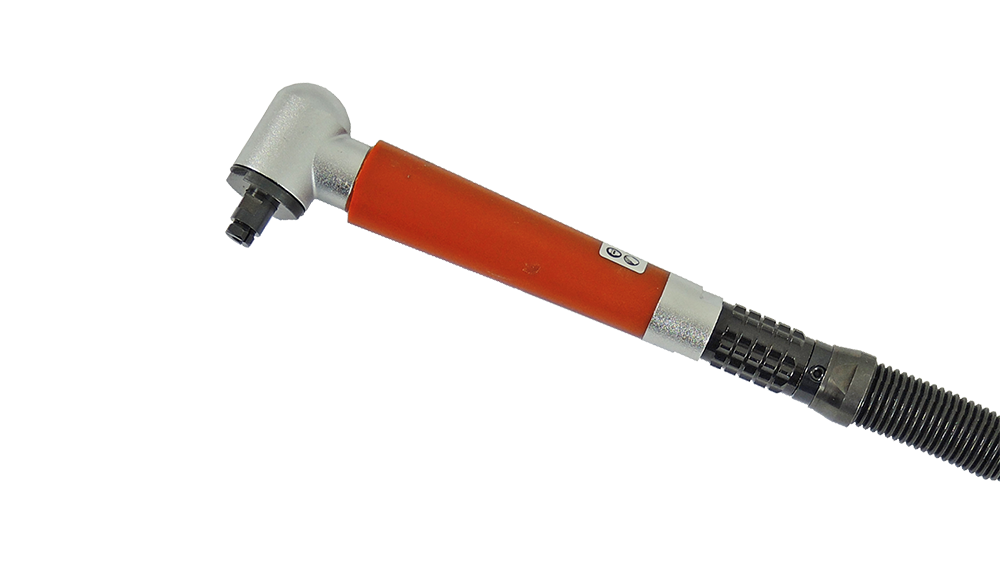

This extremely powerful, pneumatically driven mini angle grinder offers an ideal solution for precision work on hard-to-reach surfaces. The tool offered by Wielander + Schill belongs to the category of parting tools and is excellently suited for fine grinding, milling, and finishing tasks in bodywork and metalworking environments.
The compact design and high speed provide unparalleled maneuverability, enabling the user to work even in areas where conventional tools can no longer fit. Pneumatic operation guarantees continuous, reliable performance and long tool life, provided the appropriate air quality and pressure are supplied.
This high-performance mini angle grinder offers the following advantages for professionals:
Excellent Accessibility: Its compact dimensions (1650 x 40 x 20 mm) enable precise work in tight spaces, for example, when finishing weld seams or creating complex shapes.
High Speed: The maximum speed of 72,000 rpm ensures fast material removal and efficient work with various grinding and milling bits.
Pneumatic Drive: Operation with compressed air provides reliable, robust performance and minimizes the risk of overheating.
Ergonomic Design: The low weight of only 0.230 kg reduces user fatigue, even during longer shifts.
Alacsony Zajszint: The sound pressure level of 72 dB(A) contributes to a more pleasant working environment.
Safe Operation: The vibration level of 2.0 m/s² creates an optimal balance between performance and user comfort.
The detailed specifications of the product ensure optimal integration of the tool into existing pneumatic systems:
| Parameter | Value | Note |
|---|---|---|
| Part number | 611003 | |
| Drive | Pneumatic | |
| Voltage/Power | Pneumatically operated | |
| Operating Pressure | 6.3 bar | |
| Air consumption | 0.150 m³/min | |
| Speed (Max.) | 72,000 RPM (revolutions/minute) | |
| Collet Size (Spannzange) | Ø 3 mm | The clamping diameter of the tool. |
| Dimensions (Length x Width x Height) | 1650 x 40 x 20 mm | |
| Weight | 0.230 kg | |
| Sound pressure level | 72 dB(A) | |
| Vibration | 2.0 m/s² | |
| Materials | Aluminum (Alu), Plastic (Plastic), Steel (Steel) | Materials of the housing and internal components. |
| Conformity Declaration | CE | |
| Air Quality | ISO 8573-1 | Complies with standard air quality requirements. |
| Package Contents | 1 stück |
This mini angle grinder is excellently suited for the following areas:
Weld Seam Finishing: Ideal for fine finishing of weld seams, deburring, and creating contours, especially in narrow joints.
Removal of Spot Welding Points: Effectively applicable for removing spot welding residues from body components.
Fine Machining: Excellent for shaping, polishing, and fine grinding on components where high precision is essential.
Hard-to-Reach Areas: The slim profile of the tool allows access to the internal structures of vehicles or other enclosed spaces.
To utilize the full potential of the tool and facilitate maintenance, Wielander + Schill recommends the following accessories:
Different head shapes and materials are required for various tasks. A wide range of grinding/milling tools with a 3 mm shank is available:

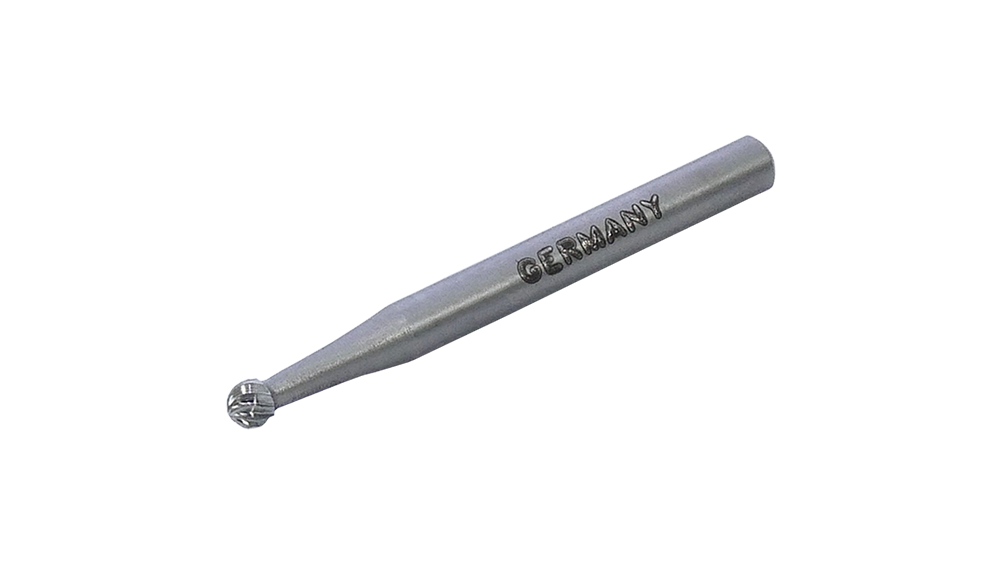

HSS Fine File (Round head, Ø 6 mm): Ideal for weld seam finishing. (Part No.: 637122)

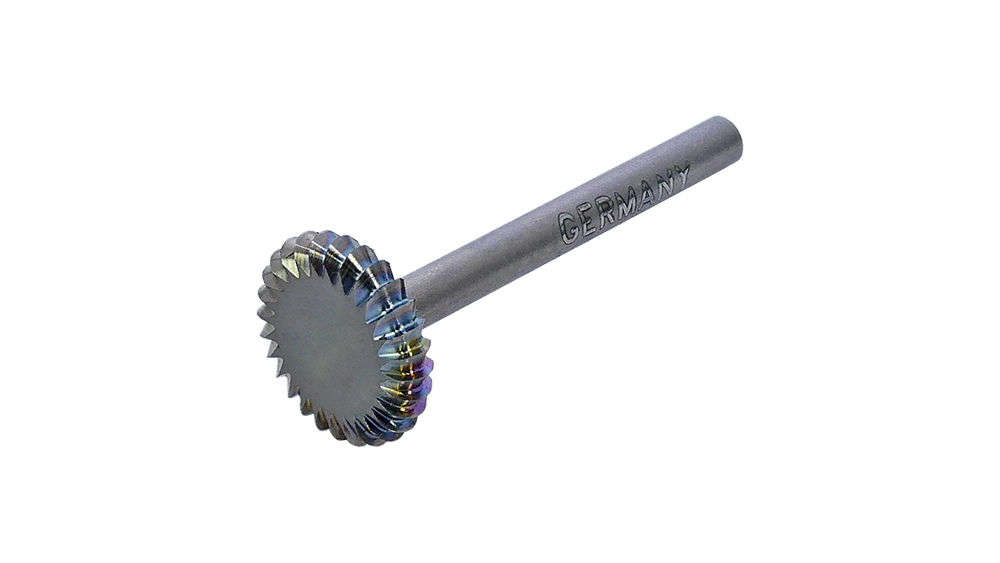

HSS Fine File (Disc head, 12 × 2.6 mm): Suitable for machining flat surfaces or wider seams. (Part No.: 637123)

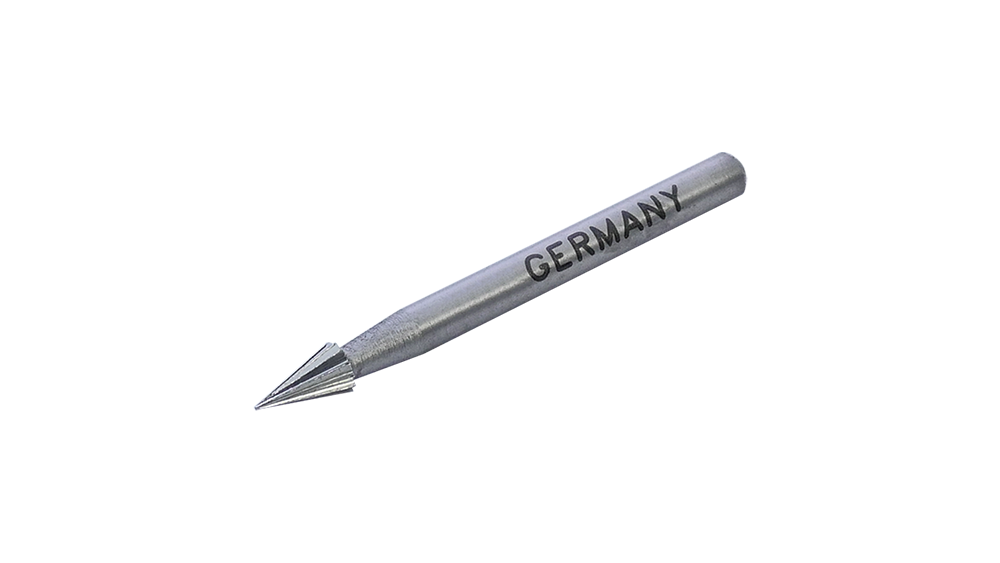

HSS Fine File (Pointed cone head, 3.2 × 5.6 mm): Excellent for creating recesses and narrow corners. (Part No.: 637120)
HSS Fine File (Round head, Ø 2.3 mm): For very fine, detailed work. (Part No.: 637121)
Solid Carbide Fine File (Round head, Ø 5 mm): Enables greater durability and machining of harder materials. (Part No.: 637000)
To maximize tool life, ensuring proper air supply and lubrication is essential:
Compressed Air Mini Lubricator (1/4"): This device reduces wear on pneumatic tools and improves their operating comfort. The visible design helps prevent over-lubrication, which can cause pneumatic components to stick or become clogged. (Part No.: 637103)

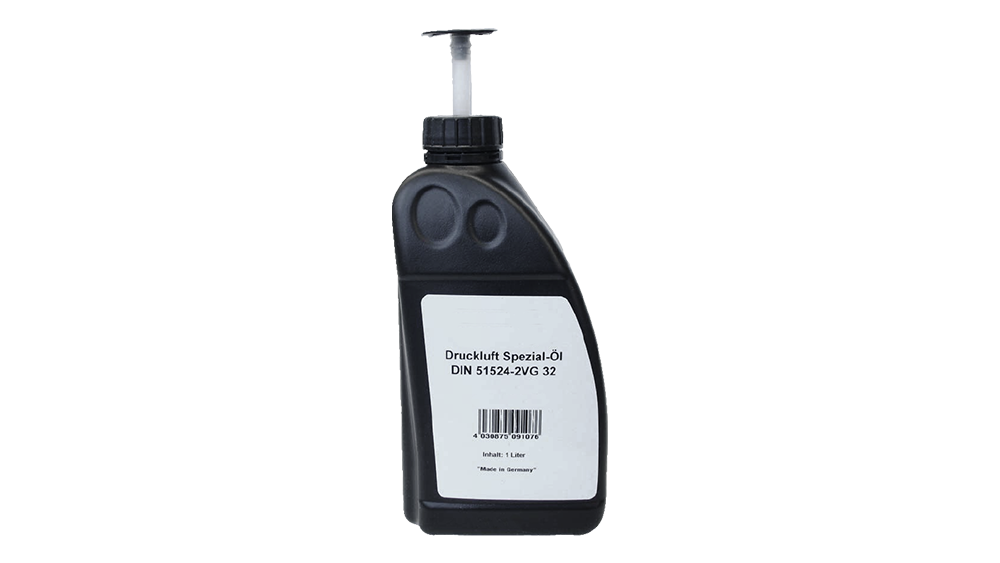

Pneumatic Special Oil (1000 ml): High-performance oil, specifically developed for air filter/regulator units and tools, conforming to ISO 3448 VG 32 viscosity class (32 mm²/s at 40 °C). It exhibits excellent aging stability, corrosion and wear protection, and outstanding viscosity-temperature behavior even at low temperatures. (Part No.: 698001)

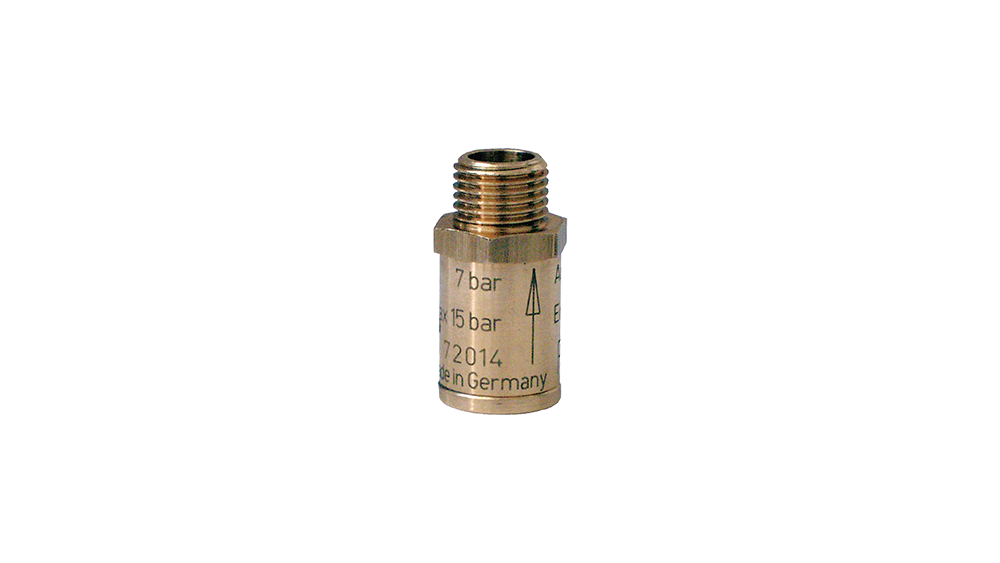

Pressure Reducing Valve (7 bar): Excessive operating pressure of pneumatic tools can lead to premature wear and damage. This cost-effective valve prevents damage to the tools, especially recommended for all body saws, but also contributes to the optimal function of the mini grinder. (Part number: 194000)
Protection against chips and dust generated during high-speed grinding is fundamentally important:
This pneumatic mini angle grinder is part of the Wielander + Schill quality tool range, which prioritizes precision, durability, and efficiency in professional metalworking tasks.
