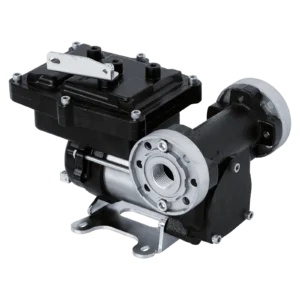

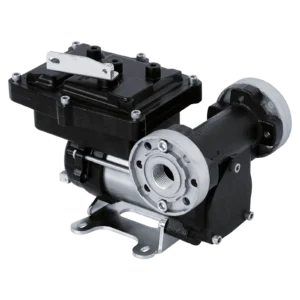

The PIUSI EXGO! is an extremely compact and robust electric fuel pump, specifically designed to operate safely in potentially explosive environments. This 12V DC powered, vane pump provides an ideal solution for transferring petrol, kerosene, and diesel (including HVO/XTL fuels) in logistics, mining, construction, industrial, and marine applications.
The EXGO! series stands out among PIUSI ATEX equipment with the following essential features:
Compact dimensions, easy positioning.
Remote control capability (with on/off switch).
Continuous duty capability (continuous operation cycle).
Built-in check (bypass) valve.
Strict ATEX certification.
The design of the EXGO! pumps focuses on safety and flexibility while delivering excellent performance.
The PIUSI EXGO! petrol fuel pump ATEX certificate is equipped, and complies with current explosion protection regulations. This ensures that potential ignition sources inside the pump or in the surrounding atmosphere (which may be caused by the transferred fluid or the environment) do not cause an explosion. This pump is a safe and reliable solution for all applications where a potentially hazardous environment exists.
This 12V DC pump can provide up to 32 liters/minute flow rate at an operating pressure of 0.8 bar (maximum operating pressure: 1.2 bar). The continuous duty cycle (continuous duty cycle) guarantees that the pump can run for extended periods without interruption, which can be critical when filling mobile tanks.
Thanks to its small dimensions, the EXGO! is easy to install and move. It offers an ideal solution for small mobile tanks. The remote control capability (on/off switch) and long cables (EXGO! Switch version: 5 meters, EXGO! version without switch: 3 meters) further increase flexibility during installation.
The device equipped with a built-in check valve , which protects the pump from damage caused by overpressure and dry running. Additionally, the motor is equipped with thermal protection is equipped, which prevents overheating, thus increasing its lifespan. The pump self-priming has (self-priming) capability, and with reduced noise level operates.
The EXGO! pump is suitable for the safe transfer of various fluids:
Petrol and E15
Diesel
Paraffinic Biodiesel
Kerosene
The table below details the technical parameters of the EXGO! pump:
| Characteristic | Value | Note |
|---|---|---|
| Product Category | Fuel pump | |
| Fluids Handled | Diesel/HVO/XTL, Petrol, Kerosene | |
| Operating Voltage | 12 V DC | |
| Flow Rate (Max.) | 32 l/min | |
| Operating Pressure | 0.8 bar | |
| Maximum Operating Pressure | 1.2 bar | |
| Operating Mode | Continuous Duty | |
| Protection | ATEX certified | For explosive atmospheres |
| Valve | Built-in Bypass valve | |
| Motor Protection | Thermal Protection | |
| On/Off | With optional remote switch | Cable length: 5m (with switch), 3m (without switch) |
| Noise Level | Reduced | |
| Starting Capacity | Self-Priming | |
| Application Areas | Logistics, Mining & Construction Industry, Industrial, Marine |
The EXGO! pump is available in different configurations, including versions with and without a switch, as well as accessory battery kits:
| Product Code | Description |
|---|---|
| F00381500 | (Ex) EXGO! 12V DC ATEX (Basic model without switch) |
| F00381020 | (Ex) EXGO! 12V DC ATEX SWITCH (Model equipped with switch) |
| F00225X00 | (EX) BATTERY KIT EXGO 12 V (Optional battery kit) |
The EXGO! pump compact and robust design, which guarantees long-term reliability even in the harshest industrial environments. PIUSI's commitment to quality is also supported by certifications such as ATEX and IECEx (for which the relevant documentation is available).
This pump is the ideal choice for professionals who need a reliable, safe, and portable solution for transferring flammable liquids where minimizing the risk of sparks is a top priority.
