The PIUSI ST BOX BIO is a robust, fully equipped fuel dispensing station enclosed in a lockable metal protective box, specifically designed for the safe and efficient handling of biodiesel (including pure B100 biodiesel). This versatile unit offers an ideal solution for agricultural, logistics, mining, construction, and industrial applications, whether from fixed or mobile tanks, or from above-ground or underground cisterns.
The ST BOX BIO guarantees reliable biodiesel transfer while ensuring the preservation of fluid quality and precise dispensing.
The ST BOX BIO system is designed to withstand even the most aggressive biodiesel compositions. It is specifically suitable for B100 (pure biodiesel) handling, as well as for use with any other biodiesel blend, ensuring maximum efficiency and long service life.

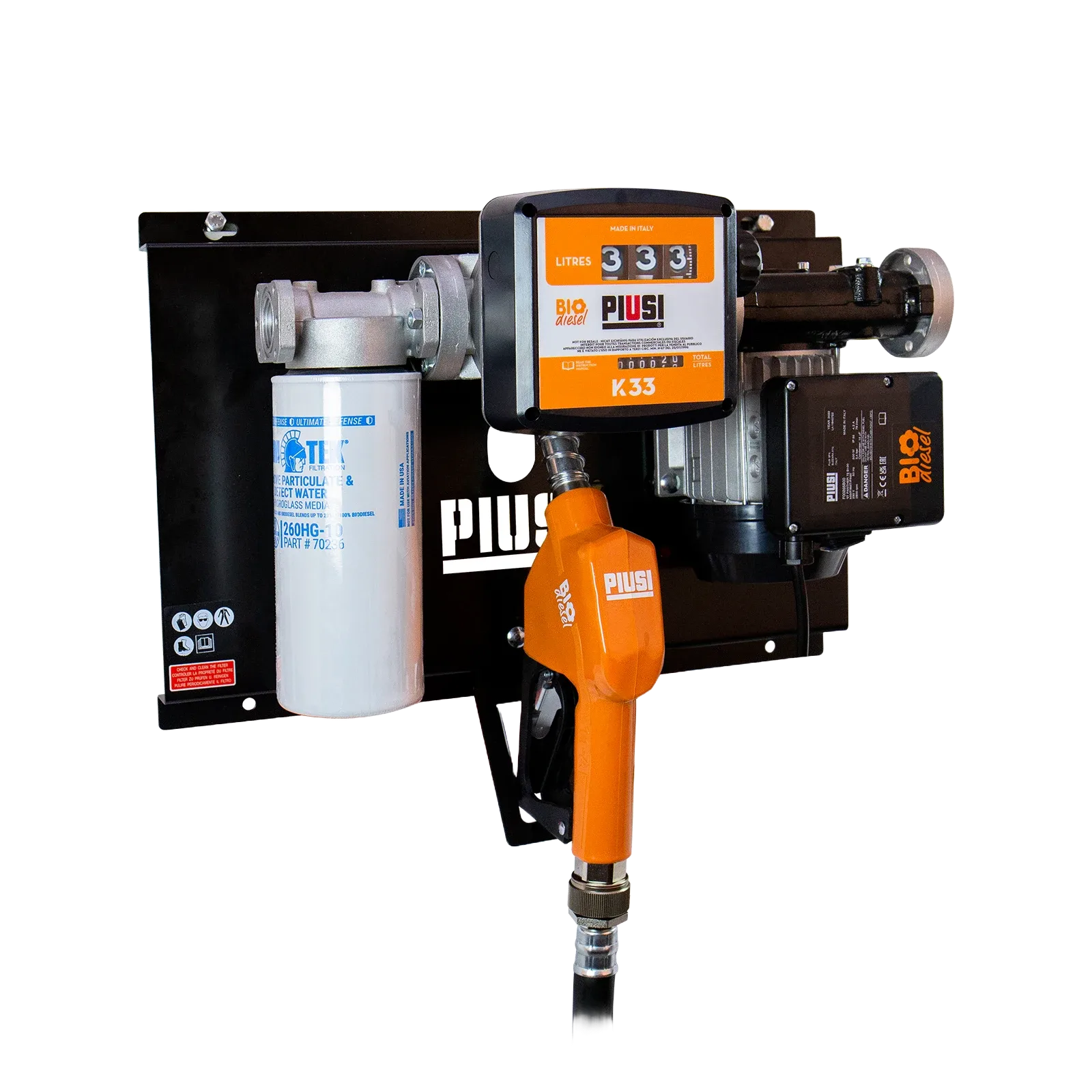

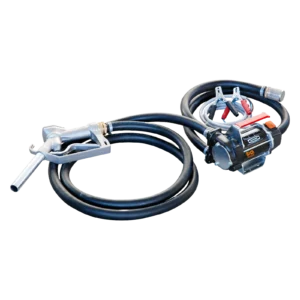

The unit is ready for use and includes all necessary components for safe and precise dispensing:

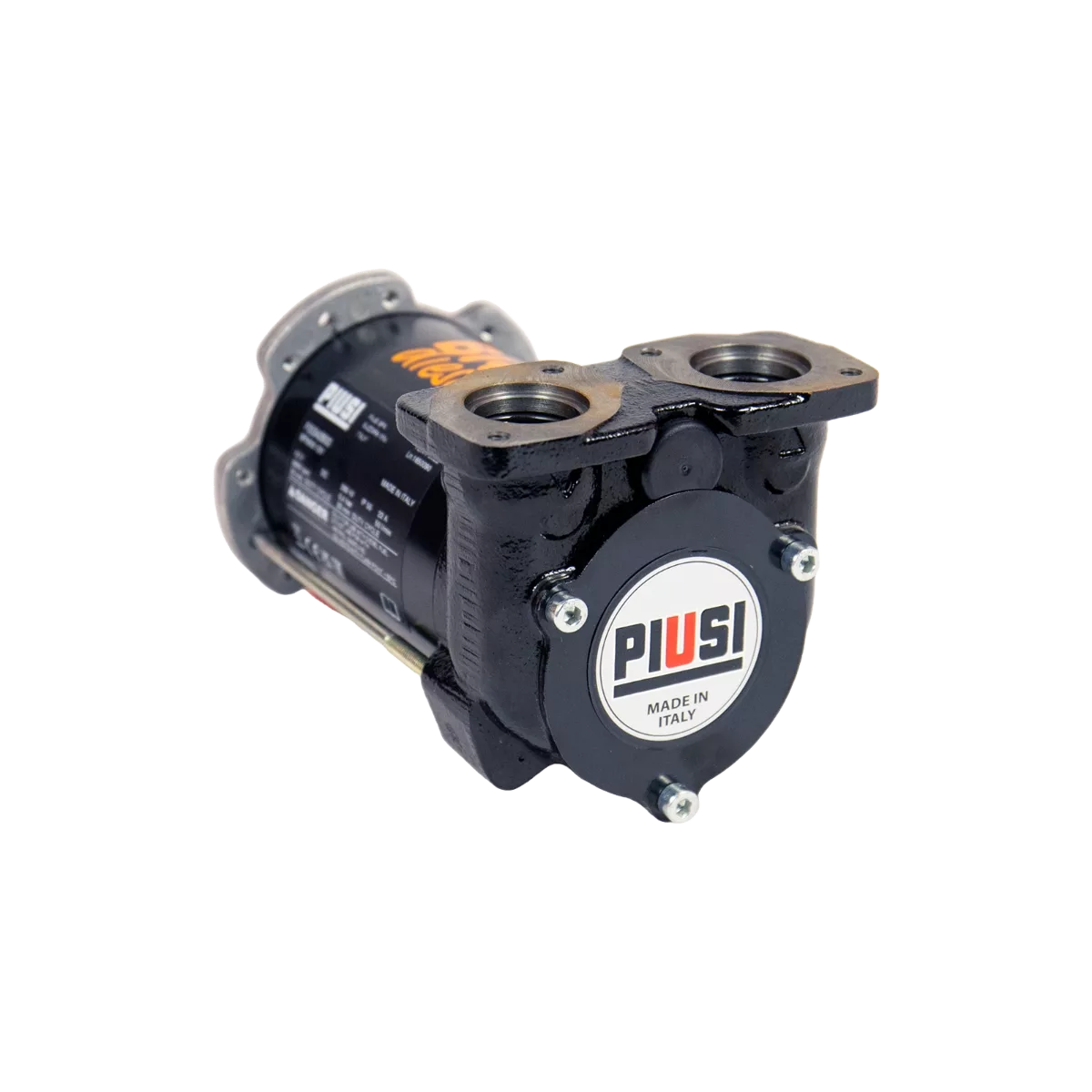

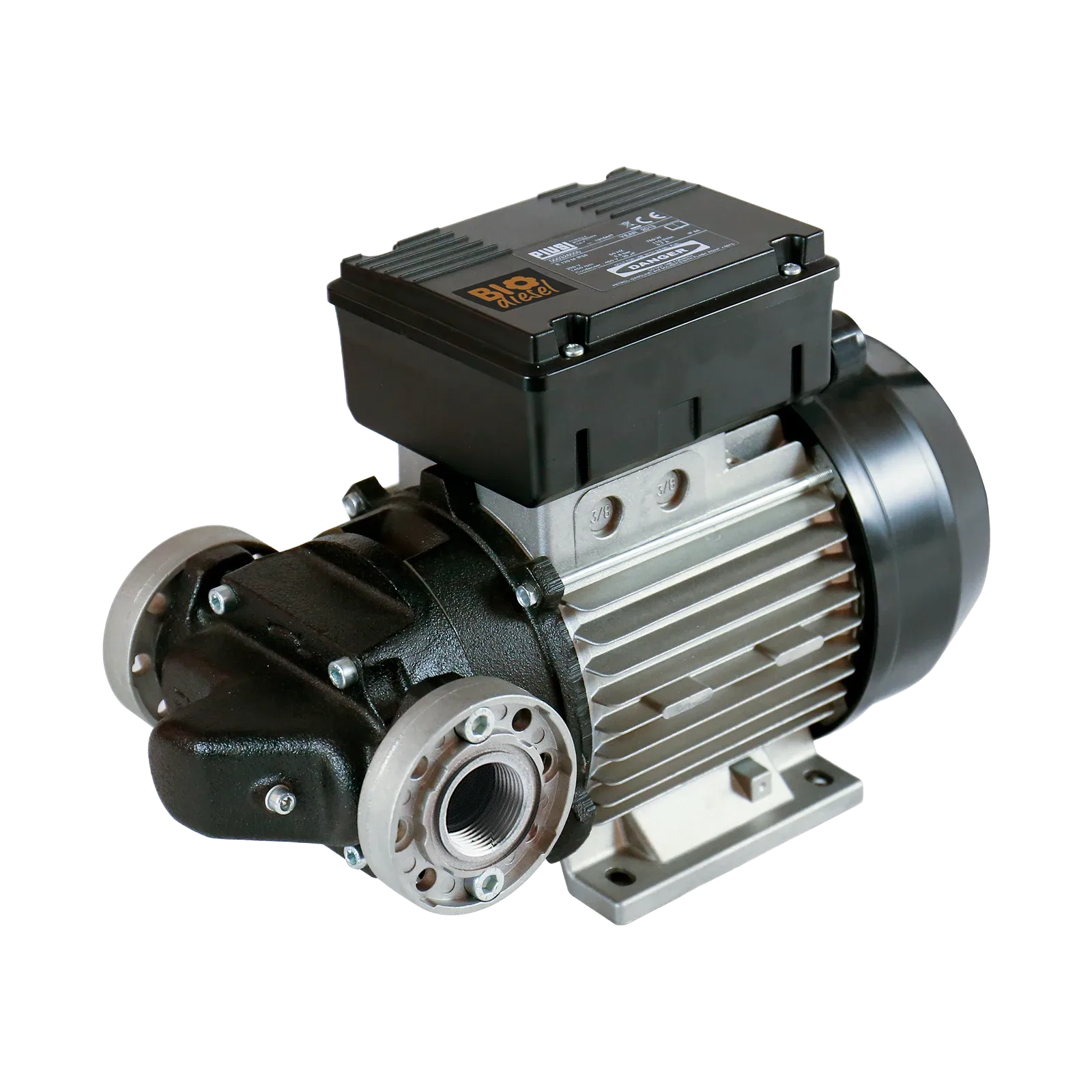

Built-in Pump: Ensures a high flow rate.
Mechanical Flow Meter: Allows for precise tracking of the dispensed fuel quantity.
Integrated Filter: Provides protection for vehicles against harmful contamination, guaranteeing the quality of the dispensed fluid.
Antistatic Hose and Automatic Nozzle: The package includes an antistatic diesel hose and an automatic dispensing nozzle for safe refueling.

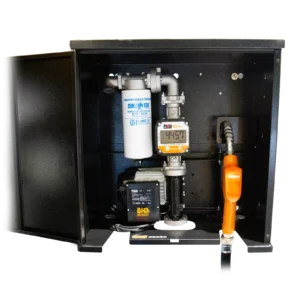

The equipment housing contains a lockable metal protective box , which provides maximum protection against external impacts and unauthorized access. The structure is extremely durable, ensuring long-term reliability.
The operating noise level of the ST BOX BIO less than 75 dB, which allows for installation and use even in environments where the noise level is restricted.
The ST BOX BIO PRO version includes the ACCESS 85 electronic access control unit which significantly increases the security and manageability of the system:
User Identification: Access management via personal user keys (key fob). The PRO version comes with 4 pre-configured user keys for immediate use.
Level Monitoring: Optionally installable level sensor (with probe) that connects to the ACCESS 85. In case of low fluid level, dispensing automatically stops, preventing the pump from running dry.
Safety Timer: The ACCESS 85 has a built-in safety timer that automatically switches off the pump after 10 minutes, ensuring system safety during long periods of unattended operation.
The basic model of the ST BOX BIO has the following main performance data:
| Parameter | Value | Note |
|---|---|---|
| Product Category | Fuel, Fluid | Biodiesel |
| Application Areas | Agriculture, Logistics, Mining & Construction, Industrial | Versatile application |
| Compatibility | All biodiesel blends, including B100 | Specifically resistant materials |
| Maximum Flow Rate | Up to 85 l/min | High-performance pump |
| Noise Level | Less than 75 dB | Quiet Operation |
| Dispensing Measurement | Mechanical flow meter | Accurate quantity tracking |
| Filtration | Integrated water separator | Protection of fluid quality |
| Structure | Lockable metal protection box | Robust and secure |
| Accessories (Basic) | Antistatic hose, Automatic dispensing nozzle | Ready-to-use package |
| PRO Version Accessory | ACCESS 85 Access Control | Key entry, level monitoring, timer |
The PIUSI ST BOX BIO is available in various configurations, with different hose lengths and dispensing systems:
| Product code | Description |
|---|---|
| F00365B30 | ST BOX P72/M K33 A70 WC 6mt B100 |
| F00365B40 | ST BOX P72M K600 B/3 PULS A70 WC 6m B100 |

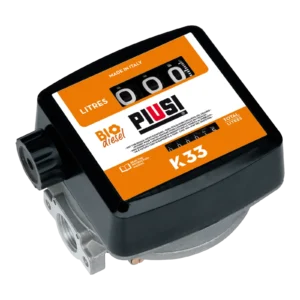

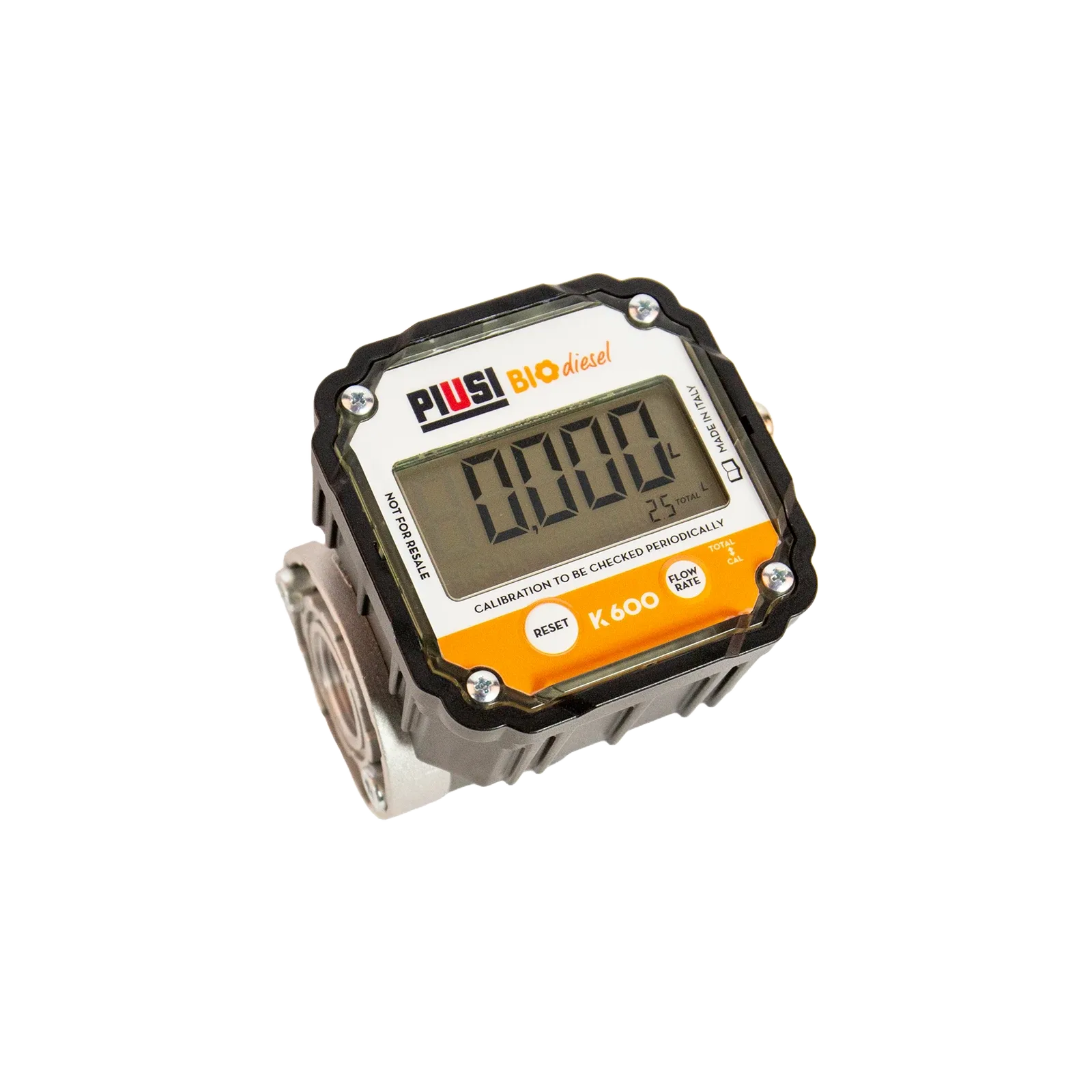

These codes indicate the pump (e.g., P72) found in the respective unit, the flow meter (e.g., K33 or K600), the automatic nozzle (A70), and the hose length (6 meters), all optimized for B100 biodiesel.
The ST BOX BIO is the ideal choice for any industrial operator wishing to manage biodiesel safely and under controlled conditions at their own site:
Agriculture: Fueling high-performance machinery in agriculture.
Logistics & Fleet Management: Decentralized yet trackable solution for fleet fuel supply.
Mining & Construction: A protected dispensing system that operates reliably even under harsh conditions.
Industrial Plants: Any site requiring an internal fuel storage and distribution system.
The PIUSI ST BOX BIO is the perfect combination of reliability, compatibility, and advanced management capabilities (PRO version) for modern biodiesel infrastructure.
