Product Identifier: 495625
This detailed description presents the high-performance, water-cooled C-arm spot gun offered by Wielander + Schill, designed for resistance spot welding applications. This tool is a prominent element of the welding technology portfolio, ensuring optimal performance and durability during the most demanding body repair tasks.

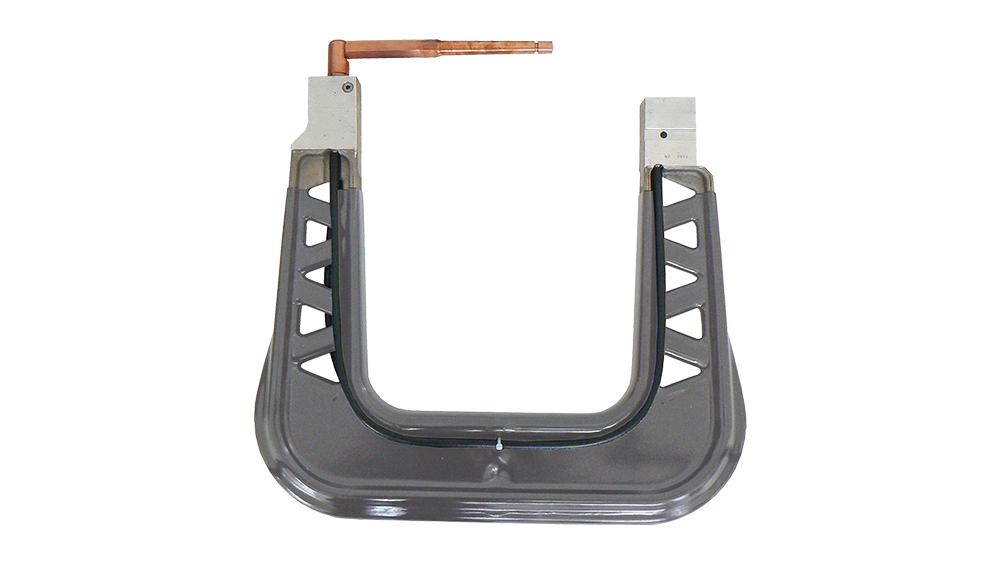

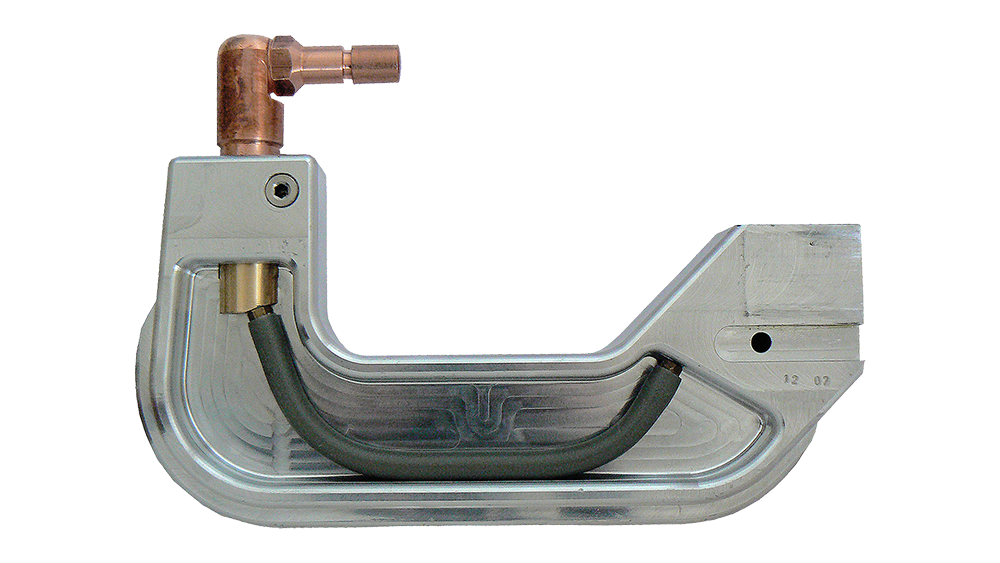

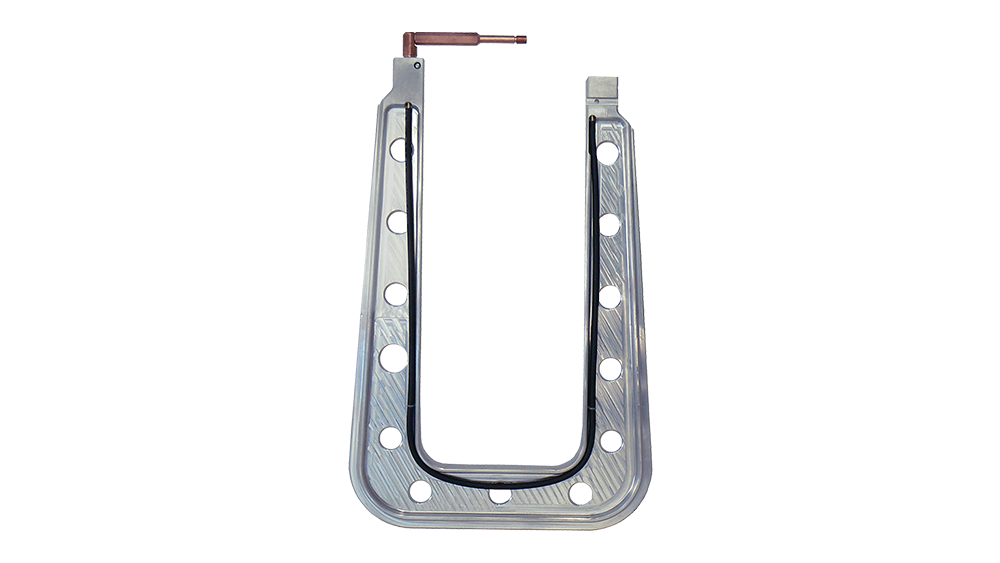

A C-Arm Spot Gun, Type 3 (GT) a robust, water-cooled C-arm unit specifically developed for resistance spot welding. Manufactured from high-quality materials, the tool guarantees reliable and efficient operation, especially when a high number of welding cycles are required. The water-cooling design is critically important for maximizing the lifespan of the welding electrodes and ensuring continuous, uninterrupted operation, thereby minimizing the risk of overheating.
The product includes a welding electrode and two 16 mm diameter electrode tips (electrode caps) as standard equipment, ensuring immediate commencement of work. The surface of the tool features a PU (polyurethane) coating, which enhances handling and wear resistance.
This C-arm spot gun is an ideal choice for professional workshops where precision, speed, and reliability are fundamental requirements. The 150 x 450 mm working opening provides versatile access to various points on vehicle structures.
The technical specifications of the C-arm spot gun ensure the tool's excellent performance and integration capability into existing welding systems.
| Property | Value | Note |
|---|---|---|
| Part number | 495625 | Factory Identifier |
| Típus | C-Arm Spot Gun, Type 3 | GT version |
| Cooling | water-cooled | Maximum durability and continuous operation |
| Working Aperture (Width x Height) | 150 x 450 mm | Available working area |
| Overall Dimensions (Length x Width x Height) | 600 x 350 x 40 mm | External dimensions of the tool |
| Weight | 6.350 kg | Net weight of the tool |
| Accessory Electrode Diameter | Ø 16 mm | The diameter of the supplied electrode tip |
| Accessory Electrode Caps | 16 mm diameter ones | The package includes the welding heads |
| Material composition | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Combination of multiple materials for optimal strength and conductivity |
| Surface treatment/Coating | PU (Polyurethane) | The external coating of the gun |
| Package contents | 1 darab | Contents of the package |
The material composition of the C-arm spot gun has been carefully selected to meet the requirements of the welding process:
Aluminum and Steel: They ensure the strength and rigidity of the structural elements, which is essential for withstanding high welding forces.
CuCrZr (Copper-Chromium-Zirconium): This alloy is crucial in electrode holders and conductive parts, as it ensures excellent electrical conductivity and high thermal stability, reducing resistive heating.
Rubber and PU (Polyurethane): These materials ensure insulation, vibration damping, and ergonomic grip for the handles.
This C-arm gripper, as part of the Wielander + Schill resistance spot welding systems, delivers optimal performance. The 16 mm diameter electrode holding system allows the use of many standard and special electrode tips available on the market.
Several accessories are recommended for the product, which further increase welding quality and tool lifespan:
Due to the variety of welding tasks, electrode tips with different geometries are available, all with a 16 mm diameter:

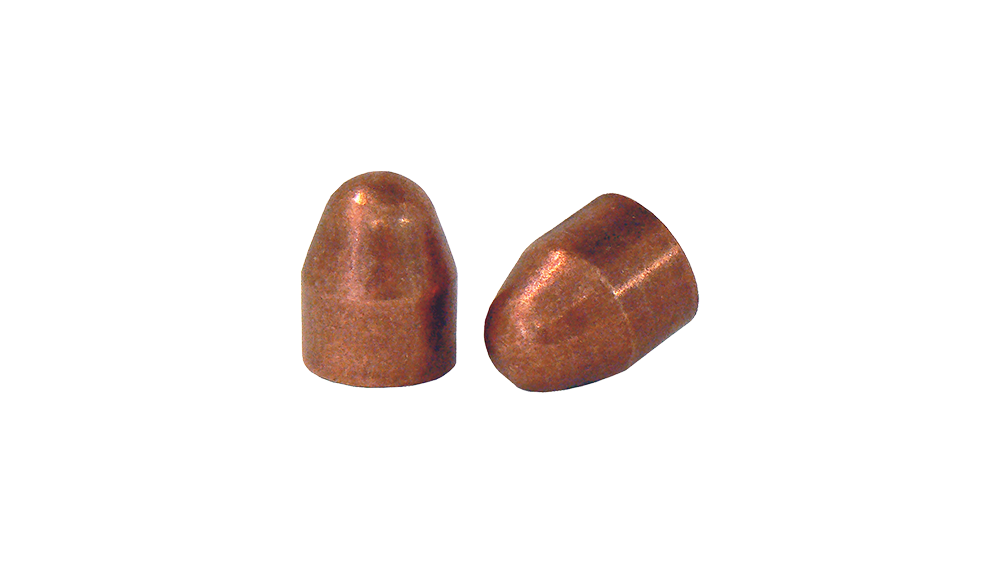

497079 – Electrode Cap (Type B): Mushroom-flat design, 20 mm length. Ideal for standard spot welding applications. (Pack size: 4 pcs/pack)
497081 – Electrode Cap (Type E): Special profile, 20 mm length. (Pack size: 4 pcs/pack)

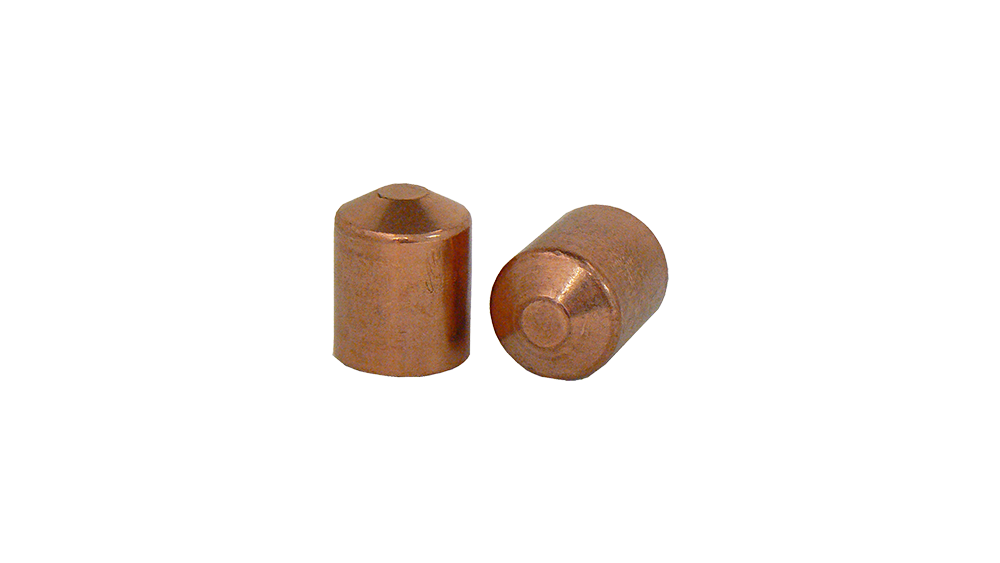

497085 – Electrode Cap (Type D): General purpose, 16 mm diameter. (Pack size: 4 pcs/pack)
497075 – Electrode Cap (Type F): Round shape, 20 mm length. (Pack size: 4 pcs/pack)

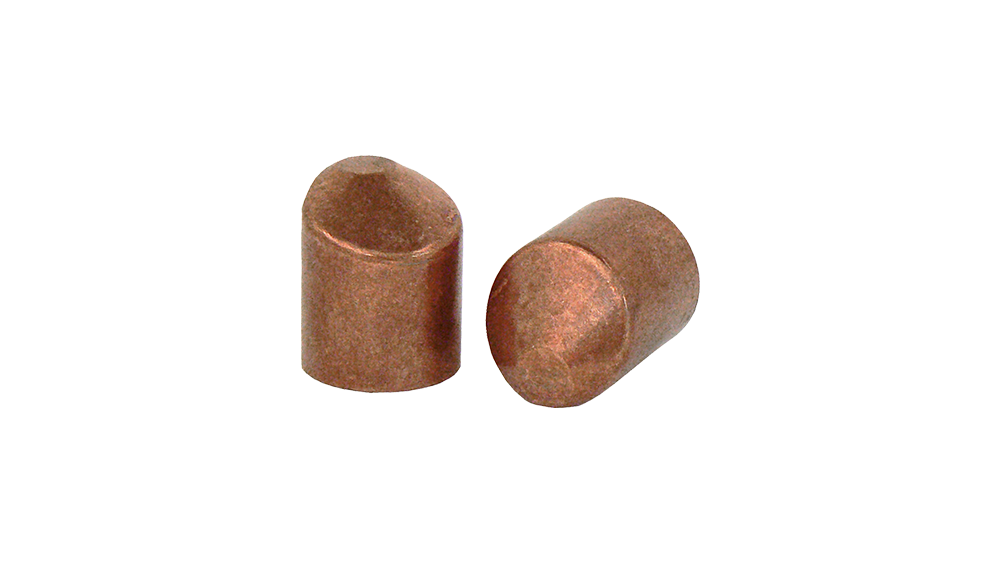

497076 – Electrode Cap (Type P): Eccentric design, 20 mm length, for special access points. (Pack size: 4 pcs/pack)
497096 – Electrode Cap (Type A-32): 20 mm length, specifically designed for welding with automatic programs. Recommended exclusively for use with the C-Trafogun GT-V6 welding gun. (Pack size: 6 pcs/pack)
497102 – Electrode Cap Set (Type B + H): Contains 2 pcs of Type B and 2 pcs of Type H electrode caps, ideal for flexible operation.
To maintain welding quality, proper treatment of the electrode surface is essential:
Excellent Cooling Efficiency: Water cooling ensures that the tool remains at an optimal temperature even during intensive, continuous welding cycles, which increases electrode lifespan and consistency of welding quality.
Robust Construction: The combination of different high-strength metals (Aluminum, CuCrZr, Steel) guarantees long-term, reliable operation in environments subject to high mechanical stress.
Ergonomics and Handling: The 600 mm length and the 150 x 450 mm throat opening create an optimal balance between accessibility and stability. The PU coating improves grip.
Versatile Application: The standard 16 mm electrode system and the wide range of accessories allow the tool to be adapted to almost any spot welding task in the automotive industry.
This C-type gun represents Wielander + Schill quality, ensuring precise and efficient work for body repair specialists.
