Motoplat VC-07 2020(Not Available Anymore, See VC-07N or TSH-275)

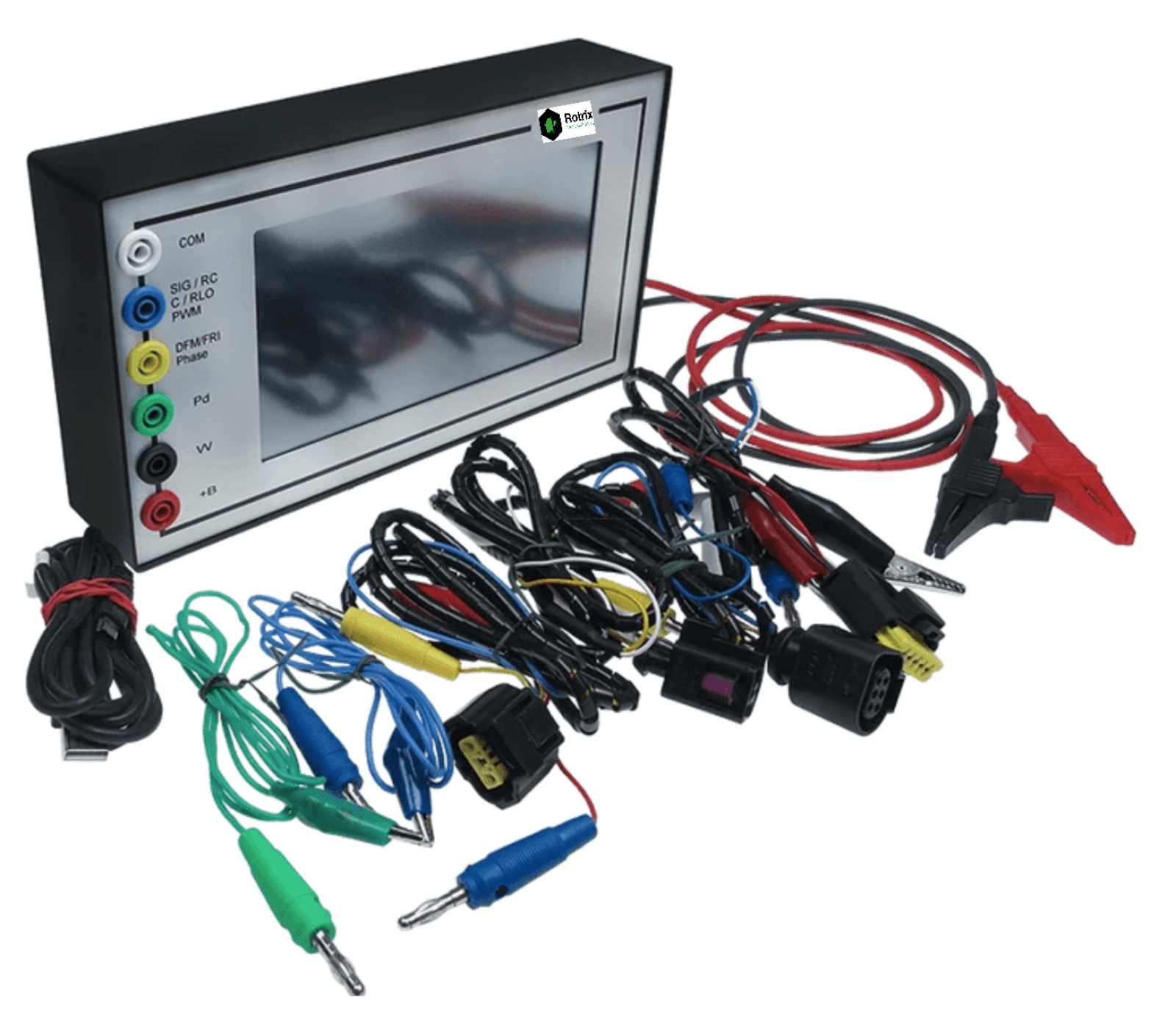

Motoplat VC-07 USB Generator Tester – The Tool for Modern Vehicle Diagnostics

The Motoplat VC-07 USB generator tester is a specially developed diagnostic tool that complements existing equipment, enabling fast and accurate testing of the generators (alternators) of the latest generation of motor vehicles. This device offers an ideal solution for makes such as BMW, Mercedes-Benz, Volkswagen, and Audi, which feature complex regulators and communication protocols.

Important Note: The current product description applies to the Motoplat VC-07 2020 model, which is no longer available. For features and capabilities, please refer to the replacement models: Motoplat VC-07N vagy TSH-275.

Key Features and Advantages

The goal of the VC-07 USB tester is to increase workshop efficiency by minimizing the time required to check generators while ensuring maximum accuracy.

• Automatic Protocol Identification: The device is capable of automatically identifying and displaying the regulator types found on the generator in seconds, using various communication protocols (e.g., LIN, PWM, PD).

• Drive Type Identification: It is possible to determine the generator's drive type without the generator being physically connected to the tester, which significantly facilitates troubleshooting.

• DFM Signal Display: When checking PWM and PD protocols, the monitor displays the DFM (Diagnostic Feedback Module) signal information in percentage format (%). This allows for real-time assessment of the generator's momentary output.

• Adjustable Test Voltage: By default, the VC-07 USB operates at a test voltage of 14.5V, but the user can easily modify the voltage using the buttons (15.5V, 13.5V, 12.5V) to simulate the actual charging conditions of the vehicle. The „OFF” option is also available.

• Integrated Voltmeter: The device is equipped with a built-in voltmeter as an auxiliary function, which enhances diagnostic capabilities.

• PC/Laptop Connection: The tester is equipped with a USB port and has its own software that can be installed on the workshop's existing laptop or PC, ensuring detailed data acquisition and analysis.

Technical Data

The Motoplat VC-07 USB diagnostic tool can be classified into the following categories:

Advantages of Using the VC-07 USB in the Workshop

In modern vehicles, generators based on complex communication protocols (e.g., LIN bus based systems) are becoming increasingly common. Traditional testers are often unable to properly inspect these systems. The Motoplat VC-07 USB specifically offers a solution for this challenge:

1. Fast Fault Detection: Automatic protocol recognition drastically reduces setup time. The instrument immediately indicates which type of regulator is being faced.

2. Realistic Simulation: The ability to manually adjust the voltage allows us to precisely simulate the charging condition experienced in the vehicle during testing, enabling us to identify the cause of the fault more reliably.

3. Performance Evaluation: The percentage display of the DFM signal not only shows whether the generator is working but also how efficiently it does so under momentary load. This is essential for diagnosing vehicles equipped with Start/Stop systems.

4. Data Handling: Thanks to the connection to the PC and the dedicated software, test data can be recorded, archived, and analyzed, which increases the documentation and quality of the service work.

This diagnostic tool is essential for any service specializing in servicing the newest European vehicle fleets, ensuring fast, accurate, and reliable generator and charging system inspection.

This product is part of the wide range of Motoplat test equipment, which also includes Rotrix EV/PHEV chargers and other workshop equipment.
