This detailed accessory kit is specifically for the Wieländer+Schill Tool Box RS-17 systems, and is targeted at General Motors (GM) BrightDrop vehicles, providing precise tools for related special repair and bodywork tasks. The kit combines the latest technologies, ensuring efficient and professional execution of work when dealing with the newest body components.
This accessory package is essential for any technician servicing GM BrightDrop models, guaranteeing that the necessary special tools are on hand even for the most complex tasks.
The kit represents the professional quality of Wieländer+Schill and has been compiled in accordance with OEM (manufacturer) specifications. The components found within are necessary for riveting and punching/extraction processes, especially for Self-Piercing Rivets (SPR) and solid rivets.
Important Note: Specific application areas and detailed descriptions of individual workflows must always be obtained from the relevant repair specifications of the respective vehicle manufacturer (GM).
The accessory kit has a compact design, which facilitates storage and organization in the toolbox.
| Property | Value |
|---|---|
| Part number | 700183 |
| Compatibility | Tool Box RS-17 |
| Vehicle Specification | GM BrightDrop |
| Length | 270 mm |
| Width | 84 mm |
| Höhe | 56 mm |

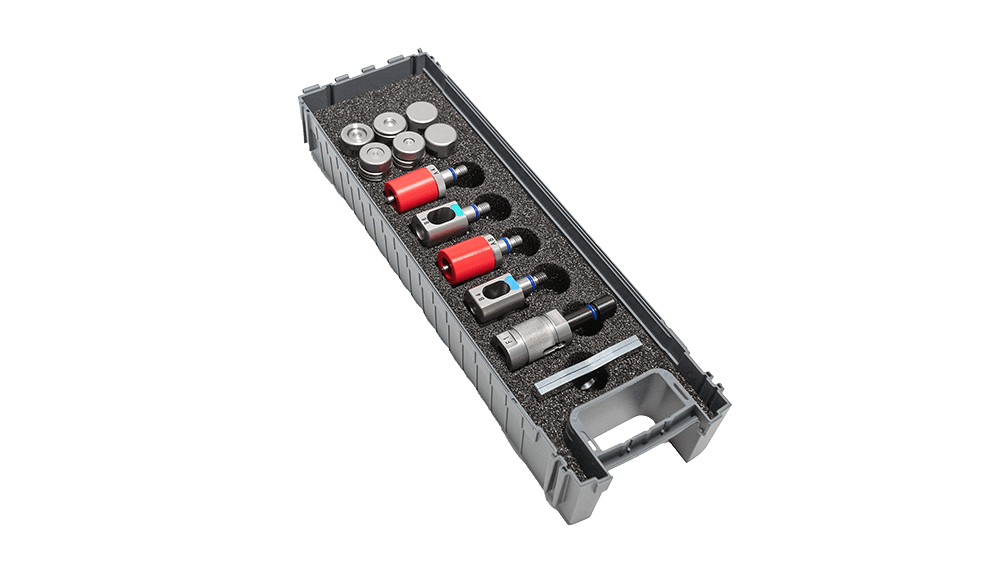

Accessory kit with part number 700183 contains the following carefully selected and numbered parts required for precise body repair:
| Part number | Designation | Description / Function | Diameter / Size |
|---|---|---|---|
| 700220 F1 | With extension nipple | Extension piece with M6 thread | 32 mm |
| 700264 B4 | Punching and Extraction Tool | Tool for creating holes and removing fasteners | Ø 6 mm |
| 700270 B6 | Punching and Extraction Tool | Tool for creating holes and removing fasteners | Ø 8 mm |
| 700299 Z4 | Assembly tool | Set consisting of two pieces for the precise assembly of components | PU: 2 pcs |
| 700332 D1 | Setting Die (Setting Die) | For setting self-piercing rivets (SPR) | Ø 3.5 mm |
| 700336 E3 | Setting Die (Setting Die) | For setting self-piercing rivets (SPR) | Ø 4.7 mm |
| 703617 A8 | Extraction Mandrel (Extraction Mandrel) | Mandrel equipped with a polyurethane spring for removing rivets | Ø 3.5 mm |
| 700341 A4 | Extraction Mandrel (Extraction Mandrel) | Mandrel equipped with a polyurethane spring for removing rivets | Ø 4.7 mm |
| 703618 C24 | Closing Die (Closing Die) | For the final setting of self-piercing rivets (SPR) | Ø 3.5 mm |
| 700538 C11 | Closing Die (Closing Die) | For the final setting of self-piercing rivets (SPR) | Ø 4.7 mm |
| 700248 J1 + J1 | Tool Set (Die Set) | For setting solid rivets (Solid Rivets) | Ø 6 mm |
This accessory kit increases the flexibility of the Wieländer+Schill RS-17 platform, enabling workshops to also perform the structural body repairs of the latest GM BrightDrop vehicles.
The key components of the set are for the professional handling of self-piercing rivets (SPR) of different diameters (3.5 mm and 4.7 mm).
Setting Tools (D1, E3): These tools ensure that the SPR rivets are pressed into the body panels in the manner prescribed by the manufacturer, with optimal force and geometry. The correct setting is critical for structural integrity and safety.
Closing Tools (C24, C11): The final shaping of the rivet head is performed, guaranteeing a solid and durable connection that meets factory specifications.
Solid Rivet Set (J1 + J1): The tool set for 6 mm solid rivets ensures the precise execution of traditional, high-strength fastenings.
The kit prepares the user not only for installation but also for the professional removal of faulty or replacement fasteners.
Extraction Pins (A8, A4) with Polyurethane Spring: The built-in polyurethane spring assists in retracting the pin after the operation, preventing tool damage and speeding up the workflow. Different diameters (3.5 mm and 4.7 mm) cover the most common SPR sizes.
Punching and Extraction Tools (B4, B6): These tools (Ø 6 mm and Ø 8 mm) allow for the quick and clean removal of existing fasteners, minimizing damage to the surrounding material.
Extension Threaded Sleeve (F1): The 32 mm extension element with M6 thread is ideal for situations where the standard tool length is insufficient for access, or where special torque transmission is required.
Assembly Tool (Z4): The two-piece set ensures precise fitting and stabilization of the tools during more complex installation phases.
A Tool Box RS-17 | GM BrightDrop | Accessory Kit with the use of the kits, the services:
OEM Compliance: They guarantee that repairs comply with the latest General Motors structural repair guidelines, which is essential for maintaining warranty validity.
Hatékonyság Növelése: The dedicated tools make the riveting and extraction processes faster and more precise, reducing downtime.
Versatility: The kit covers the most important SPR and solid rivet sizes found in the bodywork of BrightDrop vehicles.
Quality Assurance: The durability and precision of the Wieländer+Schill tools provide long-term, reliable performance.
This accessory kit is an integral part of the Wieländer+Schill professional technology portfolio, offering solutions tailored to the most modern vehicle repair requirements.
