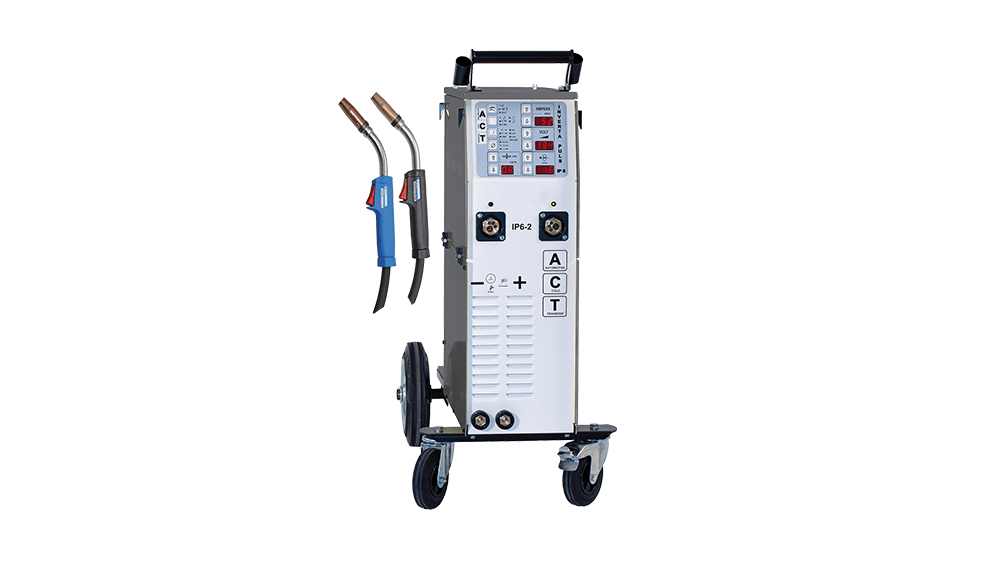

The Wielander + Schill InvertaPuls IP 6-2 ACT An inverter MIG-MAG welding machine optimized for modern vehicle body repair requirements, providing outstanding performance and exceptional versatility. It is specifically designed for the high-quality execution of thin sheet welding, as well as the efficient processing of steel and aluminum materials. The ACT (Automotive Cold Transfer) technology application guarantees low heat input, distortion-free, and excellent bead profile welding seams, which is essential for precision bodywork.
This model is equipped with two welding torches, enabling continuous, uninterrupted work with two different wires, thereby increasing workshop efficiency.

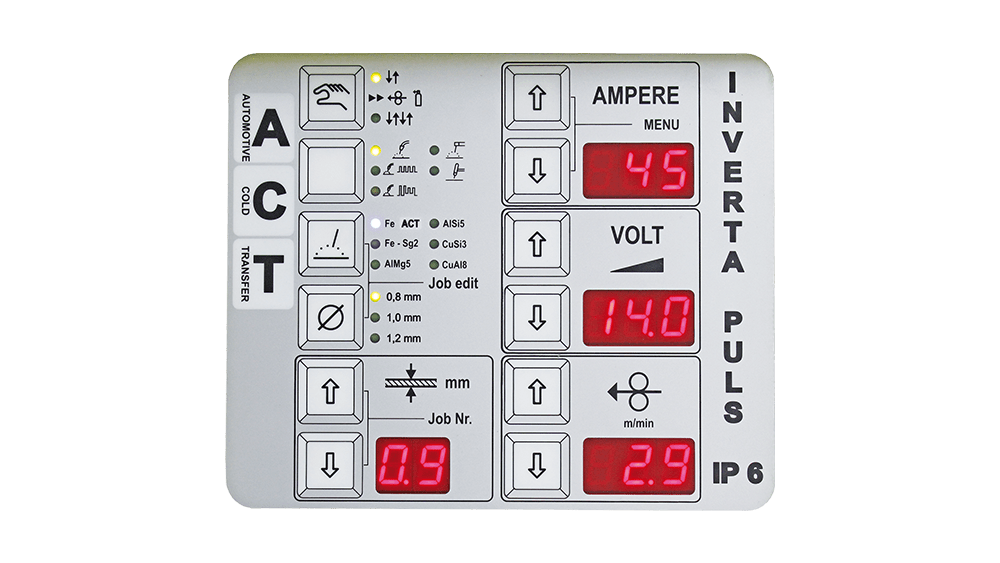

The InvertaPuls IP 6-2 ACT features a number of functions that significantly ease and optimize the welding process:
ACT (Automotive Cold Transfer) Technology: This innovative process minimizes the amount of heat input, which is critically important when welding modern high-strength steels and thin sheets. As a result, material distortion and the size of the Heat Affected Zone (HAZ) are reduced.
Synergic Parameters: The machine automatically optimizes welding parameters for the selected wire and shielding gas combination, simplifying setup and ensuring consistent quality.
Excellent Bead Profile: Due to the stability of the welding process and low heat input, the machine excellently bridges imperfect fits and gaps.
Automatic „Hold” Function: The ability to automatically save welding parameters ensures that the set values are retained, even if the welder temporarily breaks the arc.
Program storage: It is possible to save unique welding programs, so frequently used settings can be recalled quickly.
Software Update Interface: The built-in interface allows the machine's software to be kept up-to-date, ensuring continuously evolving technological support.
Two Welding Torches: The two torches (one for steel, one for aluminum) allow for quick switching between different materials without needing to change the wire, thereby increasing productivity.
The specifications of the InvertaPuls IP 6-2 ACT model indicate professional use:
| Parameter | Value | Note |
|---|---|---|
| Part number | 332007 | |
| Mains Voltage | 3 ~ 200 V | Special network connection |
| Variant | Steel/Alu | Suitable for steel and aluminum welding |
| Welding Current Range | 10 – 280 A | |
| Voltage Setting Range | 10 – 50 V | |
| Open Circuit Voltage (MIG) | 82 V | |
| Wire Feed Speed Range | 0.5 – 22 m/min | |
| Efficiency | 86 % | |
| Power Factor (cos φ) | 0,75 | |
| Protection Class | IP 23 | Dust and Splash Protection |
| Noise Level (Sound Pressure Level) | 66 dB(A) | |
| Operating Temperature | between -10 and 40 °C | |
| Dimensions (Length × Width × Height) | 820 x 430 x 930 mm | |
| Weight | 57 kg | |
| Conformity Declaration | CE |
The machine arrives fully equipped for immediate operation:

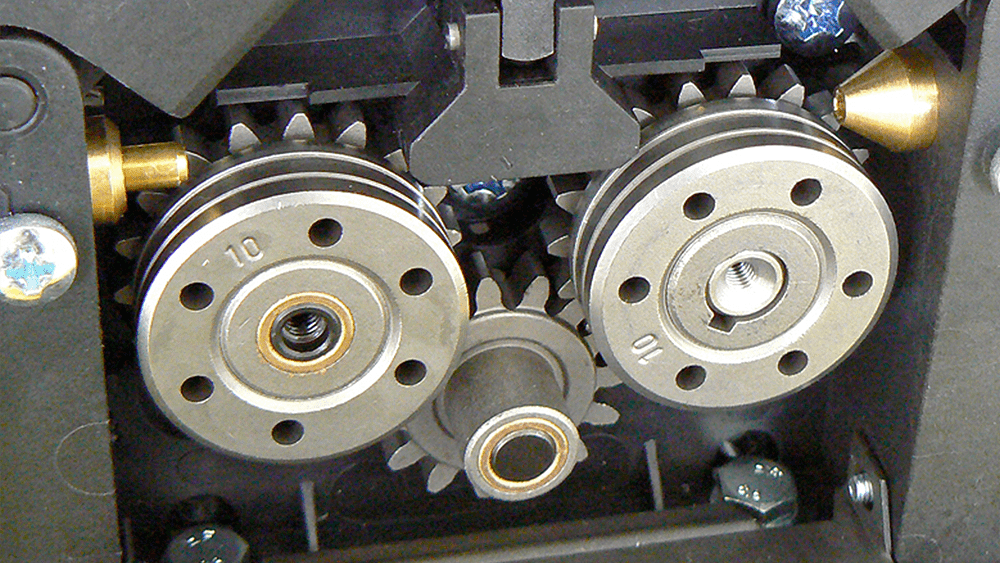

2 sets of wire feed rollers (steel): For 0.8 mm and 1.0 mm diameter (Part No: 337220)
1 set of wire feed rollers (aluminum): For 1.0 mm and 1.2 mm diameter (Part No: 337221)
1 pc 3G Welding Torch (For Steel): 3.0 meter long (Part No: 308110)
1 pc 3G Welding Torch (For Aluminum): 3.0 meter long (Part No: 308111)
1 pc Earth cable with clamp: 5 meter long, 35 mm² cross-section, with SK 35 connector (Part No: 304053)
1 pc Double distributor valve (for pressure gauge): 1/4″ (Part No: 311044)
1 pc Operating instructions
For maximum performance and adaptation to different materials, the following accessories and welding wires are ideal for the InvertaPuls IP 6-2 ACT:

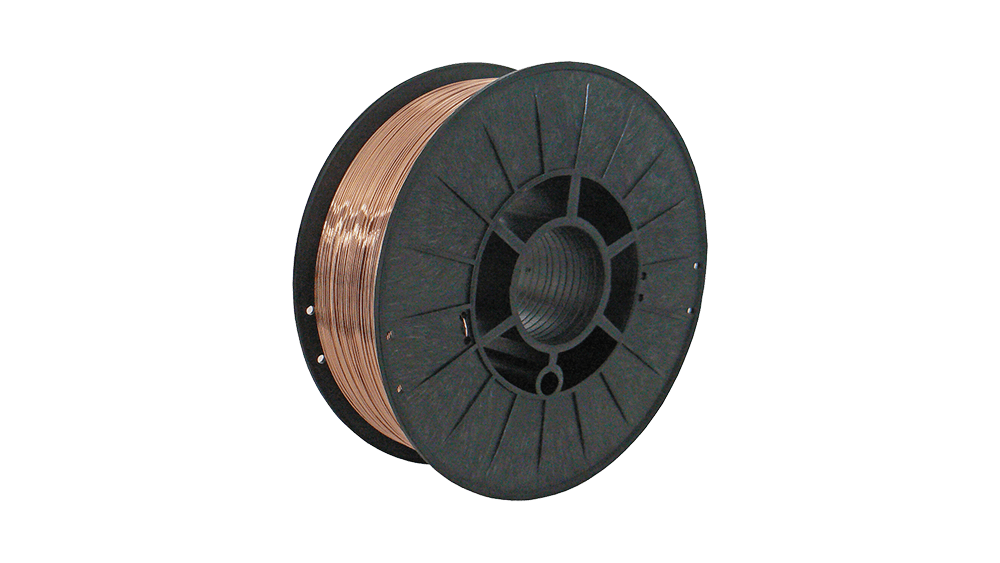

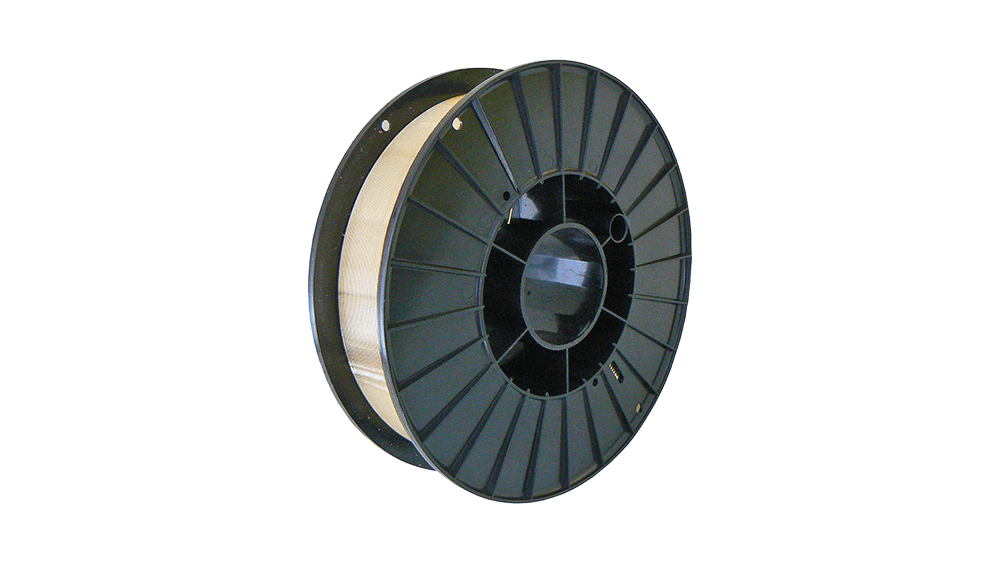

1. Union X96 Welding Wire (For Steel)
Features: High-strength MAG welding wire, Honda approved. Nominal strength: 980 MPa.
Application: Ideal for steels with a strength of 590-980 MPa, as well as steels in the 270-440 MPa range.
Design: Ø 0.8 mm, D200 spool, 5 kg (Part number: 311087). Also available in 15 kg K300 reel (Part number: 311007).

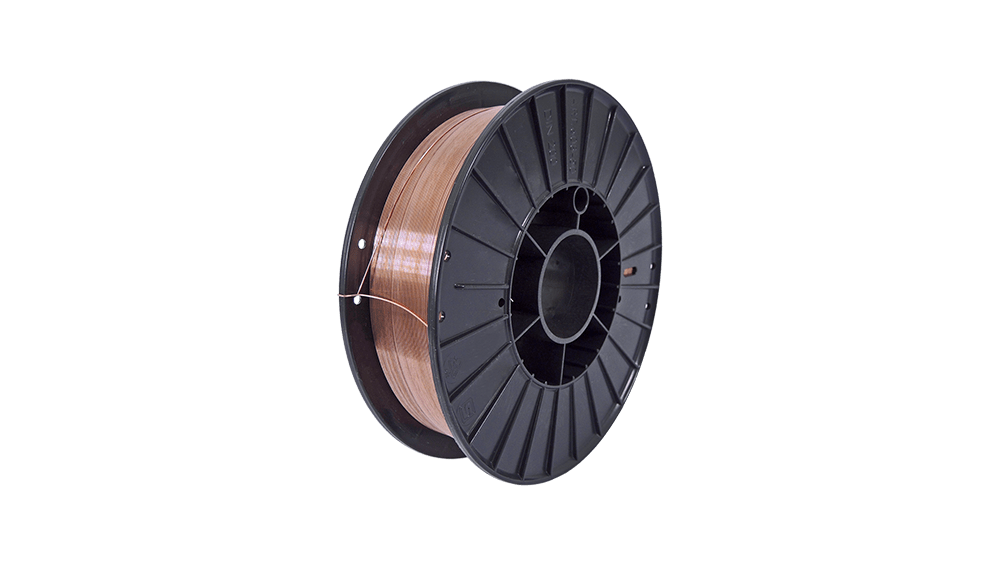

2. NiMoCr Welding Wire (For Hardened and Tempered Steels)
Features: Low alloy steel wire, for yield strength approx. 700 MPa.
Temperature Range: Welded material usable between -50 °C and 350 °C.
Shielding gas: Optimum quality is achieved with M21 mixed gas. Can also be used in short-circuit and spray arc welding modes.
Important: Control of the heat input during welding is crucial; the interpass temperature must not exceed 180 °C.
Design: Ø 0.8 mm, D200 plastic spool, 5 kg (Part number: 311036).

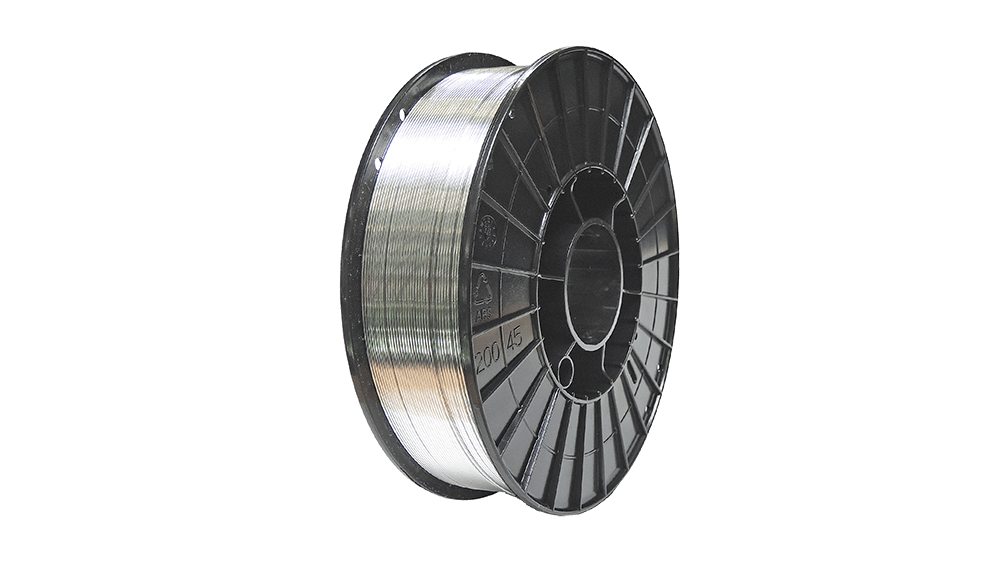

3. AlSi12 Welding Wire (For Aluminium-Silicon Alloys)
Features: Aluminium-silicon alloy (for aluminium casting alloys).
Application: For TIG and MIG welding of aluminium-silicon alloys.
Shielding gas: TIG: Argon I1; MIG: Argon I1 or Argon-Helium mixtures I3.
Design: Ø 1.0 mm, D200 plastic spool, 2 kg (Part number: 311080).

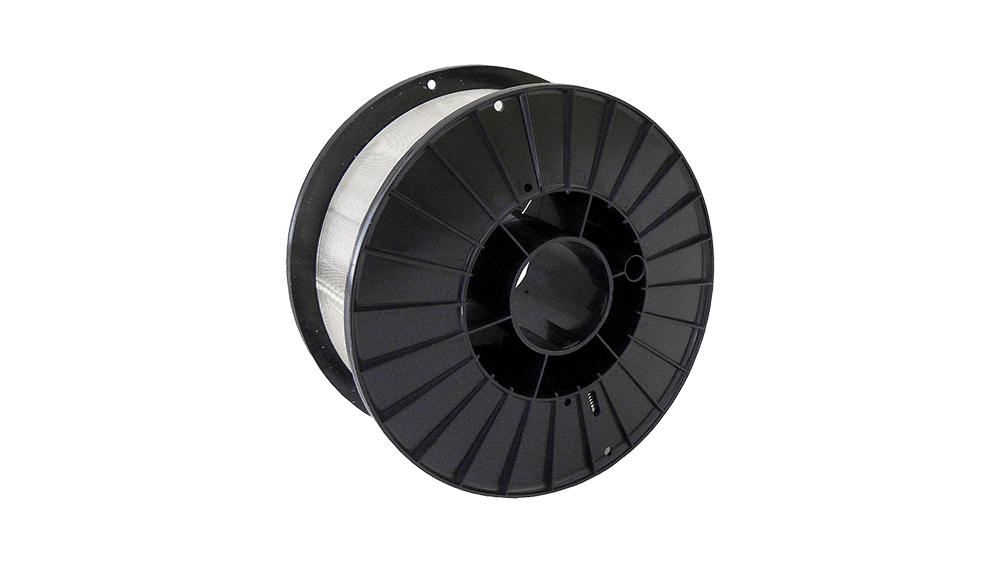

4. AlSi5 Welding Wire (For Aluminium-Silicon Alloys)
Features: Aluminium-silicon alloy.
Preparation: The welding surface must be metallically clean. For thicker workpieces (over 15 mm), preheating to 150 °C – 200 °C is recommended.
Shielding gas: TIG: Argon I1; MIG: Argon I1 or Argon-Helium mixtures I3.
Design: Ø 1.0 mm, D200 plastic spool, 2 kg (Part number: 311078).

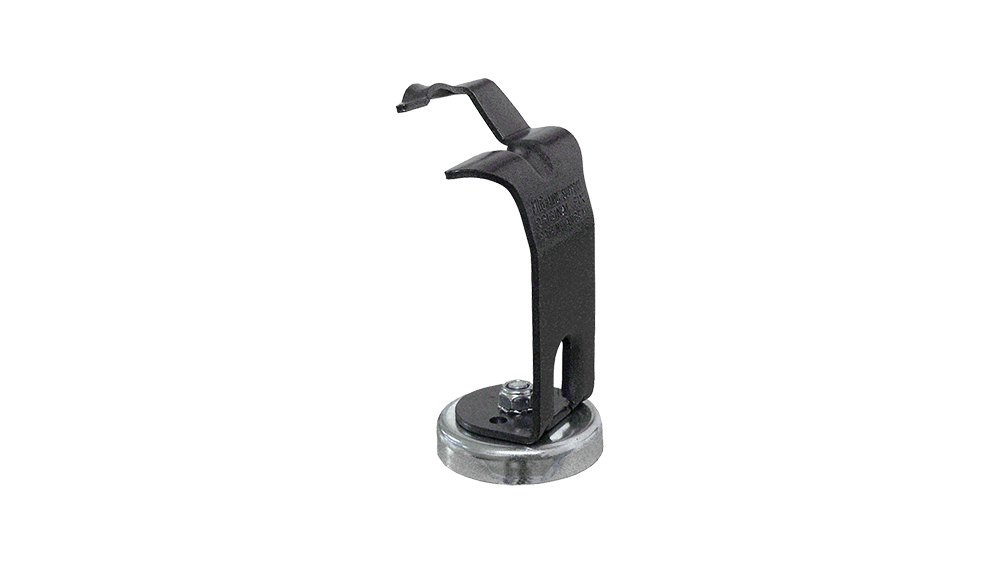

MIG-MAG Torch Holder with Magnetic Base: Ensures safe and convenient placement of torches during breaks in work (Part number: 311043).

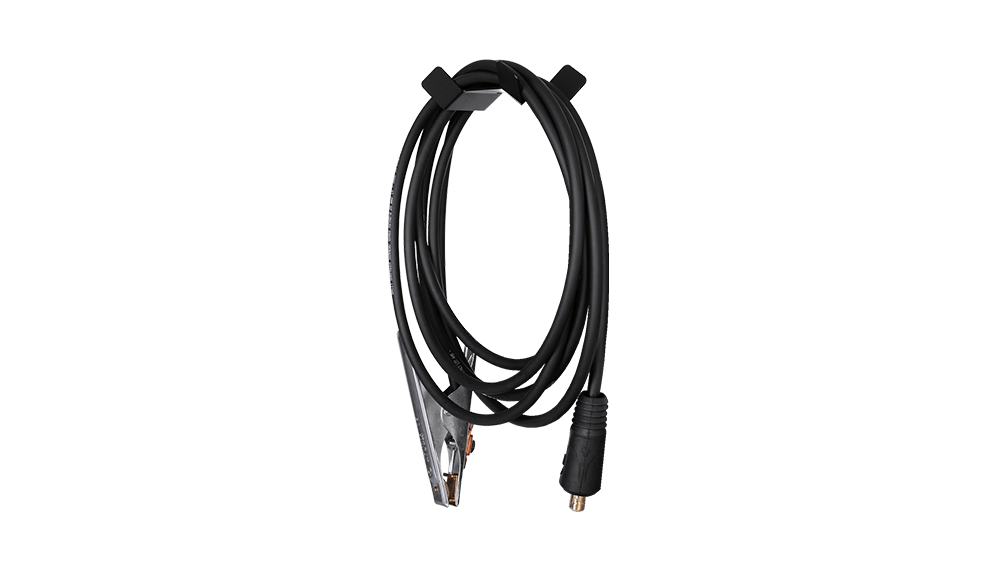

Work cable with Clamp: 5 m, 35 mm², with SK 35 connector (Part number: 304053).
Adapter for K300 Spool Gun: Allows the use of larger, 15 kg wire spools (Part number: 307002).
The InvertaPuls IP 6-2 ACT is the ideal choice for all professionals seeking the highest level of quality, efficiency, and material-saving technology in body repair.
