This product is a precision, curved, short electrode specifically designed for the electrode set No. 7 (Electrode set No. 7). Manufactured from high-quality materials, it is an ideal choice for professional resistance spot welding applications where access is limited or reaching weld points with a special geometry is required.
This electrode is part of the Wielander + Schill welding technology portfolio, guaranteeing reliable and efficient work during automotive repairs and industrial tasks. The product also includes a matching electrode cap, ensuring a complete solution for the welding task.

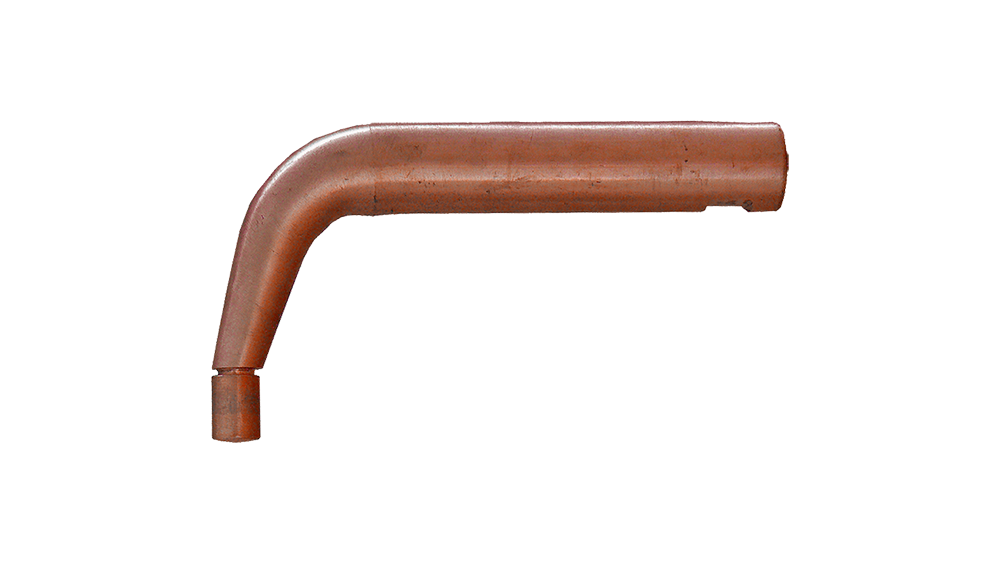

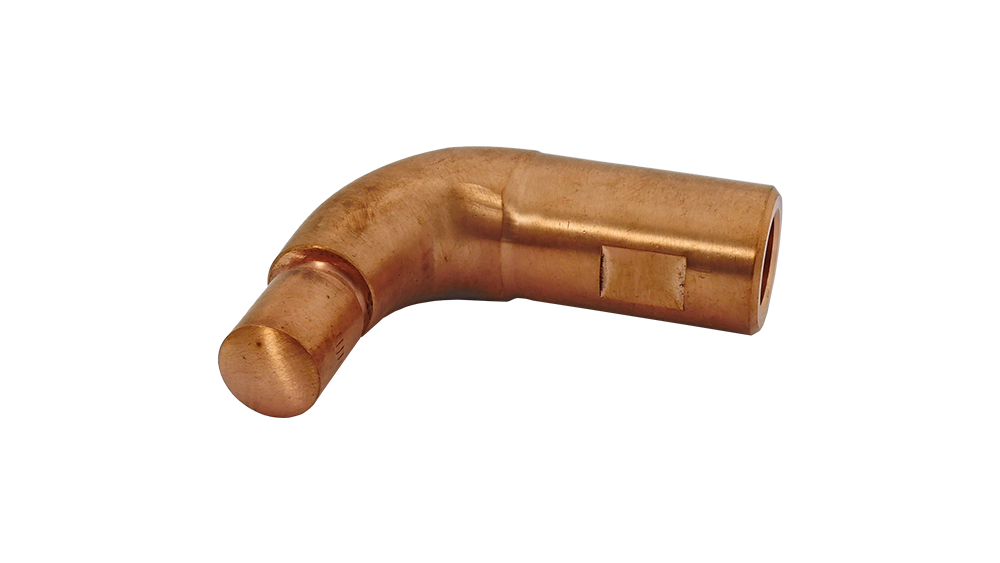

This curved, short electrode is a fundamental component of the electrode set No. 7. Its short design allows access in tight spaces, while the curved shape optimizes pressure and current transfer to the weld spot.
Main Advantages:
Optimized Geometry: The curved, short design ensures ideal access to hard-to-reach weld points, especially on complex body parts.
Excellent Conductivity: The use of CuCrZr (Copper-Chromium-Zirconium) material guarantees excellent electrical conductivity and long service life, even under high thermal load.
Complete Solution: The package includes the electrode itself and the corresponding electrode cap, ensuring proper contact and weld quality.
System Compatibility: Specifically developed for electrode set No. 7, ensuring perfect fit with compatible welding guns and holders.
The precise specifications of the product ensure compatibility and reliable performance during the most demanding welding tasks.
| Property | Value | Note |
|---|---|---|
| Part number | 495695 | The unique identifier of the product. |
| Content | 1 piece (1 stück) | The package contains one electrode and one electrode cap. |
| Diameter (Ø) | 16 mm | Diameter of the electrode's working surface. |
| Length × Width × Height | 78 x 70 x 26 mm | The physical dimensions of the complete electrode. |
| Material | CuCrZr (Copper-Chromium-Zirconium) | High heat resistance and excellent conductivity alloy. |
| Shank diameter | 25 mm | The part that fits into the holder. |
| Weight | 1.969 kg | The net weight of the product. |
| Construction | Curved, short | Special geometry for hard-to-reach spots. |
| Set identifier | Electrode Set No. 7 | Compatibility indication. |
This electrode is an ideal choice for any spot welding job where standard straight electrodes are insufficient. It can be particularly useful for:
Body Repair: Welding hard-to-reach internal reinforcements, or areas where a standard welding head cannot fit.
Special Joints: Weld points where the curved shape assists in proper electrode positioning and even pressure distribution.
The quality of spot welding largely depends on the condition of the electrodes. A clean and correctly shaped electrode face is essential for stable welding results.
Recommended Accessories for Maintenance:
For maximum lifespan and consistent welding performance, the use of the following accessories is recommended:

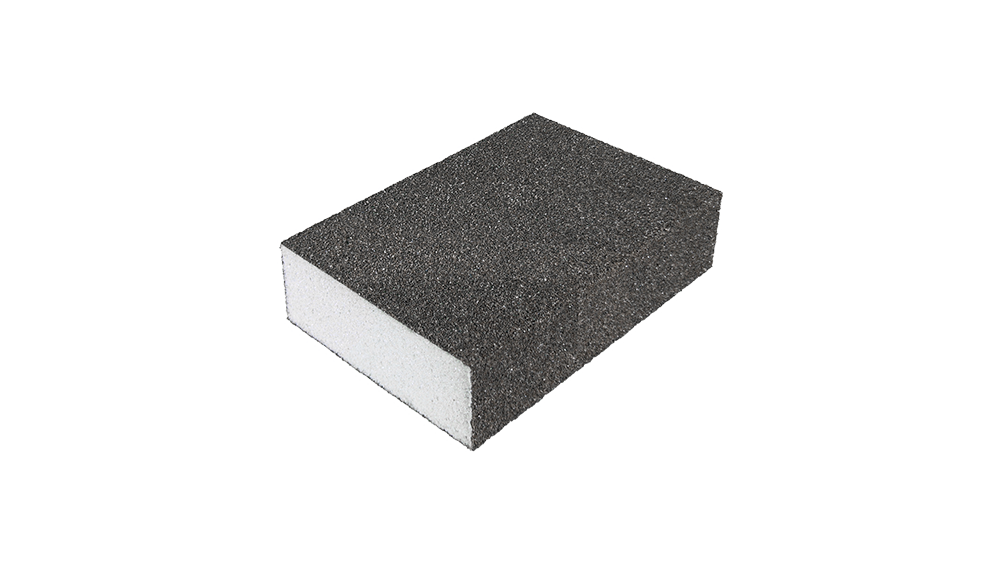

Electrode Cleaner (Electrode fix | Grain 60, Part No.: 298298): This special cleaning agent (60-grit) is essential for the regular cleaning of welding electrode caps. Only clean electrode caps guarantee correct spot welding results.

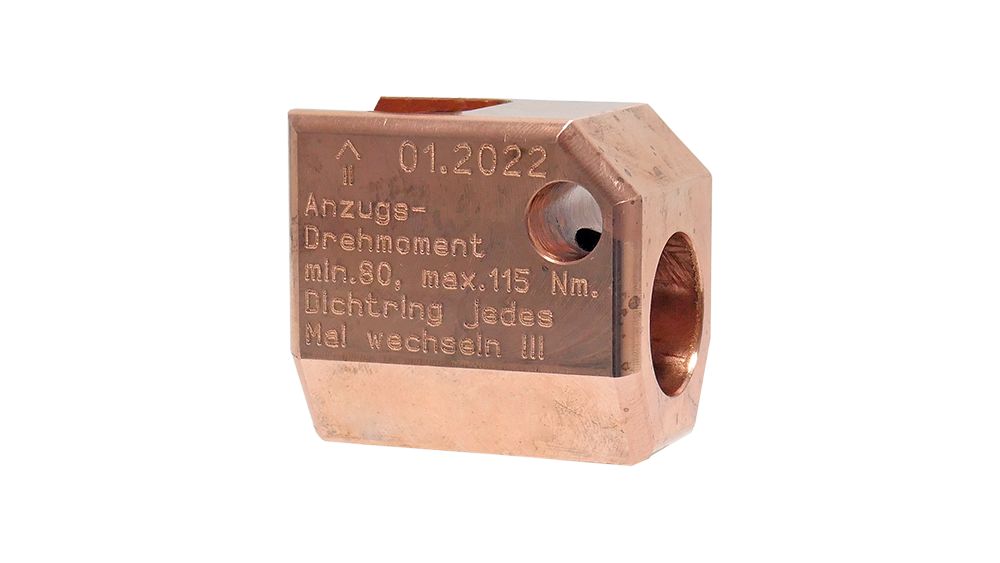

Electrode Holder (Electrode holder, Part No.: 495627): The holder for electrode sets No. 7 and No. 9 ensures the safe fixing of the electrode.

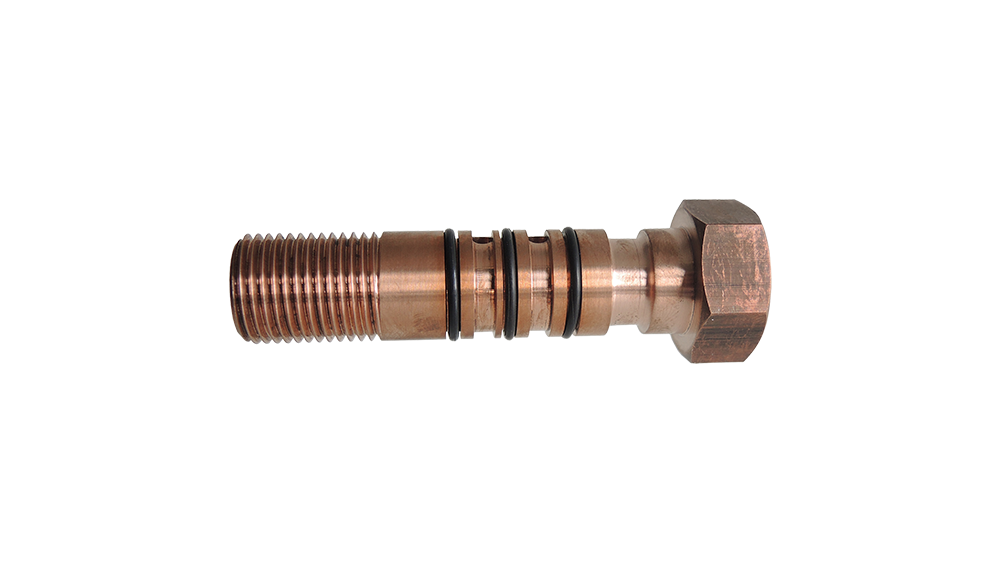

Fixing Screw (Screw bolt | Electrode set no. 7 / no. 9, Part No.: 495693): This screw is used for fixing the electrode holder for the InvertaSpot series C-Trafogun gun.

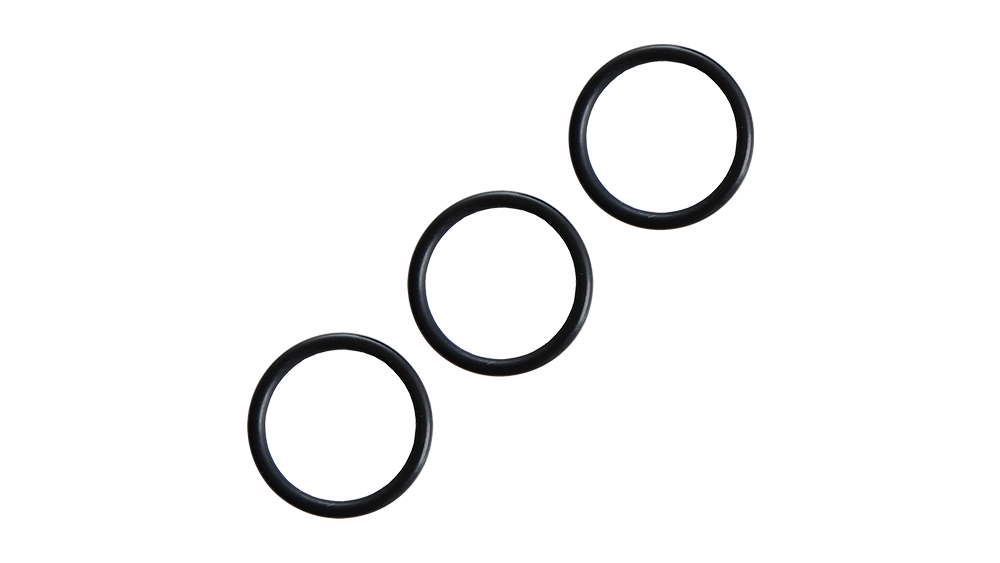

Sealing O-rings (O-rings | Screw bolt | PU: 3 pcs., Part No.: 495694): These O-rings are used for the fixing screws, ensuring effective sealing and stable mounting.
The use of these accessories minimizes premature electrode wear and ensures optimal efficiency of the welding process.
This curved, short electrode is an integral part of Wielander + Schill's Resistance Spot Welding systems. The standard sizing of a 25 mm shank diameter and a 16 mm working end diameter ensures quick replacement and reliable mechanical fit in the appropriate holders.
The product is found within the welding technology category, in the electrodes section, and can also be used in the context of XSeries – Professional Riveting Technology, where welding quality is critically important.
In summary: The curved, short electrode with part number 495695 is a special high-performance component required for precision welding tasks, especially in areas with limited access. The high-quality CuCrZr material and carefully designed geometry guarantee a long service life and reliable weld seams.
