This detailed product description presents the high-quality C11 closing tool belonging to the Wieländer+Schill XSeries professional riveting technology, specifically designed for the precise and reliable fastening of self-drilling rivets, paying special attention to Ford specifications.

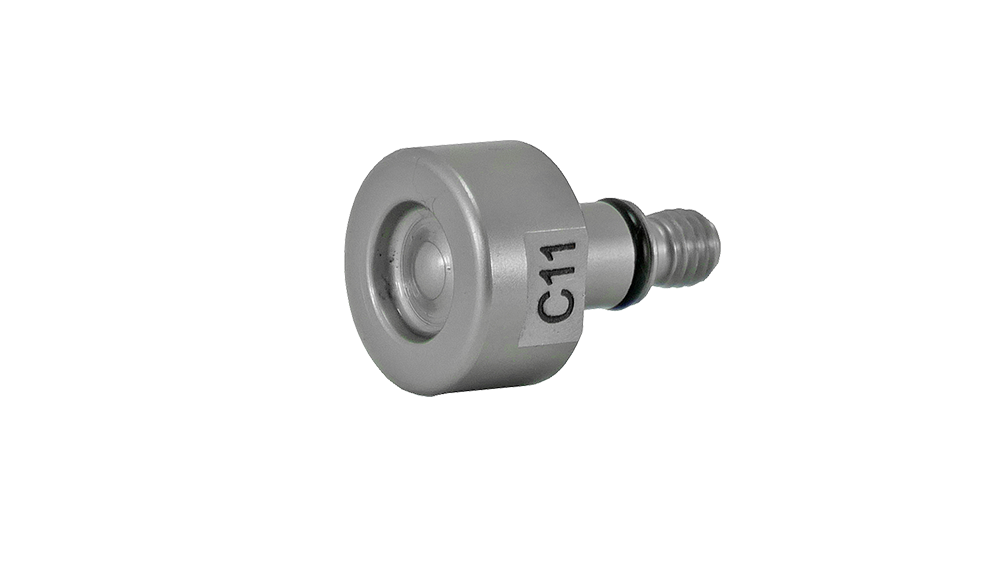

The C11 closing tool (Item number: 700538) is an essential tool in the body construction and repair industries, guaranteeing optimal rivet joints. The tool is designed to meet the highest professional requirements, ensuring a durable and aesthetic closure for the most diverse material thicknesses and applications.
This tool is part of the Wieländer+Schill professional riveting technology (XSeries), which prioritizes reliability and long service life.
Precise Fit: A design specifically optimized for self-drilling rivets with a diameter of 4.7 mm, ensuring the formation of the closing head according to standards.
Ford Compatibility: The tool's identifier (Ford ID – DP0902200 H1R1.5) indicates compliance with specifications prescribed by Ford, ideal for repairs requiring factory quality.
Excellent Quality Construction: The tool is made of durable materials, guaranteeing a long service life under high usage and consistent performance.
Optimized Geometry: The design of the closing surface (H1R1.5) ensures the optimal deformation of the rivet, which is essential for a solid and vibration-resistant joint.
The critical dimensions and identifiers of the C11 closing tool are as follows:
| Property | Value | Note |
|---|---|---|
| Item number | 700538 | The unique identifier of the product. |
| Ford ID | DP0902200 H1R1,5 | Marking compliant with factory specification. |
| Application | Closing tool for self-drilling rivets | It is used for forming the closing head of the rivet. |
| Rivet Diameter | Ø 4.7 mm | Compatible diameter of the tool. |
| Length | 18 mm | The total length of the tool. |
| Width (Width) | 18 mm | Overall width of the tool. |
| Height | 27 mm | Overall height of the tool. |
| Category | XSeries – Professional Riveting Technology | The product family to which it belongs. |
| Típus | Tools | Dies |
This closing tool is the ideal choice for every specialist who:
Works in vehicle repair works, especially on the repair of body elements of Ford brand vehicles, where the original fastening technology must be applied.
Performs self-drilling riveting procedures where joint strength and surface quality are critical.
Searches for a reliable and durable tool for high-repetition manufacturing or repair processes.
The C11 closing tool ensures that the rivet head is formed exactly according to the specified geometrical parameters, thereby maximizing structural integrity and corrosion resistance.
Wieländer+Schill is committed to the highest quality. The product belongs to the category of professional tools and the manufacturer operates according to ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, which guarantees a consistently high level of product delivery.
This tool is part of Wieländer+Schill's broad portfolio, which includes riveting technology, welding solutions, disassembly tools, and other body accessories. The product is intended for professional use and ensures long-term, trouble-free operation when used with appropriate riveting machines (e.g., XSeries systems).
