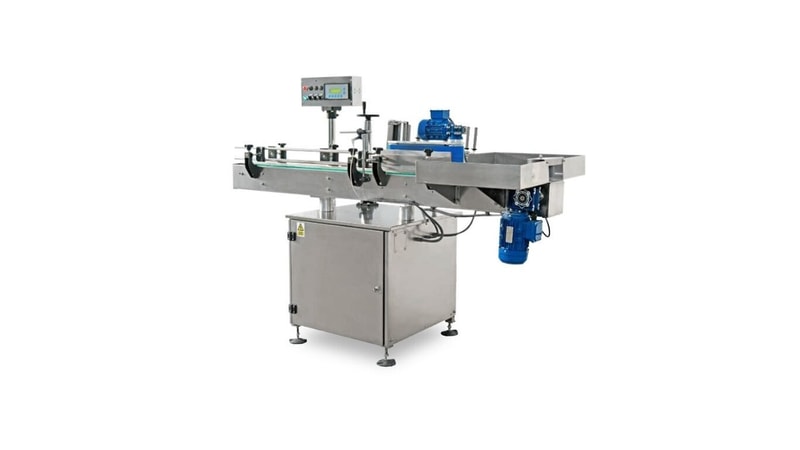

GLM-1000 Label Applicator – Precision Solution for Cylindrical Containers
The GLM-1000 label applicator is a robust device designed for industrial lines, providing fast and extremely accurate labeling. Its compact and modular design makes it ideal for automated manufacturing environments where consistency and reliability are paramount. This model is specifically optimized for the efficient and precise labeling of cylindrical containers.
Key Features and Advantages
The GLM-1000 is designed to deliver maximum performance with minimal maintenance requirements, integrating the latest technologies to optimize manufacturing processes.
Robust and Durable Construction
-
Material Usage: The entire machine structure is built from stainless steel and high-strength materials, guaranteeing excellent rigidity, long service life, and minimal corrosion resistance. This makes the equipment ideal for use in diverse industrial environments.
-
Configuration: The massive construction ensures stability even during high-speed operation, reducing vibration and increasing labeling accuracy.
Flexible and Fast Adjustment
-
Adjustable Head: The height of the label applicator head can be adjusted quickly and precisely. This feature is essential for facilitating changeovers between containers of different formats, ensuring a continuous and stable label flow.
-
Container Compatibility: Specifically optimized for cylindrical containers, covering a wide size range: From Ø 25 mm to Ø 100 mm. Although primarily designed for round shapes, other special shapes can also be handled with optional accessories (e.g., cap container supports).
High Performance
-
Maximum Speed: The GLM-1000 can apply up to 70 containers per minute labeling, ensuring the demands of high-volume production are met.
-
Accuracy: It guarantees precise and consistent label placement in all applications, which is essential for branding and legibility of product information.
Intuitive Operation
-
Display: An LCD display assists in the quick and visual verification of settings.
-
Electrical Control Panel: A centralized electrical control panel ensures easy management of settings and system supervision.
Technical Data Sheet
The table below summarizes the key technical parameters of the GLM-1000:
| Parameter |
Spezification |
Note |
| Container Type |
Cylindrical |
Other shapes are possible with accessories. |
| Label Type |
Self-adhesive |
For standard industrial labels. |
| Application Mode |
One label, one side |
Simple, one-sided labeling. |
| Operating Speed |
Up to 70 units/minute |
For high-performance industrial applications. |
| Maximum Label Size |
Height: 190 mm, Length: 315 mm |
Also suitable for handling large format labels. |
| Container Diameter |
Ø 25 mm – Ø 100 mm |
Wide range compatibility. |
| Equipment Dimensions |
2000 mm x 750 mm x 1600 mm |
Compact yet stable physical footprint. |
| Equipment Weight |
120 kg |
Robust, stable construction. |
| Tápellátás |
220 V / 50–60 Hz |
Standard industrial voltage. |
| Structural Material |
Stainless steel and high-strength materials |
Excellent durability and hygiene. |
| Display |
LCD |
Simple user interface. |
| Dispensing Head |
With height-adjustable column |
Flexible positioning. |
| Applicator |
Rotary, side-wall type |
Ensures perfect label adhesion. |
| Container Conveyor Belt |
1800 mm x 110 mm |
Integrated conveyor system. |
| Discharge Table |
Yes |
For receiving processed containers. |
| Support Table |
Stainless steel |
Increases system stability. |
Optional Accessories and Customization Options
The flexibility of the GLM-1000 is further enhanced by optional features that allow the machine to be adapted to specific manufacturing requirements:
-
Supports for Tapered Containers: Enables labeling of specially shaped, tapered (conical) containers as well, extending the machine's applicability.
-
Fork Sensor: Used for detecting transparent labels, ensuring that the label is applied correctly even if it is visually difficult to detect.
-
Belt Conveyor: Facilitates the efficient and even movement of containers through the labeling zone.
-
Feeding Table: Optimizes the feeding of products onto the production line, ensuring continuous and uninterrupted operation.
Integration and Application Areas
The GLM-1000 fits perfectly into any existing or new production line. The purpose of the equipment is to carry out the labeling process in the least disruptive way possible, but with maximum efficiency. The stainless steel structure and modular design ensure easy maintenance and quick cleaning, which is especially important in the food and pharmaceutical sectors.
The GLM-1000 offers the perfect combination of precision, speed, and reliability for the automated labeling of cylindrical containers.
