This detailed product description presents a high-quality nosepiece designed for the Wielander + Schill XSeries professional riveting technology systems, ideal for precise and reliable riveting tasks.

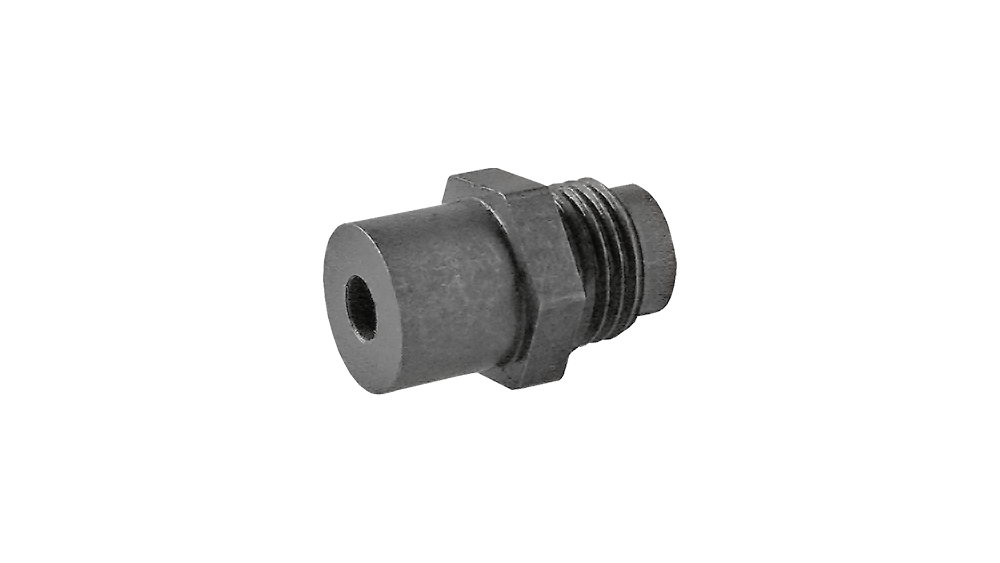

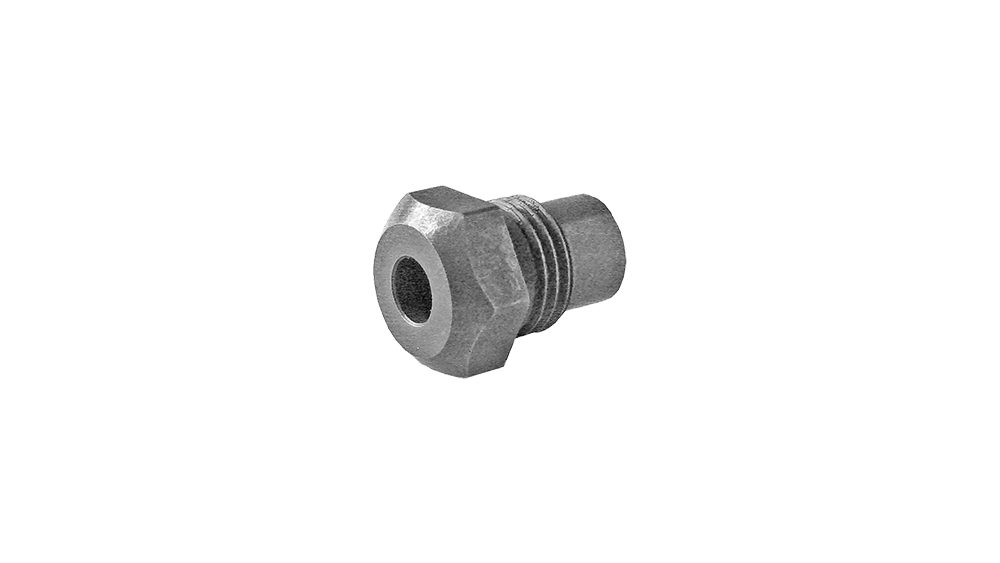

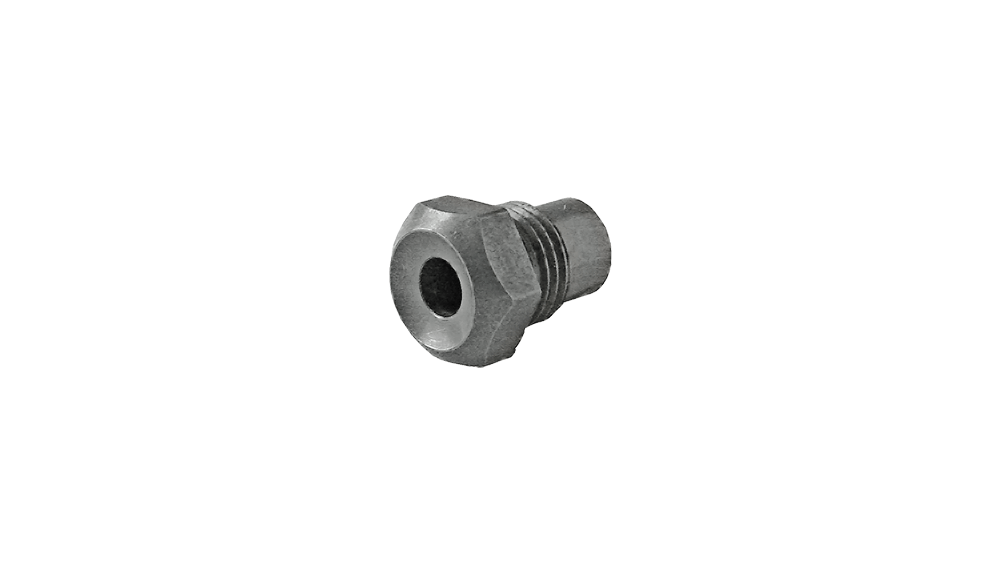

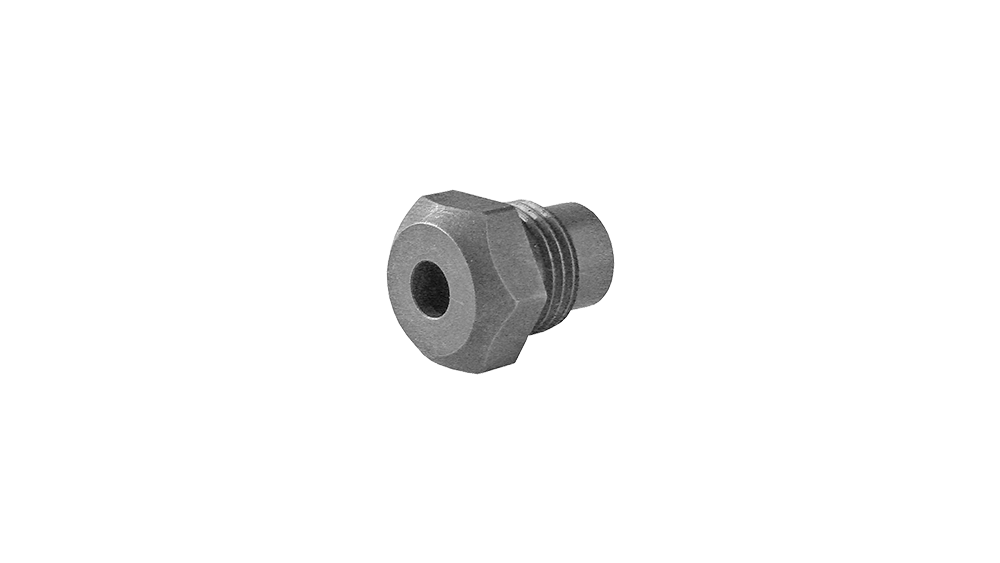

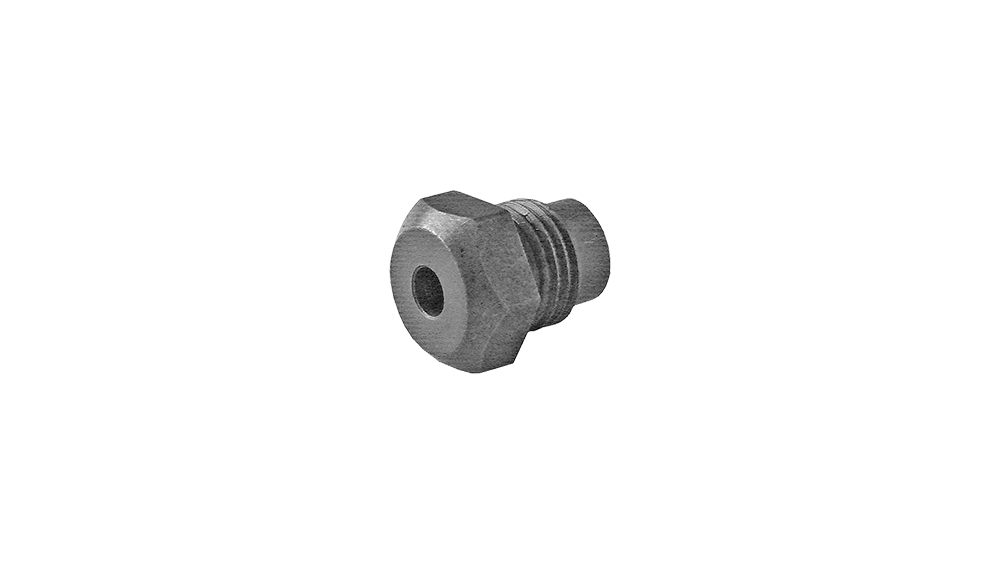

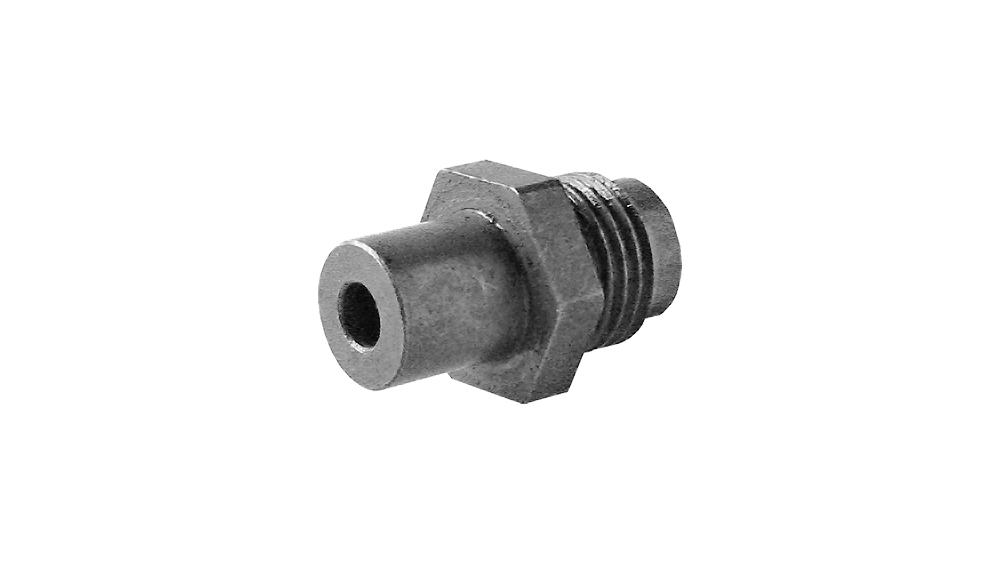

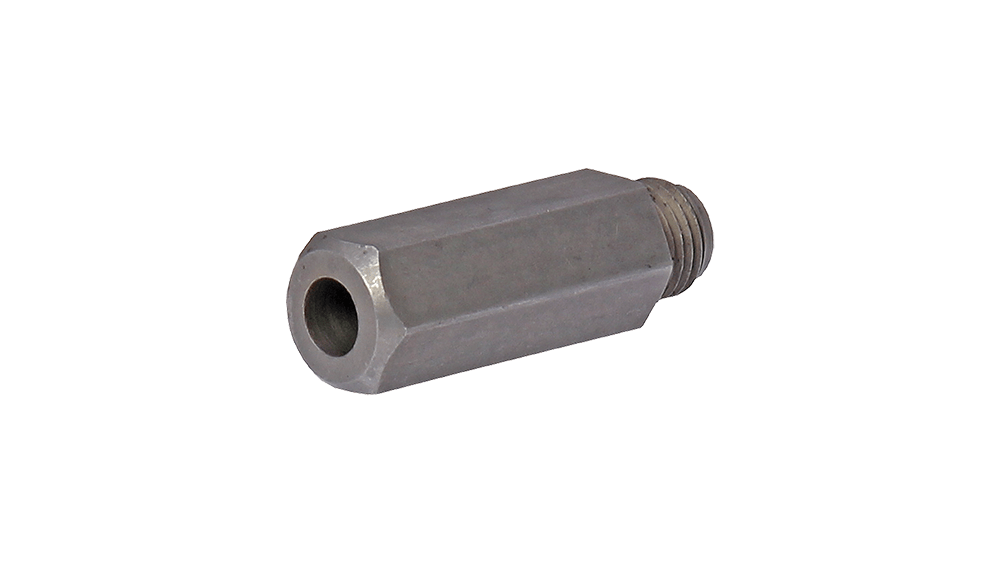

A 4.8B nosepiece, part number 700522 a specially designed accessory intended for use in Wielander + Schill XSeries systems. This nosepiece is a crucial element for the professional installation of RIBE blind rivets, especially those with a 4.8 mm diameter. The concave tip design ensures optimal setting of the rivet and the creation of a perfect head.
This nosepiece with the BR 50 blind rivet setter adapter can be used together, guaranteeing the precision and durability required for professional automotive repair and industrial applications.
This nosepiece represents the recognized quality of Wielander + Schill, which prioritizes durability and precise fit:
Special Application: Optimized specifically for 4.8 mm diameter RIBE blind rivets.
Concave Head: The concave tip ensures that the rivet head sits evenly and firmly against the workpiece surface, increasing the strength of the connection.
Robust Material Usage: Made of steel, which guarantees a long service life and high resistance to heavy use in workshop environments.
System Compatibility: Recommended for use exclusively with the BR 50 blind rivet setter adapter, ensuring seamless integration with the entire XSeries system.
Precise Sizing: The strictly controlled inner diameter (4.8 mm) minimizes rivet slippage or damage during installation.
The precise specifications of the nosepiece with part number 700522 ensure compatibility and reliable performance:
| Property | Value | Note |
|---|---|---|
| Part number | 700522 | Unique Identifier |
| Product Name | Mouthpiece 4,8B | |
| Field of application | RIBE blind rivets | |
| Compatible Adapter | BR 50 | Blind Rivet Setter Adapter |
| Internal Diameter (Ø) | 4.8 mm | Corresponds to the rivet diameter |
| Head Design | Concave | Adapted to the shape of the head |
| Material | Steel | High-strength structural steel |
| Length | 12.05 mm | |
| Width | 12.05 mm | |
| Höhe | 17.24 mm | |
| Weight | 0.010 kg | Easy handling |
| Package contents | 1 darab |
This nosepiece is XSeries – Professional Riveting Technology belongs to a category that offers solutions tailored to modern vehicle repair needs. The 4.8 mm size is a frequently used standard size for bodywork elements, reinforcements, and special fixings where a high-load-bearing yet aesthetic connection is essential. The concave design is particularly advantageous in cases where the rivet head needs to sit flush with the body surface.
For optimal operation of the nose piece, the use of the appropriate drive unit and adapter is essential. The 4.8B nose piece is with the BR 50 blind rivet setter adapter form an effective pair.
Wielander + Schill also offers a wide selection of nose pieces in other sizes and types, serving various needs:
Sizes and Head Shapes: The offer includes nose pieces with diameters ranging from 3.2 mm (e.g., 3.2C, 700524) up to 5.1 mm (e.g., 5.1B, 700359).
Head Types: Both flat-head (Type A, e.g., 4.0A, 700520) and concave-head (Type B, e.g., 4.5B, 700523) versions are available, which can be selected depending on the rivet type and the desired surface appearance.
Special Applications: There are special nose pieces, such as the 3.2C and 3.6C, which have been specifically developed for blind riveting on roof channel surfaces.
The selection of the correct nose piece is critical in terms of work quality. Always check the specifications of the blind rivet you intend to use to ensure the nose piece diameter and head shape match perfectly.
Since the nose piece is in direct contact with the rivet and the workpiece, regular cleaning is essential. The accumulation of metal chips and rivet residue can reduce the lifespan of the nose piece and negatively affect riveting quality. It is recommended to inspect the nose piece regularly and replace it if necessary, especially under intensive use. The steel material ensures mechanical resistance, but storage in a dry place is recommended to avoid corrosion.
This 4.8B nose piece reflects Wielander + Schill's commitment to reliable, high-performance tools that support bodywork specialists in meeting the highest quality demands.
