G5i Traction Load Cell and G1i/G2i Compatible Tension Adapter Kit
This document contains the detailed technical description of the high-performance G5i traction load cell and the mounting kit that enables the adaptation of G1i/G2i series compression (bending) cells for tension applications. The products are ideally suited for hybrid scales and demanding industrial environments where reliability and durability are crucial.

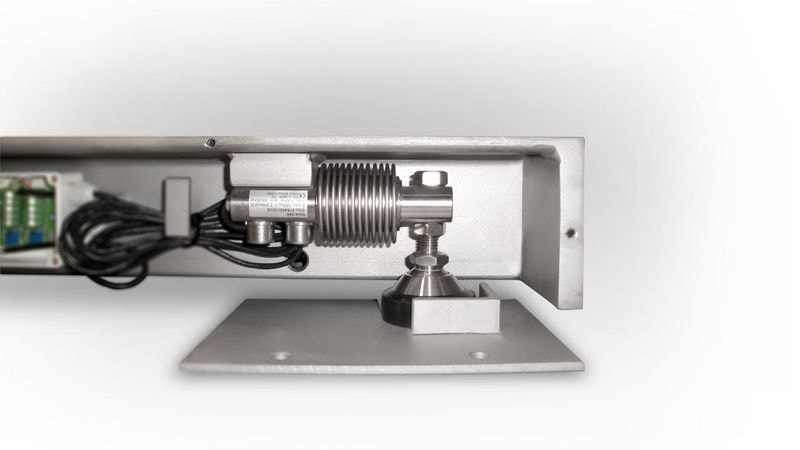

G5i Traction Load Cell – Exceptional Durability and Accuracy
The G5i traction load cell is constructed with stainless steel and laser welding, featuring a hermetically sealed design. This robust structure guarantees the cell maintains its perfect condition even under the harshest conditions.
Key Features and Advantages:
- Stainless Steel Construction: Provides excellent corrosion resistance, making the load cell ideal for use in wet, humid, or aggressive chemical environments.
- Hermetic Seal with Laser Welding: The vacuum-tight seal created by laser welding protects the internal sensing elements from the ingress of moisture, dust, and contaminants. This is particularly advantageous in areas where measuring equipment is cleaned with high-pressure water.
- Environmental Resistance: Specifically designed to withstand contaminated environments and cleaning with high-pressure water, ensuring long-term, trouble-free operation.
- Versatile Application: Widely used in industrial scales, especially in hybrid systems where the measurement of both tensile and compressive forces needs to be combined.
- Reliability and Adaptability: The G5i model offers a trifecta of stability, adaptability, and reliability for the most demanding industrial measurements.
Technical Data (G5i):
| Parameter |
Spezification |
| Típus |
Traction Load Cell |
| Material |
Stainless steel |
| Locking |
Hermetic, laser-welded vacuum-tight seal |
| Application Environment |
Contaminated surfaces, environments cleanable with high-pressure water |
| Ideal Application |
Hybrid scales, industrial applications |
Tension Adapter Mounting Kit – Increasing the Cell's Versatility
The separately available tension adapter mounting kit is an innovative solution that significantly increases the flexibility of load cells designed for compression (bending cell) forces.
Function of the Kit:
This kit makes it possible to use a conventional compression (bending) load cell
so that it can be used as if it were a traction measuring cell. This function drastically increases the application spectrum of the measuring cell, thus reducing the inventory requirement for different types of cells.
Előnyök:
- Versatility: With the help of a single component, compression cells also become suitable for measuring traction force.
- Adaptability: Easy integration with existing G1i or G2i compression cells.
- Reliability: The design of the kit ensures that the system converted from the compression cell maintains the necessary accuracy and stability during traction force measurement.
Compatibility:
The mounting kit is specifically compatible with the following measuring cell types:
This combination allows users to deploy the reliable compression force sensors of the G1i/G2i series for traction force measurement as well, thereby maximizing the return on investment.
Summary
The G5i traction measuring cell meets the highest industrial requirements thanks to its stainless steel construction and laser-welded sealing. If you wish to use your existing G1i or G2i compression cells for traction force measurement, the special mounting kit ensures the necessary conversion, guaranteeing the reliability and flexibility of the system. These components represent an ideal choice for all industrial measurement tasks where accuracy, durability, and environmental protection are essential.
