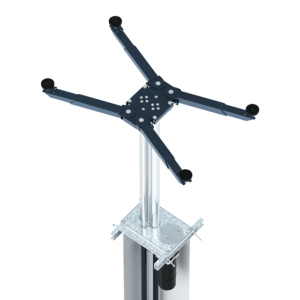

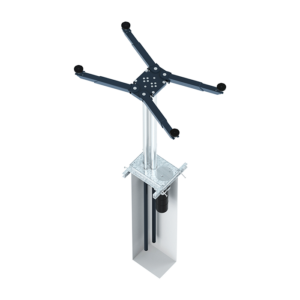

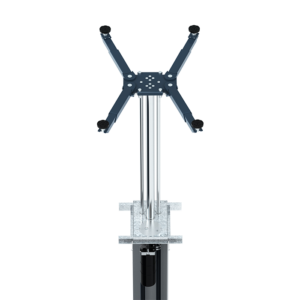

The J.A. Becker & Söhne DuoRam K23/3 single post lift, equipped with telescopic, one-sided swing arms, is the ideal choice for all work related to vehicle body, as well as wheel and brake systems. Its design provides excellent access to the vehicle underbody, engine compartment, passenger compartment, and the entire bodywork, thereby facilitating repair and maintenance tasks.
A particularly outstanding feature is the low approach height, which allows for the problem-free lifting of vehicles with extremely low ground clearance. This model prioritizes reliability and precise operation, thanks to its redundant design and advanced safety features.
The DuoRam K23/3 lift is not an „average” (08/15) product, but a premium category solution offering numerous outstanding technical features:
Redundant Design: Two independent hydraulic cylinders ensure safe and reliable operation, thus increasing the system's robustness and lifespan.
Anti-Rotation System: An anti-rotation mechanism over the entire length of the lifting path guarantees stability and precise positioning.
Additional Guide Rods: Guide rods complement the absorption of all-directional load (moment), ensuring the lift's rigidity even under heavy loads.
Directly Flanged Hydraulic Unit: The direct mounting of the hydraulic unit allows for simpler maintenance and more efficient operation.
Optimal Access: Provides excellent access to wheels, brakes, engine compartments, the vehicle's interior, and the bodywork for any repair or maintenance purpose.
Low Entry Height: The extremely low approach height makes it ideal for lifting sports cars and other low-ground-clearance vehicles.
The precise and detailed specifications of the DuoRam K23/3 lift ensure compliance with the requirements for professional use:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,000 kg | Maximum Load Capacity |
| Lifting Height | 1,880 mm | Maximum lifting height |
| Installation Depth | 2,350 mm | The required depth beneath the floor |
| Pass-Through Height | 87 mm | Extremely low approach height |
| Oil quantity | 10 liter | Hydraulic system capacity |
| Connection Power | 2 kw | Electrical Power Requirement |

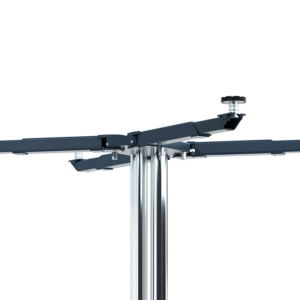

The DuoRam K23/3 single post lift features telescopic, one-sided swing arms that provide flexibility in adapting to different vehicle sizes. J.A. Becker & Söhne products represent first-class quality in every aspect, guaranteeing long-term, trouble-free operation in workshops.
This type of lift is particularly suitable for workshops where space-saving and quick, flexible vehicle handling are crucial, while maintaining the highest level of safety requirements. The two independent hydraulic systems ensure that the vehicle can be lowered safely even in the event of one cylinder failing.
Detailed documentation is available for the product for professional installation and operation:
Download foundation drawing
Sizing chart download
Download passenger car brochure
The DuoRam K23/3 is the perfect fusion of J.A. Becker & Söhne engineering precision and solutions tailored to user needs.
