The Consul 0.55 S scissor lift is an extremely robust and high-performance lifting device, specifically designed for the most demanding workshop and service tasks. It is an excellent choice for lifting large vehicles, commercial vehicles, and heavy loads, thanks to its 5,500 kg nominal load capacity and its long platforms made of special profile steel. This model offers an ideal solution for wheel alignment and general servicing where precision and stability are essential.
The Consul 0.55 S lift features several advanced design and safety functions that guarantee efficient and safe operation:
Excellent Load Capacity: 5,500 kg nominal load capacity, allowing for the safe lifting of heavy vehicles.
Long Platforms: The long runways (5,200 mm) are ideal for vehicles with longer wheelbases.
Electro-hydraulic Control: Ensures precise and reliable lifting and lowering processes.
Master/Slave Hydraulic System: Guarantees synchronized operation between the platforms.
Pneumatic Release During Lowering: During the lowering process, the retaining brakes release pneumatically, allowing for smooth and controlled descent.
Acoustic Foot Protection: Provides increased safety for the operator during the lowering phase.
Robust Bearing System: 20 mm thick, split, fixed and sliding bearing system, galvanized in series for maximum durability and corrosion protection. Optionally available for calibration wheel alignment setup.

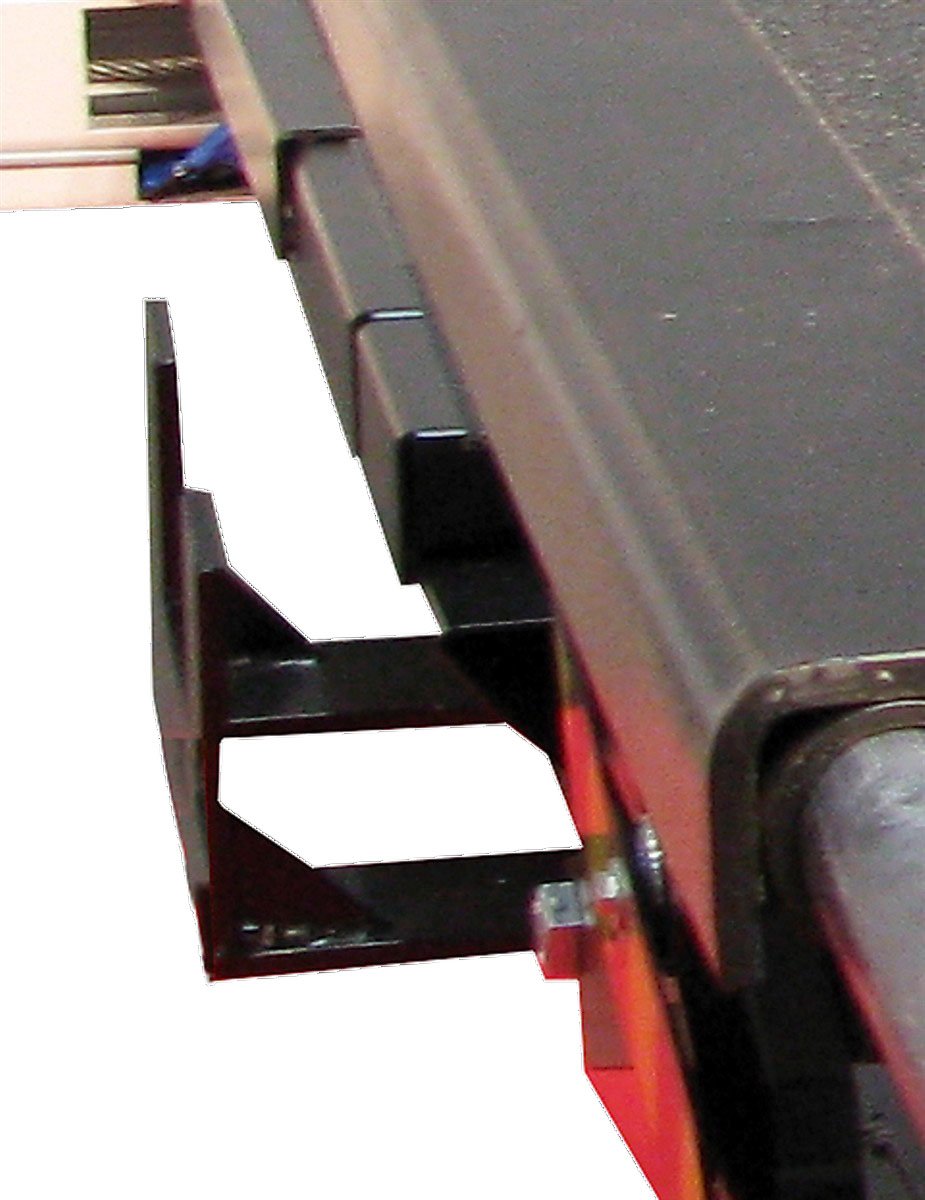

Integrated Rail System: A rail integrated into the platform is available for the jacking beam, facilitating access to additional lifting points.
Synchronization Monitoring: Using a light barrier, further synchronization monitoring can be performed for precise positioning.
Built-in Design: Designed for recessed in-ground installation by default. Optionally available in an on-floor-version with 2 approach ramps.
Safety Standards: IP 54 protection class, 230 V socket, GS certificate, DIN EN 1493 and CE compliance.
The detailed technical parameters of the Consul 0.55 S lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 555516 | |
| Manufacturer Number (HAN) | 473668 | |
| Category | Scissor Lifts | |
| Rated load capacity | 5,500 kg | |
| Lifting height | ca. 2.130 mm | |
| Lifting Time (loaded) | approx. 40 seconds | |
| Set-up width | ca. 2.360 mm | |
| Installation length | ca. 5.660 mm | |
| Drive-up height | ca. 350 mm | |
| Power supply | 400 V / 50 Hz | Three-phase |
| Drive Power | 5.5 kW | |
| Fuse Protection | 20 A slow blow | |
| Runway width | ca. 710 mm | |
| Runway length | ca. 5.200 mm |
The Consul 0.55 S lift can be excellently expanded with accessories, especially for precision wheel alignment:
If the lift is ordered with the wheel alignment set (which is also available for lifts equipped with wheel-free lifts):
Fixed Level Adjustment: The wheel alignment can be performed in a fixed, leveled position.
Lifting Points: The pick-up elements are suitable for accommodating turntables up to 50 mm high, with a series-provided turntable cover.
Adjustable Sliding Plates: Adjustable, full-size sliding plates ensure the necessary lateral movement during adjustment.
For maximum flexibility, several accessories are available:
Consul Wheel Aligner Kit (Full 0.55 S): Complete kit for wheel alignment, suitable for a platform width of 710 mm and a platform length of 5,200 mm.
Consul Adapters for 3D Wheel Aligner Set (Beissbarth Easy 3D): Special adapters for retrofitting, enabling the use of 3D wheel alignment systems on the scissor lift.

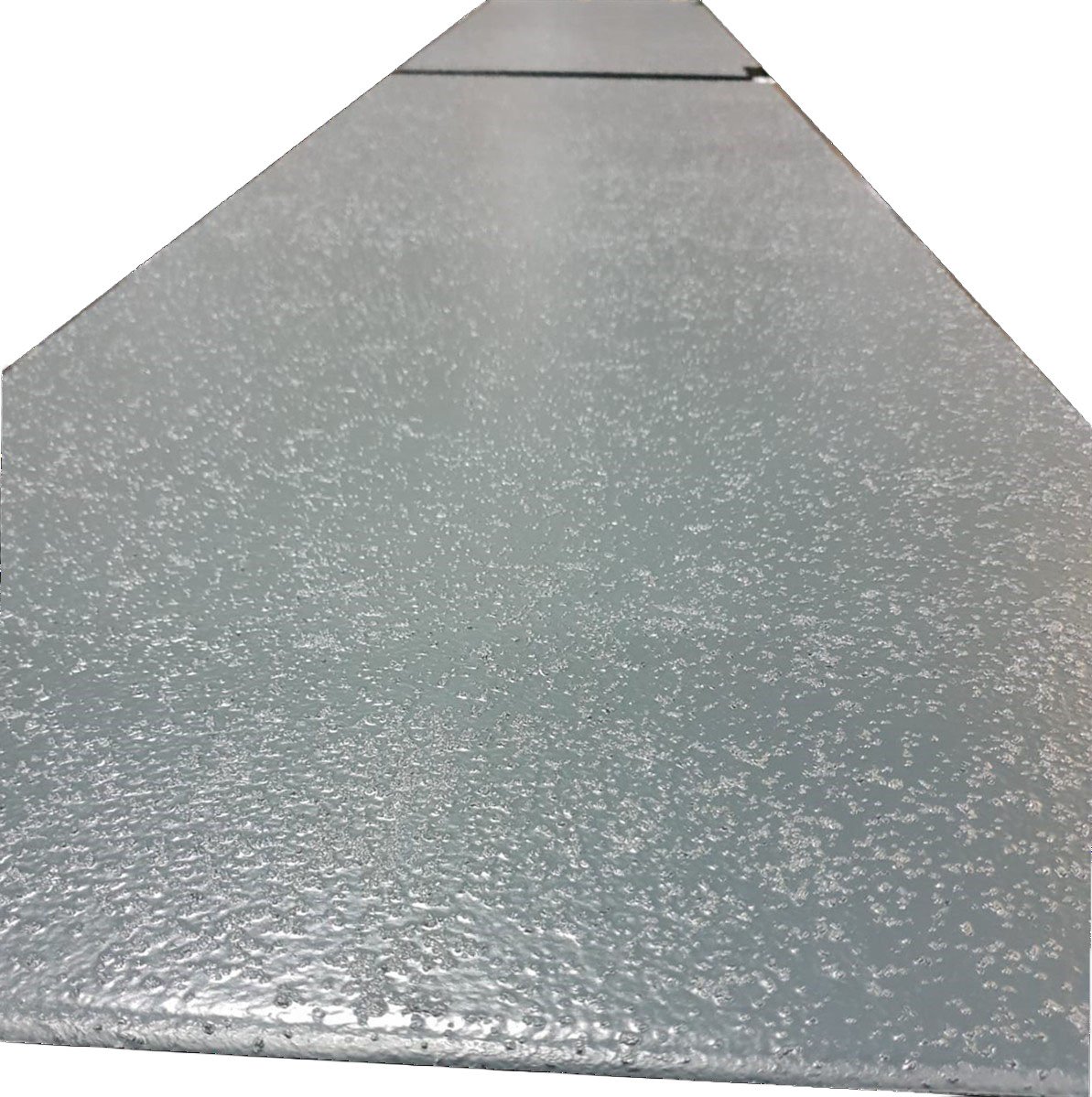

Anti-Slip Coating (Not retrofittable): Anti-slip coating available for the runways, orderable as a factory option for maximum grip.
Uplift/Lowering Plates (For Recessed Installation): Set of two pieces, including roll-back protection, specifically for recessed installation.
Uplift/Lowering Ramps (With Roll-Back Protection): Ramps approx. 1,500 mm long, with roll-back protection.
Curved Ramp / Extension Ramps: Curved ramps approx. 2,200 mm long for models 0.55 S/SN.
Control Unit Placement to the Right (With Surcharge): Option to relocate the control box to the right side.
Fixing Materials (0.55 Series): Fixing set required for the installation of the series, containing 14 M12 anchor bolts and nuts.
Lighting (With Factory Installation Surcharge): Optional lighting package available with factory installation.
Detailed technical and installation documentation is available for the product:
Product Brochure: Detailed description of the C-Line scissor lifts.
Installation Pan: Specific documentation regarding the mounting elements and procedures required for flush-mounted installation.
The Consul 0.55 S scissor lift offers reliability, high load capacity, and flexible installation options, making it the ideal choice for professional vehicle services.
