This product is a component of a high-quality, inground, two-hydraulic-cylinder operated vehicle lift system, specifically designed for the long swivel arm chassis configuration, which is ideal for service environments requiring a 3500 kg load capacity. This configuration, belonging to the Consul product line, ensures maximum flexibility and stability for lifting vehicles.
This special chassis design is optimized for 2.35 MKK (likely referring to a specific Consul model code) type lifts, and thanks to the swivel arm design, it provides excellent access to the underside and side profile of the vehicle.
The long swivel arm chassis offers significant advantages over standard designs, especially for vehicles with longer wheelbases or special chassis geometries.
Swivel Arms: The equipment features three-part swivel arms, which are fastened to the crossbeam support plate.
Doubly Extendable: The design of the swivel arms allows for double extension, increasing the flexibility of the lift base and its positional adaptability under the vehicle.
Modified Frame Geometry: The geometry of the swivel arms has been specially designed to ensure maximum stability and reach the optimal contact points under the vehicle.
Lifting table: The lifting table (lifting table) is equipped with a hard rubber profile that protects the vehicle chassis from scratches.
Fine Adjustment: The contact height is adjusted using a threaded spindle, which has a 25 mm stroke. This precise adjustment capability is essential for the safe and horizontal positioning of vehicles with different chassis heights.
This configuration is an ideal choice for workshops that frequently work on medium-sized commercial vehicles, vans, or longer passenger cars that require specific support points. The inground design means the lift is built below floor level, ensuring a completely flush surface in the workshop when not in use.
The table below summarizes the critical technical parameters of the product:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 433458 | |
| Factory Identification Number (HAN) | 9761 | |
| Category | Twin Ram Inground Lifts | |
| Rated load capacity | 3,500 kg | 3.5 tons |
| Lifting height | ca. 2.055 mm | Maximum lifting height |
| Bottom clearance | approx. 85 – 115 mm | The distance between the floor level and the bottom part of the lift |
| Distance between columns | 2,500 mm | The internal distance between the two main hydraulic columns |
| Lifting range | approx. 442 – 1,230 mm | The range of minimum and maximum contact point heights |
| Weight (approx.) | 450 kg | The approximate weight of the structure |
Detailed technical support and documentation are available for the product, which assists with correct installation and operation.
General Information (Allgemein): Detailed description of the general characteristics of the equipment (available in PDF format).
Catalogue (Broschüre): Separate PDF document detailing the C-Line 2-cylinder in-ground lifts.
For maximum flexibility and adaptability to different vehicles, Consul offers a number of accessories compatible with this 4-ton capacity swing arm lift:

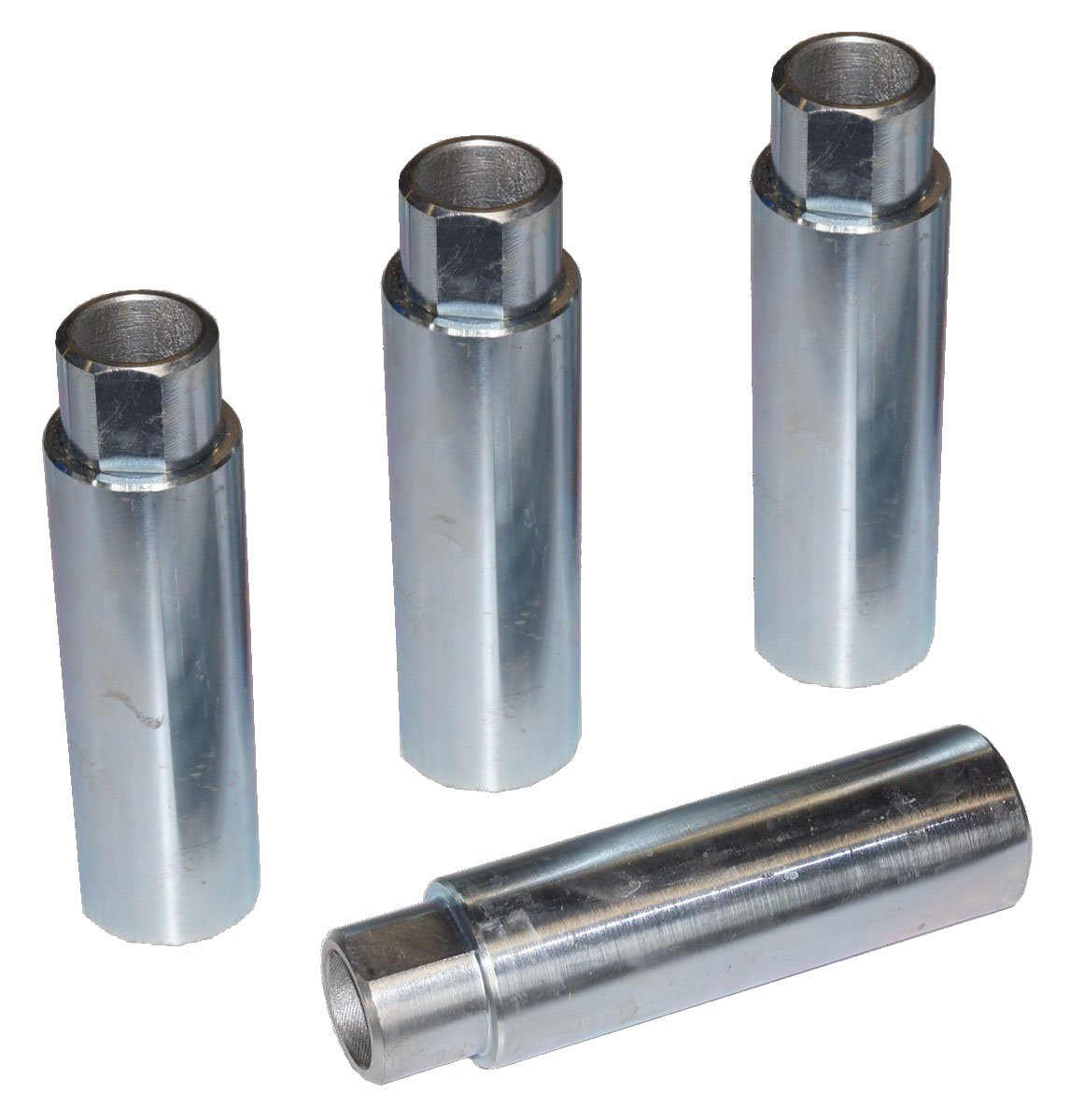

Consul Spacers: Spacer kits of various sizes are available (1 Set = 4 pcs), which allow for finer adjustment of the support points to match the vehicle chassis. Available sizes: 35 mm, 50 mm, 100 mm, 120 mm, 150 mm, 200 mm.
Consul Pick up support up to 4 t: Accessory specifically recommended for off-road vehicles and commercial vehicles (1 set = 2 pcs). This support ensures proper support with 4,000 kg capacity lifts and trailer lifts (including 2x 2.45 EL types).
This Consul 2-cylinder in-ground lift with a long swing arm and a 3500 kg capacity represents a reliable, precise, and flexible lifting solution for modern workshops.
