A Consul Compact Hydraulic Lift 0.30 KH an exceptionally versatile, ultra-low profile (flat) lifting device, designed to be perfectly suitable for both mobile and fixed installations applications. This hydraulic lift is the ideal choice for workshops where space-saving and high load capacity are equally essential. The product includes the mobile kit and a hot-dip galvanized base plate as standard equipment, ensuring long life and flexible use.
This model operates exclusively with electric drive, thus guaranteeing clean and reliable operation even in the most demanding environments.
The Consul 0.30 KH scissor lift includes several design elements that increase safety, comfort, and efficiency during vehicle servicing:
Anti-slip Platforms: The approach ramps are made of non-slip, embossed sheet metal, which provides maximum grip and safety during vehicle approach, departure, and while lifting.
Integrated Electro-Hydraulic Drive: The drive system is integrated, which minimizes the number of external components and simplifies installation.
Double Hydraulic System: Each scissor contains dual cylinders, ensuring exceptional stability and reliability. No external compressed air supply required for operation.
Safety Features:
Warning Tone: A warning tone sounds in the foot space during lowering.
Dead-man Control: The operator must continuously hold the button to operate, which prevents accidental start-up.
Emergency Lowering Device: Allows the load to be safely lowered in case of power failure or malfunction.
Overload Protection: Prevents exceeding the permissible load limit.
Adjustable Track Width: The length of the approach bridges is adjustable, equipped with a tilting mechanism that can also be controlled from the side, thus flexibly adapting to different wheelbase requirements.
Mechanical Synchronization: Ensures perfect synchronization of the two hydraulic systems for even lifting.
The 0.30 KH model is supplied with the following accessories, ready for immediate use:
Mobile Kit: Includes 1 connecting rod and 2 mountable guide rollers, allowing for easy positioning of the lift in the workshop.
Hot-dip galvanized base frame: The base plate is hot-dip galvanized, which provides excellent corrosion protection, especially in the case of in-ground installation.
Galvanized Drive-On Ramps: The drive-on plates are also galvanized.

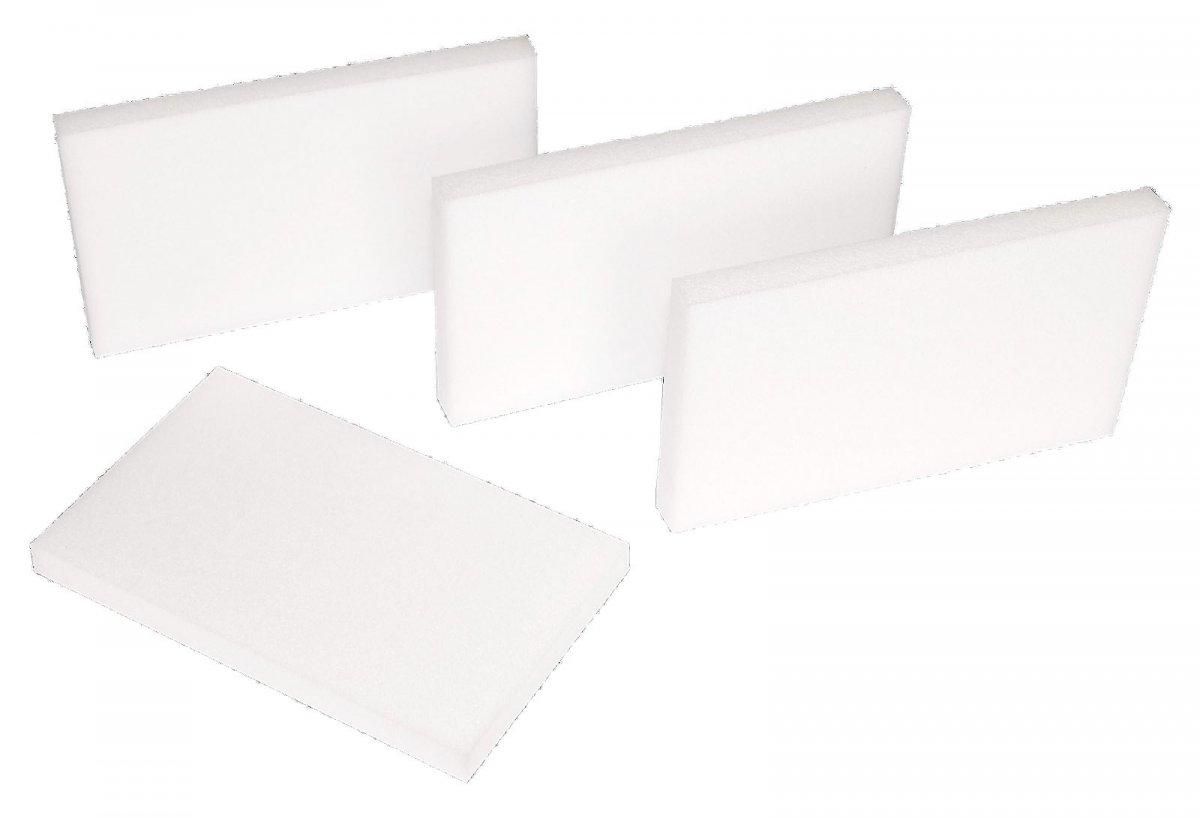

Elastomer Adapters: Includes 4 pieces of 40 mm elastomer adapters for gentle support of the vehicles.
The Consul 0.30 KH scissor lift complies with strict industrial standards and has detailed technical parameters:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 567461 | |
| Manufacturer Number (HAN) | 473270 | |
| Category | Compact Scissor Lifts | |
| Nominal Load Capacity | 3,000 kg | 3 tons |
| Lifting Height | ca. 950 mm | |
| Lifting Time (loaded) | approx. 30 seconds | The time may vary depending on the load. |
| Lifting Height | ca. 105 mm | Ultra-high profile design. |
| Power supply | 400 V / 50 Hz | Three-phase mains supply required. |
| Drive Power | 2.2 kW | |
| Safety Protection | 16 A slow-blow fuse | |
| Oil quantity | approx. 10 liters | |
| Drive-on Span Width | ca. 450 mm | |
| Drive-on Span Length | approx. 1,400 – 2,030 mm | Adjustable support range. |
This lift complies with the most important European safety requirements:
Protection Class: IP54
GS approval: Complies with German safety requirements.
DIN EN 1493: European standard for lifts.
CE approval: Complies with European directives.
The Consul 0.30 KH is flexibly installable:
Surface Installation (Mobile or Fixed): Thanks to the hot-dip galvanized base plate, it can be placed directly on the floor. The mobile kit allows the unit to be relocated within the workshop.
In-ground Installation (Inground): The lift can be recessed into the floor with appropriate accessories, such as the Consul Base Frame galvanized version (ordered separately), which ensures stable installation.
For maximum customization, several accessories are available:
Consul Accessory Ramps for Inground Installation: 1 set = 4 pieces, may be required for in-ground installation.
Consul Fastening Material: Fixing set containing 4 pcs M12 anchor bolts and screws for fixed installation.
Consul Elastomer Adapters: Adapters of different heights (20 mm, 40 mm, 60 mm, 90 mm) are available for optimal fit for the vehicles. The 40 mm set is standard equipment.
Consul Hydraulic Oil (5 liter container): HLP 22 quality hydraulic oil suitable for all Consul hydraulically driven lifts.
Surcharge: 1 Phase Motor: It is possible to replace the three-phase motor with a single-phase motor for a surcharge if the workshop does not have a 400V power supply.
Surcharge: Hot-Dip Galvanized Platforms: The platforms can also be ordered hot-dip galvanized for an additional charge for increased durability.
Detailed technical and installation documentation is available for the product in PDF format:
Catalogue (Brochure): C-Line Compact Scissor Lifts
Installation plan: H435.30-56746.1-Consul 0.30
A Consul Compact Hydraulic Lift 0.30 KH an ideal solution for modern service environments where compact size, fast lifting speed, and a robust, safe design are essential.
