Ez a kiváló minőségű, padlóba süllyeszthető emelő alváz a Consul professzionális műhelyberendezések kategóriájába tartozik, kifejezetten a Kéthengeres Padlóba Süllyeszthető Emelők szériához tervezve. A termék a maximális rugalmasságot és a széleskörű járműkompatibilitást biztosítja a modern szervizek számára.
A szimmetrikus, görgő vezérelt teleszkópos emelőkarok kialakítása lehetővé teszi a legkülönfélébb járművek biztonságos és hatékony emelését, a kisebb Smart modellektől egészen a hosszú tengelytávú (akár 4.325 mm-es) Crafter/Sprinter típusokig. Ez az alváz ideálisan alkalmazható a 2.55 MKK típusú emelőrendszerekhez.
This equipment is the result of precision engineering, prioritizing durability, safety, and ease of handling:
Görgő vezérelt Teleszkópos Karok: The arms, equipped with roller guides, ensure extremely smooth and precise movement across the entire extension range.
Four-part, Triple-stage Extendable Arms: This design provides exceptional flexibility and numerous pick-up points, optimizing access for vehicles of different wheelbases and sizes.
Symmetrical Design: The symmetrical arms guarantee optimal weight distribution and stability when lifting heavy loads.
Karbiztosító Rögzítőrendszer: The built-in arm locking mechanism increases safety during lifting and operation by preventing accidental displacement of the arms.
Robust Load-bearing Surface: The lifting platforms are fitted with a hard rubber profile that protects the vehicle chassis from damage while ensuring stable contact.
Fine Adjustment Capability: The height of the arms can be adjusted using a threaded spindle with an approximate 30 mm stroke, enabling perfect alignment even on uneven floor conditions.
Complete Installation Kit: The package includes the necessary installation materials for the professional installation of the lift.
Quality Assurance: A termék rendelkezik GS tanúsítvánnyal, megfelel a DIN EN 1493 szabványnak, és CE-tanúsítvánnyal rendelkezik, garantálva a legmagasabb ipari biztonsági előírások betartását.
The following table details the critical technical parameters of the Consul 2-ram lift:
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 5,500 kg | Maximum safe load capacity. |
| Lifting height | approx. 2,185 mm | The maximum lifting height of the vehicle. |
| Under-clearance | ca. 120 mm | The distance between the floor and the lower part of the lift (in the recessed position). |
| Long arm extension range | approx. 700 – 1,690 mm | Total working width of the four-piece arms. |
| Distance between columns | 2,500 mm | The internal distance between the two main support columns. |
| SKU (Item Number) | 659508 | |
| HAN (Factory Number) | 475382 | |
| Category | Twin-cylinder in-ground lifts. |
This chassis is ideally suited for the 2.55 MKK lift models. For maximum flexibility and adaptation to special vehicles, Consul offers a number of accessories compatible with this model type:
Tailored to service needs, the following accessories can significantly expand the lifting capabilities:
Consul Spacer Shims 100 mm: Set of 4 pieces for Consul swing arm lifts with a load capacity exceeding 4,500 kg.
Consul Spacers 12 mm: Set of 4 pieces, compatible with Consul swing arm lifts with a load capacity exceeding 4,500 kg.
Consul Spacer Shims 150 mm: Set of 4 pieces, compatible with Consul swing arm lifts with a load capacity exceeding 4,500 kg.
Consul Spacer Shims 200 mm: Set of 4 pieces, compatible with Consul swing arm lifts with a load capacity exceeding 4,500 kg.

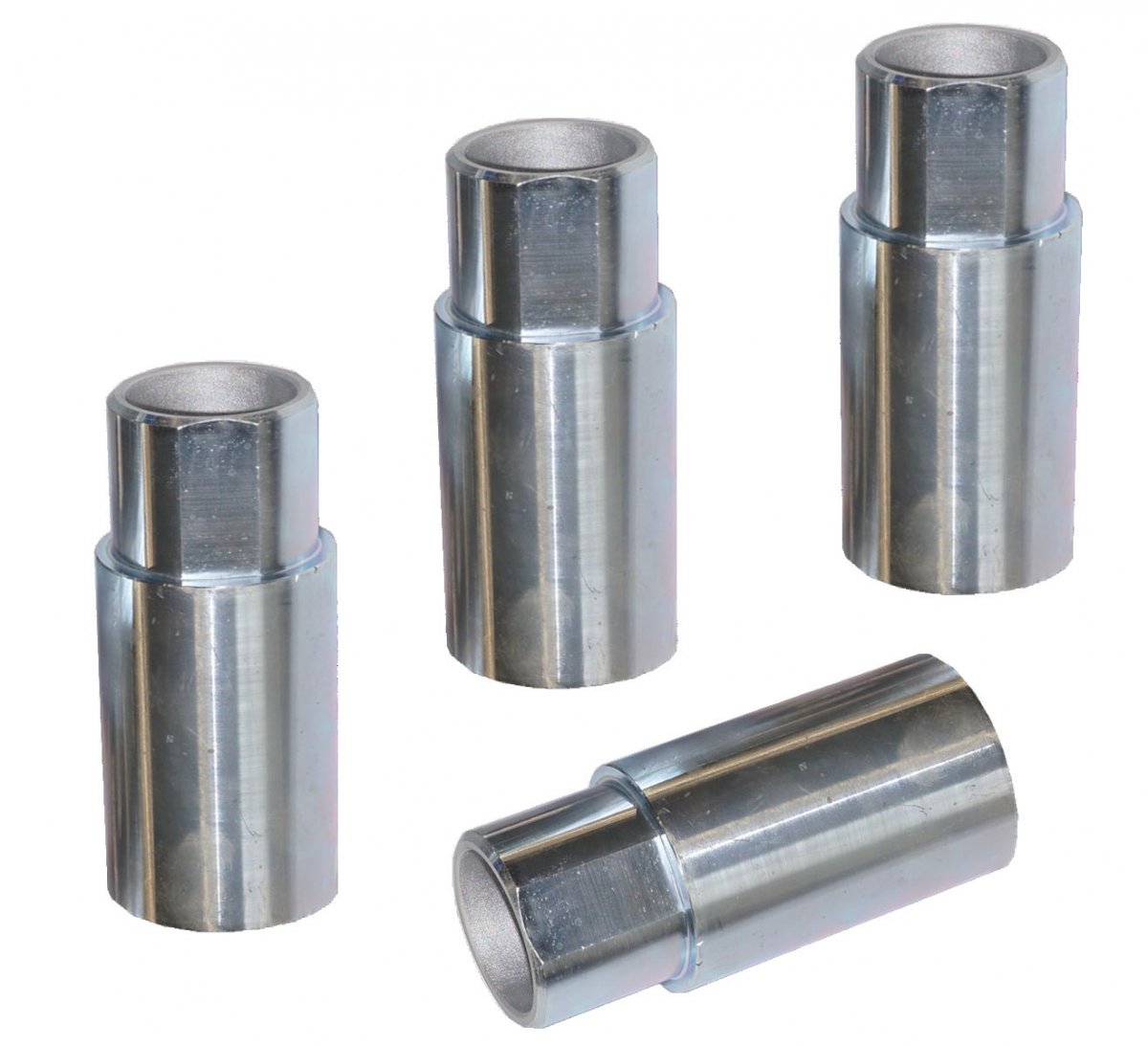

Consul Spacer Sleeves 50 mm: Set of 4 pieces, compatible with Consul swing arm lifts with a load capacity exceeding 4,500 kg.
Consul Pickup Support from 4.5 t: Kifejezetten terepjárókhoz ajánlott felvételi adapter. 1 készlet = 2 db. 4.500 kg-tól kezdődő lengőkaros emelőkhöz és karaván emelőkhöz (beleértve a 2.65 EL modelleket is).
This Consul chassis offers the perfect blend of reliability, high load capacity, and the necessary adaptability to serve modern vehicle fleets for professional automotive service environments.
