The Consul HD FLEX® II 2.55 G two-post lift is tailored to the needs of modern workshops, offering outstanding load capacity and unparalleled flexibility for vehicle servicing. This user-friendly, hydraulic lift provides an ideal solution for handling vehicle fleets ranging from smaller Smart models up to long-wheelbase Volkswagen Crafter and Mercedes-Benz Sprinter vans. Thanks to the revolutionary design, the arms provide a wider pickup range and optimal positioning possibilities.
During the design of the HD FLEX® II series, safety, efficiency, and minimizing maintenance were the central focus. Eliminating the cables and hydraulic hoses customary on conventional lifts guarantees a clean, tidy workspace while ensuring reliable operation.
Outstanding Structural Elements:
Cable- and Hose-Free Design: No hydraulic hose or steel cable visible on the exposed parts, which increases safety and reduces maintenance requirements.
Special, Machining-Free Columns: The columns are made from special hot-rolled sections without a fixed connecting element, allowing for more flexible installation.
Roller Guidance: The carriage structure is guided by 6 high-load capacity rollers, ensuring smooth and precise lifting/lowering movement.
High Pressure Hydraulics: The drive is provided by 2 high-pressure hydraulic cylinders, enabling stable and powerful lifting.
Softline Push-Button Control: The Softline push-button control with electrical synchronization ensures intuitive and precise operation.
Safety Solutions:
Separate Main Switch: Lockable main switch compliant with CE regulations for safe shutdown.
Automatic Arm Locking: Automatic arm locking system with manual release function.
Pressure-Free Locking/Resting Option: A pressure-free hydraulic system achieves a safe working position.
Acoustic Foot Protection: Prevents accidental injuries during work performed under the vehicle.
Motors with Thermal Protection: The motors have built-in thermal protection to prevent overloading.
Convenience Features:
Quick couplings: Quick connectors for air supply are available on both sides.
Padded Door Impact Buffer: Protects the vehicle door from damage.
Full Column Internal Cladding: The interior of the columns is fully covered, protecting the mechanics from contamination.
Installation Flexibility: The installation width can be varied without reducing the load capacity.
The precise technical parameters of the Consul HD FLEX® II 2.55 G lift guarantee professional performance:
| Parameter | Value | Note |
|---|---|---|
| Rated load capacity | 5,500 kg | Also ideal for heavier commercial vehicles. |
| Lifting height | approx. 1,900 mm* | *Only available with optional accessories. |
| Lifting/Lowering Time | approx. 23 seconds | Fast and efficient workflows. |
| Lower clearance (from floor level) | approx. 135 mm** | **Minimum installation height achievable under optimal floor conditions. |
| Arm Extension Range | approx. 795 – 1,790 mm | Wide pickup range, flexible positioning. |
| Set-up width | approx. 3,800 mm | |
| Installation Height | ca. 4.380 mm | |
| Distance between columns (clear) | ca. 2.930 mm | |
| Drive-through width | ca. 2.490 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains supply required. |
| Drive Power | 2 x 2.2 kW | |
| Fuse Protection | 16 A slow-blow |
Consul lifts comply with the strictest European safety regulations, ensuring long-term, trouble-free operation:
Protection Class: IP54
Approval: GS-approved
Standards: DIN EN 1493, CE-approved
For maximum flexibility, the lift can be expanded with numerous optional accessories that further increase functionality:
Self-supporting Base Frame: Makes it possible to install the lift without having to anchor it to the floor (optional).

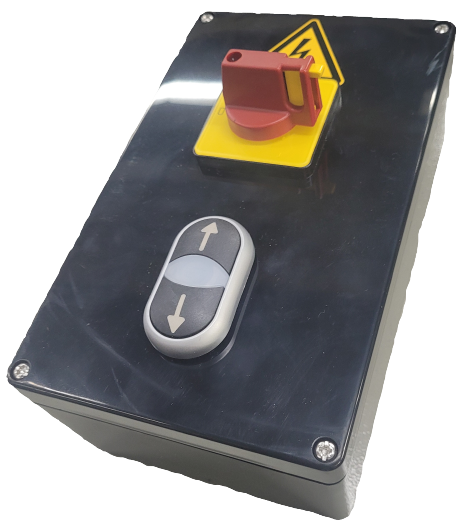

Second Control Unit: Egy második vezérlődoboz rendelhető a HD Flex & HD Pro sorozathoz, Softline nyomógombos vezérléssel és légcsatlakozással, ami megkönnyíti a hosszú járművek kezelését.
Factory Installation Fee: Factory installation of the second control unit is available for an extra charge.

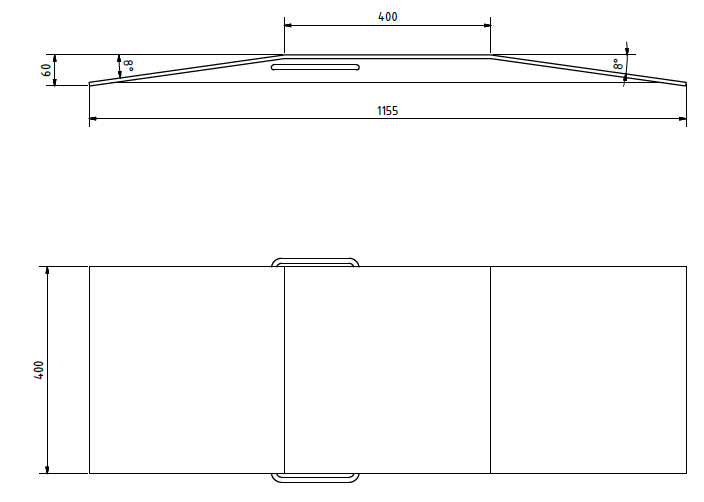

Drive-on Ramps: Available as a set (4 pcs) for easier vehicle jacking.
Fixing Materials: A fastening set is available for all Consul two-post lifts up to 7,000 kg capacity (with 12 M16 anchor bolts, threaded rods, and plates).
Spacers: Spacers of different sizes (e.g., 100 mm, 12 mm) are available for the wheel-free lifting arms, starting from 4.5 tons.
Limit Switches: Light or manual limit switches can be ordered for the safe regulation of the maximum lifting height.
Diagnostic Software: Consul ConSoft diagnostic software is available for the maintenance and diagnosis of two-post lifts.
The Consul HD FLEX® II 2.55 G lift is the perfect combination of reliability, advanced hydraulics, and user-friendly design, making it an ideal investment for every professional workshop.
