This detailed product description is for the Consul 2-Piston In-ground Lift (Hydraulic Cylinder, In-ground), a special version with a 3,500 kg load capacity. Swivel Arm Chassis presents the accessory (Swivel Arm Chassis), which is ideal for servicing passenger cars and light commercial vehicles (e.g., T5). This version is specifically optimized for the 2.35 MKS Optima lift type.
Consul products guarantee reliability, long service life, and compliance with strict safety regulations, ensuring efficient and safe work performance for workshops.
This swivel arm chassis designed for the in-ground lift provides excellent stability and flexibility for lifting vehicles. The design was created keeping in mind the most modern workshop requirements.
Robusztus Teherbírás: With a nominal load capacity of 3,500 kg, it is suitable for the safe lifting of most passenger cars and smaller commercial vehicles.
Three-Part, Double-Extendable Arms: The three-part swivel arms provide exceptional flexibility for optimal positioning relative to different wheelbases and jacking points. Double extendibility allows for maximum reach.
Integrated Arm Locking System: For safe operation, the arms are equipped with a locking mechanism that ensures the arms remain securely fixed during lifting and maintenance procedures.
Quality Lifting Pads: The lifting pads placed at the end of the arms are equipped with a hard rubber profile, which protects the vehicle chassis from damage while ensuring stable contact.
Fine Adjustment Capability: The adjustment of the lifting pads is done via a threaded spindle, allowing for fine stroke adjustment of approximately 30 mm. This is essential for perfect horizontal alignment even on uneven floor conditions.
Complete Installation Kit: The package includes all necessary fastening and installation materials required for installing the in-ground frame (chassis).
The following table summarizes the critical technical parameters of the swivel arm chassis, which are essential for proper installation and achieving maximum performance.
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 3,500 kg | For passenger cars and light commercial vehicles (e.g., T5) |
| Lifting height | ca. 2.055 mm | Maximum vertical lifting distance |
| Lowest Free Height | approx. 85 – 115 mm | Distance between the floor and the lifting pad in the minimum position |
| Long arm extension range | approx. 640 – 1,340 mm | The full range of arm extension |
| Distance between columns | 1.380 mm | Internal dimension of the in-ground frame |
| Compatible Lift | 2.35 MKS Optima | Specifically recommended for this type |
| Number/design of arms | 3-piece, double extendable | Maximum flexibility |
| Table adjustment | Threaded spindle | Fine adjustment with approx. 30 mm stroke |
Consul products comply with the strictest European safety regulations, ensuring long-term, trouble-free operation:
GS certificate (Geprüfte Sicherheit): Complies with tested safety criteria.
DIN EN 1493: Complies with the European standard for lifting equipment.
CE certification: Ensures product conformity with all relevant EU directives.
For accurate identification and ordering:
SKU (Stock Keeping Unit): 432120
HAN (Manufacturer Part Number): 9752
Category: Twin Ram Inground Lifts
For maximum flexibility, Consul offers a number of accessory components compatible with this lift arm chassis (for Consul lift arms with capacities up to 4 tons):
These accessories allow for precise adjustment of the lifting points' height, especially for vehicles with low chassis or special designs. Each set contains 4 pieces.
Consul Spacer Shims 100 mm: Ideal for larger corrections.
Consul Spacer Shims 150 mm: Provide greater lifting height at the end of the arms.
Consul Spacer Shims 200 mm: Maximum correction possibility.

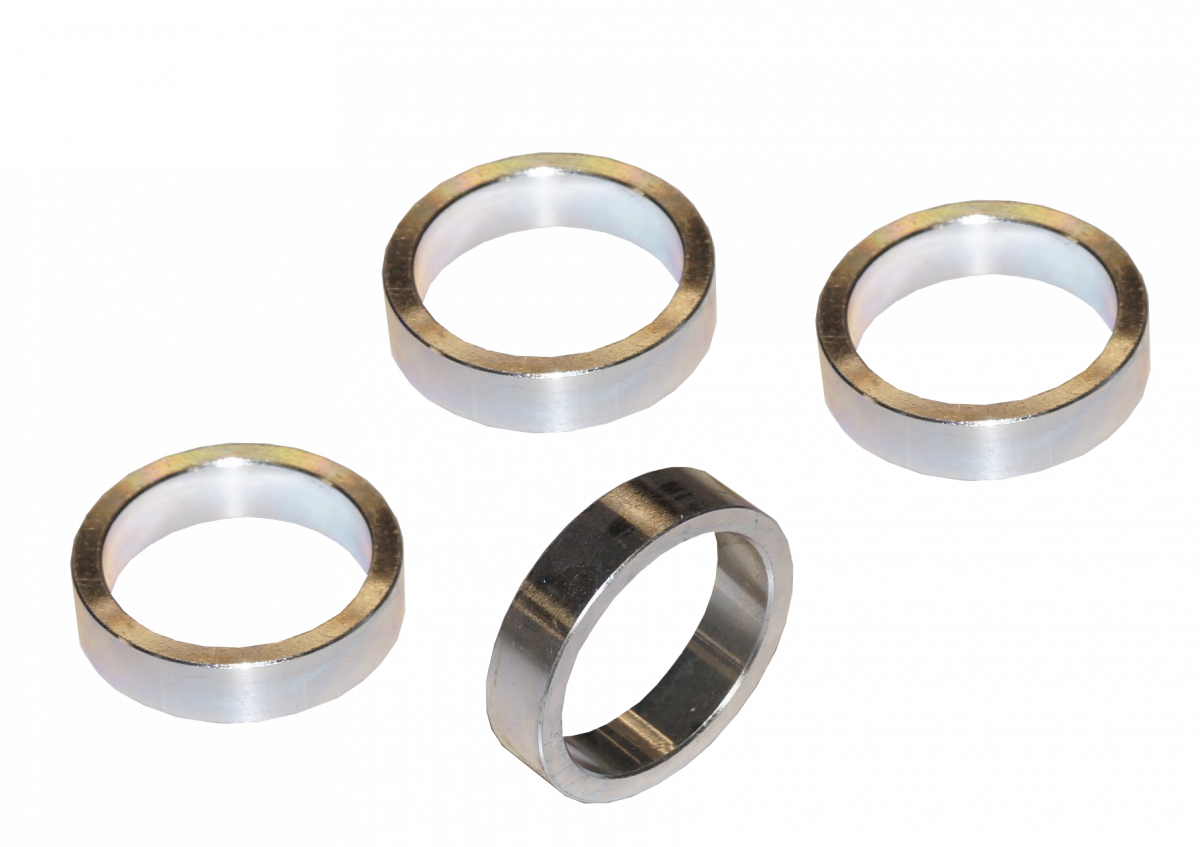

Consul Spacer Shims 12 mm and 35 mm: For very fine, smaller height adjustments.

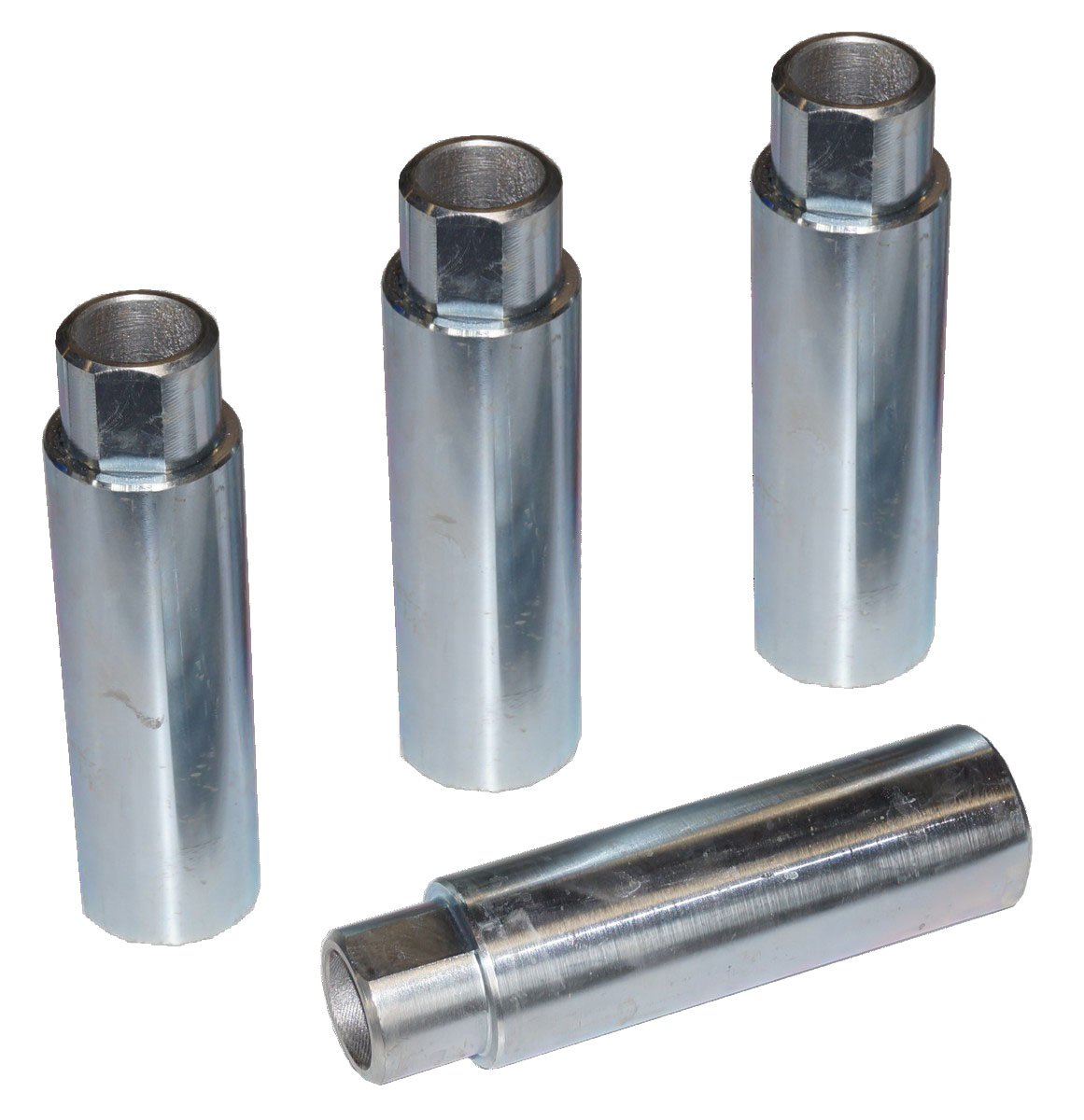

Consul Spacer Sleeves 50 mm: For medium-sized corrections.
Detailed technical documentation is available for the product to facilitate installation and maintenance:
Brochure: Detailed information about the Consul C-Line 2-Stempel Chassis (available in PDF format).
Installation Guide: Separate documentation available for professional installation.
This Consul 2-Stempel Unterflur-Hebebühne swing arm chassis with a load capacity of 3,500 kg is an essential, reliable, and safe tool for the modern service environment.
