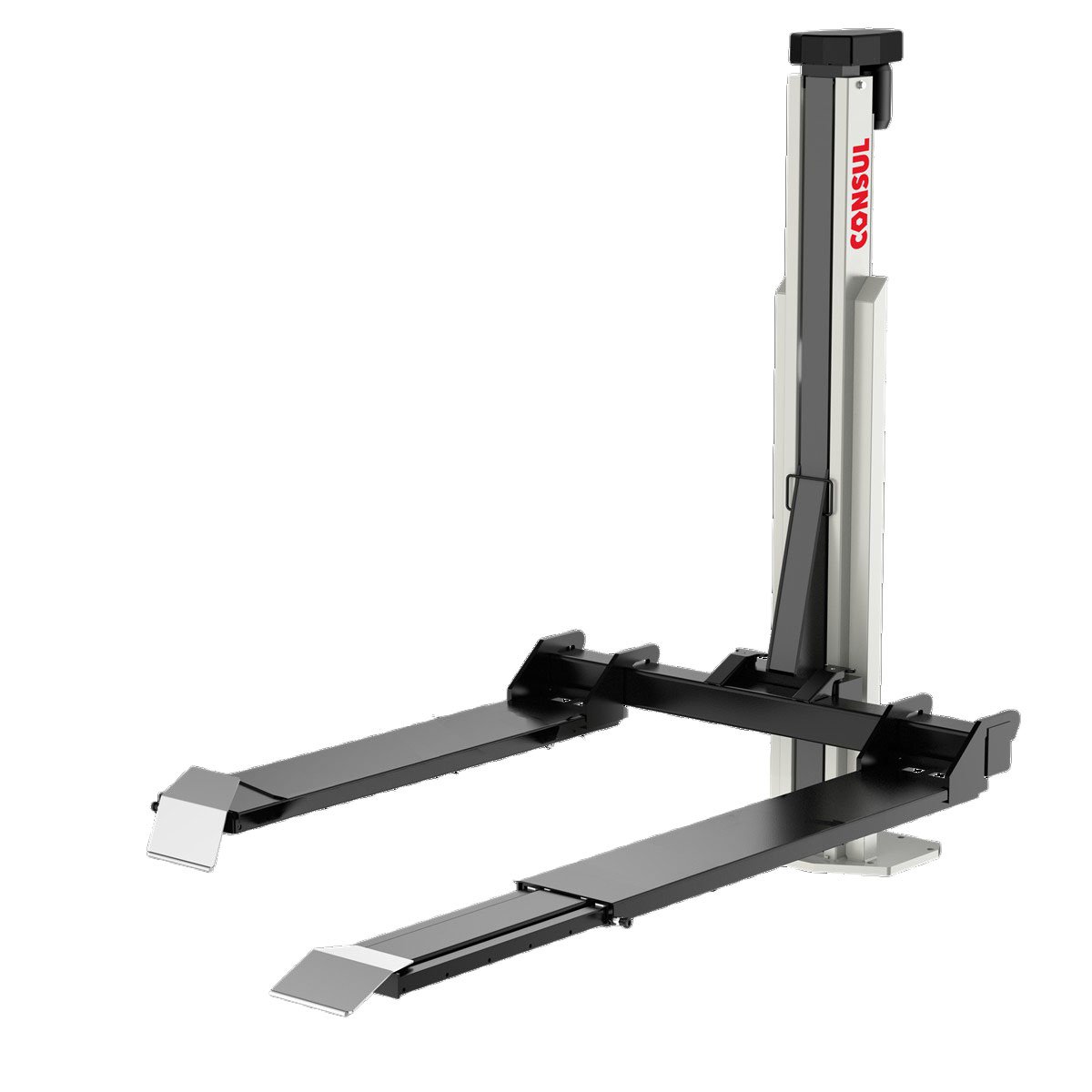

The Consul 1-Post Lift 1.15 BRM is an excellent quality, space-saving solution for workshops, ideal for servicing smaller lawnmowers, quads, and special small commercial vehicles (e.g., small tractors). This model combines reliability and precise operation in accordance with the high-quality standards of the Consul C-Line series.
This single-post lift is particularly suitable for vehicles with a wheelbase up to 2200 mm, providing maximum flexibility in utilizing the workspace.
The Consul 1.15 BRM lift features several functions that increase safety, efficiency, and durability:
Reinforced Special Rolled Profile Columns: The stability of the structure and its long service life are guaranteed by the massive, specially designed column profile.
Longitudinally Adjustable Platform: The length of the platform can be flexibly modified, allowing for the optimal mounting of vehicles of different sizes.
Load Capacity in Extended Position: Even in the fully extended position, it has a load capacity of 1000 kg, which is an outstanding performance in its category.
Adjustable Supports: The supports placed on the platform allow for fine-tuning for precise vehicle positioning.
Wheel Clamping System (Optional): An optionally available wheel clamping system ensures maximum vehicle stability during lifting.
Precision Carriage Guidance: The carriage is guided by six (6) rollers, resulting in extremely smooth and precise movement.
Bronze Load- and Safety Nut: The critical lifting mechanism is equipped with load- and safety nuts made of bronze, which offer excellent wear resistance and long-term reliability.
Supporting Lubricant Dispenser: The built-in oil dispenser ensures support lubrication, minimizing friction and maintenance requirements.
Broken Nut Lift Interlock Function: Special safety function that prevents unintended movement in case of a broken safety nut.
Acoustic Foot Protection: An audible alarm warns of danger, increasing operator safety.
Softline Push-Button Control: Ergonomic and intuitive control panel for easy operation.
Lockable Main Switch: A lockable main switch located directly on the column ensures protection against unauthorized use.
Full Column Internal Cladding: The interior of the column is fully enclosed, protecting the mechanism from contamination and improving the aesthetic appearance.
IP54 Protection: Dust- and splash-proof design that meets the highest workshop requirements.
Compliance with Standards: Complies with DIN EN 1493 standard and has CE certification.
The detailed technical parameters of the Consul 1.15 BRM lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 573360 | |
| Manufacturer Number (HAN) | 472267 | |
| Category | 1-Column Lifts | |
| Nominal load capacity (Fully extended) | 1,000 kg | |
| Nominal load capacity (Retracted) | 1,500 kg | |
| Lifting height (approx.) | 1910 mm | |
| Lifting range (approx.) | 1220 – 1900 mm | |
| Lifting Time (loaded) | approx. 45 seconds | |
| Installation width (approx.) | 1.908 mm | |
| Installation length (approx.) | 2.653 – 3.533 mm | Due to adjustable platform |
| Lowering height (approx.) | 80 mm | |
| Total Height (approx.) | 2904 mm | |
| Drive Power | 3.0 kW | |
| Tápellátás | 400 V / 50 Hz | Three-phase |
| Fuse Protection | 16 A slow-blow | |
| Protection class | IP54 | |
| Maximum axle distance | 2.200 mm | Vehicle specification |
The Consul 1.15 BRM lift can be flexibly expanded to suit the unique needs of your workshop with the following accessories (not part of the standard equipment):

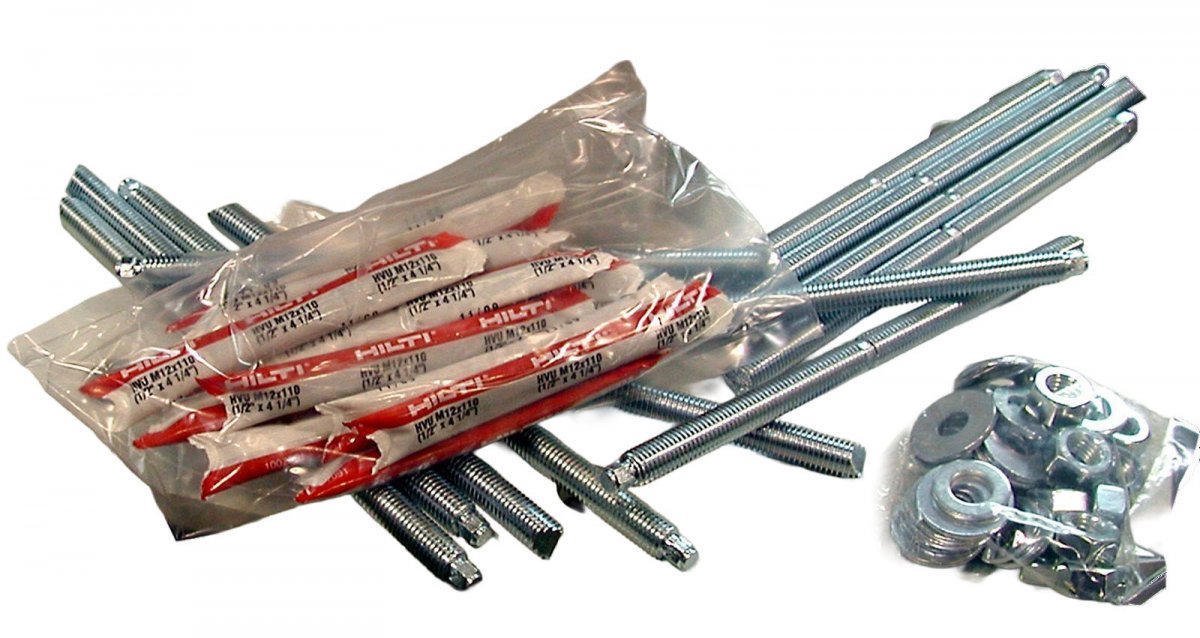

Consul Fixing Material: Fixing set for types 1.15 and 1.25, containing 6 pieces of M16 anchor bolts and threaded rods for professional floor anchoring.
Consul Support Grating between Tracks: Grating measuring 1000 x 500 mm, which can be installed between the platforms, enabling the servicing of three-wheeled vehicles as well.
Consul Base Plate Fixing Bars: For types 1.15 BRM and 1.25, specifically recommended for concrete floors with a thickness of 150-210 mm for further reinforcement of the base plate.
Consul Self Supporting Base Frame: Self-supporting base frame that increases the lifting height by 50 mm, but also allows the lift to be installed in places where embedding into the floor is not possible.
Consul Tire Grab System: System designed specifically for the 1.15 BRM model for the safe securing of vehicles.
Consul Special Paint (RAL code required): Possibility to paint the lift based on a custom RAL color code, adjusted to the workshop's corporate identity.
Consul Gearbox Oil (in 1-liter packaging): Special gearbox oil for lubricating the spindles and nuts of screw-drive systems.
Detailed technical support is available for this product:
Operating Instructions (DE): Detailed German language manual available in PDF format.
Brochure: Brochure about the C-Line 1-post lifts available for download in PDF format.
The Consul 1-column lift 1.15 BRM is the ideal choice for professionals seeking a reliable, compact, and safe lifting device for the maintenance of their smaller vehicle fleets.
