Part number: 700101

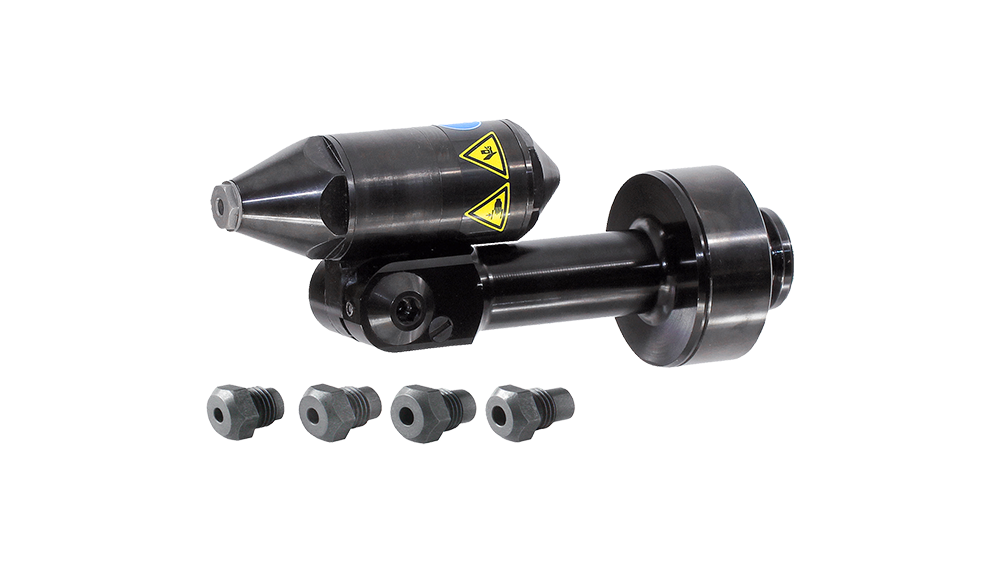

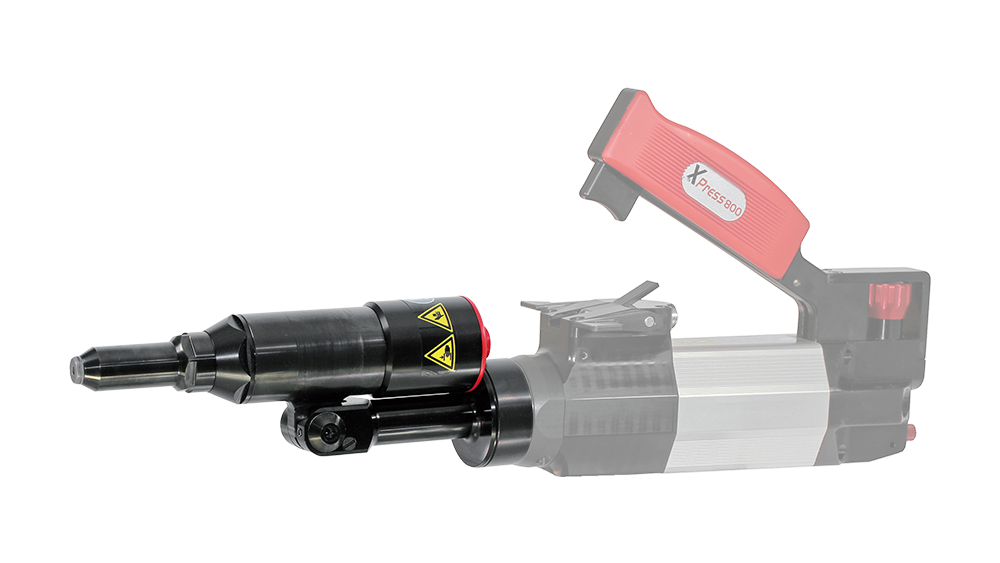

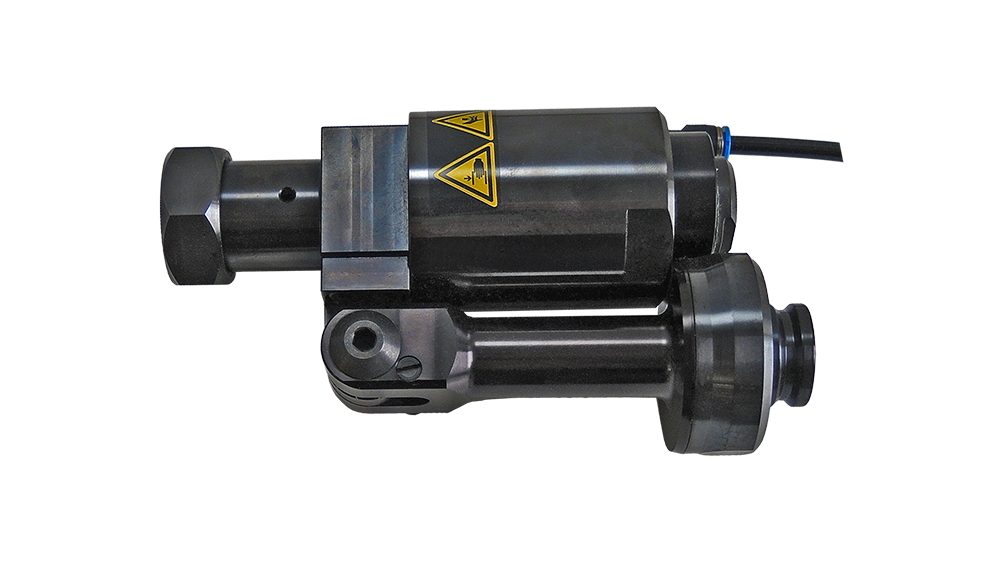

The Wielander + Schill BR 50 blind rivet adapter offers excellent accessibility and reliable performance for the most demanding riveting tasks. This professional tool belongs to the XSeries – Professional Riveting Technology product line and is the ideal choice for situations where standard tools have limited access to the working area.
The BR 50 adapter is characterized by an impressive, 50 kN pulling force , which ensures the secure installation of high-strength fasteners. Thanks to its design, the adapter is freely rotatable and pivotable, which provides exceptional flexibility when working in hard-to-reach corners and positions.
This versatile tool is optimized for use with blind rivets with a shank diameter between 2.0 mm and 5.0 mm. The robust construction and quality material usage guarantee a long service life and continuous, precise operation. optimized for use with blind rivets with a shank diameter between 2.0 mm and 5.0 mm. The robust construction and quality material usage guarantee a long service life and continuous, precise operation.
Excellent Accessibility: Its special design makes it possible to work in narrow and hard-to-reach places where other tools cannot be used.
High Performance: 50 kN maximum pulling force for a reliable and strong connection.
Flexible Operation: Completely freely rotatable and pivotable, enabling an optimal working angle on surfaces of any geometry.
Wide Compatibility: Suitable for blind rivets with a diameter between 2.0 mm and 5.0 mm.
Durability: Made from a combination of steel and plastic, wear-resistant design.
The detailed specifications of the BR 50 blind rivet adapter are as follows:
| Property | Value | Note |
|---|---|---|
| Part number | 700101 | |
| Product Name | BR 50 Blind Rivet Adapter | |
| Pulling Force | 50 kN | |
| Applicable rivet diameter | 2.0 mm – 5.0 mm | |
| Length × Width × Height | 251 x 96 x 60 mm | |
| Stroke | 25 mm | |
| Weight | 1.490 kg | |
| Material | Steel, Plastic (Kunststoff) | |
| Surface Treatment | Burnished | |
| Rotatability | Freely rotatable and pivotable | |
| Accessories | 700215 Tool box (with 7-piece nosepiece set) | |
| Package contents | 1 stück |

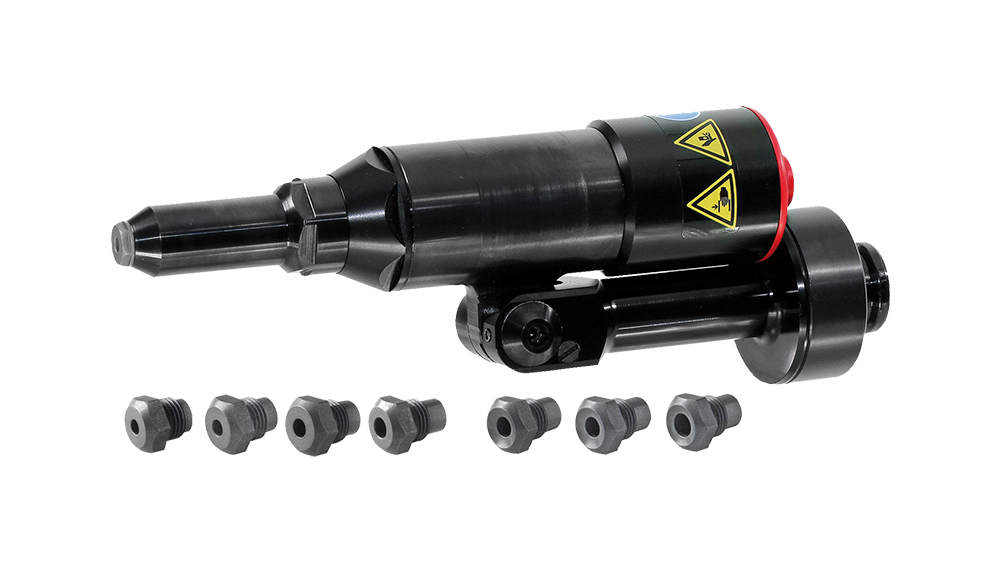

When purchasing the BR 50 blind rivet adapter, the package includes the following items:
BR 50 Blind Rivet Adapter (1 pc): The main unit that provides 50 kN of tensile force.
700215 Tool box: Includes the standard nosepiece set.
7-piece nosepiece set: Precision tools required for various rivet diameters.
The surface of the device has a bronzed coating, which increases its corrosion resistance and durability.
To maximize the performance and flexibility of the BR 50 adapter, several accessories are available, which can be purchased separately:
Selecting the appropriate nosepiece is crucial for the quality of riveting.

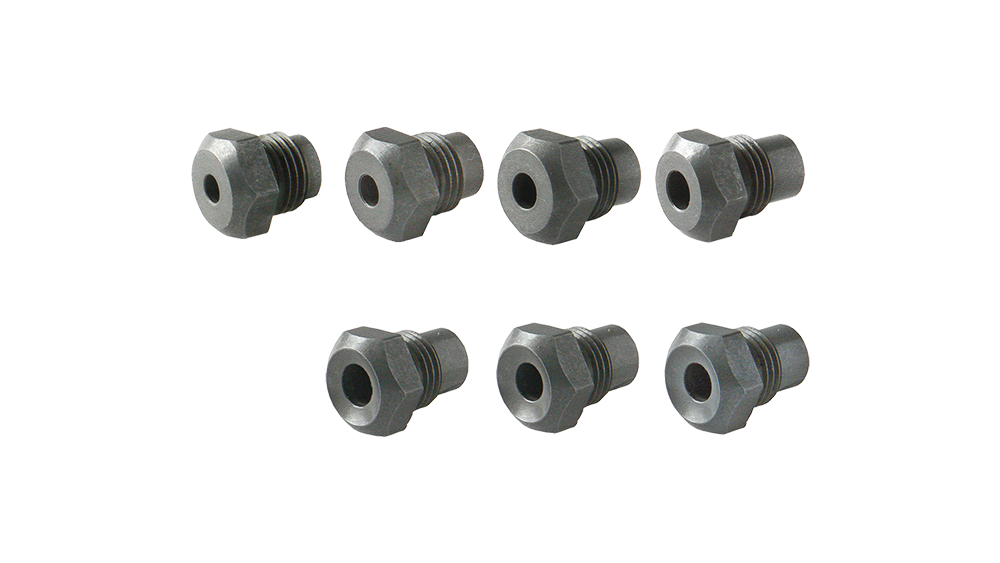

700215 Tool box (7-piece set): This standard set is ideal for the BR 50 and includes the following nosepieces:
700518 Nosepiece 3.2A
700519 Nosepiece 3.6A
700520 Nosepiece 4.0A
700521 Nosepiece 4.5A
700522 Nosepiece 4.8B
700523 Nosepiece 4.5B
700359 Nosepiece 5.1B

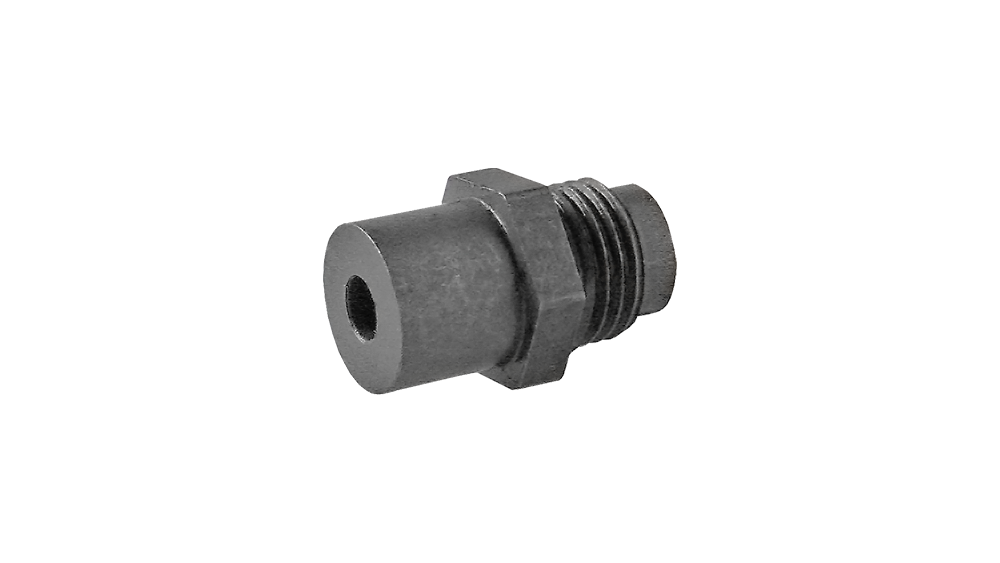

Special Nosepieces:
700532 Nosepiece 3-AL: Specifically for 3 mm blind rivets, with a rivet diameter of 3 mm. Compatible with the BR 50 adapter.
700524 Nosepiece 3.2C: For 3.2 mm diameter rivets, especially for application on roofing surfaces. Compatible with BR 20 and BR 50 adapters.
700525 Nosepiece 3.6C: For 3.6 mm diameter rivets, for application on roofing surfaces. Compatible with BR 20 and BR 50 adapters.
If the working area is located even deeper, the extension arms help to reach the desired point:
700150 Extension for BR 50 (100 mm): Can be used exclusively for the standard BR 50 nosepiece 700215.
700151 Extension for BR 50 (150 mm): Also compatible exclusively with the BR 50 nosepiece 700215.
The BR 50 adapter is excellently suited for the automotive industry and general metal processing applications where precision and accessibility are critical:
Bodywork repairs, especially in hard-to-reach areas.
Lightweight construction works.
Any assembly task where standard riveting tools cannot fit.
The Wielander + Schill BR 50 blind rivet adapter is the perfect combination of professional quality and user-friendly design, which significantly simplifies and speeds up even the most complex riveting jobs.
