Part number: 848049
This high-quality spare part set was developed specifically for the Wieländer+Schill Roll Out 2000 weatherstrip removal system maintenance and repair. The set ensures the optimal functioning of the suction cups, guaranteeing safe and efficient work during the removal of edge protectors. The spare suction head rubber with tilting lever, 150 mm in diameter, is the ideal solution for replacing worn or damaged parts.

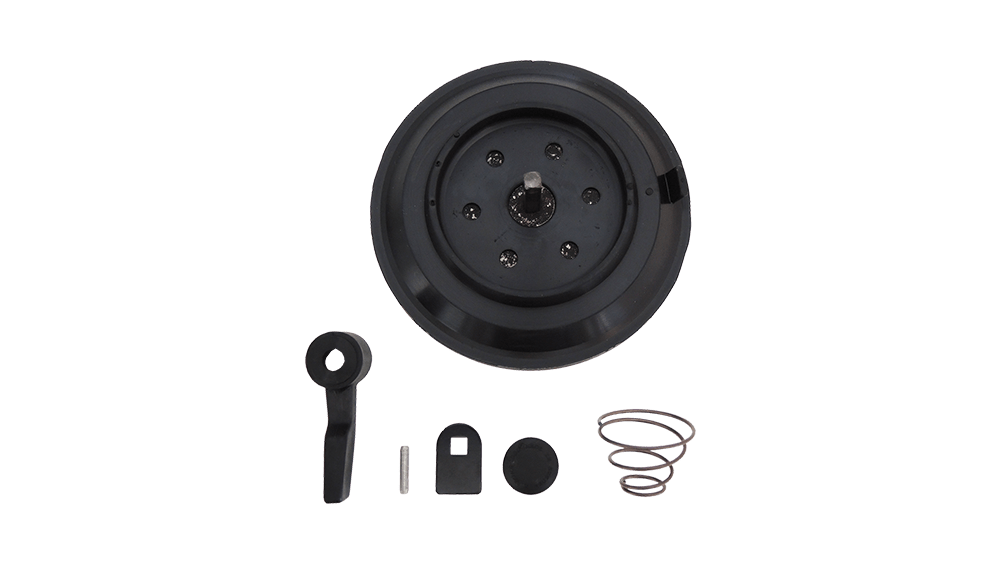

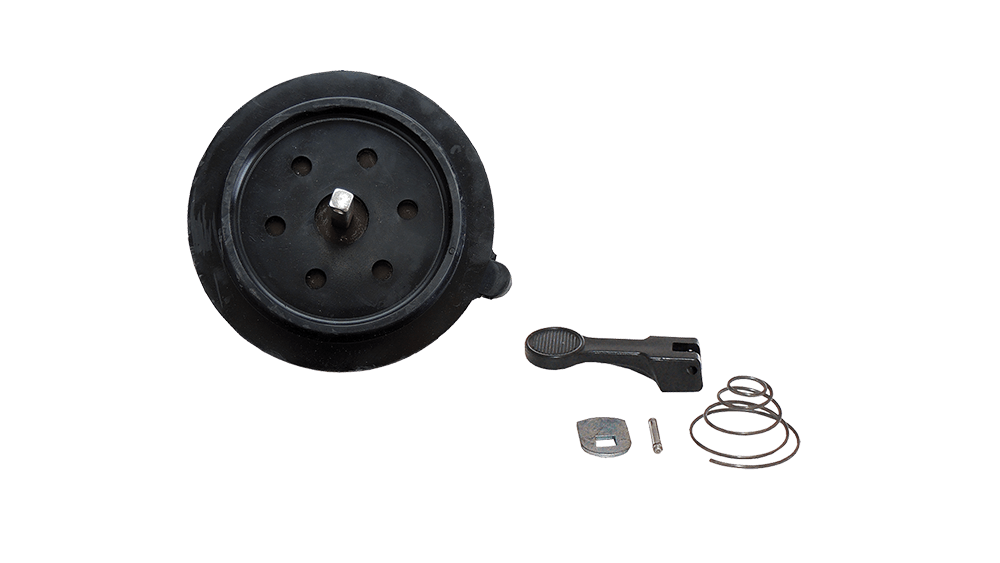

This spare part set contains all the necessary components for the quick and professional repair of tilting lever suction cups. The set includes the following:
1 pc Replacement Suction Head Rubber: With a diameter of Ø 150 mm, ensuring maximum adhesion to the vehicle's glass surface.
1 pc Spring: To maintain the proper tension and function of the mechanism.
1 pc Locking Pin: For the stable connection of the components.
1 pc Washer: To increase the stability of the fastening elements.

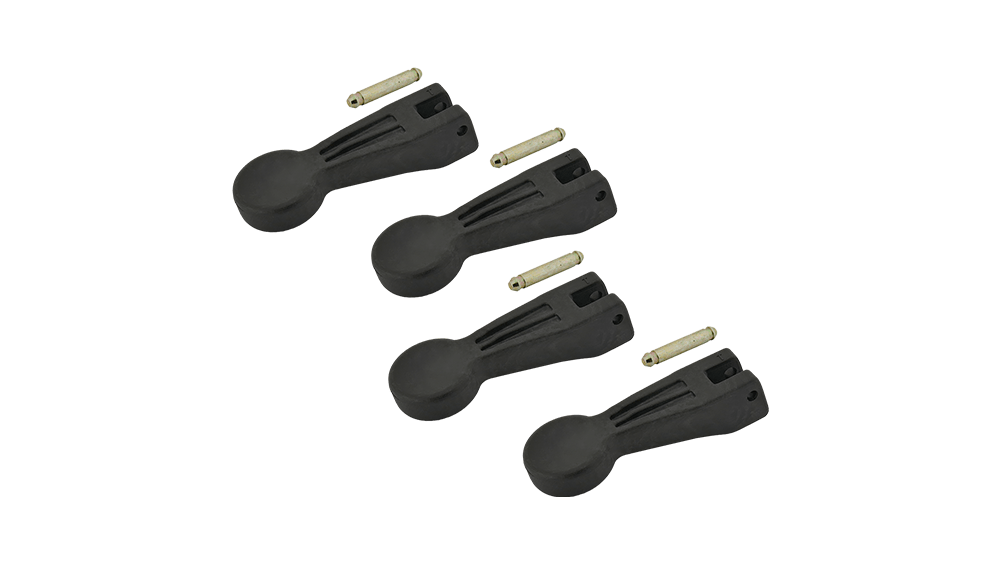

1 pc Push lever: To operate the tilting lever mechanism.
The precisely selected materials – plastic, rubber, steel, and synthetic material (kunststoff) – guarantee a long service life and reliable performance, even in frequent, demanding workshop environments.
The detailed technical specifications of the product can be found in the table below:
| Property | Value |
|---|---|
| Part number | 848049 |
| Application | Repair of the Roll Out edge protector removal system (tilting lever version) |
| Suction Head Diameter (Ø) | 150 mm |
| Overall Dimensions (Length x Width x Height) | Ø150 x 50 mm |
| Material composition | Plastic, Rubber, Steel, Synthetic Material (kunststoff) |
| Weight | 0.233 kg |
| Accessories | Replacement suction head rubber, Spring, Locking pin, Washer, Push lever |
The 150 mm diameter suction cup rubber is crucial for the secure fixing of the windscreen. The special rubber compound adheres excellently to various glass surfaces, even on slightly soiled or textured areas, minimizing the risk of slippage. This size (Ø 150 mm) is ideal for handling the windscreens of most standard passenger vehicles with the Roll Out 2000 system.
This kit is designed for push lever windscreen removal systems. The lever mechanism allows for quick and intuitive operation to activate and release the suction power. The included new push rod and corresponding fastening elements ensure that the lever operates with perfect ergonomics and reliability throughout the entire repair process.
The thoughtful composition of the kit minimizes repair time, as there is no need to search separately for necessary small parts. Replacing the spring and the retaining pin is essential to restore the holding power of the suction cup, especially after intensive use where the spring may fatigue. The combination of steel and plastic elements provides an optimal balance between strength and weight.
This spare part is exclusively for Wieländer+Schill Roll Out 2000 Windscreen Removal System versions that are compatible with lever (push lever) fixing. It is important to check the type of existing tool, as a twist lever version also exists (see related products).
This spare part kit is essential for professional body repair shops where the quick and damage-free removal of windscreens is of paramount importance. Regular maintenance and replacement of wear parts guarantee the continuity of workflows and compliance with safety regulations.
To fully cover maintenance needs, consider the following related products:
Spare Suction Cup Rubber with Twist Lever | Ø 150 mm (Part No.: 848075): This variant contains the spare part kit for twist lever suction cups.
Spare Suction Cup Rubber with Lever | Ø 120 mm (Part No.: 848074): A kit containing smaller diameter (120 mm) suction cup rubber, also for lever systems.
Wieländer+Schill is committed to the highest quality tools and spare parts, ensuring that your windscreen removal system always operates at peak performance.
