The Wielander + Schill Bi-Puller 9-prong dent pulling arm is a professional tool developed specifically for body repair work, particularly for pulling technologies. This excellent quality tool offers an ideal solution for the precise and efficient pulling of flat and slightly curved metal surfaces (e.g., doors, sills, fenders), especially when using a „wiggle wire” system for the work.
This 9-prong pulling arm ensures optimal adhesion and even force distribution during the pulling process, minimizing the risk of surface damage while maximizing efficiency. The tool's robust construction guarantees a long service life even in high-demand workshop environments.
The Bi-Puller 9-prong arm is a crucial element in dent removal technologies, enabling the effective restoration of dents of various sizes on body panels.
Application Areas:
Flat Metal Surfaces: Excellently suitable for use on straight body panels such as doors and sills, where securing and pulling the wiggle wire is necessary.
Slightly Curved Surfaces: Thanks to the 9-prong design, it can also be used on slightly curved panels, such as fenders, ensuring proper fitment and pulling force.
Design Advantages:
9-Prong Construction: The nine precisely placed prongs ensure a wide distribution of the pulling force, which is essential for the even return of the damaged area.
Wiggle Wire Compatibility: Specifically designed to work with wiggle wire systems, which form the basis of modern pulling techniques.
Durable Construction: The tool is made from a combination of steel and plastic (synthetic material), creating an optimal balance between durability and handling.
The detailed specifications for the Bi-Puller 9-prong dent pulling arm are as follows:
| Property | Value | Note |
|---|---|---|
| Part number | 501009 | The unique identifier of the product. |
| Construction | 9-prong pulling arm | For wiggle wire pulling. |
| Surface Treatment | nickel-plated | Excellent corrosion protection and durability. |
| Material composition | Steel, Plastic (Kunststoff) | Robust and lightweight construction. |
| Diameter (Ø) | M14 | Thread of the connection point (receptacle). |
| Dimensions (Length x Width x Height) | 150 x 140 x 20 mm | The physical dimensions of the tool. |
| Weight | 0.990 kg | Ensures easy handling. |
| Package contents | 1 piece (1 stück) | Package contents. |
The use of the Bi-Puller 9-prong arm significantly speeds up and makes the dent repair process more precise. The nickel-plated coating not only increases the tool's lifespan but also makes cleaning easier. The standard M14 connection allows for quick and secure attachment to the appropriate pulling devices, such as slide hammers.
The 9-prong design is particularly advantageous in cases of large-area, but slight, damage, where the goal is uniform tension over a wider surface area instead of point-by-point pulling.
For maximum efficiency, we recommend using the following accessories with the Bi-Puller 9-prong arm, which are an integral part of the complete pulling system:

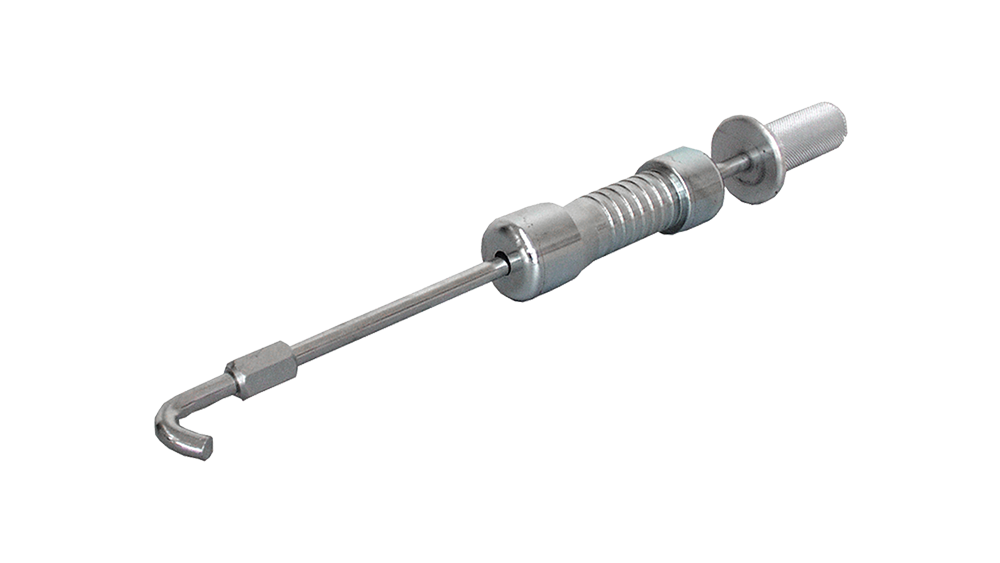

Slide Hammer (e.g., 4 kg, Item Number: 501005): An essential tool for generating pulling force, to which the Bi-Puller connects directly (with the appropriate adapter).

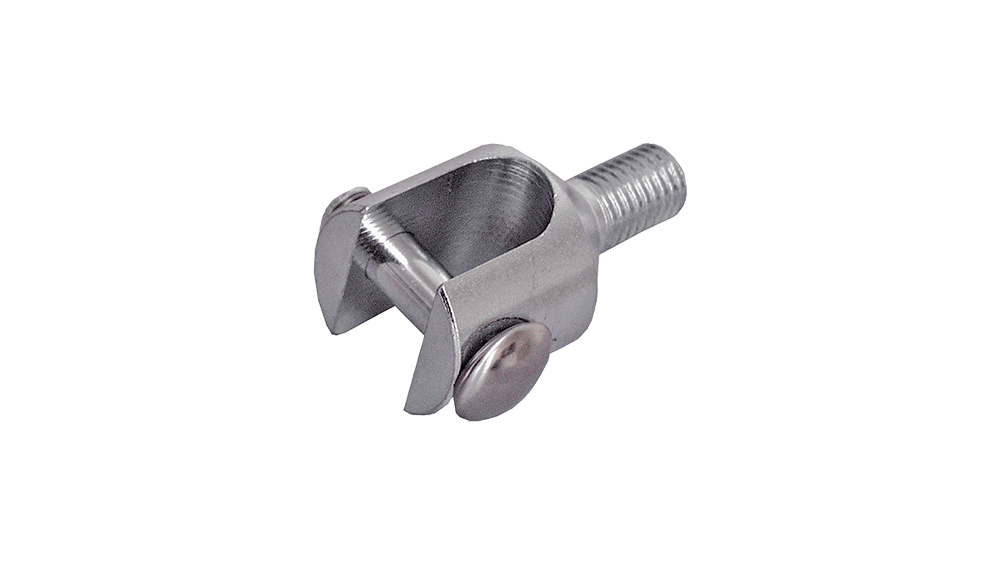

Stud Puller Adapter for Bi-Puller (Part Number: 508021): This adapter ensures a safe and stable connection between the Bi-Puller and the stud puller.

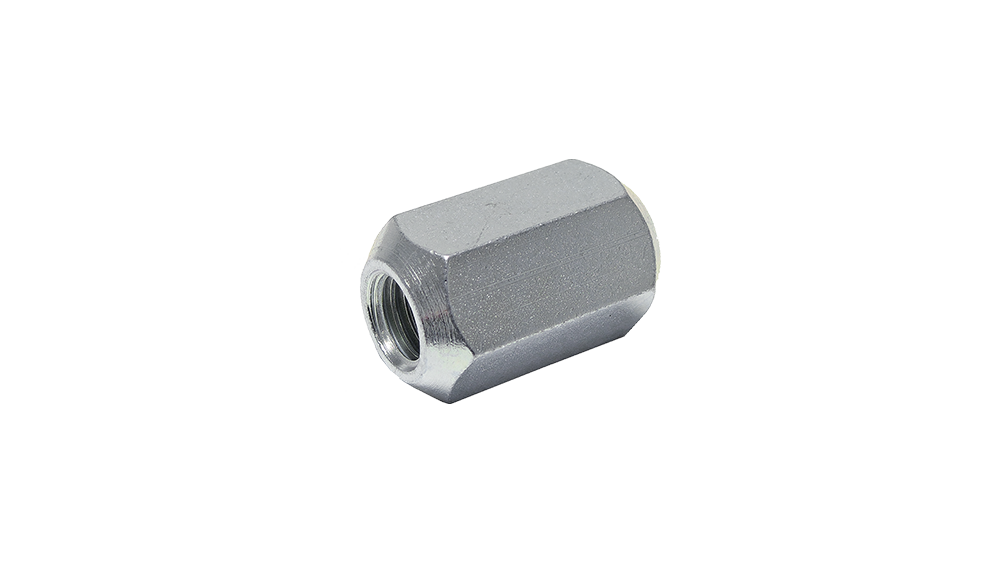

Stud Puller Connector Nut (Part Number: 504012): Precision element used for securing connections.

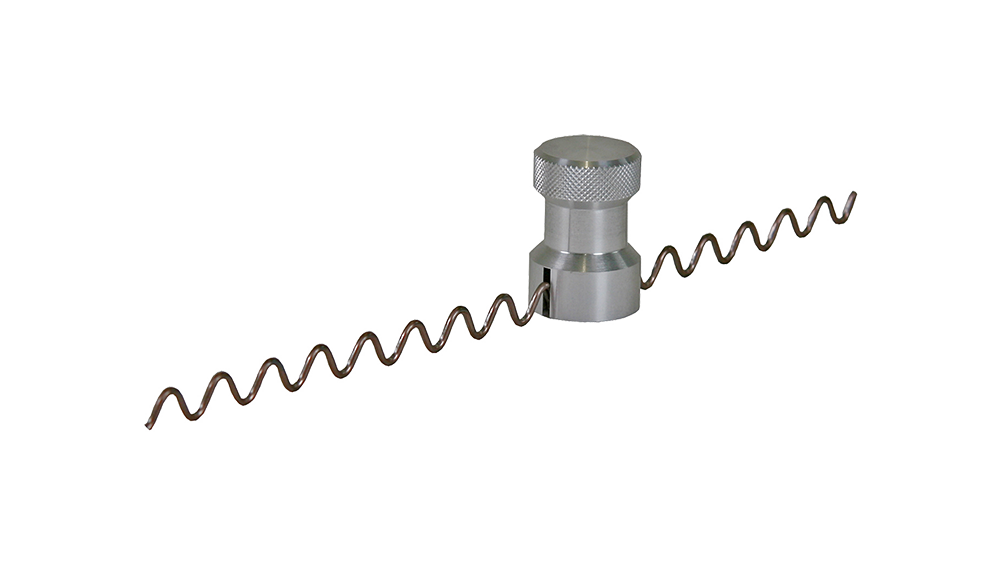

Magnetic Holder for Welding Wire (Part Number: 507040): Ideal tool for storing and handling the welding wire during operation, significantly easing the installation process.

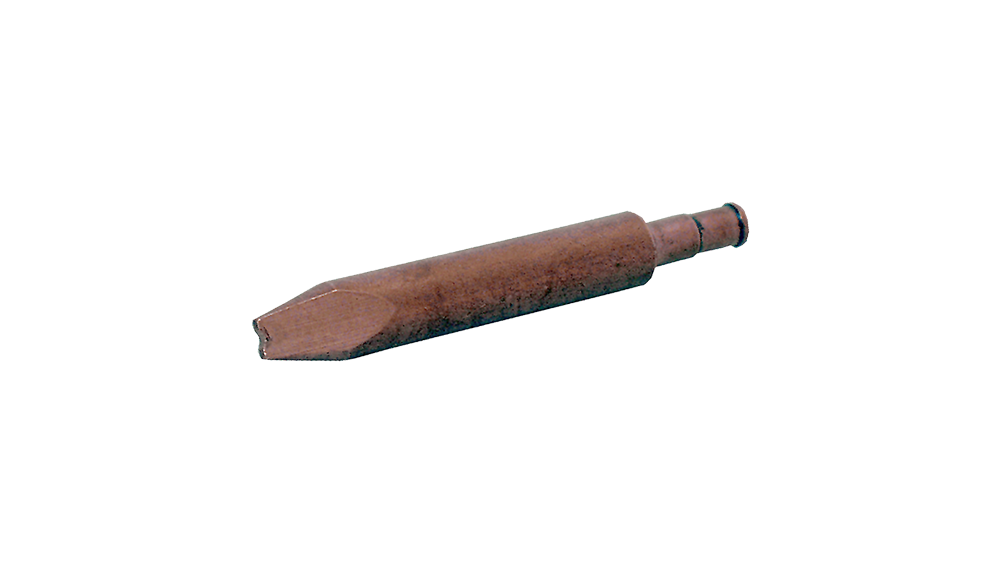

Electrode for Welding Wire (With Narrow Tip, Part Number: 507035): Special tip for precise processing of the welding wire.

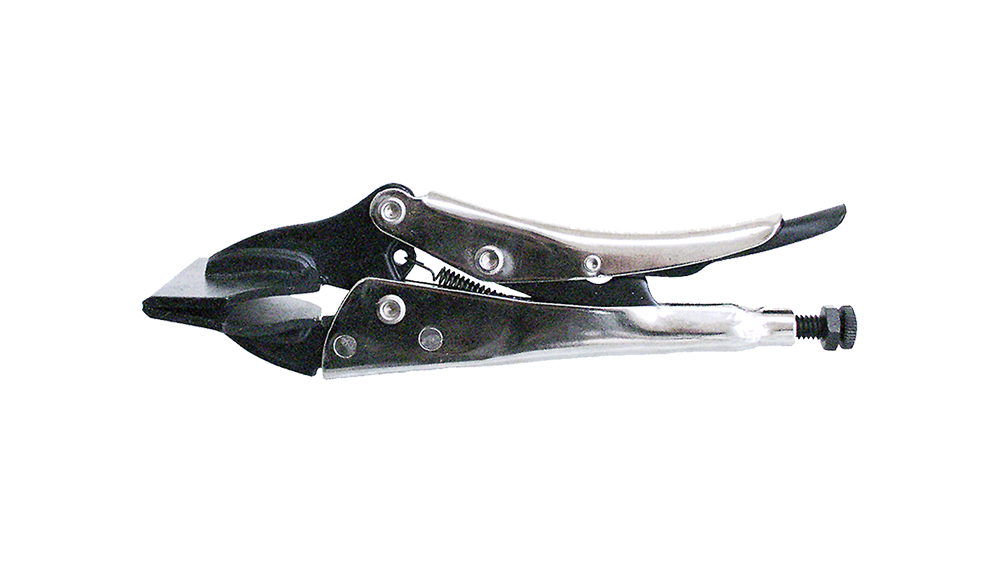

Fixing Pliers for Welding Wire (Part Number: 561190): These pliers ensure a firm and secure grip on the welding wire at the pulling points.
By using these accessories together, the Wielander + Schill Bi-Puller 9-jaw arm offers a professional solution even for the highest-level body repair tasks.
