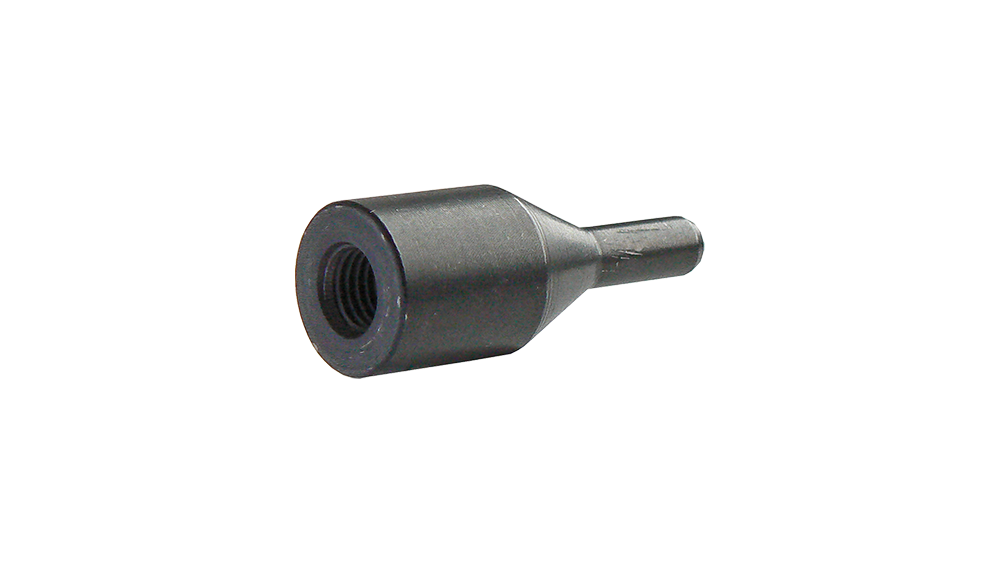

This product is a precisely designed holder element, specifically engineered for Wieländer+Schill AR 06 type rubber discs. This accessory is essential during body repair and painting operations, especially for the delicate cleaning and preparation of surfaces.
The holder ensures stable and secure mounting of the AR 06 rubber disc, enabling efficient and damage-free removal of paint residues, decals, or adhesives. The design with a 6 mm shaft diameter guarantees compatibility with appropriate drive tools.
This holder belongs to the Wieländer+Schill separating tools category and serves to mount the AR 06 rubber disc (part number: 637050). The holder's design allows for optimal vibration damping and controlled force application during work on sensitive surfaces.
Main area of use:
Together with the AR 06 rubber disc, the holder is the ideal solution for removing decals and adhesive residues on painted surfaces, minimizing the risk of scratching.
Design and Material Usage:
The holder is made of high-quality steel, which ensures long service life and reliable mechanical stability. Due to the surface treatment, the holder resists corrosion and the mechanical stress encountered during work.
Surface treatment:
The holder's surface burnished, which increases wear resistance and improves aesthetic appearance.
The table below details the precise technical parameters of the holder element, which ensure a precise fit and reliable operation:
| Property | Value | Note |
|---|---|---|
| Part number | 637051 | The unique identifier of the product. |
| Application | Holder for AR 06 Rubber Disc | Exclusively for AR 06 type rubber discs. |
| Shaft Diameter (Ø) | 6 mm9.29" x 6.69" x 4.08" | The diameter connecting to the drive tool. |
| Material | Steel | High-strength structural material. |
| Surface Treatment | Burnished | Corrosion and wear-resistant coating. |
| Thread size and length | M6 x 20 mm | Specification of the mounting screw or shaft. |
| Length × Width × Height | 15 x 15 x 40 mm | The physical dimensions of the holder. |
| Weight | 0.030 kg | Lightweight design for ease of handling. |
| Package contents | 1 piece (1 stück) | Package contents. |
For achieving optimal product performance, the use of the following accessory is recommended:

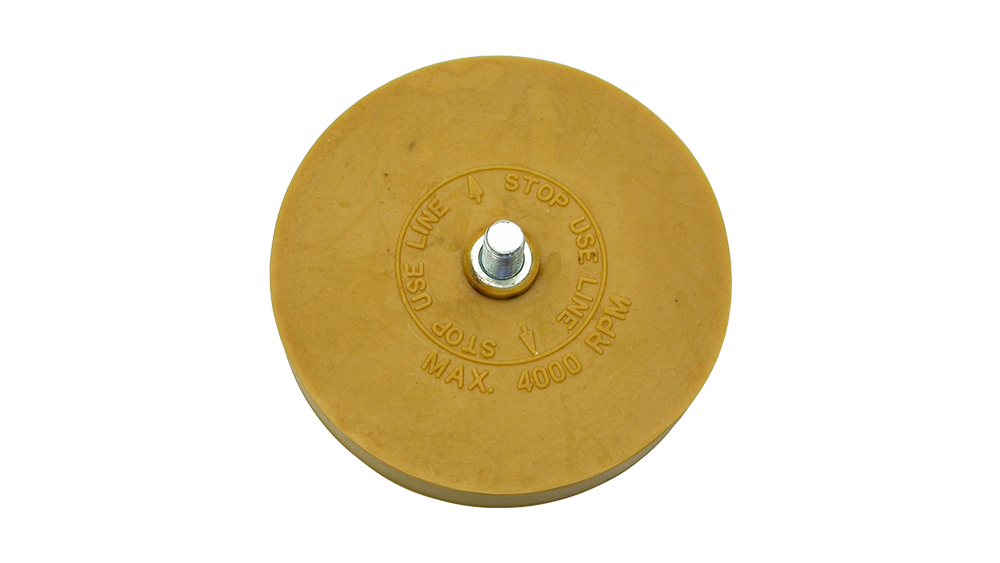

Rubber Disc | Air Rubber AR 06 | Ø 87 mm
Part number: 637050
Description: This large, 87 mm diameter air rubber disc is specifically designed to be mounted on the holder to effectively remove decals and adhesive residues from painted surfaces without damaging them. The air technology allows for a finer, more flexible contact.
Perfect Cleaning: The combination of the holder equipped with a 6 mm shaft and the AR 06 rubber disc makes it possible to remove adhesives and foils without damaging the vehicle's paintwork.
Robust Construction: The steel material and the blackened surface guarantee the long-term, reliable operation of the tool, even in intensive workshop environments.
Precise Fit: With its M6 x 20 mm thread and precise 6 mm shaft diameter, the holder fits perfectly into compatible drive units.
Könnyű Kezelhetőség: Weighing only 30 grams, the tool is easy to maneuver, reducing user fatigue during prolonged work.
This holder is part of the extensive portfolio of professional body repair tools from Wieländer+Schill, focusing on quality and efficiency.
