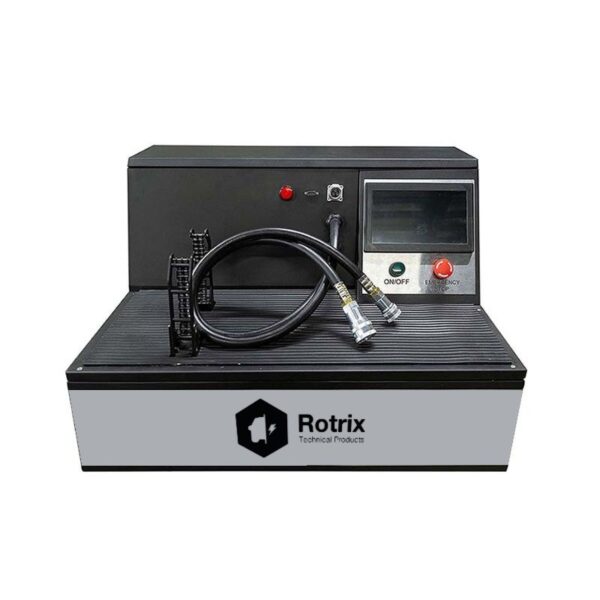

The Rotrix ACT-1224 is a specially developed, high-performance test bench designed for the comprehensive diagnostics and performance measurement of electric compressors in modern electric (EV) and plug-in hybrid (PHEV) vehicle air conditioning systems. This device is essential for service centers that provide professional repair and maintenance services in the field of electric mobility.
The ACT-1224 test bench enables precise testing of the electrical part of the compressors, ensuring quality assurance before installation or after repair. Compressed nitrogen is used as the working medium for testing, guaranteeing safe and reliable operation.
The ACT-1224 test bench features several functions that optimize service workflows and increase diagnostic accuracy:
Automatic Diagnostic Mode: The device is capable of autonomously executing the complete test cycle according to pre-set protocols, minimizing the need for human intervention.
Új Kompresszorok Előzetes Tesztelése: Enables fast and reliable inspection of new compressors awaiting installation, preventing warranty failures.
Intuitive User Interface: A user-friendly and logical menu system ensures simple and fast control of the test bench functions.
Free Firmware Updates: The device's automatic software update capability ensures that the test bench always adapts to the latest vehicle and compressor technologies.
Diagnostic Results Management: Ability to save and print test results (Note: this function is currently under development).
Wide Voltage Range: Capable of handling the wide voltage range of modern EV/PHEV systems, between 100 VDC and 400 VDC.
The detailed technical parameters of the ACT-1224 test bench ensure professional and standard-compliant operation:
| Parameter | Value | Note |
|---|---|---|
| Brand Name | Rotrix ACT-1224 | |
| Category | Workshop Equipment | |
| Sub-category | Air Conditioning System Tester | |
| Supply Voltage (VAC) | 230 V | |
| Power Supply Type | Single-phase | |
| Frequency (Hz) | 50/60 Hz | |
| Power Consumption (kW) | 3 kW | |
| Dimensions (H×W×D, mm) | 740 × 600 × 550 mm | Compact design |
| Weight (kg) | 40 kg | |
| Tested Compressors | Electric AC compressors | |
| Input Voltage Range (VDC) | 100 VDC – 400 VDC | |
| High Voltage Connection | 2 pins, with built-in inverters | |
| Working Medium | Compressed Nitrogen | |
| Nitrogen Pressure Requirement | 6–8 Bar (90–110 psi) | External source required |
| Nitrogen Consumption | 100 liters/test | |
| Nitrogen Recovery | No | Releases the waste gas into the atmosphere |
| Nitrogen Connection | SAE 1/4” | |
| Communication Port | Ethernet | Network Connection |
| Data Storage | USB Type-C | For connecting external drives |
The purpose of the ACT-1224 test bench is to provide a reliable platform for workshops to test the electric compressor, a critical component of EV/PHEV systems. Since the climate control systems in electric vehicles differ significantly from traditional internal combustion engine systems (higher operating voltage, different control logic), specialized diagnostic tools are required.
The test bench is capable of simulating the operating conditions of the compressor while measuring electrical parameters. With the help of built-in inverters, the device can load the compressor's drive electronics in the nominal range of 140-400 VDC. This enables the verification of the motor winding, sensors (e.g., speed sensors), and control unit communication.
During testing, the system evaluates the compressor's performance (cooling capacity) based on the specified operating parameters. This function is crucial for assessing the compressor's lifespan and efficiency.
Only compressed nitrogen can be used for testing. Nitrogen is the ideal choice because it is an inert gas, does not react with any residual refrigerant present in the system, and is safe during high-voltage electrical tests. It is important to note that the test bench requires an external nitrogen source with a pressure between 6 and 8 Bar. A complete test cycle consumes approximately 100 liters of nitrogen. The system does not have a built-in nitrogen recovery function; the pressurized gas is released into the atmosphere after the test is completed.
Adapted for the modern service environment, the ACT-1224 features an Ethernet port for network connection, facilitating remote access and receipt of software updates. Although software updates are optionally available, basic firmware updates are provided free of charge. The USB Type-C port allows for quick transfer of test results or manual software updating from an external storage medium.
This test bench is the ideal choice for:
EV/PHEV Authorized Repair Shops: For the professional diagnostics of high-voltage systems.
Independent Climate Control Repair Shops: Which are expanding their services towards electric vehicles.
Compressor Refurbishment Units: For quality assurance of repaired or refurbished units.
The Rotrix ACT-1224 combines reliability, precision, and future-oriented technology in a robust device designed for workshop use.
