This detailed product description presents the Wieländer+Schill steel rim, part number HV165, specifically developed for converting existing WS Roller-Spinner devices to be compatible with the specific bolt circle of SUV and VAN type vehicles. This component is essential for workshops that wish to flexibly adapt to modern vehicle fleets.

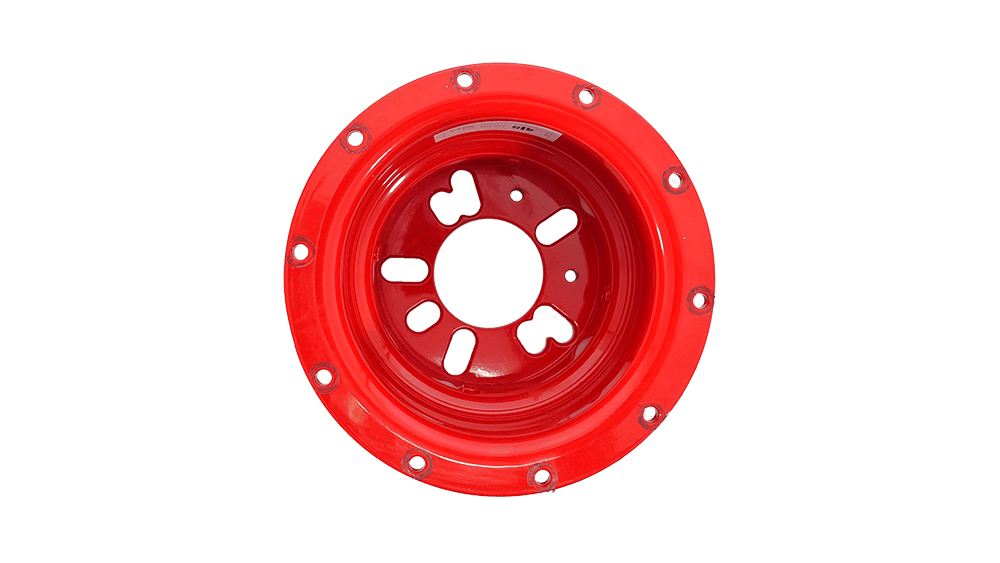

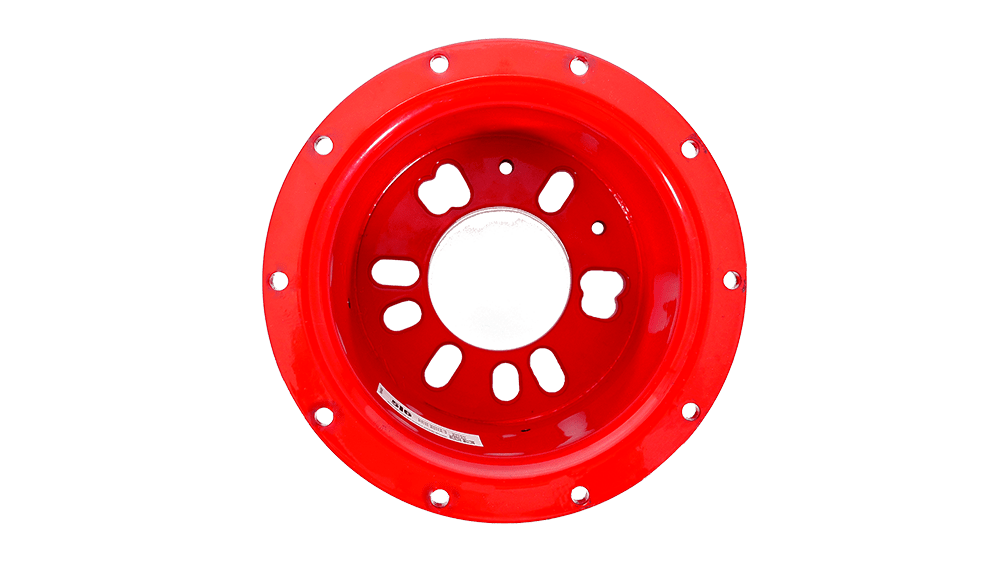

A HV165 Steel Rim a precisely machined component that enables the conversion of existing WS Roller-Spinner systems to the desired bolt circle. This model is specifically for vehicles with a Ø 108 mm center bore (CB) ideal, especially in the SUV & VAN segment.

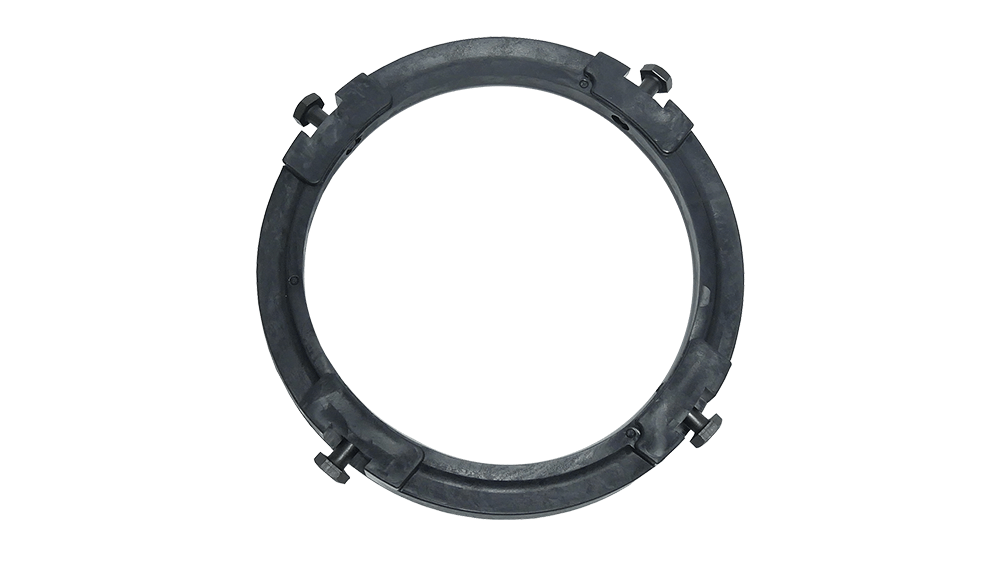

Important note: For successful conversion and to ensure proper function the corresponding adapter ring its installation as well. This adapter ring (available separately, e.g., HV155) ensures the activation of the spin mode and the stabilization of the wheel on the rim.
This rim is part of the wide portfolio of professional body repair and workshop equipment from Wieländer+Schill, which meets the highest quality and technical standards.
The table below summarizes the critical technical parameters of the HV165 steel rim:
| Characteristic | Value | Note |
|---|---|---|
| Part number | HV165 | Unique identifier for ordering and component identification. |
| Típus | Steel Rim 6-Bolt | The rim design features 6 fixing holes. |
| CB (Center Bore) | Ø 108 mm | The diameter of the flange's central hole. |
| Field of application | SUV & VAN | Optimized primarily for large, heavier vehicles. |
| Length | 23 mm | One dimension of the rim. |
| Width | 23 mm | Another dimension of the rim. |
| Höhe | 11.5 mm | The thickness of the rim. |
| Required accessory | Adapter Ring | The correct adapter ring (e.g., HV155) is essential for proper operation. |

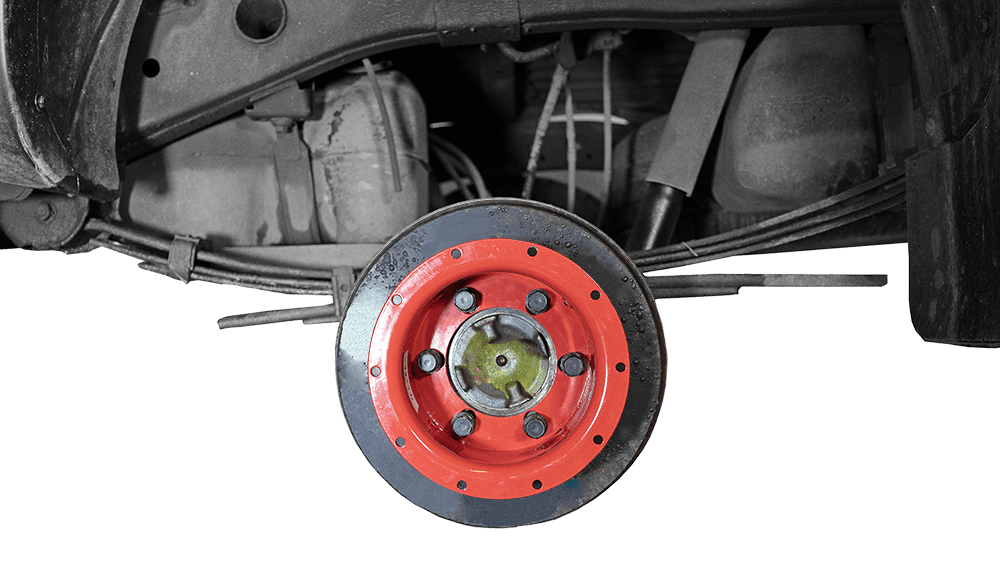

The use of the HV165 steel flange allows workshops to significantly increase the versatility of their WS Roller Turntable system.
Vehicle Fleet Compatibility Expansion: It enables the quick and efficient adaptation of existing, older, or other bolt circle roller turntables to the 108 mm bolt circle of modern SUV and VAN models.
Professional Quality: The robust design and precise manufacturing characteristic of Wieländer+Schill products guarantee a long service life and reliable operation even under heavy load.
Egyszerű Telepítés: The conversion is purposefully designed, so connection to existing equipment can be done easily with minimal downtime (including the necessary adapter ring).
To fully utilize the WS Roller Turntable system and adapt it for other vehicle types, the following accessories may also be relevant:
These products offer solutions for other bolt circles for the WS Roller Turntables:

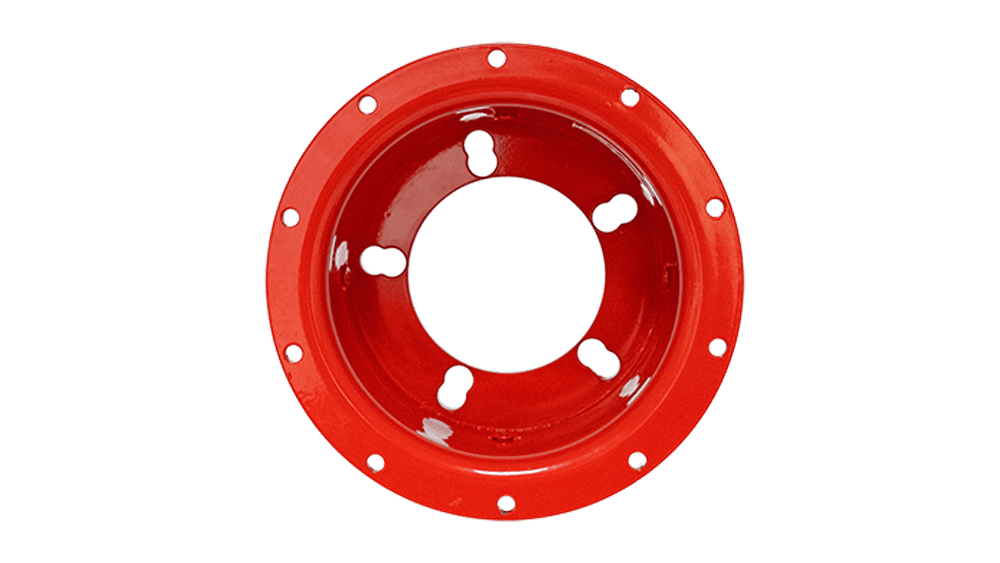

Steel Flange 4/5-bolt | CB: Ø 74.1 mm (Part No: HV158): For smaller passenger cars or other specific bolt circles.
Steel Flange 5/6-bolt | CB: Ø 87.1 mm (Part No: HV159): For adaptation to another common bolt circle.
Steel Flange 5-bolt | CB: Ø 110 mm | SUV & VAN (Part No: HV162): For SUV/VAN models in a similar category but with a different bolt circle.
The following accessory is essential to ensure the proper function of the flanges:
Thus, this HV165 steel flange is a crucial component for professional body shops, ensuring maximum flexibility of the WS Roller Turntable equipment when working across a wide range of vehicles.
