Part Number: HV159

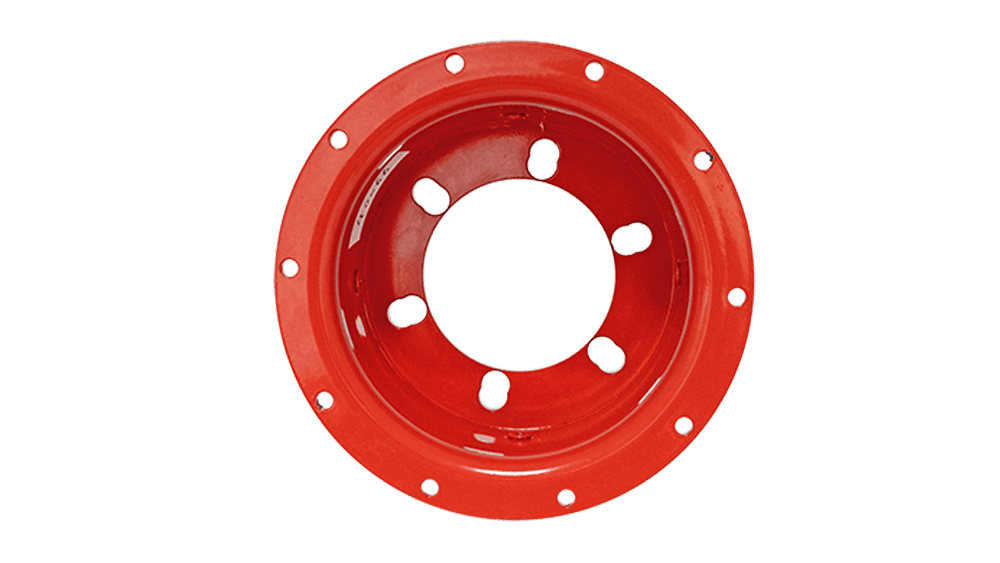

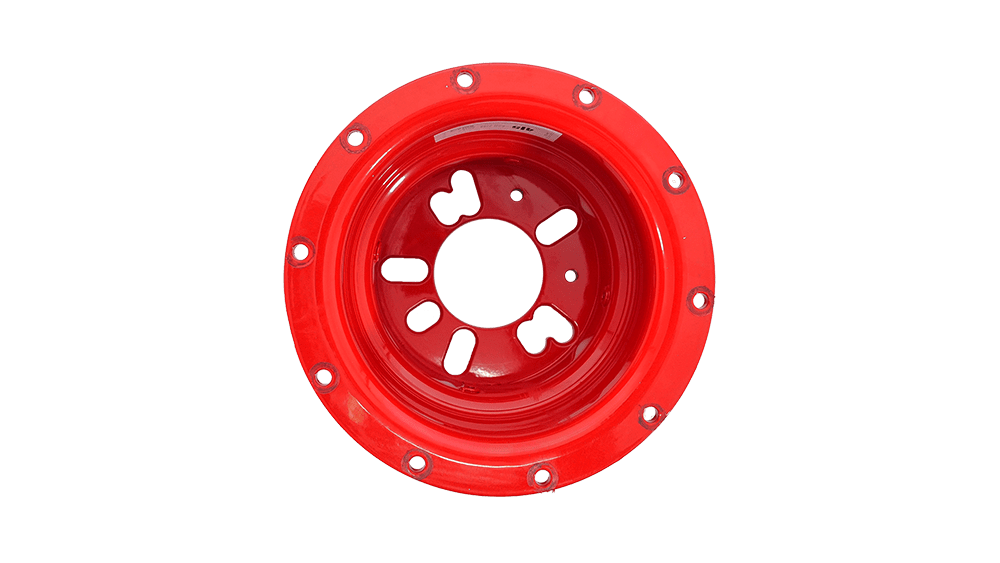

This high-quality steel flange is designed to flexibly expand the Wieländer+Schill WS Roller-Spinner system, enabling the modification of existing equipment to the desired bolt circle pattern. The precise design of the flange ensures a stable and reliable fit, which is essential during professional body repair work.
The HV159 steel flange is specifically designed to make the existing WS Roller-Spinner unit compatible with different vehicle wheel sizes and bolt patterns. This component is crucial for workshops that aim for maximum flexibility in their wheel clamping and spinning systems.
Important note: For successful modification and proper operation of the flange, the corresponding adapter ring must also be installed. This adapter ring ensures a precise fit and stabilizes the wheel during spin mode.
Target Application: Modification of an existing WS Roller-Spinner for new bolt circle specifications.
Robust Construction: Made of durable steel for long service life and the ability to withstand high loads.
Precise Fit: Precisely machined holes and centering for maximum stability.
System Compatibility: An integral part of the Wieländer+Schill WS Roller-Spinner system.
The table below details the critical dimensions and specifications of the HV159 steel flange, ensuring compatibility with various vehicles and the existing WS equipment.
| Property | Value | Note |
|---|---|---|
| Part number | HV159 | |
| Típus | Steel Flange for 5/6-bolt design | |
| Centre Bore (CB) | Ø 87.1 mm | Centre Bore (Center bore diameter) |
| Dimensions (Length x Width x Height) | 230 x 230 x 115 mm | Physical dimensions of the flange |
| Bolt Circle Diameter (PCD) | 5×120 – 5×139.7 / 6×114.3 – 6×139 | Compatible Bolt Circles (Pitch Circle Diameter) |
The PCD specifications indicate that this flange can accommodate the following common bolt patterns:
Five-bolt systems: with 120 mm and 139.7 mm pitch circle diameters.
Six-bolt systems: with 114.3 mm and 139 mm pitch circle diameters.

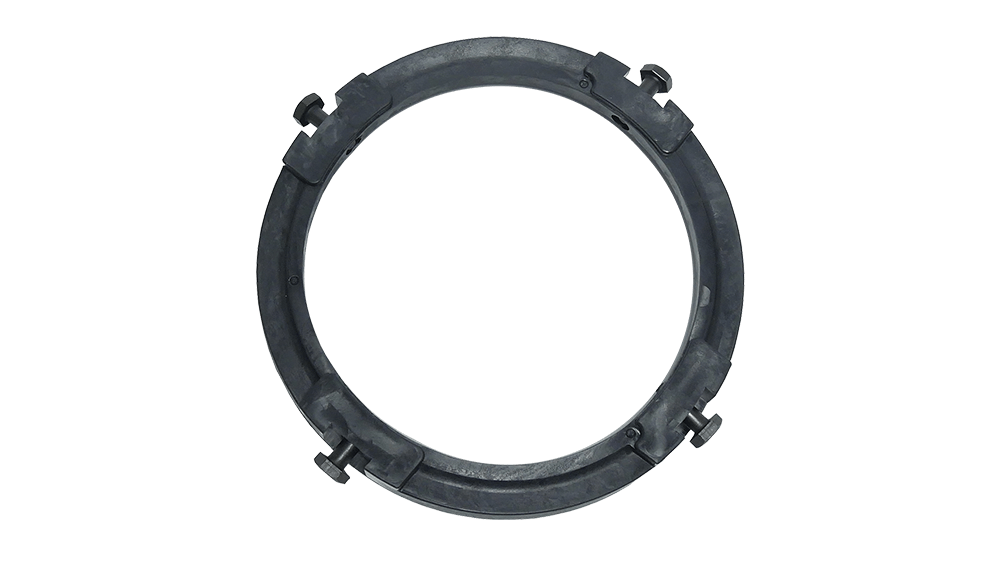

The complete conversion of the WS Roller-Spinner requires the purchase of the appropriate adapter ring.
This accessory can be mounted directly onto the HV159 steel flange.
Part number: HV155
Function: It enables the activation of the „espin mode” (rotation mode) and stabilizes the wheel during operation.
Accessory: The fixing screws are part of the scope of delivery.
Diameter: Ø 185 mm
Wieländer+Schill also offers steel flanges with other specifications, which are ideal for other vehicle fleets or different center bores (CB):

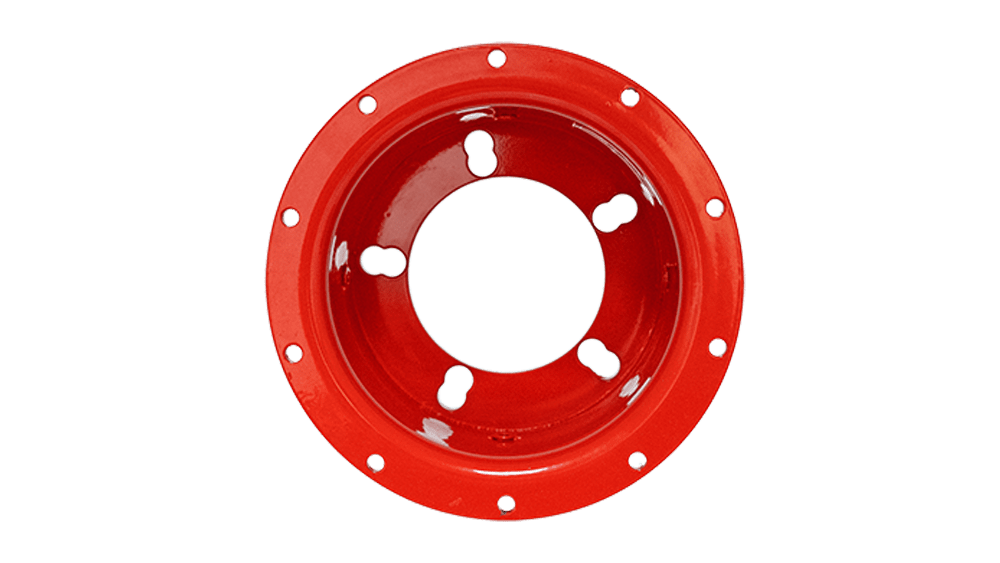

Part number: HV158
Purpose: Conversion for vehicles with 4 or 5 bolts and a 74.1 mm center bore. Also requires an adapter ring.
Part number: HV162
Purpose: Optimized for higher load capacity SUV & VAN types, with a 110 mm center bore. Also requires an adapter ring.
Part number: HV165
Purpose: For SUV & VAN models with 6 bolts and a 108 mm center bore. Also requires an adapter ring.
This component is part of the broader Service & Workshop belongs to the product category, and is closely related to the XSeries – Professional Riveting Technology and Dent Removal Technology areas, where precise wheel holding and movement are essential for damage-free repair of body parts. The product meets the strict quality requirements reflected in the company's ISO 9001 and ISO 14001 certifications.
