XPress 1000 SC | Basic Set (Part Number: 700000SC)

The XPress 1000 SC basic set is a professional, hydraulic riveting system specifically designed for the self-piercing rivets (Self Piercing Rivets – SPR) removal and installation, particularly for rivets with 3 mm and 5 mm diameters fasteners. This set forms the basis of the Wielander + Schill XSeries professional riveting technology, ideal for body repair workshops that require high-precision, high-force joining solutions.

This equipment is excellently suited for repairing structural elements of modern vehicles where conventional welding or screwing procedures cannot be applied, or where OEM (manufacturer) specifications prescribe special cold-joining technology.

Key Features and Advantages

The XPress 1000 SC Basic Set combines efficiency, reliability, and ease of handling:

Professional Performance: The system is capable of exerting a maximum force of 96 kN, ensuring the safe installation and removal of SPR rivets for the hardest materials.
Flexible Operation: The combination of the short stroke cylinder (SSC 35/25) and the C-arm (GC 80/40) ensures optimal access even in tight spaces.
Compact Design: The hydraulic unit (PowerPack) and the tools are delivered in a robust transport case, which facilitates mobile operation and relocation within the workshop.
OEM Compatibility: Especially suitable for repair procedures prescribed by BMW, as indicated by the enclosed special tool box.
Safe Operation: Low noise level (75 dB(A)) and minimal vibration (< 2.5 m/s²) ensure user comfort and protection of the work environment.

Scope of Delivery

The XPress 1000 SC Basic Set (700000SC) offers a comprehensive solution for riveting tasks, from the drive unit to the tools and storage.

Part number	Item Name	Description
700090	PowerPack	XPress 1000 SC hydraulic power unit.
700060	SSC 35/25	Short stroke hydraulic cylinder.

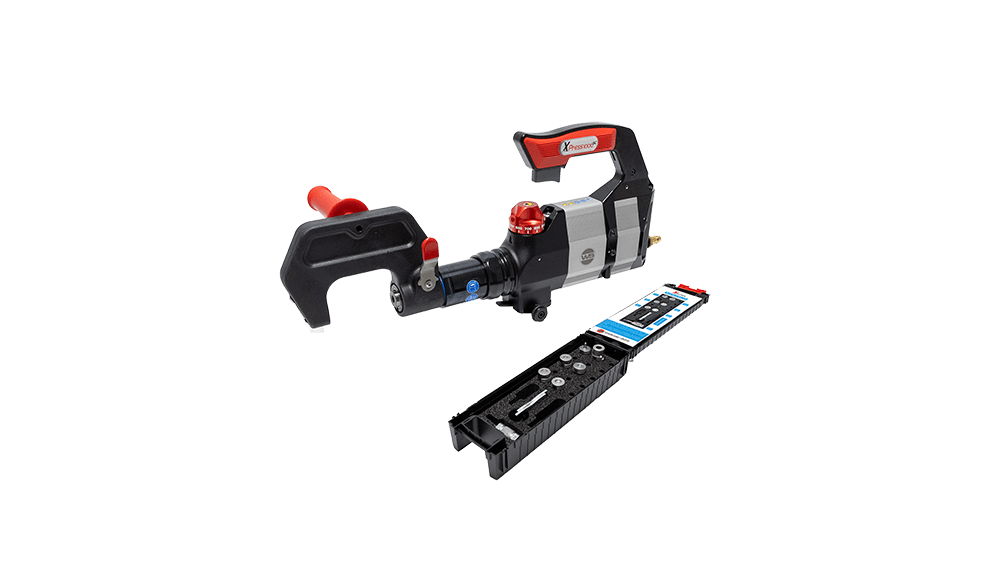

S700070	C-Arm GC 80/40	C-shaped arm with 80 mm x 40 mm working opening.

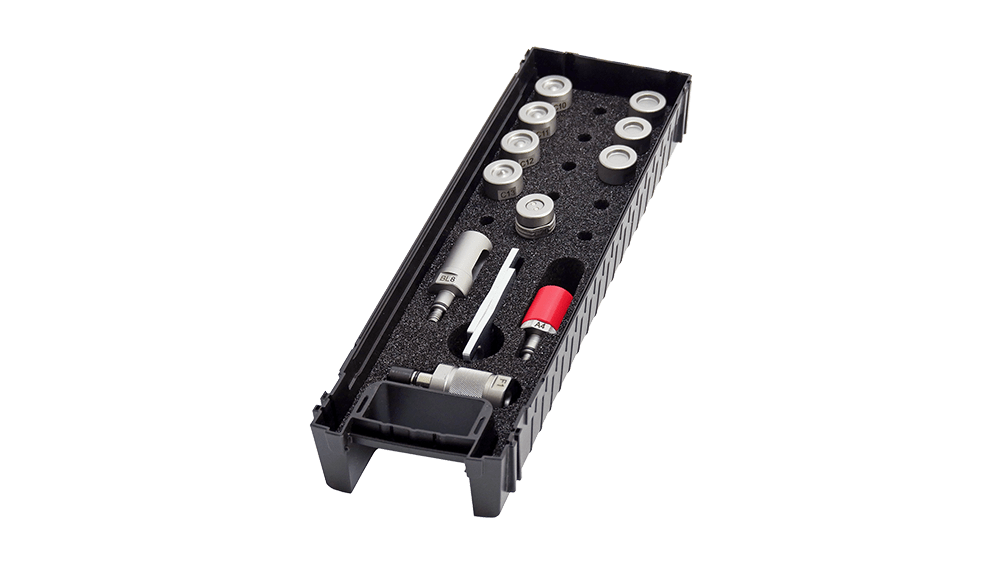

700200	Tool box RS-03	Tool storage specially designed for BMW requirements.
881341	Handle	Red handle for fixed magnets and C-arms.
700801	Storage box	Empty box for storing rivets and tool heads.
N/A	Carrying bag	Robust carrying case for the complete set.
N/A	Operating Manual	Detailed user manual.

Technical Data

The XPress 1000 SC system features precise hydraulic and mechanical parameters for reliable performance:

Parameter	Value	Unit	Note
Maximum Pressure (PB max)	1000	bar	Maximum operating pressure of the hydraulic system.
Exerted Force	96	kN	Maximum force provided by the riveting cylinder.
Operating Pressure	8	bar	The pneumatic input pressure.
Stroke	25	mm	Maximum stroke length of the cylinder.
Work window	80 x 40	mm	Dimensions of the C-arm opening.
Maximum Oil Volume	120	cm³	Capacity of the hydraulic system's oil reservoir.
Oil Type	HLP 22 – HLP 36	N/A	Recommended hydraulic oil reservoir.
Operating Temperature	5 – 50	°C	The optimal temperature range of the equipment.
Noise Level (Sound Pressure Level)	75	dB(A)	Noise level during operation.
Vibration	< 2.5	m/s²	Vibration level measured during operation.
Materials	Alu, Aluminium, Plastic, Steel, kunststoff	N/A	Main materials used.
Air Quality	ISO 8573-1	N/A	Standard for compressed air.

Accessory Information and Related Products

The flexibility of the XPress 1000 SC system can be further increased with additional tools and consumables.

Optional Accessories (Zubehör)

The following products are not part of the basic set, but significantly extend the functionality of the system:

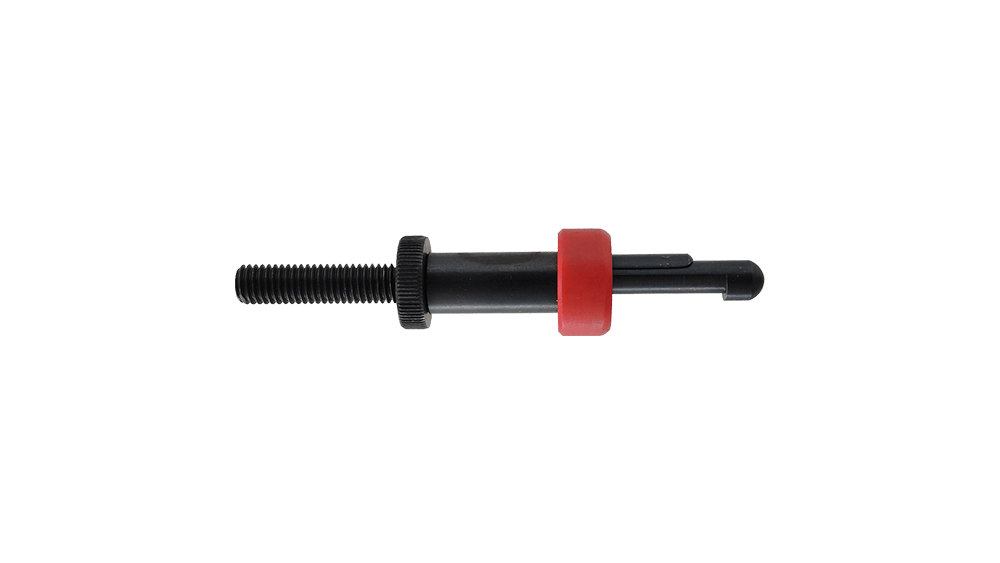

Temporary fasteners | Ø 8.0 mm | PU: 20 pcs.) – Part No.: 577110

8.0 mm diameter temporary fastening elements used during the curing phase of the sealant to hold the sheets in precise and secure position.

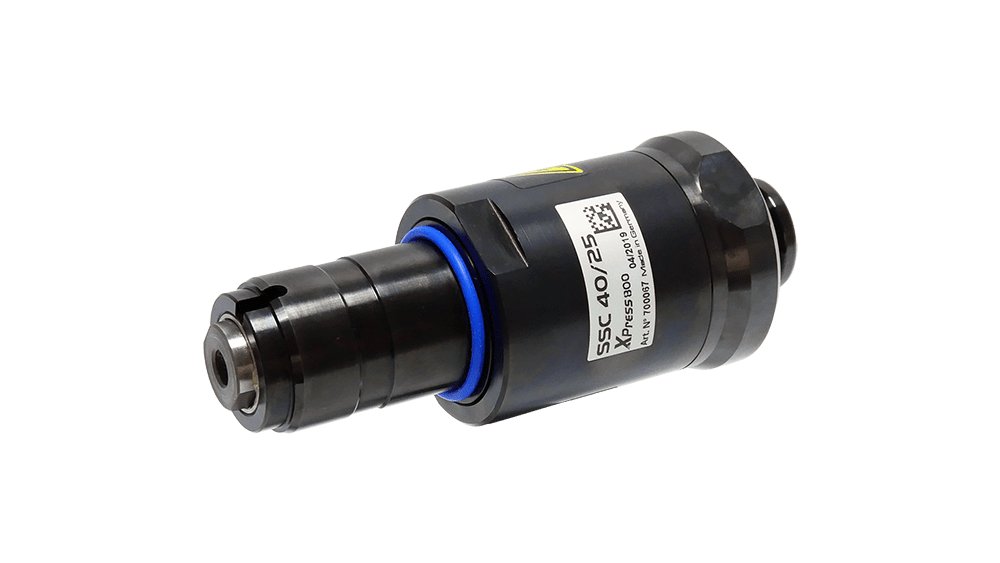

SSC 40/25 Short stroke cylinder) – Part No.: 700067

A 25 mm stroke cylinder which, when combined with the PowerPack 1000 SC, can achieve a maximum setting force of up to 101 kN.

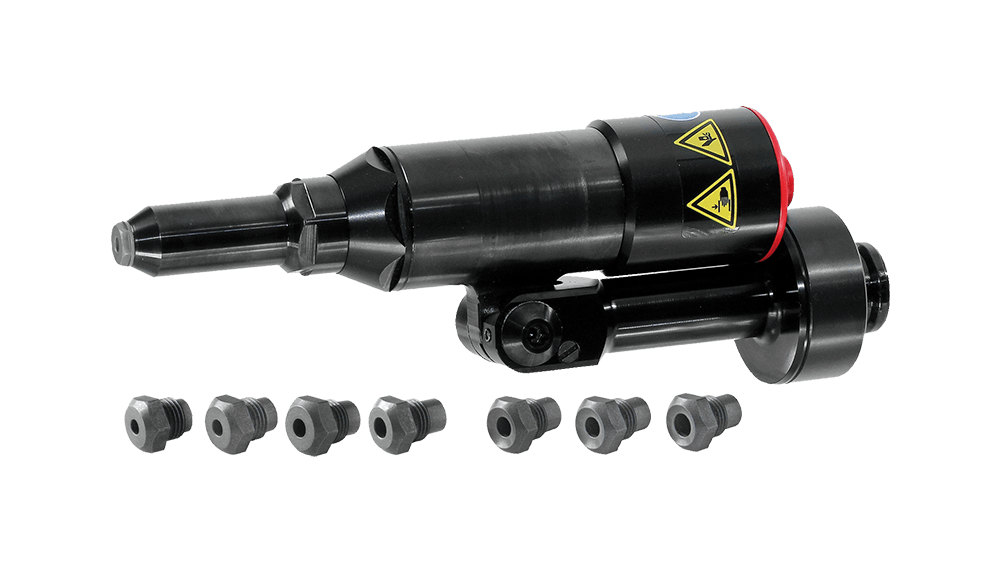

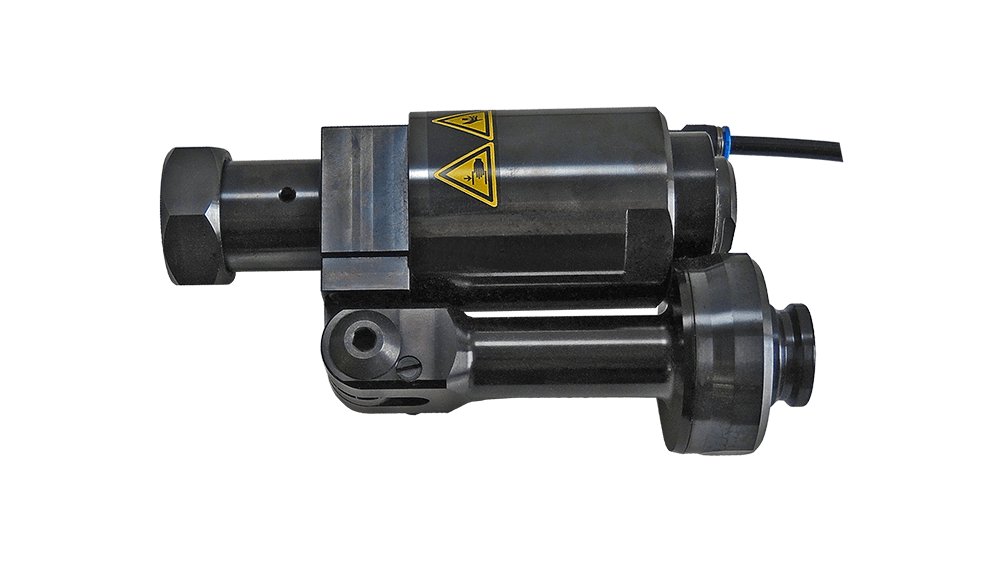

BR 80 Blind rivet adapter) – Part No.: 700112

Basic pulling unit for various applications. It has a pulling force of 80 kN and is equipped with a patented swivel joint. Suitable for ultra-light, high-strength blind rivets, HUK bolts, pull studs, and Magna Grip fasteners.

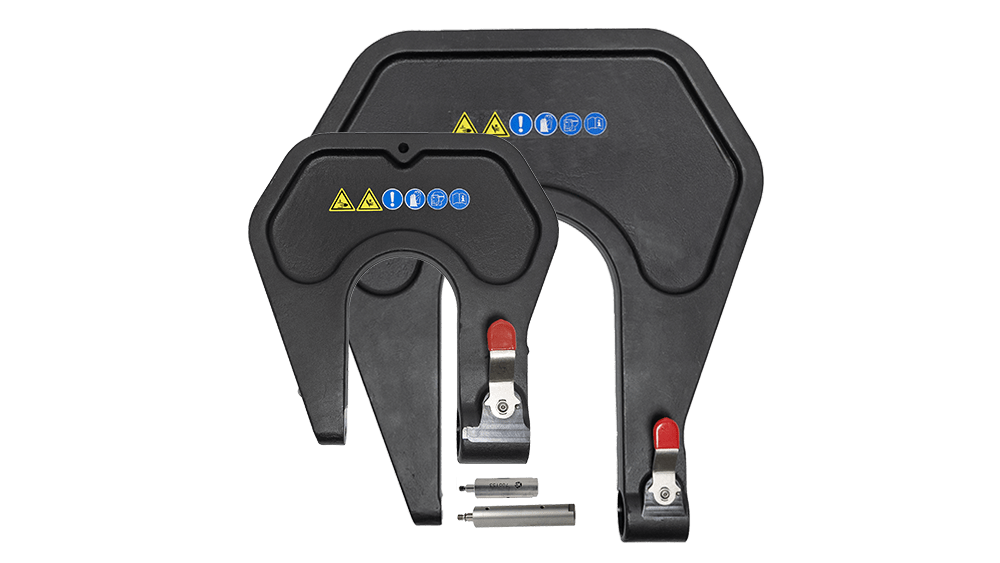

C-Arms | 4-piece set with case) – Part No.: 700080SC

Extended C-arm set for the XSeries, containing GC 80/130 and GC 140/240 arms, as well as longer extensions for the PushPull PP 90 and SSC 35/25 cylinders.

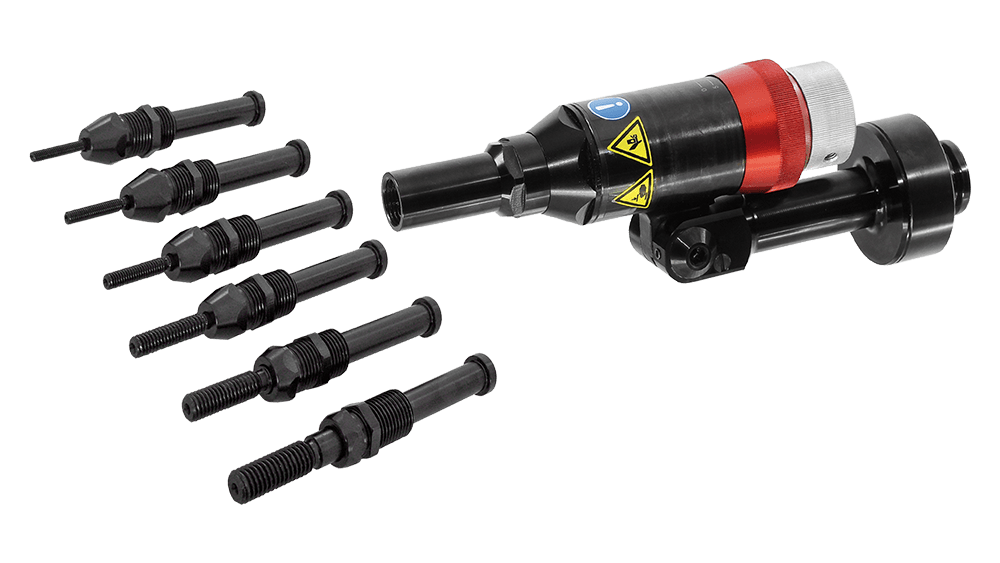

BR 50 Blind rivet adapter) – Part No.: 700101

Provides excellent access for heavy riveting tasks. It has a pulling force of 50 kN, is freely rotatable and pivotable. Suitable for rivets with a shank diameter between 2.0 mm and 5.0 mm. Includes a 7-piece tool box (Mouth pieces).

BRN 50 Blind rivet nut adapter & Tool Box RS-04) – Part No.: 700111

Set containing the BRN 50 adapter and the RS-04 tool box for installing blind rivet nuts.

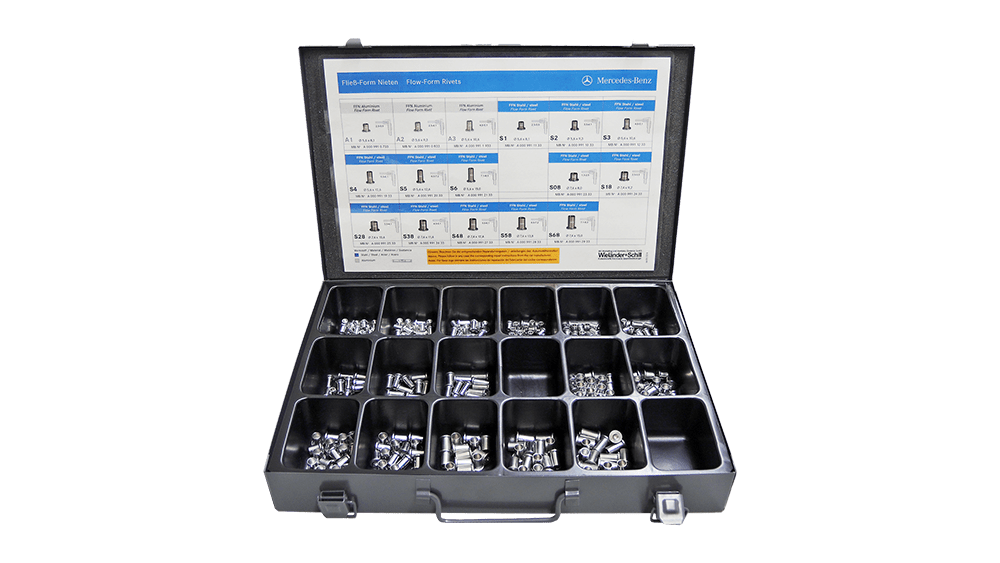

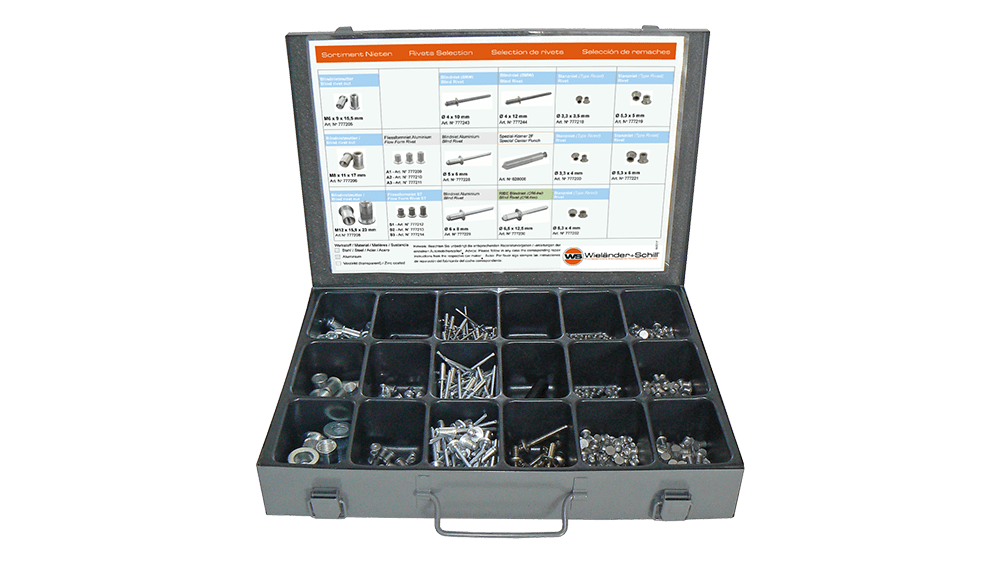

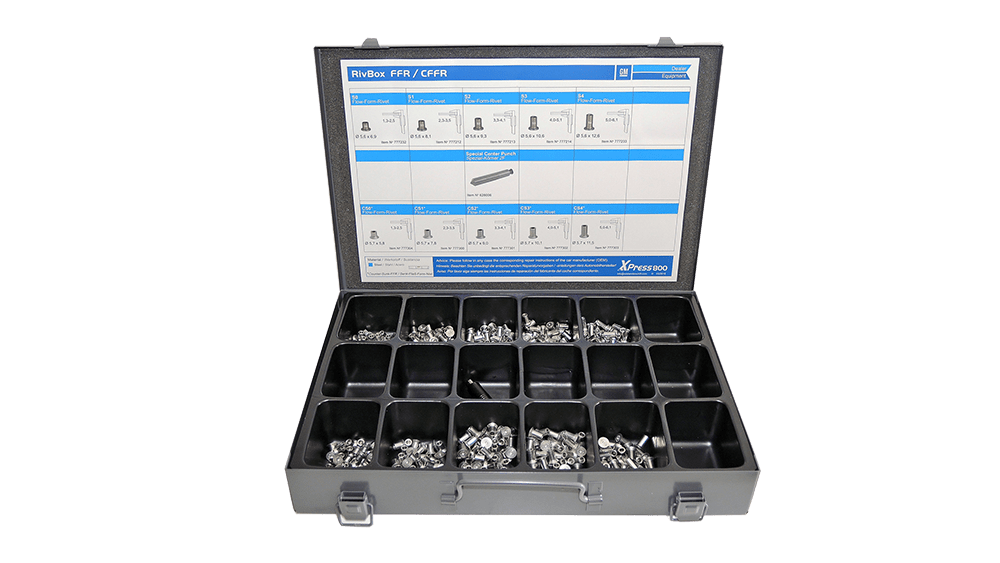

RivBox 1 | Rivets assortment universal) – Part No.: 777281

Comprehensive rivet assortment including Self Piercing Rivets, Blind rivets, Flow Form rivets, and Blind rivet nuts in various sizes and materials (steel, aluminum). Contains one WS special centring pin (628006).

Maintenance Kit

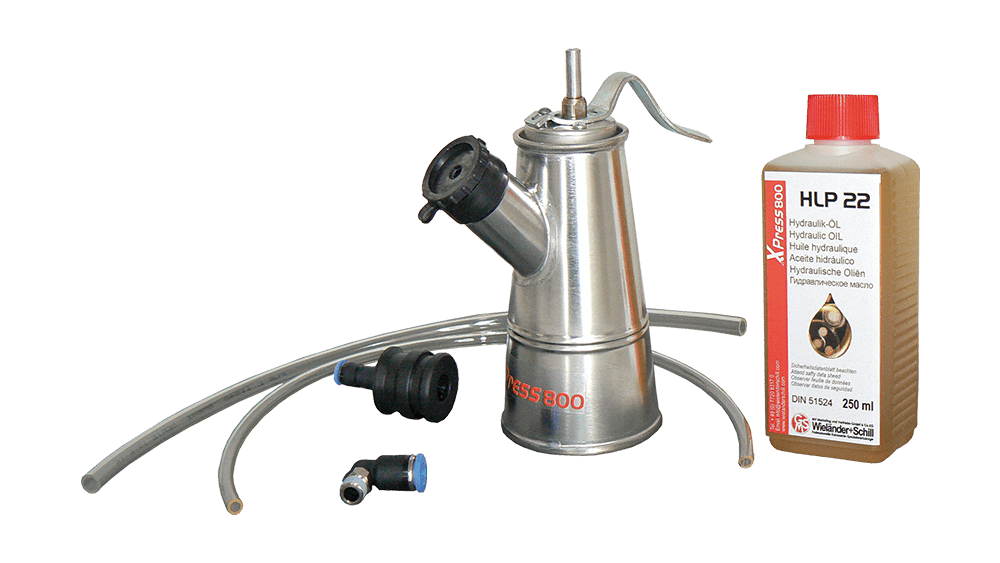

Service Kit EB-XP 800 | venting & refilling) – Part No.: 700334
Venting and refilling device for the maintenance of the XPress 800 PowerPack. Contains a special oil pump, connectors, adapter, hoses, and 250 ml of HLP 22 hydraulic oil.

Note: The images in the product description may also depict different accessories that are not part of the basic 700000SC set.
