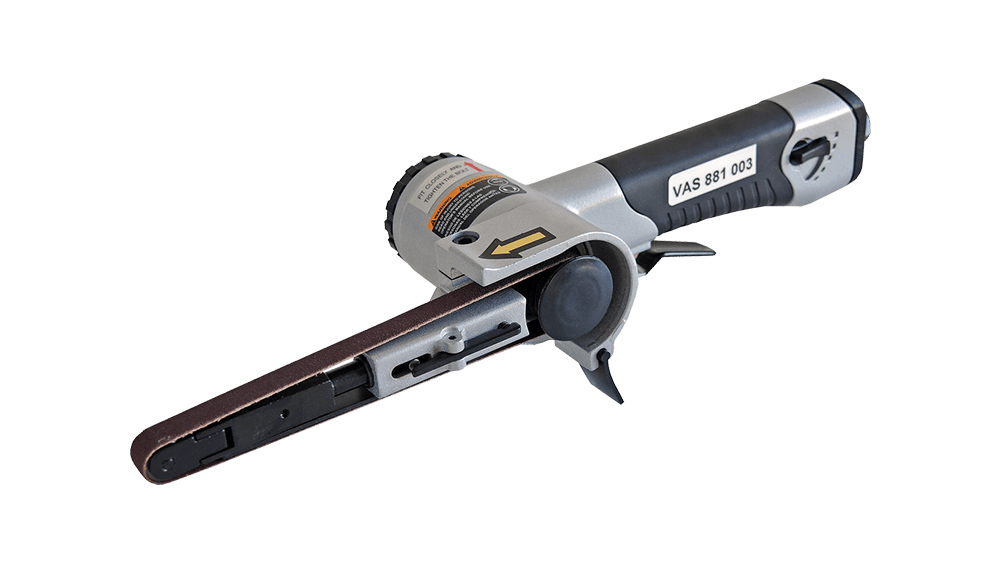

A VAS 881 003 pneumatic belt sander a professional tool specifically designed for sanding and fine machining of narrow surfaces in the body repair and metalworking sectors. This high-performance, pneumatically driven tool is the ideal choice for precise material removal and surface preparation, especially where conventional sanders cannot reach.
This product belongs to the Volkswagen AG Workshop Equipment (VAS) recommendations, ensuring factory-quality workmanship and compatibility.
The VAS 881 003 belt sander has several features that increase efficiency and user comfort during workshop tasks:
Adjustable Speed: The stepless speed control allows for precise adjustment of the sanding process for different materials and sanding tasks. This is critical to avoid overheating and achieve the desired surface quality.
Quick Belt Change System: The tool is equipped with a quick-change mechanism that minimizes downtime during sanding belt replacement.
Automatic Belt Adjustment: The integrated automatic belt adjustment ensures that the sanding belt is always optimally tensioned and aligned during operation, thereby guaranteeing stable and uniform sanding performance.
Ergonomic Design: The compact dimensions (320 x 90 x 50 mm) and weight of 1.056 kg contribute to fatigue-free, long-term use, especially in hard-to-reach areas.
High Performance: The power output of 373 W provides sufficient force for efficient material removal.
The detailed technical specifications for the VAS 881 003 belt sander are as follows:
| Parameter | Value | Note |
|---|---|---|
| Part number | VAS 881 003 | Factory Identifier |
| Part Number (Internal) | 932195 | Manufacturer Code |
| Field of application | Sanding narrow surfaces | Ideal for body repair |
| Sanding belt size | 10 x 330 mm | Standard size |
| Drive type | Pneumatic | Pneumatically operated |
| Operating pressure | 6.3 bar | Standard workshop pressure |
| Power | 373 W | Motor power |
| Speed range | 10500 – 17000 rpm | Infinitely variable |
| Air consumption | 0.48 m³/min | Average consumption |
| Noise Level (Sound Pressure Level) | 88 dB(A) | Measurement-based value |
| Vibration | 2.5 m/s² | Low vibration level |
| Weight | 1.056 kg | Lightweight design |
| Dimensions (L x W x H) | 320 x 90 x 50 mm | Compact design |
| Materials | Aluminum (Alu), Plastic (Plastic), Steel (Steel) | Robust and durable material usage |
| Air quality | According to ISO 8573-1 | Complies with standard air quality requirements |
| Mark of conformity | According to 2006/42/EC | Complies with EU Machinery Directive |
| Package Contents | 1 darab | One unit |
The durability and reliability of the tool are guaranteed by carefully selected materials. The housing is primarily made of lightweight yet extremely resistant aluminum and plastic, while the internal mechanical components are made of steel for maximum service life. Compliance with Directive 2006/42/EC confirms the safe and professional use of the tool.
Changing the abrasive belts (10 x 330 mm) is extremely easy thanks to the quick-change mechanism, which significantly increases productivity between different grinding phases.
This pneumatic belt sander is ideal for the following tasks:
Body Repair: Finishing weld seams, joints, and irregularities, especially in narrow gaps and curved surfaces.
Paint Preparation: Targeted removal of old coatings, rust, or paint residues.
Metalworking: Precise material removal and surface texture creation.
The adjustable speed between 10500 and 17000 rpm allows the user to apply lower speeds for fine polishing and higher speeds for quick material removal. The low vibration level of only 2.5 m/s² contributes to increased operator comfort by reducing hand-arm vibration load.
The VAS 881 003 belt sander is part of the Wieländer+Schill professional tool range, which guarantees reliability and long-term, trouble-free operation even in the most demanding workshop environments.
