Part number: 777215
This product is part of the professional riveting technology of Wieländer+Schill XSeries, an excellent quality steel blind rivet specifically compliant with Audi original (OE) specifications. This fastener provides an ideal solution for joining materials that are only accessible from one side, which is a common challenge during bodywork repairs and other precision assembly tasks.
This steel blind rivet is perfectly suited for the durable and reliable fastening of various materials where traditional screwing or riveting is not feasible due to lack of access. The Audi OE quality certification guarantees that the rivet meets strict factory quality and performance requirements, ensuring the preservation of original structural integrity.
The operating principle of blind rivets is based on the fact that during insertion of the rivet and pulling with the riveting tool, the end of the rivet mandrel expands and spreads out, creating a solid, controlled fastening on the inaccessible side. This process results in a fast, efficient, and extremely reliable connection.
Main application areas:
Repair and replacement of body components.
Joining sheets of different thicknesses and materials (e.g., steel, aluminum).
Strengthening structural points where fastening is only possible from one side.
The precise sizing and material of the product ensure maximum performance and durability. The table below details the critical parameters of the rivet:
| Property | Value | Note |
|---|---|---|
| Part number | 777215 | Factory Identifier |
| Material | Steel | For High-Strength Fastening |
| Diameter (Ø) | 6.5 mm | Ideal Drill Hole Size |
| Head Length / Total Length | 15.0 mm | Specification regarding the thickness of the material to be fastened (total length) |
| Overall dimensions (Length x Width x Height) | 49 x 13 x 4 mm | The total reach of the rivet (dimensions may vary depending on the rivet type, but 15.0 mm is the crucial fastening length) |
| Package contents | 10 pieces | Packaging Unit |
| Weight | 0.090 kg | Net weight per package |
The 6.5 mm diameter is the optimal choice for medium-load connections, where the 15.0 mm fastening range ensures the secure joining of appropriate material thicknesses. The choice of steel material guarantees excellent tensile strength and shear strength, which is essential in automotive applications.
Using the correct riveting tool is crucial to achieve a perfect joint. For the rivet with part number 777215, we recommend the following accessory:

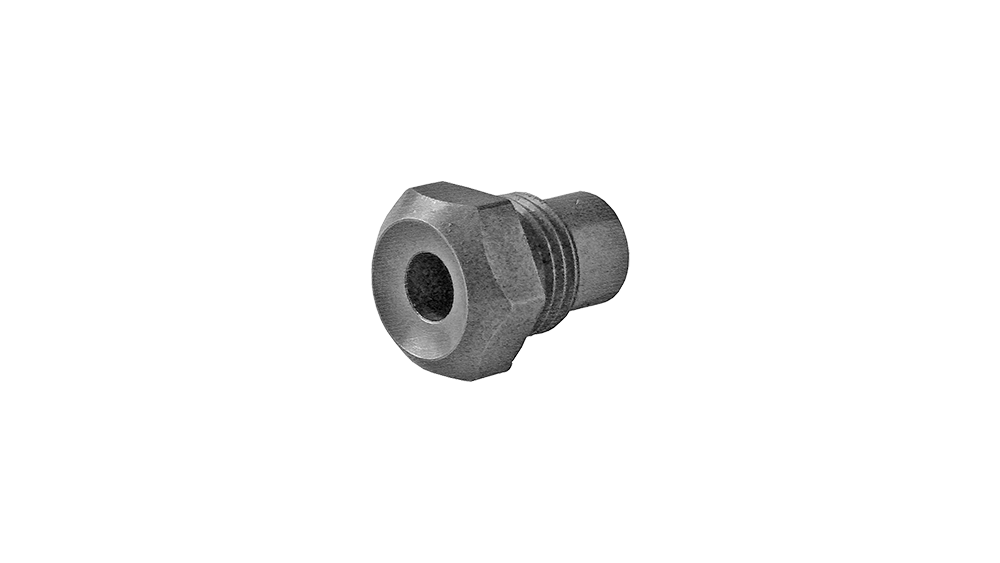

Accessory: Mouthpiece 4.8B
Part number: 700522
Diameter: 4.8 mm
Features: It has a concave head, ideal for RIBE blind rivets.
Compatibility: The 4.8 mm mouthpiece can be used with the BR 50 blind rivet adapter ensuring the optimal breaking of the rivet mandrel and the formation of a perfect closing head.
Important note: The selection of the appropriate tool and mouthpiece is critical to the success of the riveting process. Please check the specifications of the riveting machine used for compatibility.
Wieländer+Schill is committed to the highest quality standards, which are also verified by the following certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These standards ensure that manufacturing processes are strictly controlled, and the product—including this Audi OE specified blind rivet—represents consistently high quality.
This product belongs to the professional body repair technologies category, and is an ideal choice for those looking for reliable, factory-quality fastening solutions.
