This professional tool box, Tool Box RS-11 | Tesla, specifically assembled for procedures and repairs optimized for Tesla vehicles, as recommended by Wielander + Schill. The set contains the most important tools for the professional installation and maintenance of Self Piercing Rivets – SPR, ensuring high-quality work that complies with manufacturer specifications.
This special configuration includes the fundamental tools required for repairing Tesla body parts, with a particular focus on SPR technology. The set is the ideal choice for any specialist working on the latest generation of vehicles where self-piercing riveting is a critical joining method.
The Tool Box RS-11 focuses on efficiency and precision, ensuring that repairs are fast, reliable, and comply with the highest safety standards.
Tesla Specific Assembly: The elements of the set are directly tailored to the repair procedures prescribed by Tesla (see relevant manufacturer specifications).
Complete SPR Management: Includes the necessary Closing Dies and the Setting Die for complete handling of self-piercing rivets.
Durability and Quality: The tools are made from durable materials (steel, plastic), guaranteeing a long service life even in intensive workshop environments.
Easy Storage and Transport: The compact plastic storage case ensures organized storage of the tools and easy portability.
The set provides a comprehensive overview of the elements contained within, each playing a crucial role in the application of SPR technology.
| Property | Value |
|---|---|
| Part number | 700209 |
| Designation | Tool Box RS-11 |
| Content | 1 set |
| Length × Width × Height | 270 x 84 x 56 mm |
| Material | Plastic, Steel (Kunststoff, Steel) |
| Weight | 0.500 kg |
The Tool Box RS-11 contains the following carefully selected components required for the installation of self-piercing rivets (SPR):
| Part number | Designation | Function |
|---|---|---|
| 700360 | T1 | Closing die for SPR |
| 700366 | T2 | Closing die for SPR |
| 700361 | T3 | Closing die for SPR |
| 700362 | T4 | Closing die for SPR |
| 700363 | T5 | Closing die for SPR |
| 700364 | T6 | Closing die for SPR |
| 700365 | T7 | Closing die for SPR |
| 700367 | T8 | Closing die for SPR |
| 700260 | E1 | Setting die for SPR |
| 700220 | F1 | Extension with threaded sleeve M6 |
| 700299 | Z4 | Assembly tool |
E1 Setting Tool (700260):
This setting die is specifically designed for the precise setting of 5.0 mm diameter self-piercing rivets (SPR). Correct setting is essential to ensure the mechanical strength of the joint.
F1 Extension (700220):
The 32 mm extension with an M6 threaded sleeve allows tools to reach hard-to-access areas, thus increasing operational flexibility within the vehicle structure.
Z4 Assembly Tool (700299):
This tool supplied in the two-piece set is exclusively for dies, punches, ejector pins, and extensions for loosening serves. Important Warning: This tool is FORBIDDEN to be used for crimping, exclusively for disassembly for the purpose of tool maintenance.
T1-T8 Closing Dies:
The closing dies ranging from T1 to T8 ensure the optimal closing of SPR rivets of various sizes and types, guaranteeing perfect deformation and maximum joint force.
Important Instruction:
The application areas of the tool case elements and the individual work processes always must be derived from the repair specifications of the vehicle manufacturer (in this case Tesla). The tools provided by Wielander + Schill are necessary for carrying out the manufacturer's specifications, but the exact procedure sequence and parameters are determined by the official documentation.
This set belongs to the category of Wielander + Schill OEM recommendations, developed specifically to support the repair protocols for Tesla vehicles.
The Tool Box RS-11 can be supplemented or replaced with other professional tools required for Tesla repairs, such as:
Similar Items:
Accessory Tools (Selection from Kit Contents):
If individual parts require separate replacement, the key accessories found in the set are listed below:

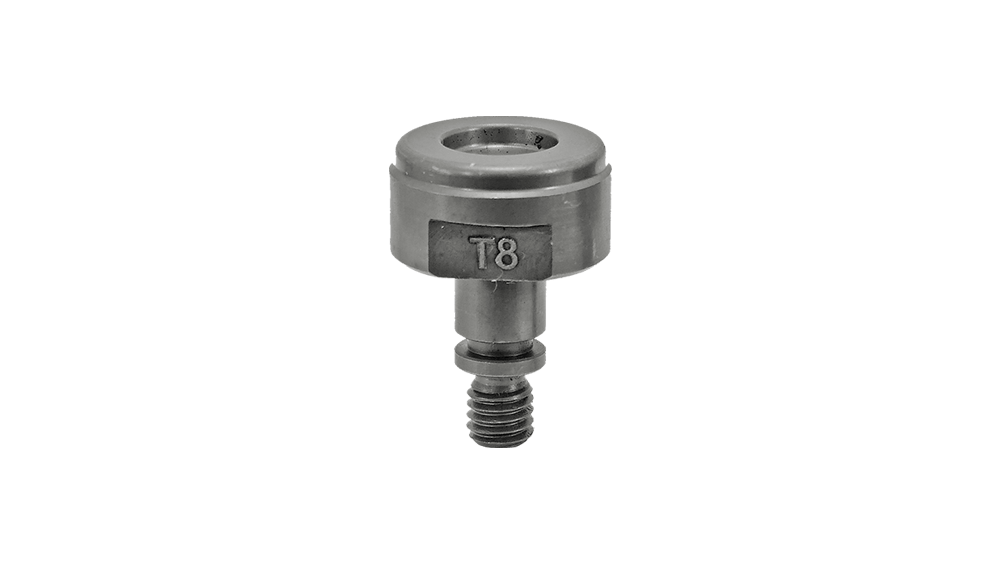

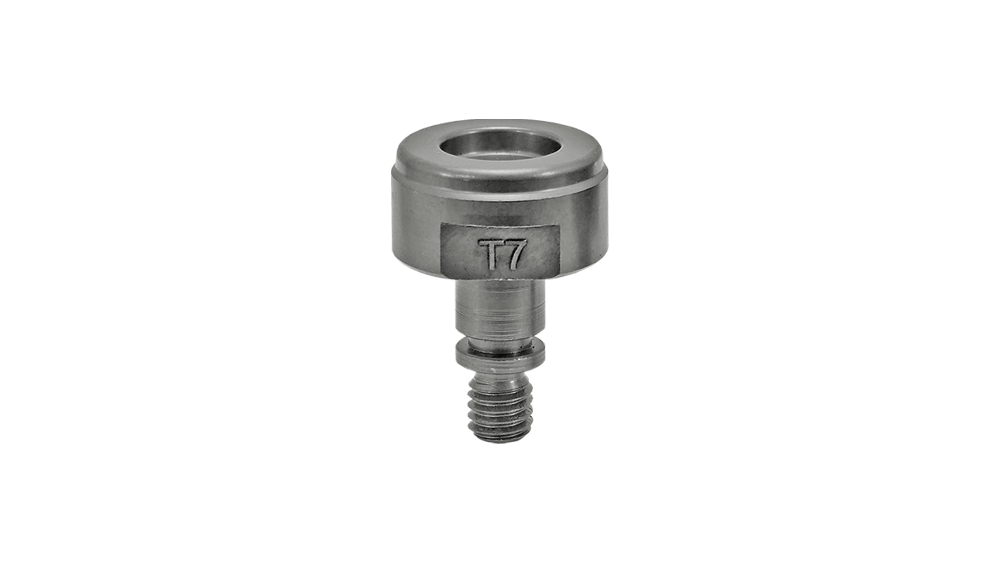

T7 | Closing Die for SPR (700365): Special closing die.
T8 | Closing Die for SPR (700367): Special closing die.

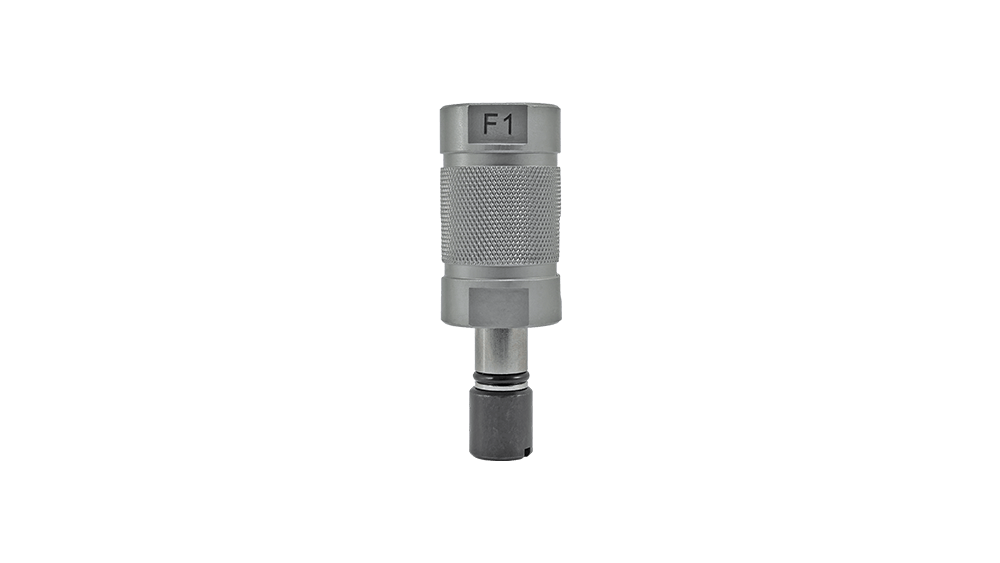

F1 | Extension | 32 mm (700220): Element for increasing the working space.
Z4 | Assembly Tool | Disassembly: 2 pcs (700299): Maintenance tool usable only for loosening.
E1 | Setting Tool for SPR (700260): For SPR rivets with a diameter of 5.0 mm.
T1 | Closing Die for SPR (700360): For custom-sized SPR rivets.
T2 | Closing Die for SPR (700366): For custom-sized SPR rivets.
T3 | Closing Die for SPR (700361): For custom-sized SPR rivets.
T4 | Closing Die for SPR (700362): For custom-sized SPR rivets.
T5 | Closing Die for SPR (700363): For custom-sized SPR rivets.
T6 | Locking tool for SPR (700364): For custom-sized SPR rivets.
The Tool Box RS-11 | Tesla (700209) reflects Wielander + Schill's commitment to supporting modern vehicle repair technologies, ensuring the professional quality required for restoring the bodywork of Tesla vehicles.
