Wielander + Schill LC 04 Pneumatic Angle Grinder

The Wielander + Schill LC 04 is an extremely compact and high-performance pneumatic angle grinder, specifically designed for precision separation and semi-industrial tasks. This tool is the ideal choice for professionals looking for a reliable, lightweight, and high-speed solution for cutting, grinding, and fine machining tasks, especially in confined spaces.

The LC 04 angle grinder is a standout piece in the Wielander + Schill „Separation Tools” category, combining excellent ergonomics with robust, industrial-grade construction.

Key Features and Advantages

The LC 04 angle grinder features several properties that increase efficiency and user comfort:

• Compact Design: Its extremely small dimensions (180 x 70 x 50 mm) allow access even to hard-to-reach areas, which is critically important for body repairs and precision assembly work.

• High Speed: The maximum speed of 18000 rpm ensures fast and efficient material removal, whether for cutting or grinding.

• Ergonomic and Lightweight: Weighing only 0.860 kg, it minimizes user fatigue even during longer work sessions.

• Pneumatic Drive: It operates with compressed air, guaranteeing reliable performance and lower maintenance requirements compared to conventional electric tools.

• Alacsony Zajszint: The 82 dB(A) sound pressure level contributes to a more pleasant working environment.

• Low Vibration: The vibration level of only < 0.9 m/s² reduces the risk of hand-arm vibration syndrome.

• CE Conformity: Complies with European safety, health, and environmental protection requirements.

Technical Data

The precise performance of the LC 04 angle grinder is supported by the following technical parameters:

Application Areas

The highly versatile LC 04 angle grinder is excellently suited for:

1. Body Repair: Removal of weld seams, spot welds, and fine machining of panels.
2. Metal Construction Works: Cutting and grinding tasks on narrow profiles.
3. General Maintenance: Gentle removal of paint, rust or deposits with special grinding discs.

Recommended Accessories (Zubehör)

To ensure maximum performance and tool lifespan, Wielander + Schill recommends the following accessories for the LC 04 angle grinder:

1. Pneumatic System Maintenance and Protection

To extend the lifespan of pneumatic tools, ensuring proper air supply and lubrication is essential.

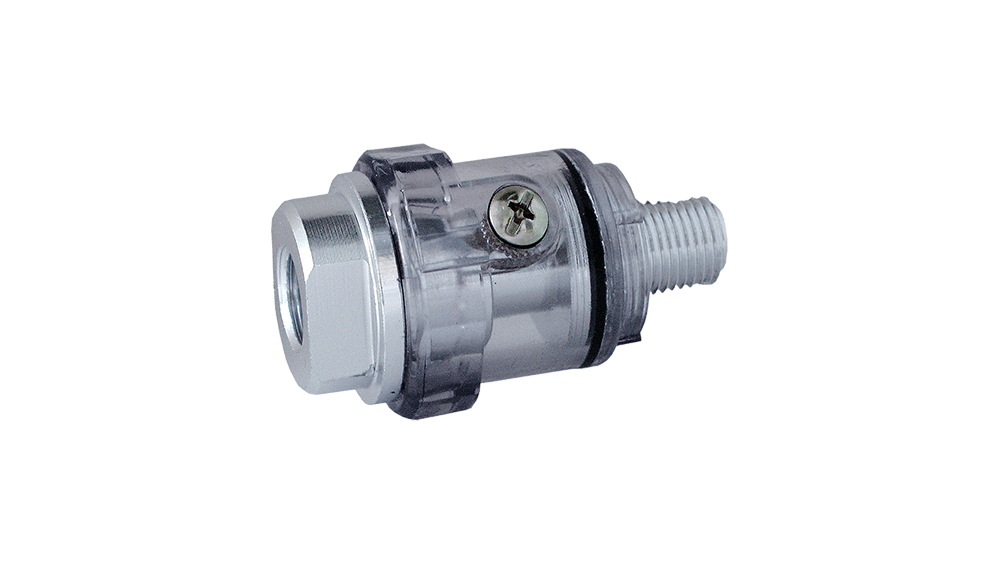

• Compressed air mini lubricator (637103): This 1/4″ connection mini lubricator reduces wear on pneumatic tools and improves their operation. Thanks to the transparent window, the oil level can be easily checked, preventing over-lubrication and component seizing.

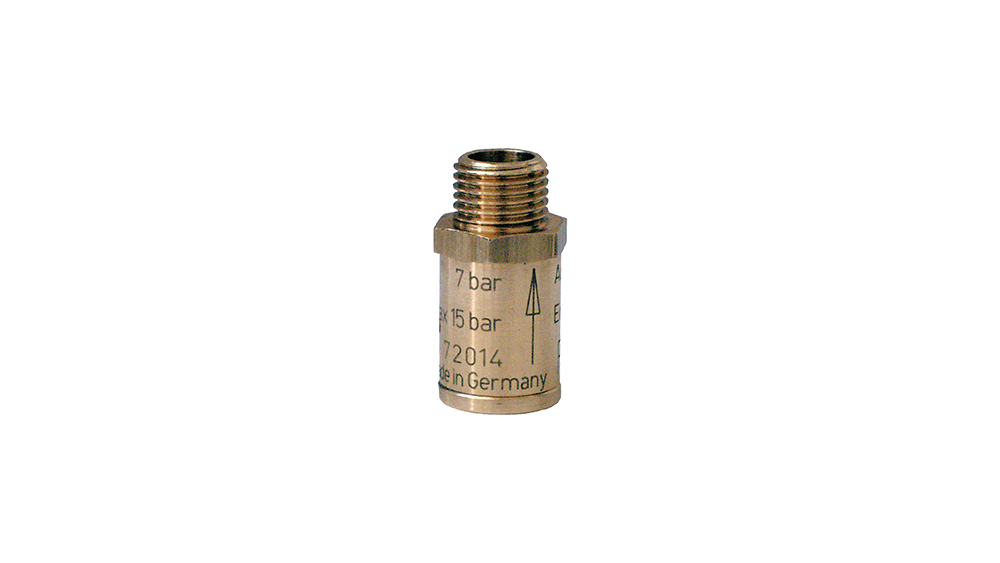

• Pressure reducing valve (194000): A cost-effective solution for every workshop to prevent premature wear and damage caused by excessive operating pressure. Particularly recommended for all bodywork technicians, but also increases the lifespan of angle grinders.

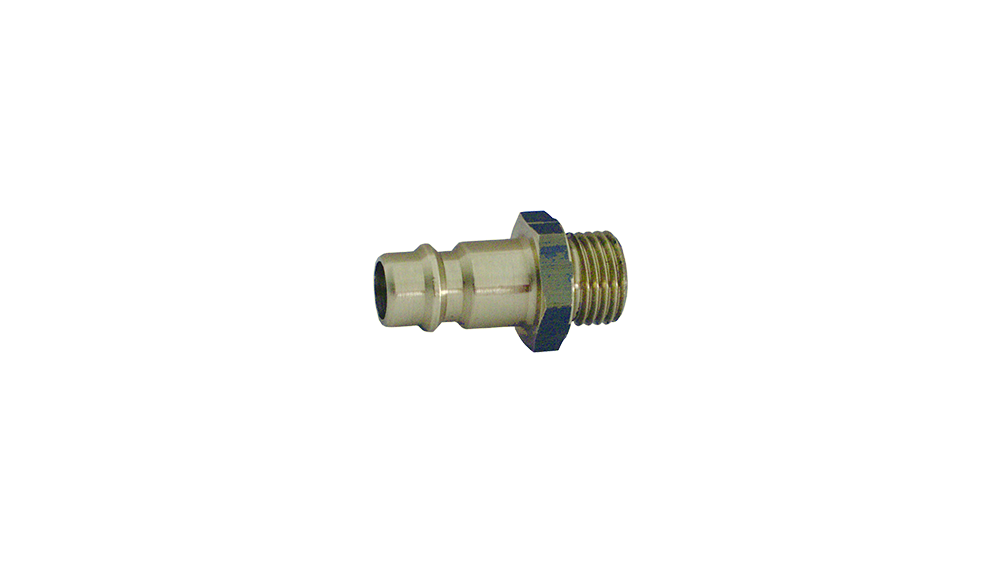

• Air connector (697003): Type 26, DN 8, G 1/4″ air filter connector for reliable air supply.

2. Mounting of Cutting and Grinding Discs

The LC 04 has a 6 mm collet size, for which special accessories are required:

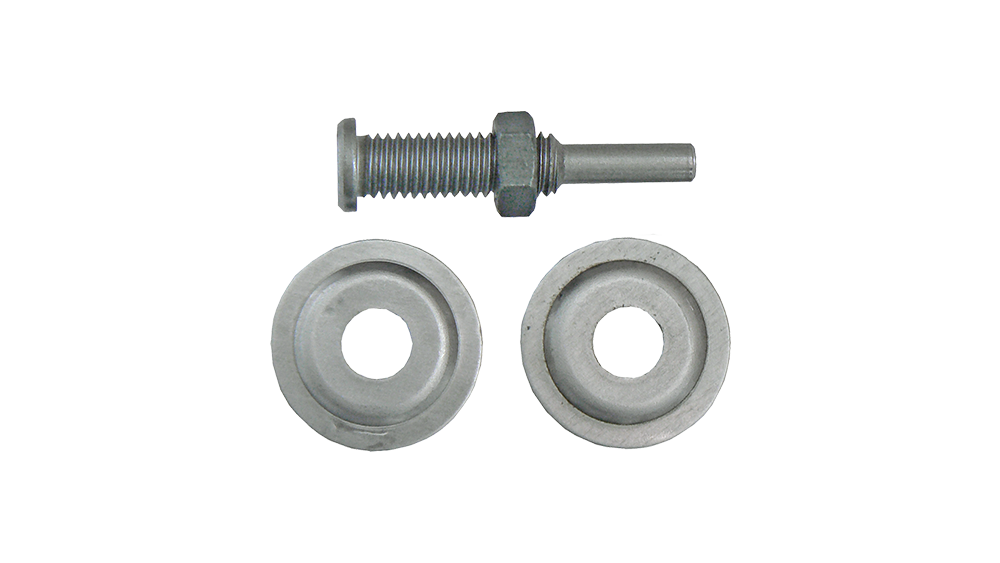

• Mandrel for CSD grinding discs (618011): Ensures the stable mounting of CSD (Coated Surface Discs) grinding discs on the grinding machine.

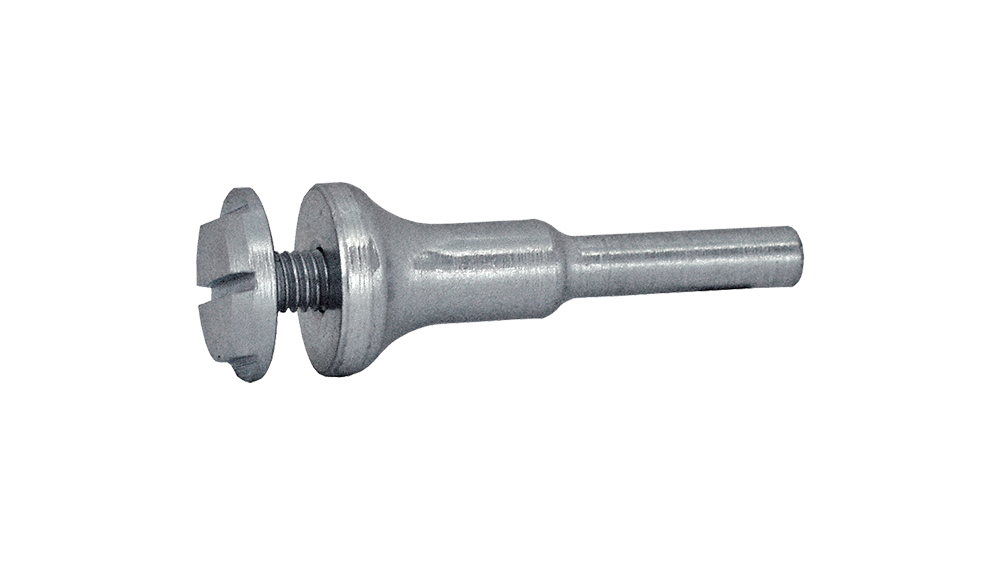

• Mandrel for cutting discs with a 6 mm bore (637020): This mandrel is suitable for cutting discs with a 6 mm shaft diameter, which have a 6 mm deep bore and a thickness between 0 and 4 mm.

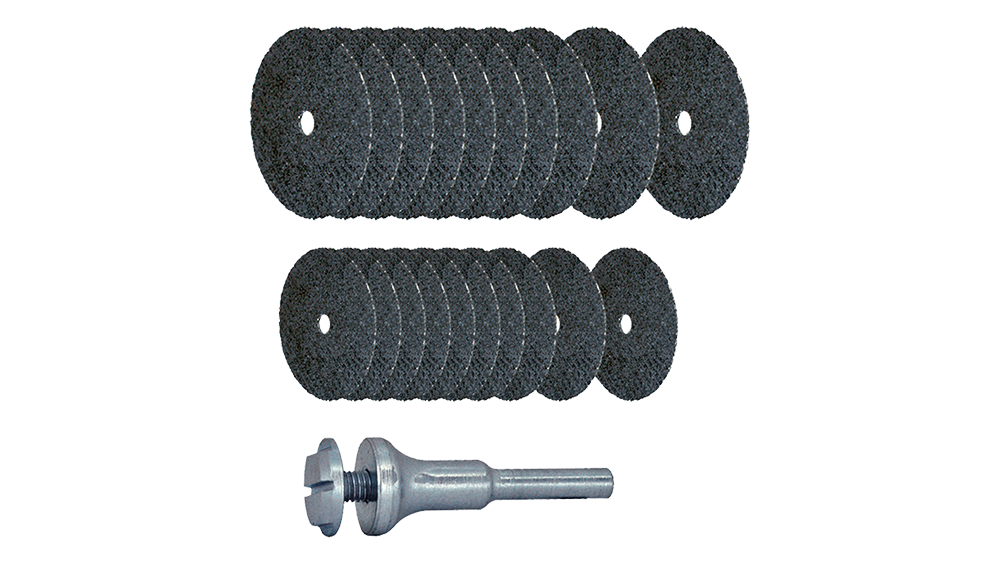

• Cutting disc set (637025): A 21-piece set containing the 637020 mandrel, plus 10 pcs of Ø 30 × 1.0 × 6 mm and 10 pcs of Ø 50 × 1.0 × 6 mm cutting discs.

3. Special Machining Sets

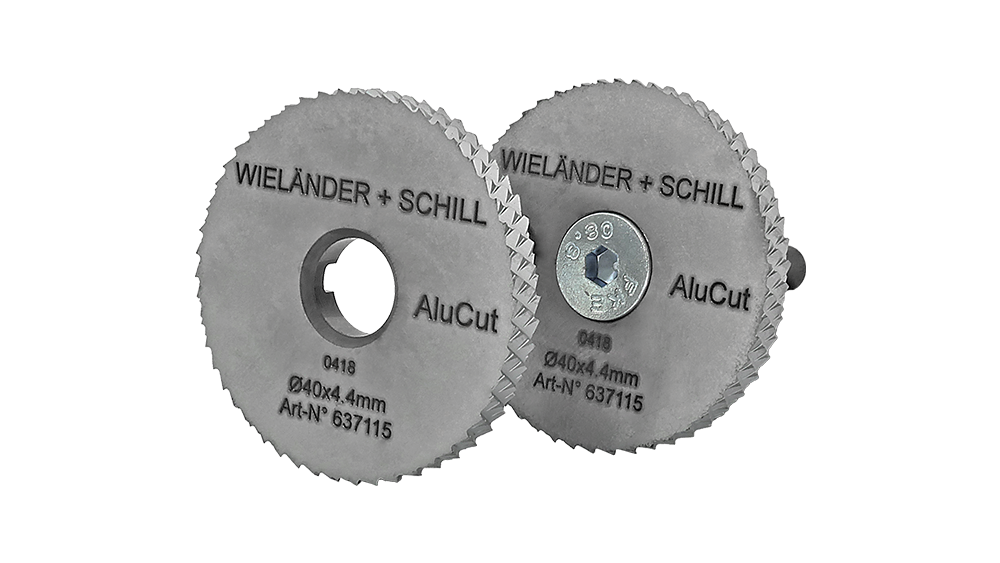

• UHSS/AluCut Side Milling Set (637117): This set is ideal for milling hard and ultra-high tensile strength steel materials (e.g., Usibor). Its special toothing allows for extremely precise weld seam removal. The set includes 2 pcs of Ø 40 × 4.4 mm UHSS/AluCut mills and 1 pc of Ø 6 mm AluCut mandrel. Compatible with all standard 6 mm shaft straight and angle grinders.

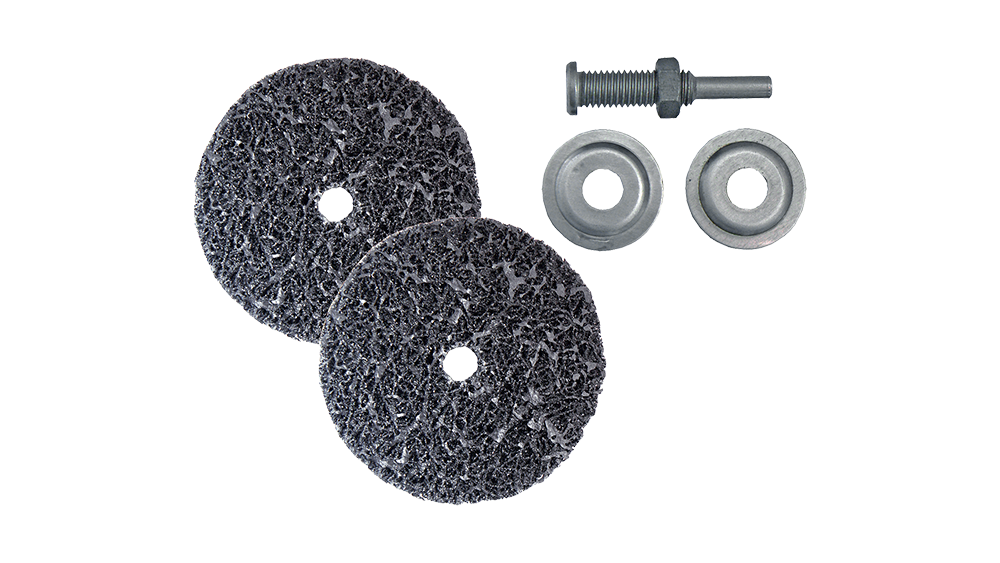

• Grinding set (612010): This set contains CSD grinding discs and a mounting mandrel, specifically for the gentle removal of paint and contaminants from sheet metal surfaces. It completely cleans the surface for subsequent coating, painting, or soldering phases.
• Contents: 2 pcs of 617080 CSD grinding discs and 1 pc of 618011 CSD grinding disc mandrel.

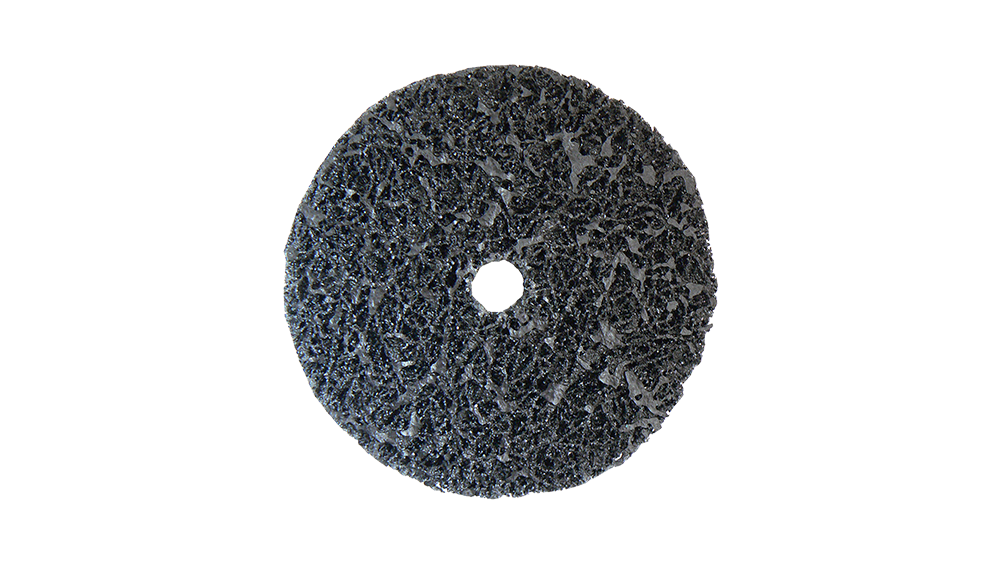

• CSD Grinding Disc (617080): Ideal for removing rust, paint, and hard mineral deposits. It is important to observe the correct speed to avoid excessive adhesion or clogging.

The Wielander + Schill LC 04 angle grinder guarantees reliability, precision, and excellent ergonomics in automotive and metalworking separation tasks.
