This detailed product description refers to the flat clamping element belonging to the professional body specialty tools from Wieländer+Schill, specifically designed for precise and reliable work in the automotive and metalworking sectors.

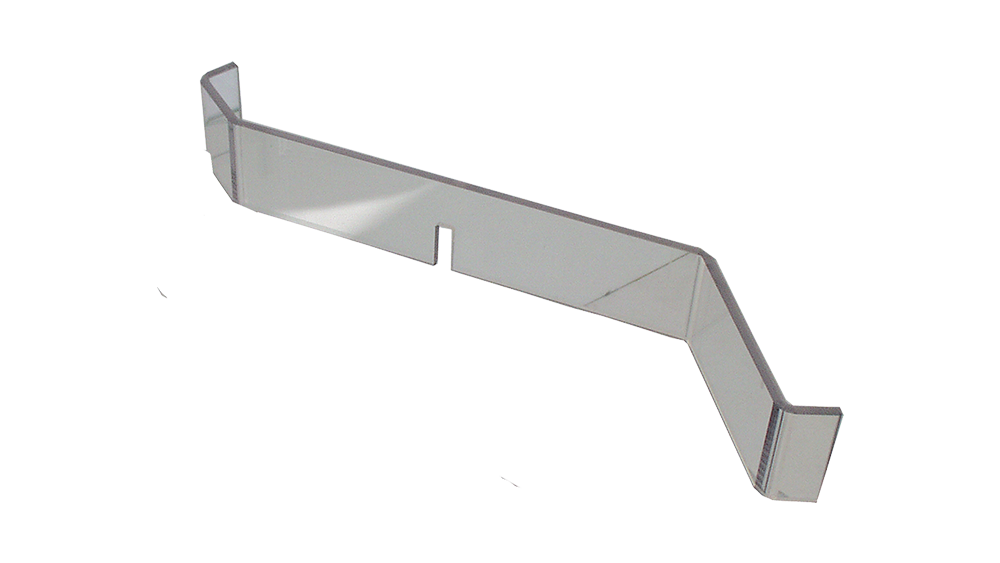

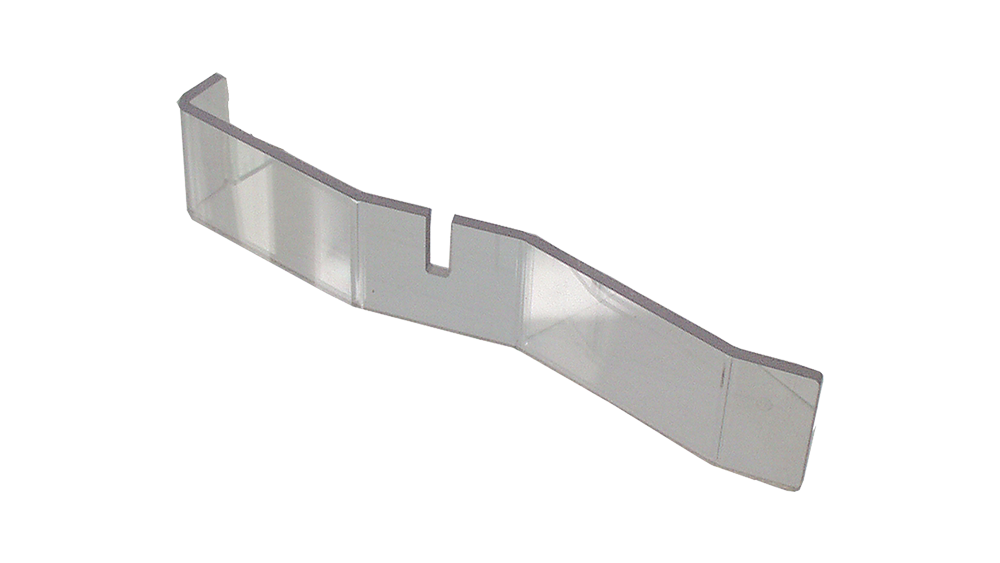

The flat clamping element with part number 881345 is a versatile auxiliary device primarily designed for the temporary or permanent fixing of body components, trim strips, light units, and side windows. It is particularly valuable in situations where gluing processes are taking place and components must remain stable in place during the entire curing time. This tool ensures the necessary support and clamping, minimizing positioning errors and adhesive displacement.
This clamping element falls within the category „Service & Workshop”, subcategory „Clamping and Auxiliary Devices”, indicating its professional nature optimized for workshop environments.
The design of the flat clamping element offers optimal stability without taking up excessive space on the work surface.
Secure Fixing: It guarantees that glued parts (e.g., trim strips, lamps) remain precisely in the desired position for the entire curing time of the adhesive. This is critically important for high-quality and durable repairs.
Versatile Application: Suitable for temporarily supporting various body elements such as trim strips, interior and exterior lighting units, and side windows.
Material quality: Made of durable plastic (kunststoff) that resists the mechanical stress typical of a workshop environment, without scratching painted or sensitive surfaces.
Könnyű Kezelhetőség: Its low weight (0.046 kg) facilitates handling and positioning, even in hard-to-reach areas.
Ideal Accessory: Can be excellently used in conjunction with other clamping systems, such as magnetic clamps (e.g., Fix magnets part number 882055), for even more stable work execution.
The precise dimensions and material of the product ensure compatibility and reliable performance during professional applications.
| Property | Value | Note |
|---|---|---|
| Part number | 881345 | Unique Identifier |
| Name | Fixing element, flat | Product Name |
| Width | 30 mm | Width of the clamping surface |
| Length × Width × Height | 260 x 30 x 30 mm | Overall dimensions |
| Material | Plastic (Kunststoff) | Durable and surface-protecting |
| Weight | 0.046 kg | Extremely light |
| Category | Clamping and Auxiliary Devices | Service & Workshop Product Family |
This clamping element is an essential part of modern automotive repair technologies, especially in processes where bonding is crucial:
Trim Strips and Profiles: When affixing exterior or interior trim strips, emblems, and other body accessories, the clamping elements ensure that they do not move until the adhesive has set, thus avoiding gap formation or improper fitment.
Lighting Technology: During the installation of headlights, taillights, or interior lighting units, where the curing time for seals or glued fixtures is critical.
Glazing Support: Provides temporary support during the installation of side windows or smaller glass inserts until the adhesive is fully cured.
The 30 mm width is an ideal choice for thinner components where a wider support would be cumbersome, yet stable support is required.
For maximum efficiency, the fixing element with article number 881345 can be perfectly supplemented with the following equally professional tools:
Fixing element, deep | 50 mm wide (Article No.: 881347): It performs a similar function but has greater depth and a width of 50 mm, suitable for securing elements that protrude further or are deeper.
Fixing element, flat | 50 mm wide (Article No.: 881346): The 50 mm alternative to the 30 mm version, intended for applications requiring wider surface support.

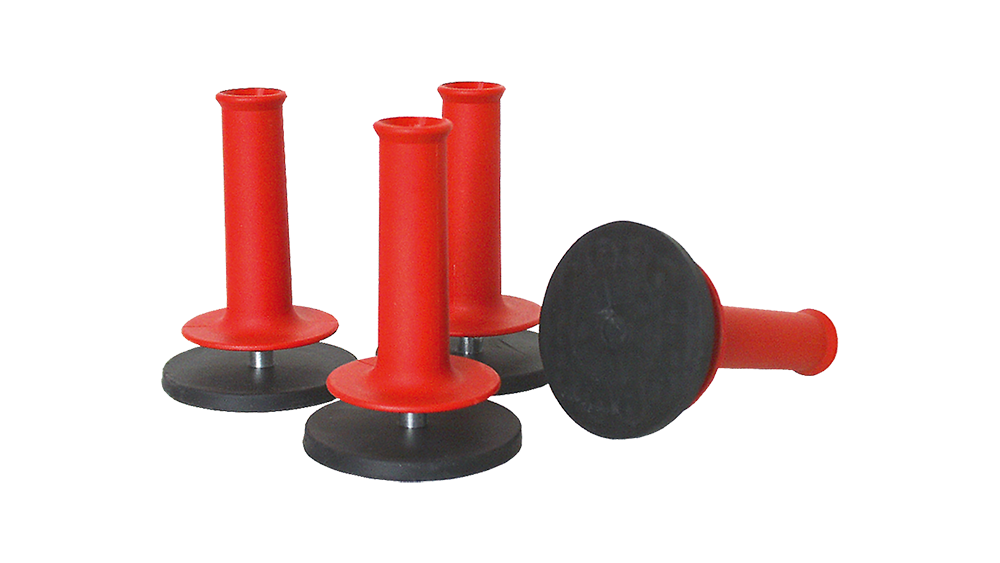

Fixed magnets | Set of 4 (Article No.: 882055): These magnets allow for simple and quick attachment of fixing elements or protective mats to metal surfaces, which can be particularly useful on the exterior parts of the vehicle body. The set includes the magnets (4 pcs 881340) and the handles (4 pcs 881341).
These accessories form a comprehensive system that provides the necessary flexibility for all workshop mounting tasks.
Wieländer+Schill products are manufactured in accordance with the highest quality standards, as confirmed by the company's ISO certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
This fixing element was also manufactured in accordance with these strict quality and environmental standards, guaranteeing a long service life and reliable performance during daily workshop use.
