A PIUSI VISCOTROLL GEAR an extremely versatile, portable oil dispensing kit specifically designed for fast and reliable lubricant transfer in high-demand workshops and industrial environments. This system offers an ideal solution for the efficient dosing of medium and high viscosity oils, ensuring the continuity and precision of workflows.
The VISCOTROLL GEAR is available AC (mains powered) and DC (battery powered) versions as well, thus providing maximum flexibility regarding installation and operating environment.
The VISCOTROLL GEAR kit is designed to be ready for immediate use and to operate reliably even under the harshest conditions, paying special attention to the specific properties of lubricants.
The kit includes all necessary components for precise oil transfer:
Dispensing Head: PIUSI K400 metering gun or Easyoil gun integrated with a digital display.
Suction hose: Suction pipe equipped with a 1″ BSP thread, completed with a bottom valve. This valve guarantees the unidirectional flow of oil, preventing backflow or system emptying in case of pump shutdown.

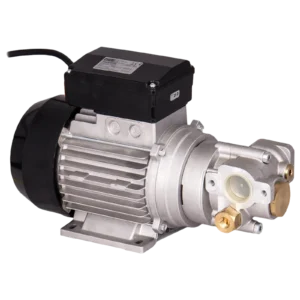

Due to the viscosity of lubricating oils, a stronger pump is required for effective transfer. The VISCOTROLL GEAR is equipped with the PIUSI Viscomat Gear self-priming gear pump, which is also excellently suited for handling used oils that often contain contaminants potentially hazardous to the pump's operation.
The Viscomat Gear pump offers greater reliability compared to vane models:
Smooth Operation: Thanks to the gear design, the pump operates continuously and without interruption, even if contaminants are present in the oil during transfer.
Reliability: Guarantees stable performance in the long run.
The VISCOTROLL GEAR is the ideal choice for workshops requiring fast oil changes but unwilling to compromise on quality.
Flow Rate: With 9 l/min capable of providing flow rates.
Viscosity Range: Capable of ensuring constant and regulated flow Up to 2000 cSt for medium-high viscosity oils.
The two available versions allow for maximum adaptability:
AC Version: Can be connected directly to any standard mains socket, no compressed air required.
DC Version (12V): Equipped with a rechargeable battery. Together with the accompanying trolley, it is extremely mobile, allowing for easy movement of the oil dispensing unit within the work area.
On demand flow: The system adapts to user requirements.
Adjustable By-pass: Allows for fine-tuning of the flow pressure.
Super Quiet Operation: Reduces noise pollution in the work environment.
Robustly Designed Trolley: Frame designed with portability and durability in mind.
Oval Gear Meter: Ensures high-precision measurement.
The VISCOTROLL GEAR product family can be categorized into two main categories: AC (mains) and DC (12V battery) versions, with different dispensing head configurations.
| Product Code | Description | Tápellátás | Dispensing Head | Flow Rate (Max.) |
|---|---|---|---|---|
| F0026300D | VISCOTROLL 200/2 – BY PASS REG. | AC | Standard | Up to 9 l/min |
| F0026301D | VISCOTROLL 200/2 K400 – ADJ BYPASS | AC | K400 Metering Gun | Up to 9 l/min |
| F0026302D | VISCOTROLL 200/2 PST | AC | Easyoil Gun | Up to 9 l/min |
| F0026303D | VISCOTROLL 200/2 PST K400 REG | AC | K400 Metering Gun | Up to 9 l/min |
| F00263200 | VISCOTROLL 120/1 12V PST | DC (12V) | Easyoil Gun | Up to 9 l/min |
| F00263210 | VISCOTROLL 120/1 K400 PST§ | DC (12V) | K400 Metering Gun | Up to 9 l/min |
Garage Equipment: Quick oil changes for passenger cars and light commercial vehicles.
Industrial Equipment: Lubricant top-up for machines and hydraulic systems.
Fleet Maintenance: On-site servicing requiring mobility.
The PIUSI VISCOTROLL GEAR is the perfect combination of reliability, speed, and flexibility for modern lubricant management.
