This detailed plastic repair kit has been specifically developed for the professional repair of typical damage occurring on body parts such as bumpers, mudguards, and other plastic components. The kit allows for precise and durable repairs, in line with Wielander + Schill quality standards.
The central element of the kit is a digitally controlled, high-performance hot air gun that ensures optimal temperature regulation for welding and repairing various plastics. The included accessories – such as special welding guns, stainless steel meshes, and welding rods – guarantee the successful completion of complex repair tasks.
The set includes the HG2320E hot air gun with extremely precise, electronic control, which is ideal for the heat treatment and welding of plastics.
Hot Air Gun Key Features:

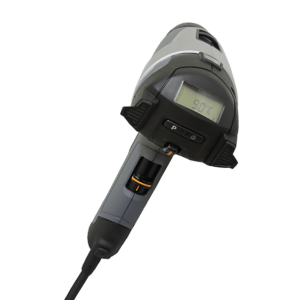

Digital Temperature Control: The temperature is set using a joystick, continuously adjustable between 80 °C and 650 °C.
Precise Feedback: The set temperature is displayed in 10 °C increments on the LCD screen, ensuring continuous monitoring.
Airflow Control: The blower power can be set in two stages, between 150 and 500 liters/minute, allowing for optimal adaptation to different material thicknesses.
Ergonomics and Safety:
Optimized device balance.
Non-slip base for secure placement.
Residual heat display after safe shutdown.
Function to warn about heat accumulation.
Hanging design for convenient storage in the workshop.
Replaceable power cable.

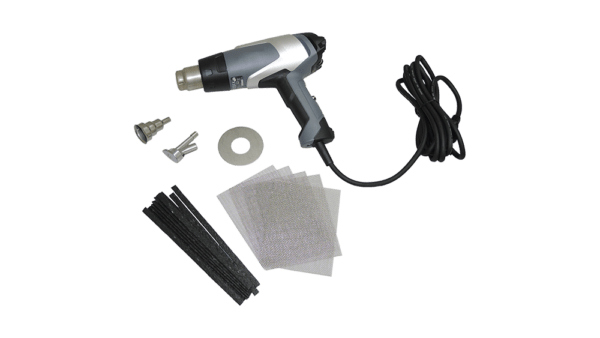

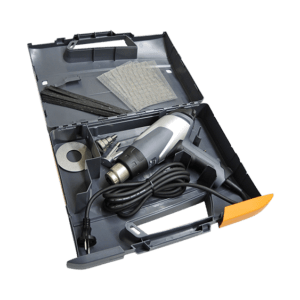

The plastic repair kit with item number 391300 provides a comprehensive solution, containing all necessary tools for efficient work:
| Quantity | Part number | Item Name | Application |
|---|---|---|---|
| 1 stück | Not specified | Professional LCD Hot Air Gun (230V, HG2320E) | Basic heat treatment device |
| 1 stück | 394010 | Welding nozzle for hot air gun | Creation of precise welding points |
| 1 stück | 394012 | Heat shield for the hot air gun | Protection of surrounding surfaces |
| 1 stück | 394014 | Reduction nozzle for hot air gun (Ø 9 mm) | For narrower working surfaces |
| 5 pcs | Not specified | Stainless steel wire mesh | Reinforcement of the area to be repaired |
| 10 pcs | Not specified | Special plastic welding rod | Melting and patching of plastic materials |
The technical parameters of the hot air gun ensure reliable and industrial-level performance:
| Parameter | Value | Note |
|---|---|---|
| Part number | 391300 | |
| Frequency | 50/60 Hz | |
| Dimensions (Length x Width x Height) | 250 x 80 x 270 mm | |
| Mains Voltage | 230 V | |
| Power | 2300 W | High heating capacity |
| Temperature Range | 80 °C – 650 °C | Infinitely variable |
| Airflow | 150 – 500 l/min | Adjustable in 2 steps |
| Temperature Setting | Stepless (Joystick) | Displayed in 10 °C steps |
| Conformity Declaration | CE |

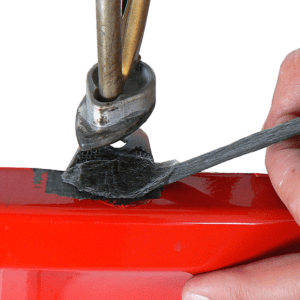

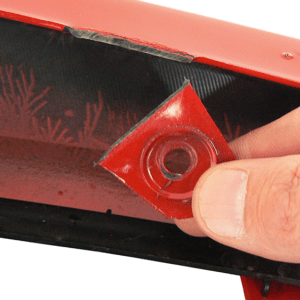

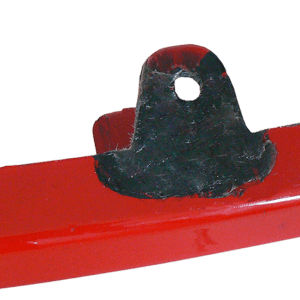

This kit enables bodywork specialists to professionally repair cracks, breaks, and missing parts on plastic components. The use of stainless steel mesh during welding provides excellent mechanical stability, preventing further cracking of the repaired area. Precise temperature control minimizes the risk of overheating and deformation of the plastic, which is especially important when repairing modern, complex plastics (e.g., PP, ABS, PE).
The included reduction nozzle (Ø 9 mm) is ideal for finer work and precise dosing of the welding rod, while the standard nozzle allows for faster handling of larger surfaces.
For maximum flexibility, several accessory products are also available for the set, which can be purchased separately to expand your repair needs:
Stainless Steel Wire Mesh (397016): Size: 300 × 200 mm, 3 pcs/pack. Excellent for reinforcing plastic structures.
Stainless Steel Wire Mesh (397015): Size: 115 × 150 mm, 10 pcs/pack. For smaller, more precise reinforcements.
Welding Rod for Plastics (397010): Package: 20 pcs/PU. Welding materials suitable for different plastic types.
Heat Shield Disc (394012): Essential for protecting surrounding, sensitive surfaces under the hot air flow.
Welding Nozzle (394010): For applying replacement or alternative welding techniques.
Reduction Nozzle (394014): 9 mm diameter reducer, included in the set, but also suitable for replacement.
This complete repair kit, guaranteed by Wielander + Schill, ensures that the repair of plastic parts is fast, efficient, and durable, minimizing the number of elements requiring replacement in the service.
