Gartec presents the mobile grease dispensing kit with part number GK1109, which is specifically designed for the efficient and clean handling of 20 and 30 kg grease drums. This complete, wheeled unit offers an ideal solution for workshops, maintenance facilities, and industrial environments where the precise and reliable dispensing of high-viscosity materials is essential.
This delivery kit is part of the Gartec Fluid Control Technology offering, ensuring optimal grease transfer from the storage container to the point of use.
This mobile unit combines a user-friendly design with high-performance pneumatic technology, guaranteeing long service life and excellent operational efficiency.
High Ratio: The 60:1 reduction ratio enables the easy pumping of high-viscosity greases under high pressure.
Complete Set: The shipping package contains everything necessary to start grease dispensing immediately, minimizing the need to source additional components.
Mobilitás: The robust, two-axle cart (trolley) ensures easy movement of the kit within the work area.
Optimized for Greases: Specifically designed for dispensing greases, ensuring continuous supply of materials with appropriate viscosity.

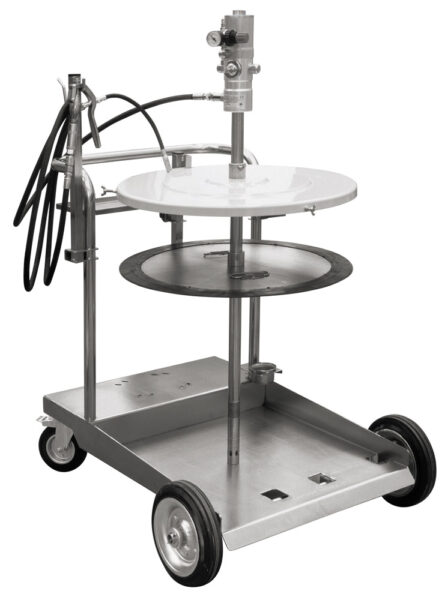

The GK1109 kit is a complete, mobile unit, offering maximum flexibility through the integration of the pneumatic pump, pressure plate lid, and wheeled transport cart.
Two-Axle Cart (Trolley): A strong, wheeled support structure that provides stability and easy maneuverability for moving 20-30 kg grease drums.
Pneumatic Pump (60:1): The heart of the system, capable of pressurizing grease using compressed air power.
Hose: Ensures a flexible connection between the pump and the dispensing gun.
Dispensing Gun: Ergonomically designed gun that allows for precise dispensing.
Swivel: Placed between the hose and the gun, it increases usability and reduces hose twisting.
Four-Jaw Head: The grease coupling head that ensures an effective and leak-free connection to the grease nipples.
Lid and Diaphragm: The lid, sized for 310 mm diameter drums, and the accompanying diaphragm ensure that the pump always draws from the surface of the grease, minimizing air ingestion and product oxidation.
The performance and operating parameters of the GK1109 model are detailed in the table below:
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Part number | GK1109 | – | Product Identifier |
| Suitable Drum Size | 20 – 30 | kg | Capacity |
| Ratio (Reduction) | 60:1 | – | Pneumatic Pressure Ratio |
| Flow Rate (Output) | 1370 gr | / minute | Grease Capacity |
| Operating Pressure (Output) | 4 – 8 | bar / PSI | 58 – 116 PSI |
| Inlet Air Connection | 1/4″ | inch | Standard pneumatic connection |
| Air Consumption | 340 | l/perc | Pneumatic Requirement |
| Noise Level | 79 | dB | Operating noise level |
| Weight | 18 | kg | Weight of the complete set |
| Cover Diameter | 310 | mm | Cover size to fit the barrel |
| Diaphragm Diameter | 310 | mm | Size of the follower plate under the pump |
Shipping and storage dimensions of the product:
| Packaging Item | Dimensions (mm) |
|---|---|
| Dolly (Collapsed/Assembled) | 380 x 120 x 1010 |
| Pump/Accessories (Carton 1) | 150 x 150 x 800 |
| Pump/Accessories (Carton 2) | 370 x 370 x 90 |
| Pump/Accessories (Carton 3) | 370 x 370 x 90 |
This kit is specifically greases (Grease) optimized for dispensing. Although Gartec offers a wide range of options for other fluids (e.g., waste oil, new oil, AdBlue, antifreeze), the GK1109 model is calibrated for the efficient handling of high-viscosity lubricants.
The mobile grease dispensing kit is an ideal choice for industrial and service environments where high-pressure mobile grease supply is required at lubrication points:
Vehicle Repair Shops: Refilling central lubrication systems for heavy-duty vehicles, agricultural machinery, and construction equipment.
Production lines: Fast and reliable supply to automatic or semi-automatic lubrication points.
Heavy Industry: Maintenance tasks in metallurgical, mining, and processing plants.
The Gartec GK1109 kit combines reliability, high performance, and ease of handling, ensuring that critical lubrication tasks can be performed quickly and efficiently.
