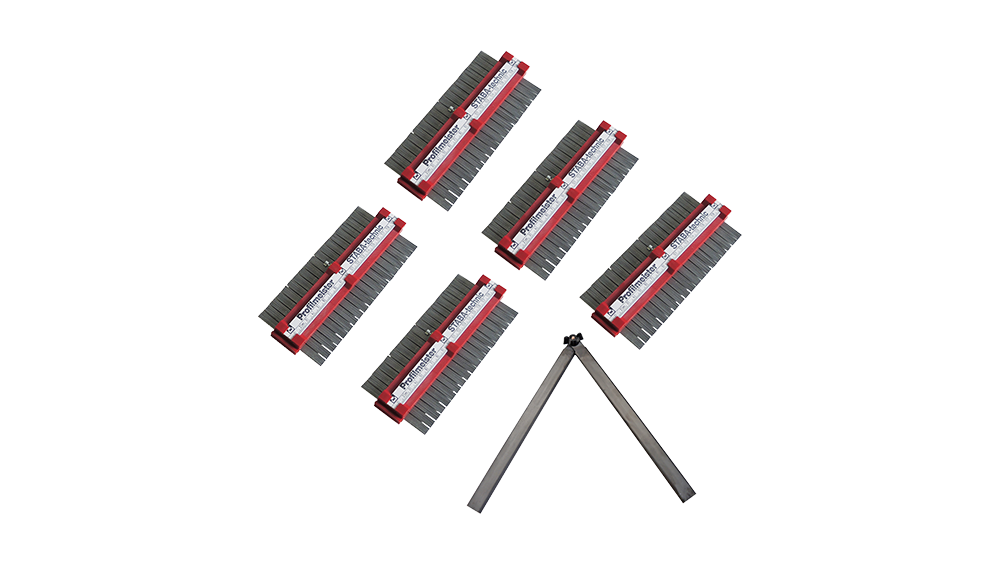

This professional, 5-piece contour gauge set (profile scanner or profile measuring template) from Wieländer+Schill offers an excellent solution for body construction and metalworking tasks where precise contour transfer is essential. The system has a modular design, is infinitely expandable and configurable, which results in exceptional precision and significant time savings for the user.

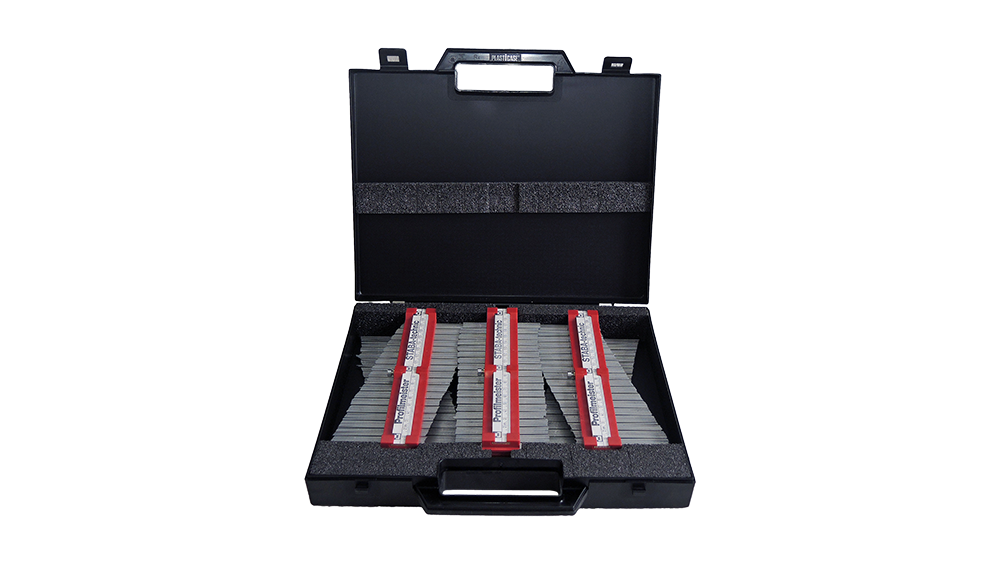

Thanks to the template's dense and even surface, the scanned profile can be traced extremely easily onto the workpiece to be machined. The side-mountable squaring rule (right-angle element) included in the set allows for precise adjustment of the template in all directions, ensuring a perfect fit. The scanned profile can be securely fixed and transported in the accompanying case.
This tool is the ideal choice for any professional who needs to precisely copy complex shapes, curves, or custom profiles during body repair.
Infinite Expandability: The modular design of the profile measuring template allows for infinite configuration and expansion according to user requirements, guaranteeing flexibility.
Outstanding Accuracy: The precise design and the angular setting element ensure extremely accurate transfer of contours.
Time Saving: Fast and simple contour transfer significantly reduces working time compared to traditional measurement methods.
Simple Operation: The dense surface makes it easy to trace the profile directly onto the workpiece.
Secure Storage and Transport: The scanned profile can be fixed and transported in the enclosed case, preserving the set dimensions.
Integrated Adjustment Aid: The side-mounted squaring rule assists in fine-tuning the template in all directions.
The technical characteristics of the product ensure reliable and durable performance in workshop environments.
| Property | Value | Note |
|---|---|---|
| Part number | 861020 | |
| Set Contents | 5 Piece | Contour Gauge Elements |
| Maximum Scanning Depth | 50 mm | Maximum travel range of the pin |
| Probe Length | 85 mm | Pin length of individual measuring elements |
| Total Dimensions (Length x Width x Height) | 200 x 85 mm | Dimensions of the complete, assembled template (excluding the squaring rule) |
| Weight | 1.300 kg | Total weight of the set |
| Application Area | Body Construction, Metalworking | Ideal for profile transfer |
This 5-piece contour measuring set is an essential tool in the following areas:
Body Repair: Tracing precisely fitting panels, curves, and complex shapes for damaged or new parts.
Metalworking: Creating templates for cutting or bending sheet metal.
Workshop Work: Any task where the contour of an existing surface needs to be transferred to another material for a perfect fit.
Wieländer+Schill products, like this profile measuring set, carry the guarantee of quality and professional execution, supporting the highest level of workshop work.
