Product Identifier: 932414
Manufacturer code: ACT-9041303433-MB
The InvertaPuls IP 6-2 Inverter MIG-MAG welding machine in the Wielander + Schill portfolio is specifically designed for the needs of modern vehicle body repair. This high-performance, 3 x 400 V unit is equipped with the ACT (Automotive Cold Transfer) technology, which revolutionizes the welding of thin sheets, minimizing heat input and material distortion. With specifications compliant with Mercedes-Benz OEM recommendations, this machine is the ideal choice for workshops with the highest quality demands.
The InvertaPuls IP 6-2 enables extremely efficient performance, especially during the repair of body parts, where precision and heat management are crucial.
ACT technology ensures low heat input welding, which is essential for the damage-free repair of modern high-strength steels and aluminum components.
Lower Heat Input: Significantly reduces the amount of heat introduced into the workpiece during welding, thereby minimizing deformation and structural stress.
Excellent Gap Bridging: It has an excellent capability to bridge gaps between the elements to be welded, resulting in a reliable bond even on uneven or damaged surfaces.
Minimal Material Distortion: Thanks to controlled heat input, the need for post-weld rework (e.g., straightening) is drastically reduced.
The unit is equipped with two welding torches, allowing for a quick switch between steel and aluminum welding processes without needing to reconfigure the wire feeder mechanism. This significantly increases workshop efficiency.
The user-friendly control and advanced functions ensure consistent and repeatable welding quality.
Synergy Parameters: The machine automatically optimizes welding parameters based on the selected wire thickness and gas combination, simplifying setup.
Automatic „Hold” Function: Automatic recording (retention) of welding parameters ensures that set values do not change accidentally.
Program storage: It is possible to save unique welding programs, so frequently used settings are instantly accessible.
Software Update Interface: An integrated connection point enables future software updates, ensuring continuous modernization of the machine.
The InvertaPuls IP 6-2 has a robust structure, powder-coated finish, making it resistant to workshop conditions.
| Property | Value | Note |
|---|---|---|
| Part number | 932414 | ACT-9041303433-MB |
| Mains Voltage | 3 ~ 400 V | Three-phase connection |
| Frequency | 50 – 60 Hz (+/- 10 %) | Wide range mains tolerance |
| Network Connection (Copper) | 4 × 2.5 mm² | Recommended cable cross-section |
| Fuse | 16 A (slow) | Protective integrity |
| Current Adjustment Range | 10 – 280 A | Flexible performance range |
| Voltage Adjustment Range | 10 – 50 V | Precise arc control |
| No-load Voltage | 82 V (MIG, TIG), 43 V (MMA) | For various welding modes |
| Effectiveness | 85 % | High energy efficiency |
| Power factor | 0,75 | |
| Wire Diameter Range | 0.6 – 1.2 mm | Versatile application |
| Wire feed speed | 0.5 – 22 m/min | Finely adjustable |
| Protection Class | IP 23 | Protection against splashing water |
| Noise Level (Sound Pressure Level) | 66 dB(A) | Ambient Noise Level |
| Operating Temperature | between -10 and 40 °C | |
| Materials | Plastic, Steel, Plastic (Kunststoff) | Outer casing and structural elements |
| Dimensions (L x W x H) | 820 x 430 x 930 mm | Compact yet stable design |
| Weight | 62.0 kg | |
| Conformity Declaration | According to 2006/42/EC | Machinery Directive Compliance |
| Surface Treatment | Powder-coated | Increased durability |
The device is delivered ready for immediate use, with wire drive roller sets optimized for two different materials and two dedicated welding torches:
Wire Feed Roller Set (Steel): 1 pc, for steel wires (0.8 mm and 1.0 mm diameter).
Wire Feed Roller Set (Aluminum): 1 pc, for aluminum wires (1.0 mm and 1.2 mm diameter).
Welding Torch (Steel): 1 pc, Type 3G, 3.0 meter long, for steel welding.
Welding Torch (Aluminum): 1 pc, Type 3G, 3.0 meter long, for ALU welding.
Earth cable: 1 pc, 5 meter long, 35 mm² cross-section, with SK 35 connector.
Pressure reducer: 1 pc, ProControl type, 200 bar (Only for models delivered in Germany and Austria).
Distributor valve: 1 pc, 1/4″ double distributor valve for pressure gauge (Only for models delivered in Germany and Austria).
Documentation: 1 pc operating instructions.
For maximum flexibility and workshop convenience, we recommend using the following accessories:

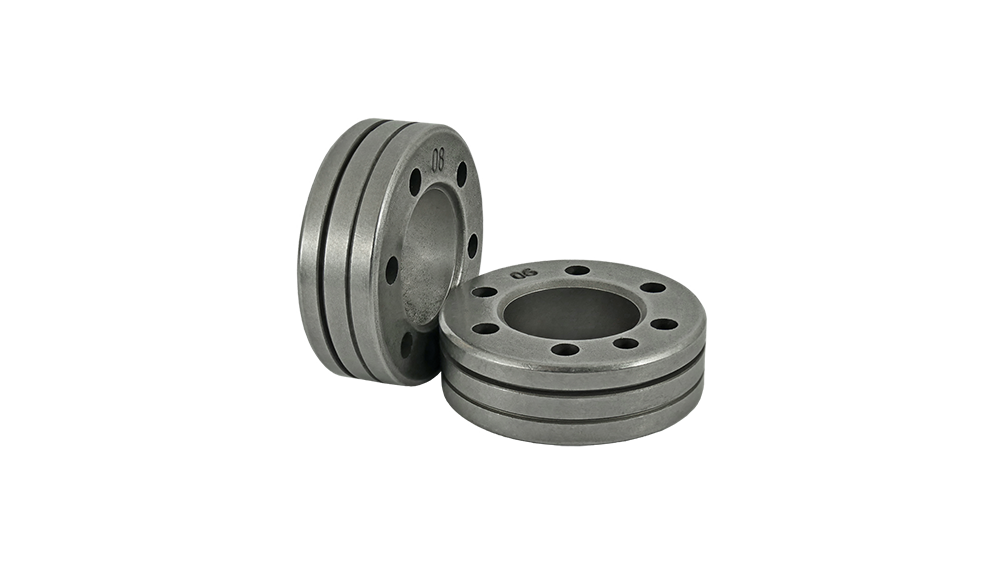

Wire feeder Roller Set (Steel, 0.6 mm & 0.8 mm): Part No.: 337219. 37 mm diameter rollers, for thinner steel wires.

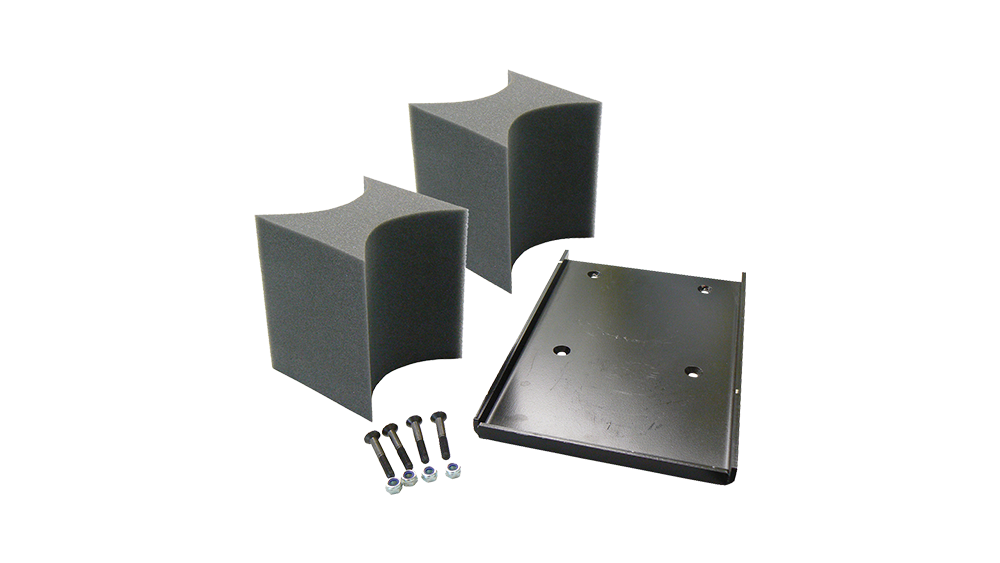

Plate adapter for IP 6-2 (For Second Gas Cylinder): Part No.: 311045. Enables the connection of a second gas cylinder. For use with two cylinders, we recommend using 10 liter cylinders. Contents: adapter plate, foam spacers, screws and nuts.

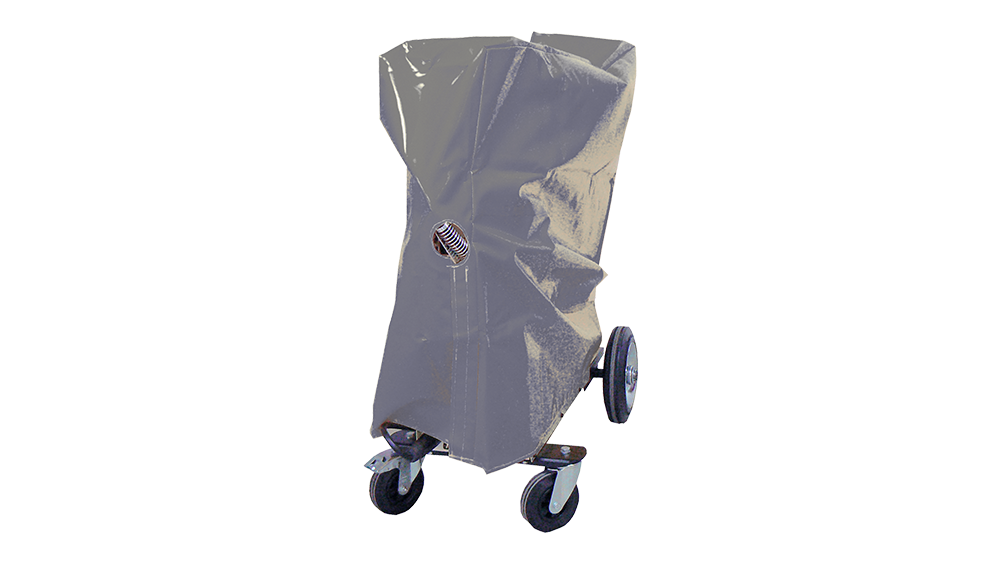

Protective cover (IP 6 / IP 6-2): Part No.: 338017. Protects the device from external damage and dust.

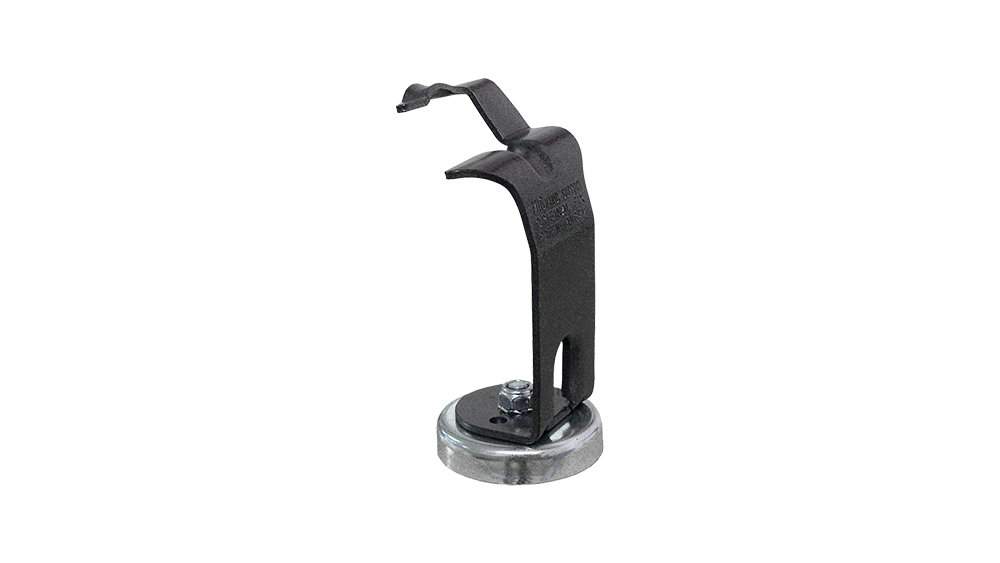

MIG-MAG Torch Holder with Magnetic Base: Part No.: 311043. Ensures safe and convenient storage for welding guns.
Protective paste for Gas Nozzles (Silicone-free): Part No.: 311026. Prevents rapid accumulation of welding slag on the gas and current conducting nozzles.
Trennfix Welding Protection Spray (Silicone-free): Part No.: 311020. Highly effective separating and lubricating agent that prevents slag adhesion.
To detect damage after severe collisions, the use of the following Ardrox products is recommended, which are compatible with inspecting surfaces repaired by the welding machine:
Faktortest Penetrant (Diffusion Red) | Ardrox 9VF2: Part No.: 311050. Penetrant with capillary action for detecting the finest cracks in metals, especially in aluminum structures (e.g., around the MacPherson strut).

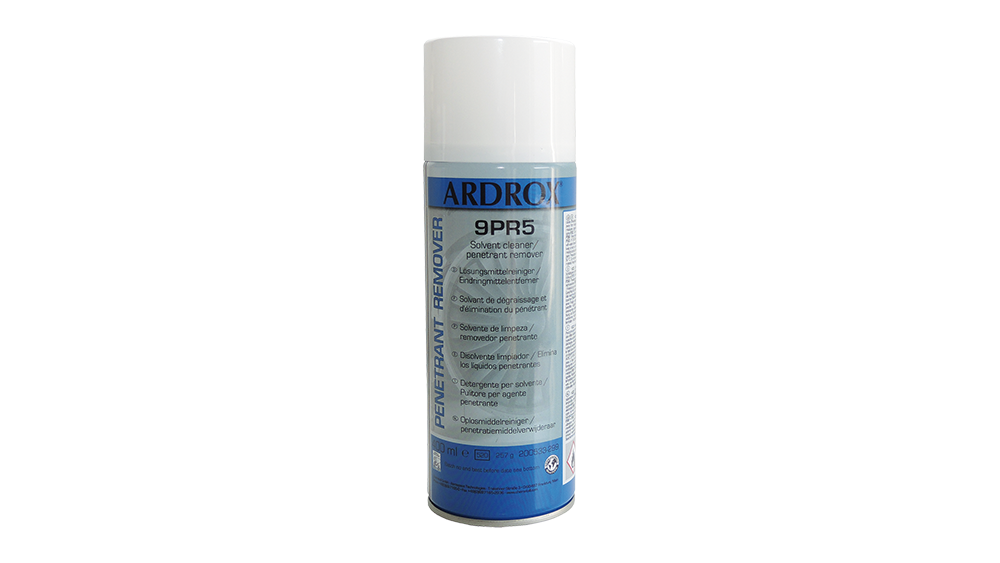

Faktortest Cleaner | Ardrox 9PR5: Part No.: 311051. Used for thorough surface preparation and removal of the penetrant. Leaves no residue.
Faktortest Developer Spray | Ardrox 9D1B: Part No.: 311052. The white developer layer highlights the cracks revealed by the penetrant, providing high contrast for fault detection.
The InvertaPuls IP 6-2 welding machine represents the pinnacle of Wielander + Schill's professional welding technology, guaranteeing the quality and efficiency of body repairs.
