This professional, high-quality quick pull hammer kit was developed specifically for the Wieländer+Schill InvertaSpot GT spot welder and the PSP 60 welding gun. The kit offers an ideal solution for fast, efficient, and economical repair of vehicle bodies, especially when removing dents where targeted pulling is essential.
The set enables the precise realignment of body panels with the help of weld-fixed pulling elements, minimizing the time and material waste associated with traditional repair methods.
Compatibility: Optimized specifically for the InvertaSpot GT spot welder and the PSP 60 welding gun.
Fast and Economical Repair: The combination of the included pulling discs and the quick pull hammer enables extremely fast and cost-effective dent repair.
Durability and Reusability: The pulling discs, if necessary, can be easily ground down or reworked if the welding tips wear out or burn.
Precise Work: With the help of the slide hammer, the sheet metal can be pulled precisely and targetedly, allowing the bodywork to be restored to its original shape.
Complete Set: The package contains everything necessary for the immediate application of the weld pulling technique.
Product part number: 478100.
The set includes the following components, ensuring full functionality:
| Part number | Designation | Technical Parameters / Scope of Delivery | Function |
|---|---|---|---|
| 501025 | Universal Slide Hammer | Universal design | When connected to the pulling discs, it provides the necessary pulling force for dent removal. |
| 501033 | Electrode for Triangle Shaped Pulling Discs | with M14 thread | Connecting element for welding the pulling discs. |
| 501034 | Hook for Discs | with M14 thread | For the quick and secure attachment of the pulling rods to the slide hammer. |
| 297009 | Washers (according to DIN 125 standard) | Ø 8.4/16 mm size, 100 pcs/package | General purpose washers for welding straightening, for the targeted processing of the sheet metal. |
| 297013 | Triangular Pulling Rods | 15 pcs/package | Special pulling elements that enable quick and efficient dent repair. |
The elements found in the set are closely related to the efficiency of body repair:
These rods enable quick and economical repair. After creating the welding points, the damaged area is pulled outwards using the slide hammer. To increase the lifespan of the rods, burnt or worn welding tips can be easily ground off if necessary.

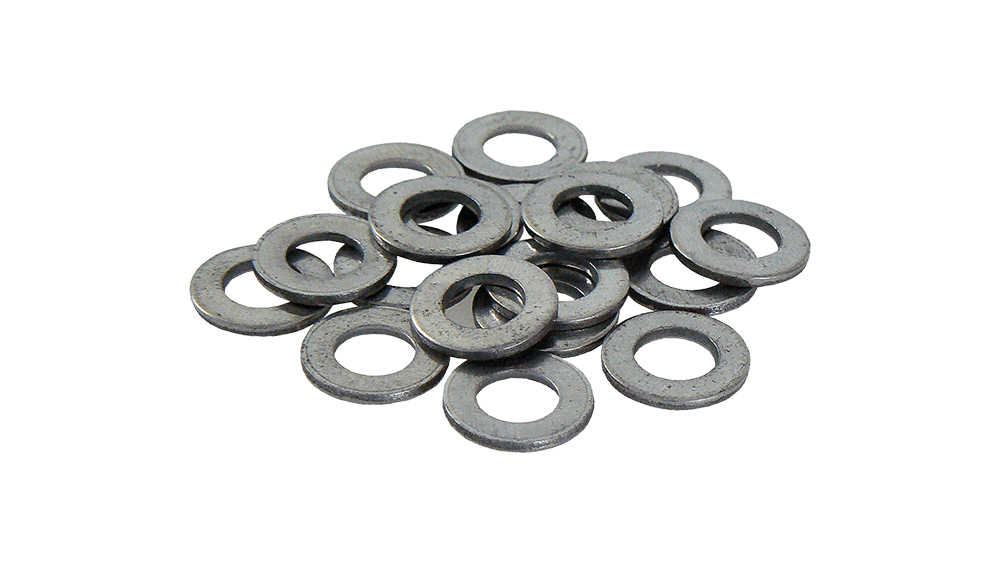

These standard washers (Ø 8.4/16 mm) are used during the welding process. They are placed on the sheet metal with the help of the welding gun, and then, by connecting to the pulling tool, they ensure the precise processing of the sheet metal and the restoration of the desired shape.

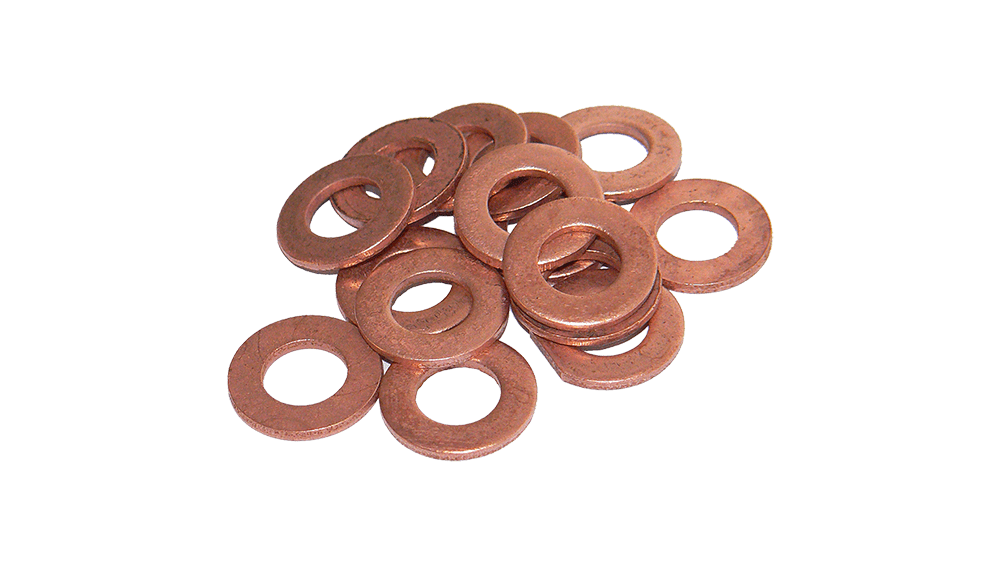

Although not part of the basic set, the copper-plated washers (Ø 8/16 mm, 100 pcs/package) offer an alternative for removing dents from vehicle bodies. The copper plating can improve the quality of the welding connection in certain applications.
This set is an essential tool for every professional who:
Uses spot welding technology for body repair.
InvertaSpot GT vagy PSP 60 uses a welding gun.
Wants to remove small and medium-sized dents using a targeted, minimally invasive method without needing access to the back of the surface to be repaired.
Guarantees the quality and reliability of Wieländer+Schill products, ensuring long-term, trouble-free operation under workshop conditions.
